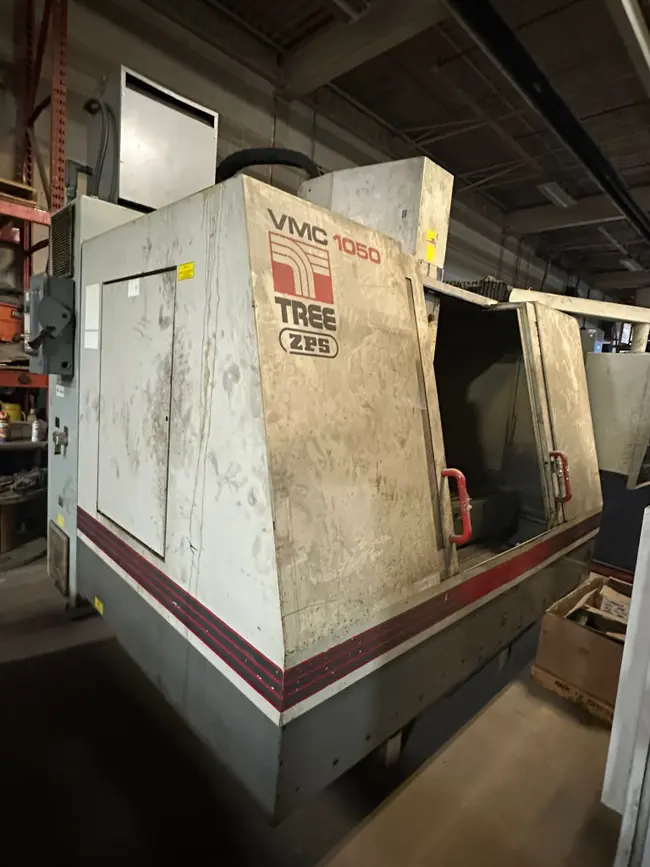

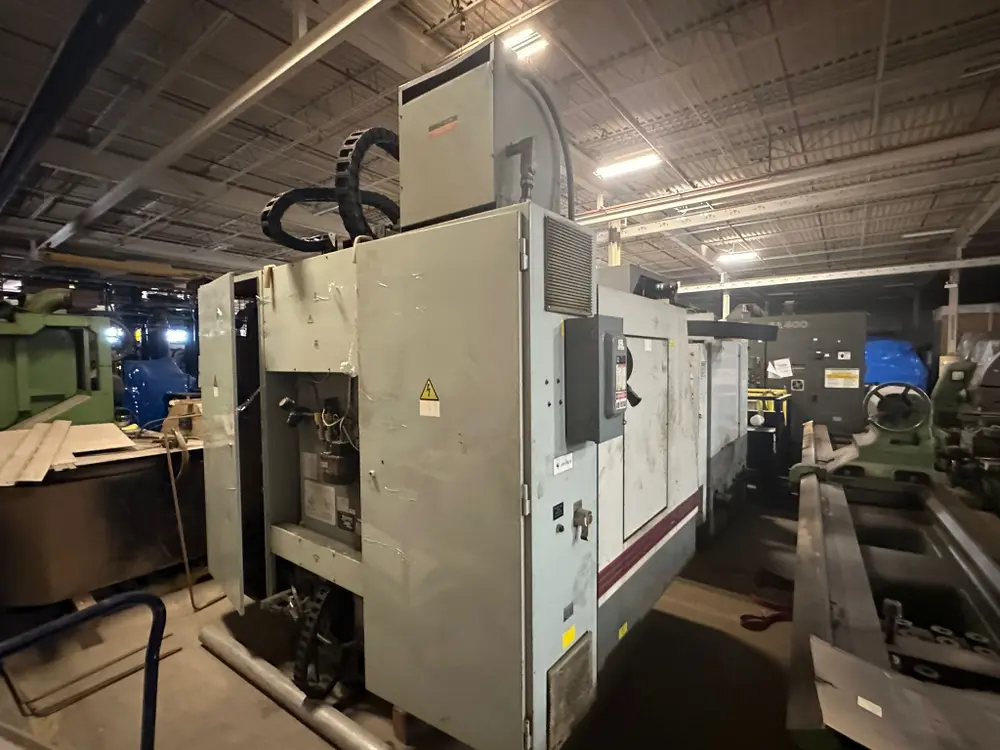

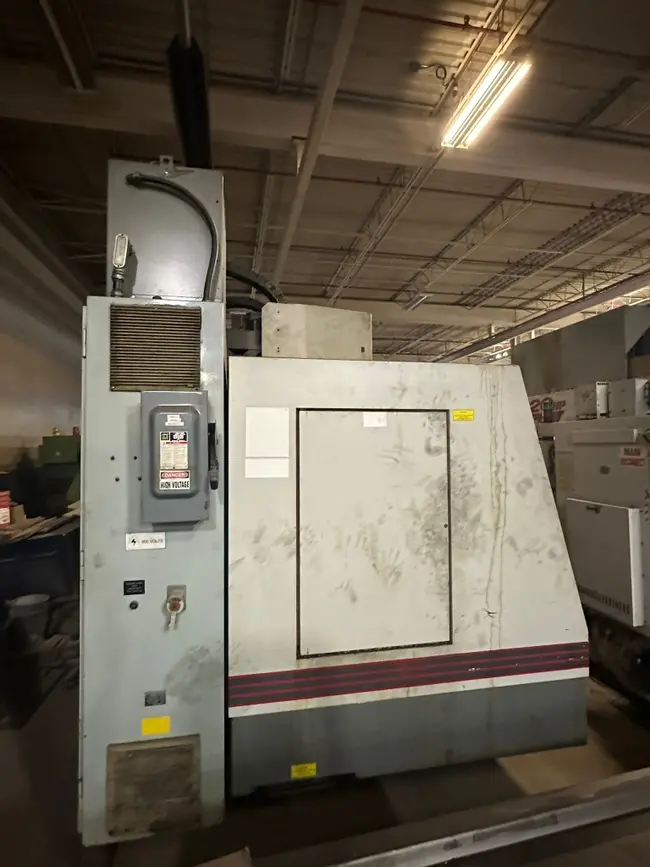

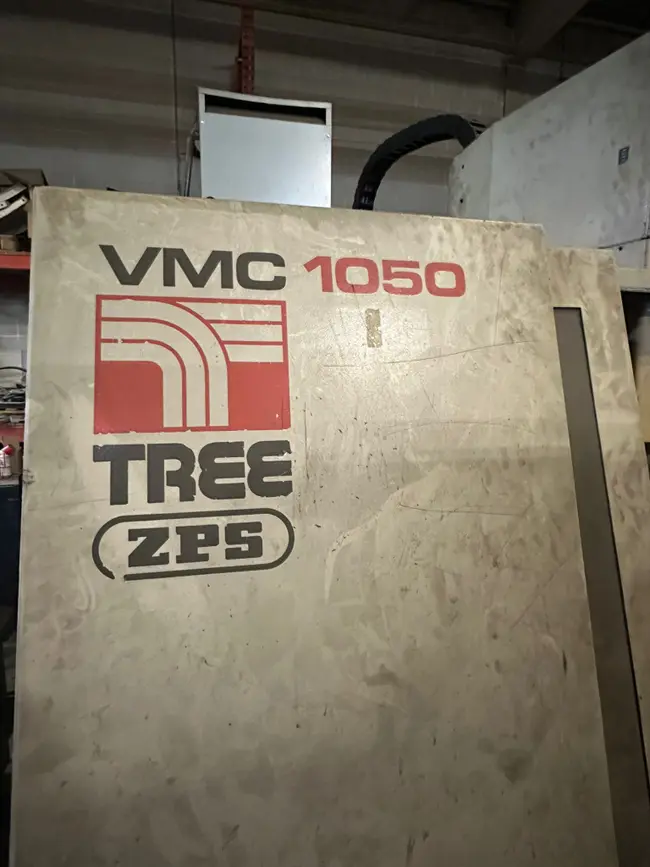

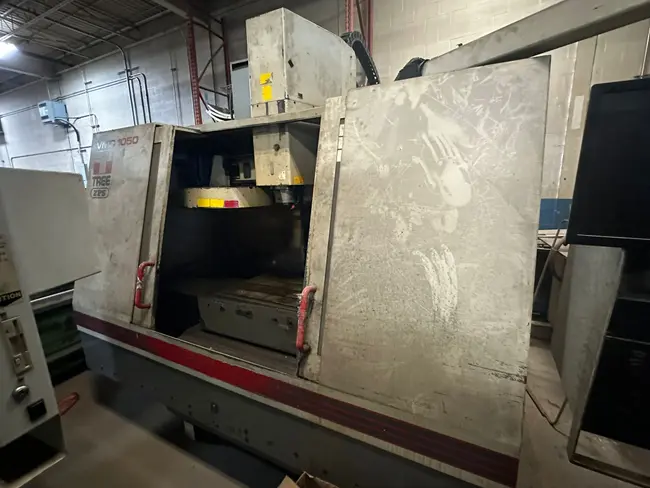

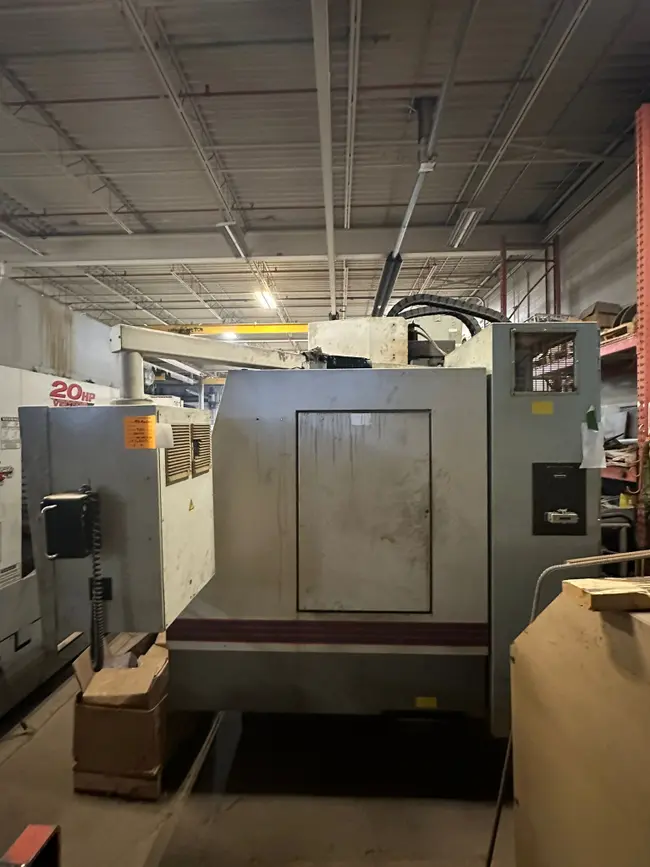

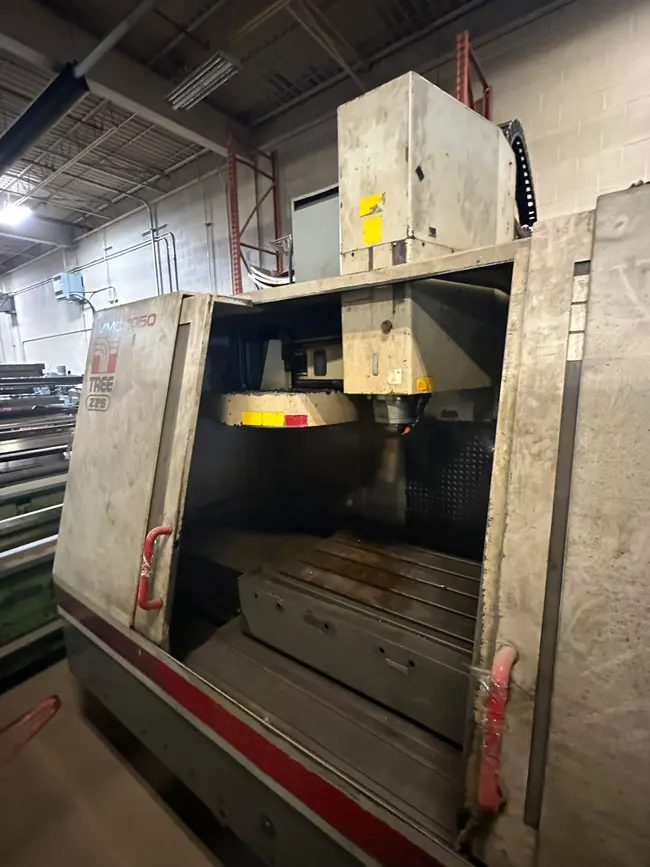

1993 TREE VMC 1050/24 VERTICAL MACHINING CENTER
Aucto ID: #75896
4c377882-aceb-406e-86c1-1f1d2893c1f0
Sold!
sold
Add to Watchlist
Location: Barrie, Ontario, Canada
Logistics:
Rigging:Buyer
Loading:Buyer
Shipping:BuyerorAucto Delivery! Get a Quote!
Verified Seller:
Description
Terms
| Name | 1993 TREE VMC 1050/24 VERTICAL MACHINING CENTER |
|---|---|
| Aucto ID | 75896 |
| Manufacturer | TREE |
| Model | VMC 1050/24 |
| Year of Manufacture | 1993 |
| Condition | 5 (Fair) |

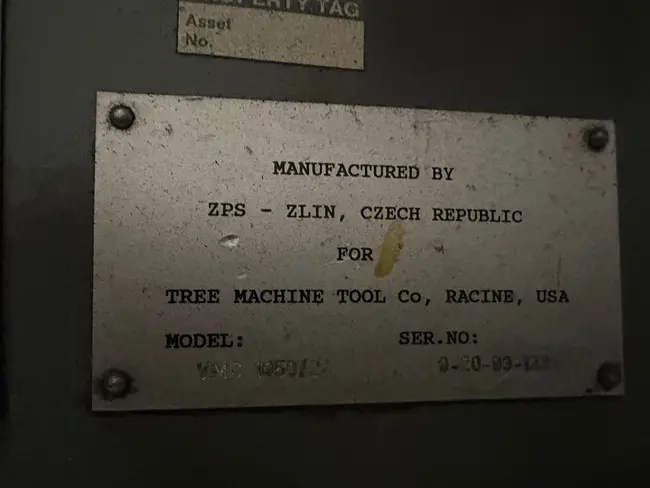

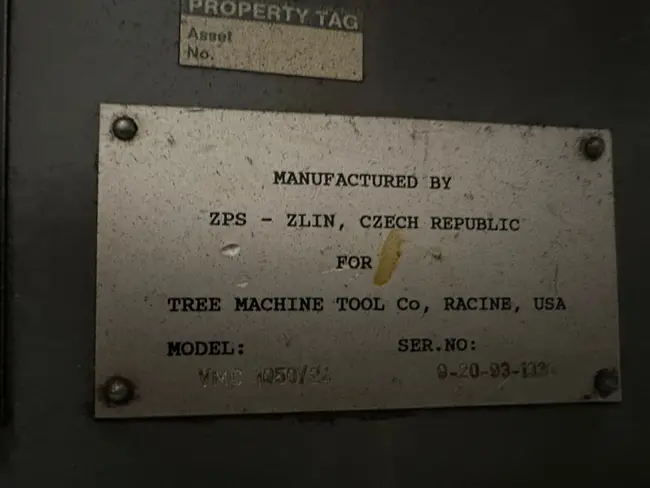

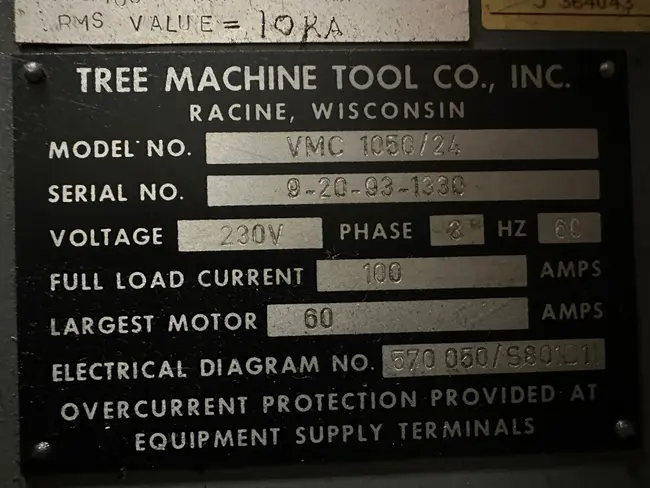

| Serial / VIN Number | 9-20-93-1330 |
| Additional Info | 1993 TREE VMC 1050/24 CNC VERTICAL MACHINING CENTER

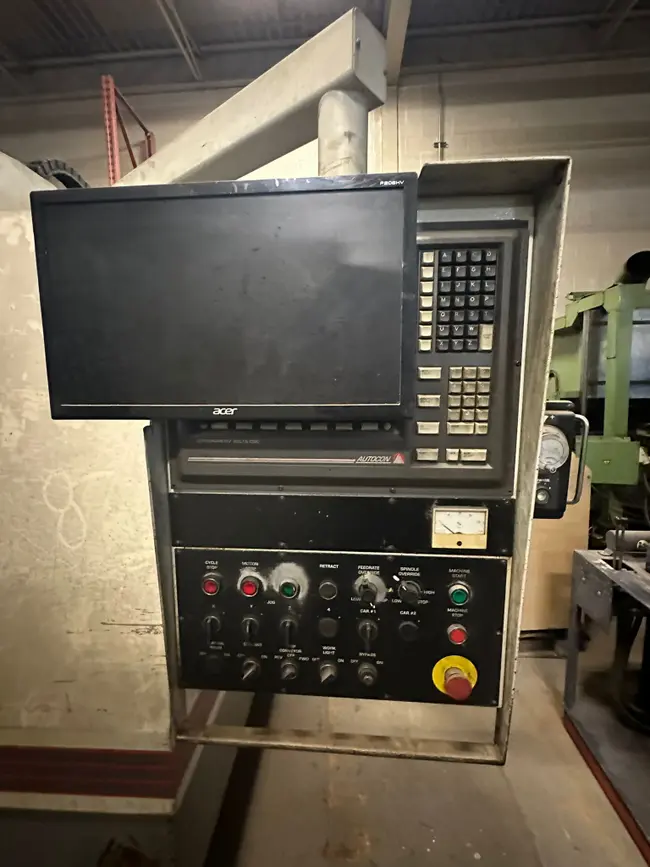

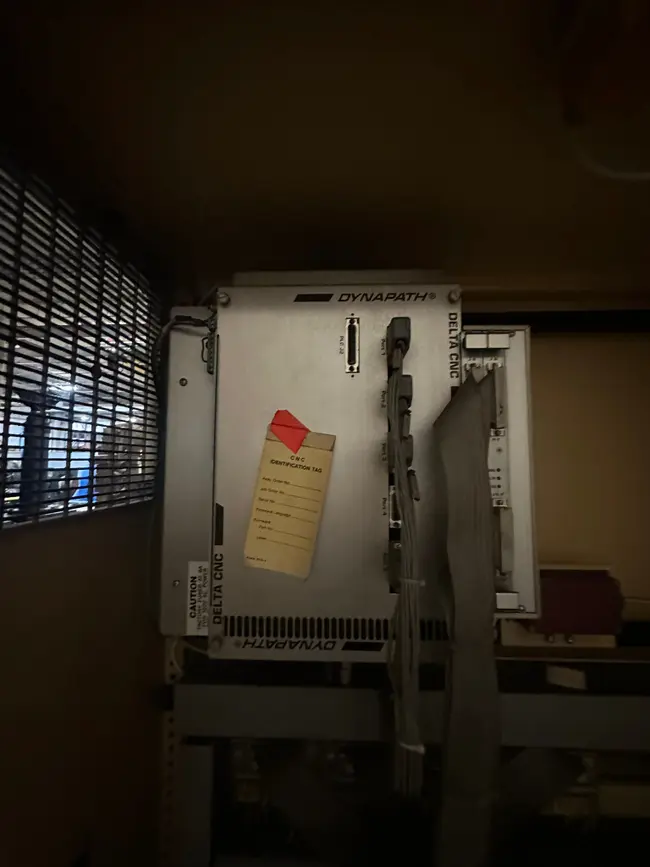

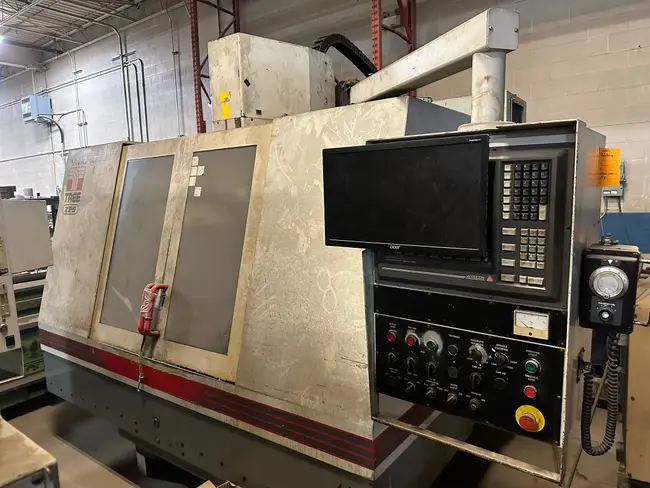

AUTOCON DYNAPATH DELTA CNC CONTROL CONSOLE

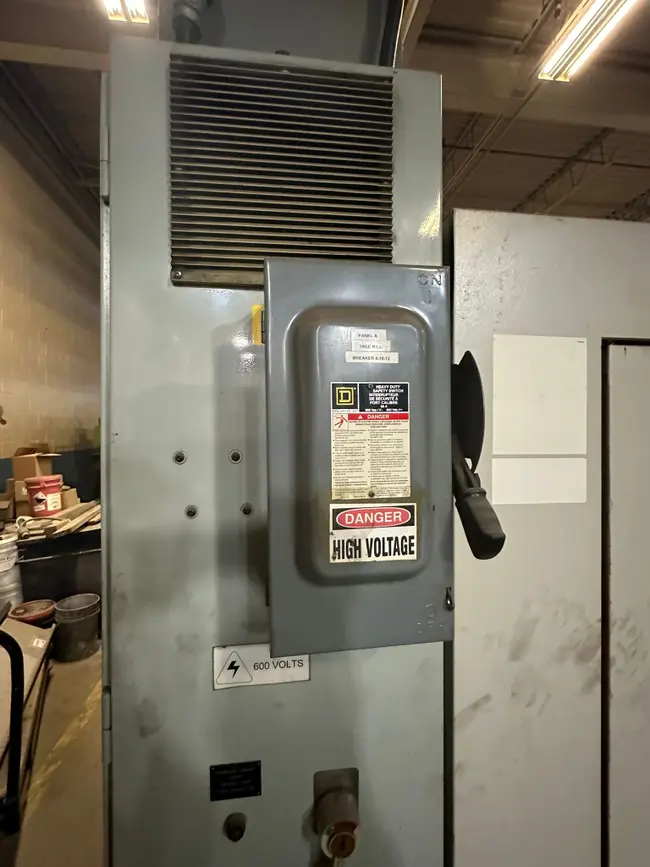

230V, 3PH, 60HZ
FULL LOAD 100A
LARGEST MOTOR 60A

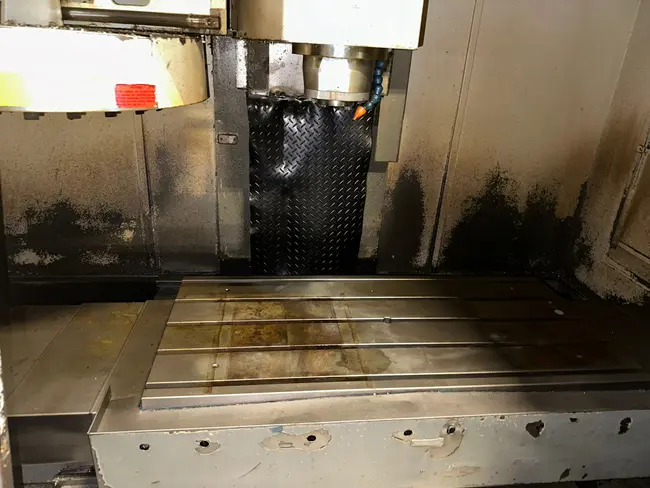

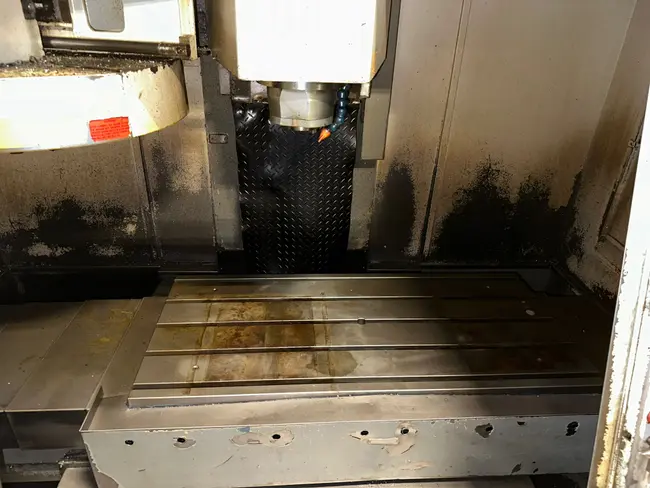

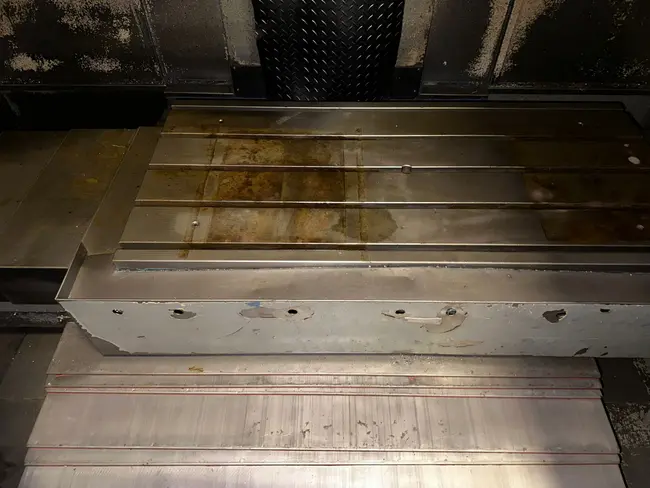

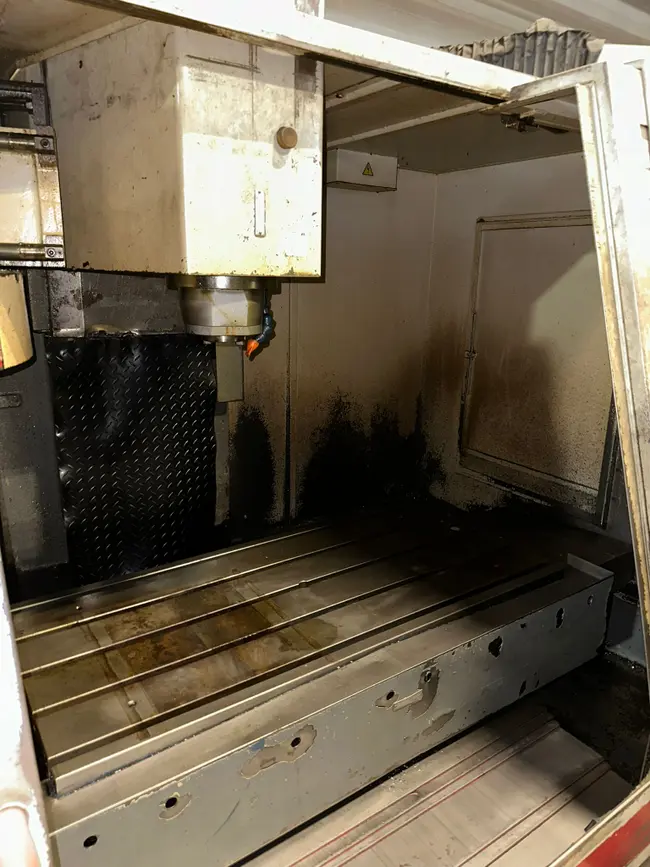

TABLE SIZE: 50" X 22.8" MAX
TABLE LOAD CAPACITY: 2000LBS
X-AXIS TRAVEL: 40", Y-AXIS TRAVEL: 20", Z-AXIS TRAVEL: 25"
SPINDLE NOSE TO TABLE: 3.9" – 28.9"
SPINDLE SPEEDS: LOW RANGE: 0-2000RPM, HIGH RANGE: 2001-8000RPM
SPINDLE TAPER: CAT # 40

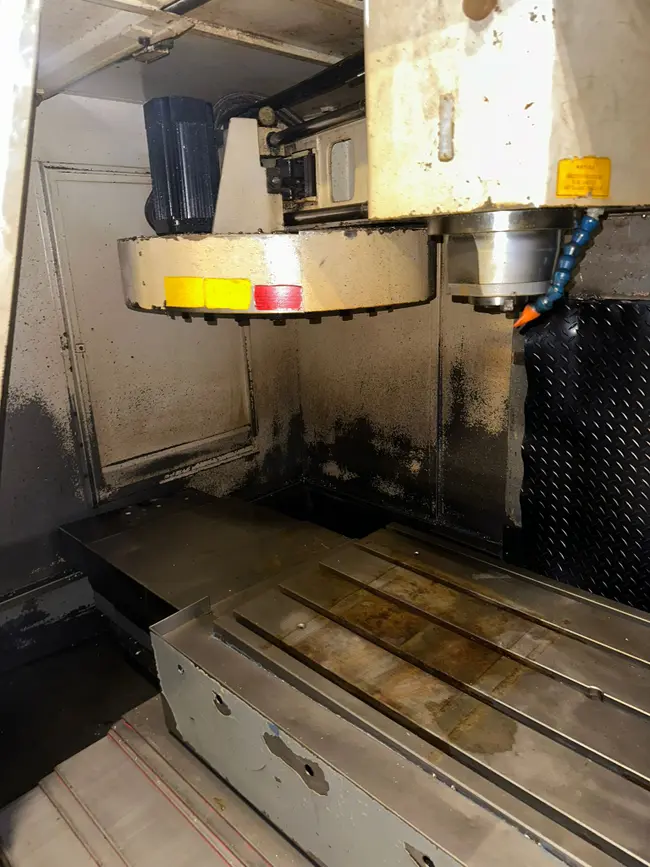

TOOL MAGAZINE CAPACITY: 24 MAX
TOOL DIAMETER: 3.5" WITH ADJACENT POCKETS, EMPTY- 6.3"
MAX. TOOL LENGTH: 11.8"
MAX. TOOL WEIGHT: 17.6LBS
RAPID TRAVERSE RATE: 787IPM
MAIN SPINDLE MOTOR: 15/20HP
MACHINE WEIGHT: 15,000+LBS
MACHINE DIMENSIONS: 9' 7" X 8' 6" X 9' 3". |
