Kentucky
Aucto ID: #90221
Buy Now
Verified Seller

Bridgeport/Hardinge GX-300 4-Axis VMC, FANUC, 20HP, 7083 RPM, CT40, Tsudakoma RNA-160L

Asking Price:
$9,950.00

Financing From: $165/mo

Get pre-approved in minutes — no credit impact

Apply

Delivery Options

Rigging · Included

Loading · Included

Shipping · Buyer or

Removal Deadline · 30 days

Product Description

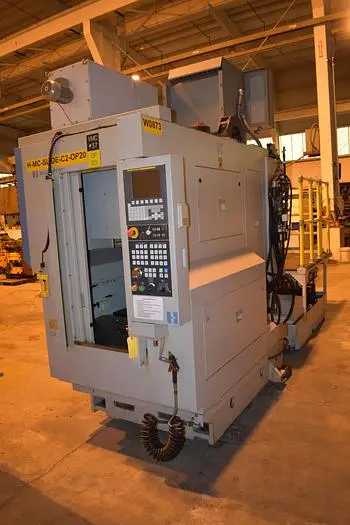

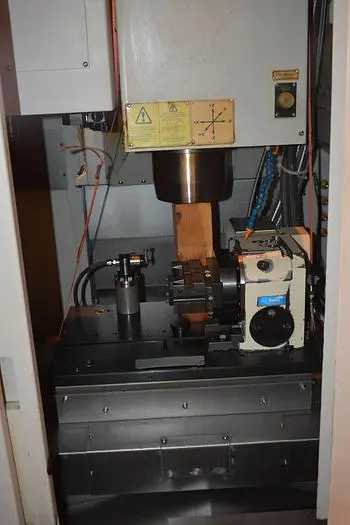

2013 BRIDGEPORT HARDINGE GX-300 4-Axis CNC VMC equipped with RNA-160L Tsudakoma NC Rotary Table. Features 20 hp, 7,083 RPM, 20 ATC, ct40 taper, and comes with tooling. Ideal for aerospace and automotive industries. Located in Cincinnati, OH. X - 11.8" Y - 15.8" Z - 16.9" Power - 20 hp RPM - 7,083 RPM # ATC - 20 Taper - ct40 Pallet-W - 15.8" Pallet-L - 23.6" # Axis - 4 Control - CNC (Fanuc OiMD CNC Control) Dimensions - 57.09 x 100.87 x 93.35 Weight - 11000 LBS GX-300 BRIDGEPORT/HARDINGE 4-AXIS CNC VERTICAL MACHINING CENTER w/RNA-160L TSUDAKOMA NC ROTARY TABLE New 2013, Serial No GXPB3H0015, Model GX-300 Low hours- only 3300+ hours EQUIPPED WITH: Fanuc OiMD CNC Control RNA-160L Tsudakoma NC Rotary Table 20-Position Bi-Directional Automatic Tool Changer (Swing-Arm) Thru-Spindle Coolant - 20 HP Spindle Motor Losma "Icaras" Mist Filtration System (Model S) LNS "TURBO 250" High Pressure Thru-Spindle Coolant System w/Chip Conveyor Comes with some Tooling CATALOG SPECIFICATIONS: Table Working Surface, W x L 15.8" x 23.6" Table Load Capacity 396 LBS Table Longitudinal Travel (X-Axis) 11.8" Saddle Cross Travel (Y-Axis) 15.8" Vertical Travel (Z-Axis) 16.9" Spindle Taper ct40 Tool Diameter Full Drum, Maximum 3.15" Tool Diameter Empty Pockets, Maximum 5.9" Tool Length, Maximum 8.86" Tool Weight, Maximum 13.2 LBS Spindle Speeds, Range 0 to 7083 RPM Positioning Speed Manual Mode, Range 0 to 354 IPM Rapid Traverse Rates, X, Y, & Z-Axis' 1181 IPM Distance Table to Gauge Plane, Range 5.9" to 22.8" Spindle Motor, Horsepower Rating 20 HP Machine Dimensions, L x D 57.09" x 100.87" Machine Height 93.35" Weight Approximately 11000 LBS NOTE: These Machines Were Designed With A Very Compact Footprint In Order To Better Utilize Valuable Floor Space. These Specifications Make The GX Machines Ideal For The Aerospace, Medical Defense, 3C, Automotive And Other Industries Who Require High-Value, Complex, Parts From Difficult To Machine Materials. F.O.B. OUR WAREHOUSE in Cincinnati, OH GX-300 BRIDGEPORT/HARDINGE 4-AXIS CNC VERTICAL MACHINING CENTER w/RNA-160L TSUDAKOMA NC ROTARY TABLE New 2013, Serial No GXPB3H0015, Model GX-300 Low hours- only 3300+ hours EQUIPPED WITH: Fanuc OiMD CNC Control RNA-160L Tsudakoma NC Rotary Table 20-Position Bi-Directional Automatic Tool Changer (Swing-Arm) Thru-Spindle Coolant - 20 HP Spindle Motor Losma "Icaras" Mist Filtration System (Model S) LNS "TURBO 250" High Pressure Thru-Spindle Coolant System w/Chip Conveyor Comes with some Tooling CATALOG SPECIFICATIONS: Table Working Surface, W x L 15.8" x 23.6" Table Load Capacity 396 LBS Table Longitudinal Travel (X-Axis) 11.8" Saddle Cross Travel (Y-Axis) 15.8" Vertical Travel (Z-Axis) 16.9" Spindle Taper ct40 Tool Diameter Full Drum, Maximum 3.15" Tool Diameter Empty Pockets, Maximum 5.9" Tool Length, Maximum 8.86" Tool Weight, Maximum 13.2 LBS Spindle Speeds, Range 0 to 7083 RPM Positioning Speed Manual Mode, Range 0 to 354 IPM Rapid Traverse Rates, X, Y, & Z-Axis' 1181 IPM Distance Table to Gauge Plane, Range 5.9" to 22.8" Spindle Motor, Horsepower Rating 20 HP Machine Dimensions, L x D 57.09" x 100.87" Machine Height 93.35" Weight Approximately 11000 LBS NOTE: These Machines Were Designed With A Very Compact Footprint In Order To Better Utilize Valuable Floor Space. These Specifications Make The GX Machines Ideal For The Aerospace, Medical Defense, 3C, Automotive And Other Industries Who Require High-Value, Complex, Parts From Difficult To Machine Materials. F.O.B. OUR WAREHOUSE in Cincinnati, OH GX-300 BRIDGEPORT/HARDINGE 4-AXIS CNC VERTICAL MACHINING CENTER w/RNA-160L TSUDAKOMA NC ROTARY TABLE New 2013, Serial No GXPB3H0015, Model GX-300 Low hours- only 3300+ hours EQUIPPED WITH: Fanuc OiMD CNC Control RNA-160L Tsudakoma NC Rotary Table 20-Position Bi-Directional Automatic Tool Changer (Swing-Arm) Thru-Spindle Coolant - 20 HP Spindle Motor Losma "Icaras" Mist Filtration System (Model S) LNS "TURBO 250" High Pressure Thru-Spindle Coolant System w/Chip Conveyor Comes with some Tooling CATALOG SPECIFICATIONS: Table Working Surface, W x L 15.8" x 23.6" Table Load Capacity 396 LBS Table Longitudinal Travel (X-Axis) 11.8" Saddle Cross Travel (Y-Axis) 15.8" Vertical Travel (Z-Axis) 16.9" Spindle Taper ct40 Tool Diameter Full Drum, Maximum 3.15" Tool Diameter Empty Pockets, Maximum 5.9" Tool Length, Maximum 8.86" Tool Weight, Maximum 13.2 LBS Spindle Speeds, Range 0 to 7083 RPM Positioning Speed Manual Mode, Range 0 to 354 IPM Rapid Traverse Rates, X, Y, & Z-Axis' 1181 IPM Distance Table to Gauge Plane, Range 5.9" to 22.8" Spindle Motor, Horsepower Rating 20 HP Machine Dimensions, L x D 57.09" x 100.87" Machine Height 93.35" Weight Approximately 11000 LBS NOTE: These Machines Were Designed With A Very Compact Footprint In Order To Better Utilize Valuable Floor Space. These Specifications Make The GX Machines Ideal For The Aerospace, Medical Defense, 3C, Automotive And Other Industries Who Require High-Value, Complex, Parts From Difficult To Machine Materials. F.O.B. OUR WAREHOUSE in Cincinnati, OH

Core Specifications

Manufacturer: BRIDGEPORT/HARDINGE

Model: GX300

Year: 2013

Serial Number / VIN: GXPB3H0015

Dimensions: 57.09 in L x 100.87 in W x 93.35 in H

Weight: 11,000 lb

Packaging Type: 1 Piece

Condition: Good - Item functions as originally intended, shows minimal signs of wear.

Condition Details: 3300+ HOURS
