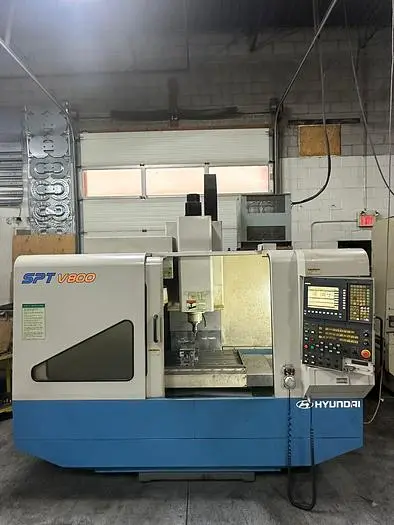

2000 HYUNDAI SPT-V800 VERTICAL MACHINING CENTER

2000 HYUNDAI SPT-V800 VERTICAL MACHINING CENTER SIZE OF TABLE WORKING SURFACE OF TABLE: 950 X 460 MM MAXIMUM LOAD OF TABLE: 800 KG TURNOVER AMOUNT: TURNOVER OF X-AXIS: 800 MM, TURNOVER OF Y-AXIS: 460 MM, TURNOVER OF Z-AXIS: 620 MM DISTANCE FROM TOP SIDE OF TABLE TO THE SPINDLE: 100 MM MAIN SPINDLE: ROTATION VELOCITY OF MAIN SPINDLE: 75-10,000 RPM MAIN SPINDLE TAPER: ISO NO 40 FEED SPEED: RAPID FEED SPEED (X,Y,Z): 30/30/24 M/MIN CUTTING FEED RATE: 8 M/MIN ATC: TOOL SHANK TYPE: MAS NO 40/BT40 THE NUMBER OF TOOL: 20 EA MAX CUTTER RADIUS WHEN EXCEPTING NEIGHBOR TOOL: Ф 100/Ф150 MM TOOL CLAMP POWER: 1200 KG TOOL SELECTION TYPE: DESIGNATION OF NUMBER MAX TOOL LENGTH: 300 MM MAX TOOL WEIGHT: 8 KG TOOL REPLACEMENT TIME (T-T / C-C): 5.2/7.2 SEC MOTOR: MAIN SPINDLE MOTOR (30MIN/CONTINUOUS): 16(21.7) / 12(16) KW(HP) MOTOR FOR FEED SHAFT (X, Y / Z): 5/8.5 KW COOLANT MOTOR: 0.9 / 0.25 KW REQUIRED POWER, POWER: 220 V, CAPACITY OF GROSS CAPACITY: 35 KVA AIR PRESSURE: 5 KG/CM CONTROL: SIEMENS 810D, SIZE OF M/C HEIGHT OF MACHINE: 2750 MM REQUIRED GROUND AREA: 3000 X 3000 MM WEIGHT OF M/C: 5000 KG CAPACITY OF TANK, TANK FOR CUTTING OIL: 450 ℓ, LUBRICATING TANK: 3.4 ℓ.
