1999 Mori Seiki SV-50/40, CNC VMC, 1020X510X510MM Travel, CAT 40, 10K RPM, 15kW, 30 Tool ATC

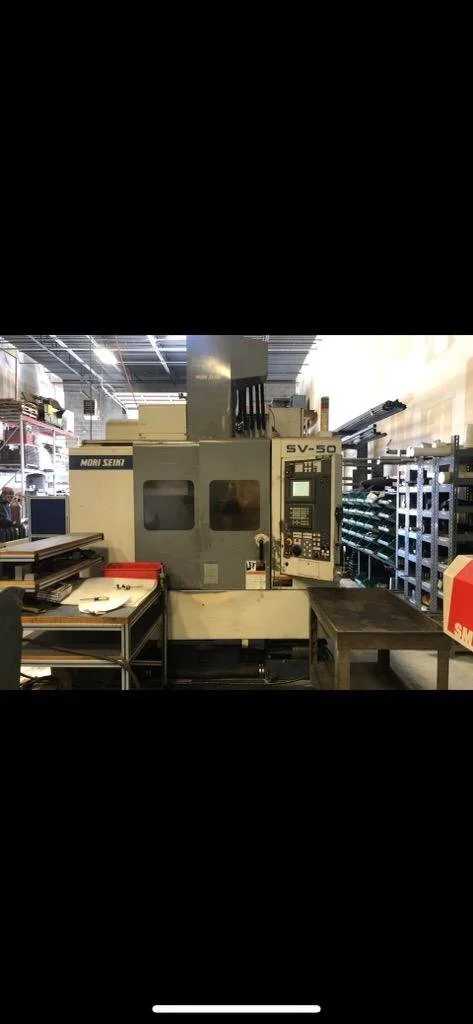

The Mori Seiki SV-50/40 is a CNC vertical machining center manufactured in 1999. It features a work envelope defined by X-axis travel of 1020 mm (40.16 inches), Y-axis travel of 510 mm (20.08 inches), and Z-axis travel of 510 mm (20.08 inches). The machine is equipped with a 1200 mm x 600 mm (47.24 inches x 23.62 inches) work table. Its CAT 40 spindle operates at a maximum speed of 10,000 RPM, powered by a 15 kW (20 HP) spindle motor. Tool changes are facilitated by a 30-tool automatic tool changer. This model includes dual chip conveyors for efficient material evacuation and typically operates under a Fanuc MSC-501 control system.
