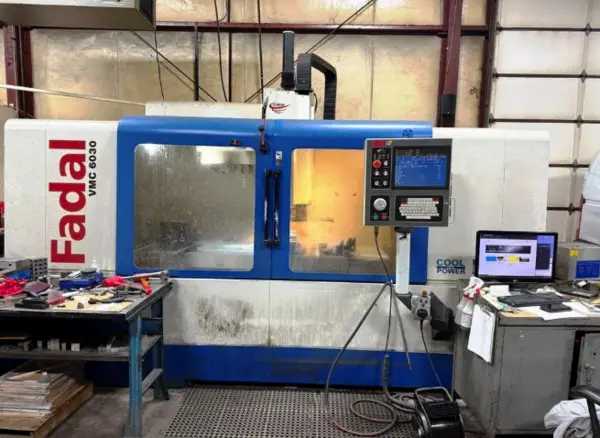

2004 FADAL VMC-6030 VMC, 60"X30"X30" TRAVEL, 10000 RPM, 22.5 HP SPINDLE, 21 TOOL ATC

THE FADAL VMC-6030 IS A VERTICAL MACHINING CENTER FEATURING X, Y, AND Z-AXIS TRAVELS OF 60 INCHES, 30 INCHES, AND 30 INCHES, RESPECTIVELY. IT IS EQUIPPED WITH A 22.5 HP SPINDLE CAPABLE OF 10,000 RPM AND A CAT-40 TAPER. THE MACHINE INCLUDES A 21-TOOL AUTOMATIC TOOL CHANGER (ATC). ITS WORK TABLE MEASURES 62.5 INCHES IN LENGTH AND 31 INCHES IN WIDTH. THE VERTICAL DISTANCE FROM THE TABLE TOP TO THE SPINDLE RANGES FROM 5.5 INCHES TO 35.5 INCHES, WITH A THROAT DEPTH OF 30 INCHES. MAXIMUM TOOL DIAMETER IS 3 INCHES OR 6 INCHES, AND MAXIMUM TOOL LENGTH IS 15 INCHES. THE MACHINE'S OVERALL DIMENSIONS ARE 158 INCHES X 103 INCHES X 119 INCHES, WITH A TOTAL WEIGHT OF 17,500 LBS.
