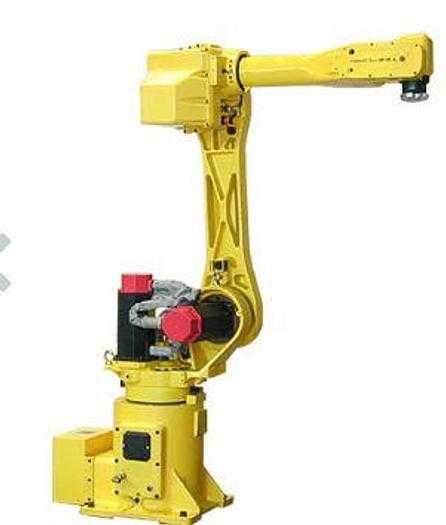

2002 FANUC M-16IL Robot, 10kg Payload, 1813mm Reach, RJ3 Controller - High Performance!

The 2002 FANUC M-16IL is a six-axis articulated CNC robot featuring a double-jointed long-arm design for high-speed access to large work areas. It provides a 10 kg payload capacity, an extended horizontal reach of 1,813 mm, and a repeatability of ±0.1000 mm. The robot has a mass of 270 kg and supports floor, inverted, and angle mounting configurations. Axis motion speeds are 140°/s for J1, J2, and J3, 330°/s for J4 and J5, and 450°/s for J6. The motion range includes ±165° for J1, +162° to -78° for J2, +275° to -135° for J3, ±200° for J4, ±140° for J5, and ±450° for J6. This model is equipped with a FANUC RJ3 controller, teach pendant, and cables. It is designed for applications such as dispensing, machine loading, machine tending, material handling, material removal, and pick and place. Internal electrical and pneumatic services are integrated into the arm to simplify tooling installation.
