2005 FANUC S-500iB Robot, 15kg Payload, 2757mm Reach, RJ3iB Controller, 6 Axes

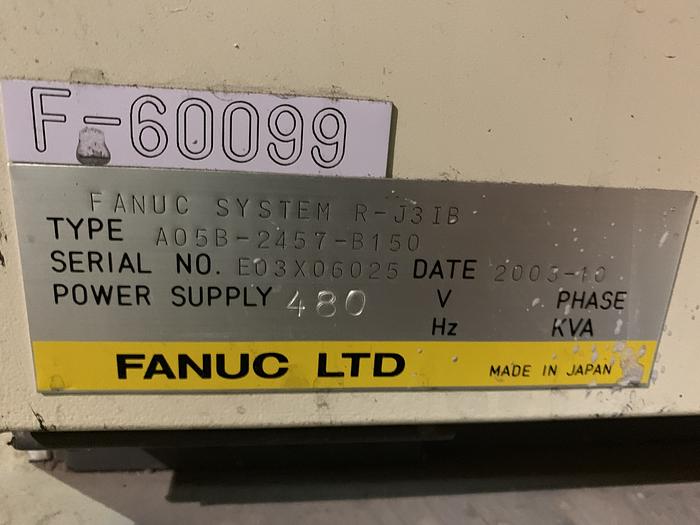

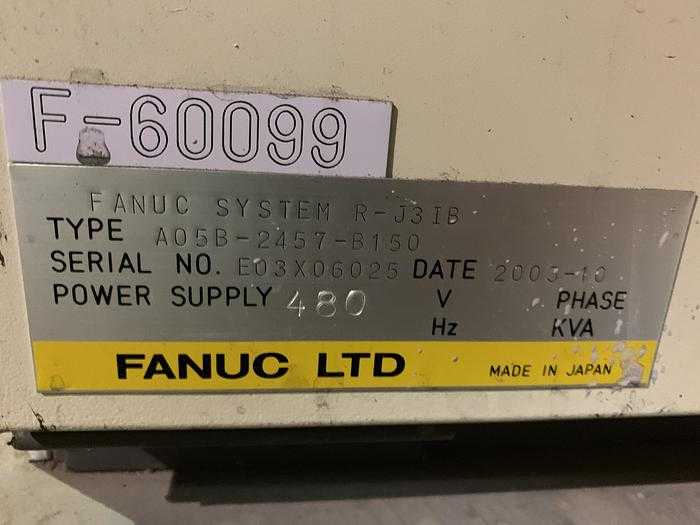

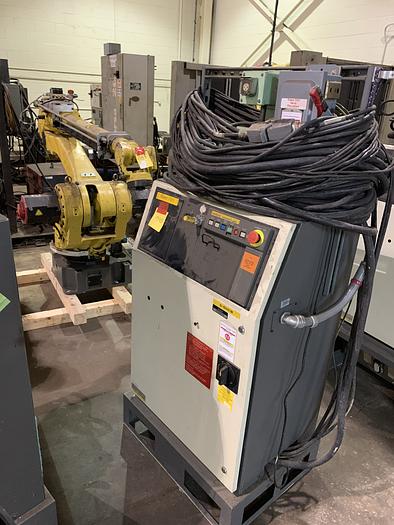

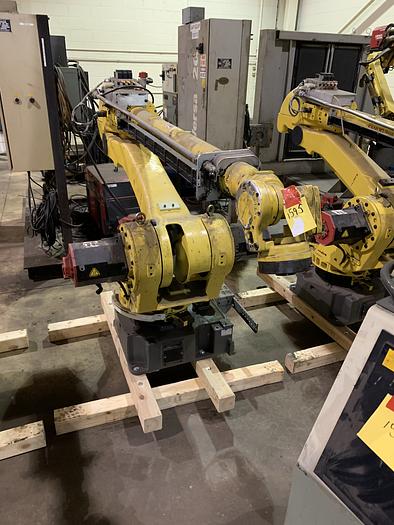

The 2005 FANUC S-500iB is a six-axis articulated robot designed for high-speed movements in applications such as dispensing, machine loading, material handling, material removal, and part transfer. This model features a 15 kg payload capacity, a horizontal reach of 2757 mm, and a repeatability of ±0.1500 mm. The robot has a mass of 610 kg and supports floor, inverted, and angle mounting configurations. It is equipped with an RJ3iB controller, connection cables, and a teach pendant. The slender arm design utilizes brushless AC servo motors and RV speed reducers, with cables routed through hollow joints to reduce interference and increase access to parts. Axis motion speeds are 170°/s for J1 and J2, 200°/s for J3, 335°/s for J4, 360°/s for J5, and 600°/s for J6. The motion range for the axes is J1 ±160°, J2 +100°/-60°, J3 +149°/-119°, J4 ±240°, J5 ±120°, and J6 ±450°.
