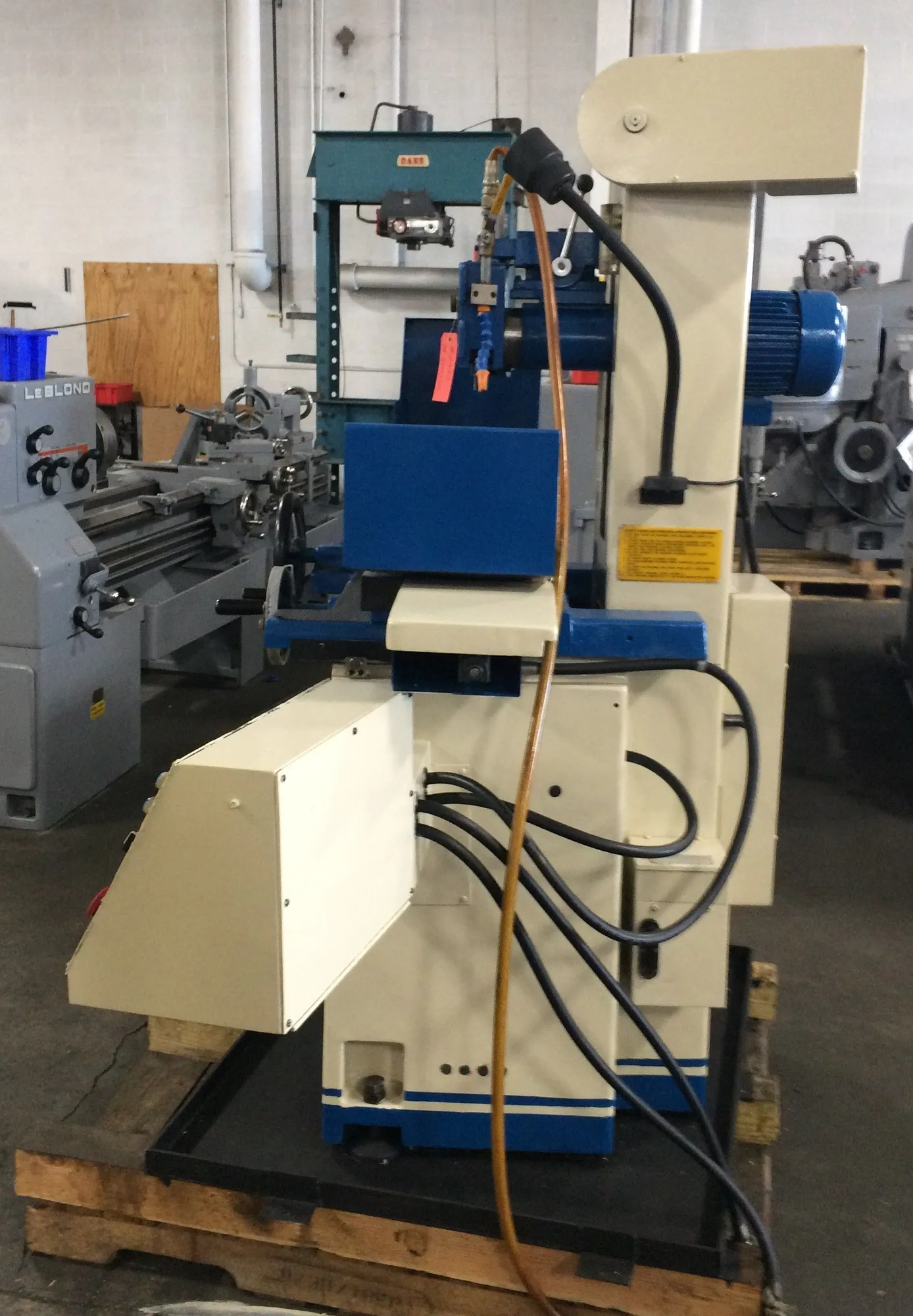

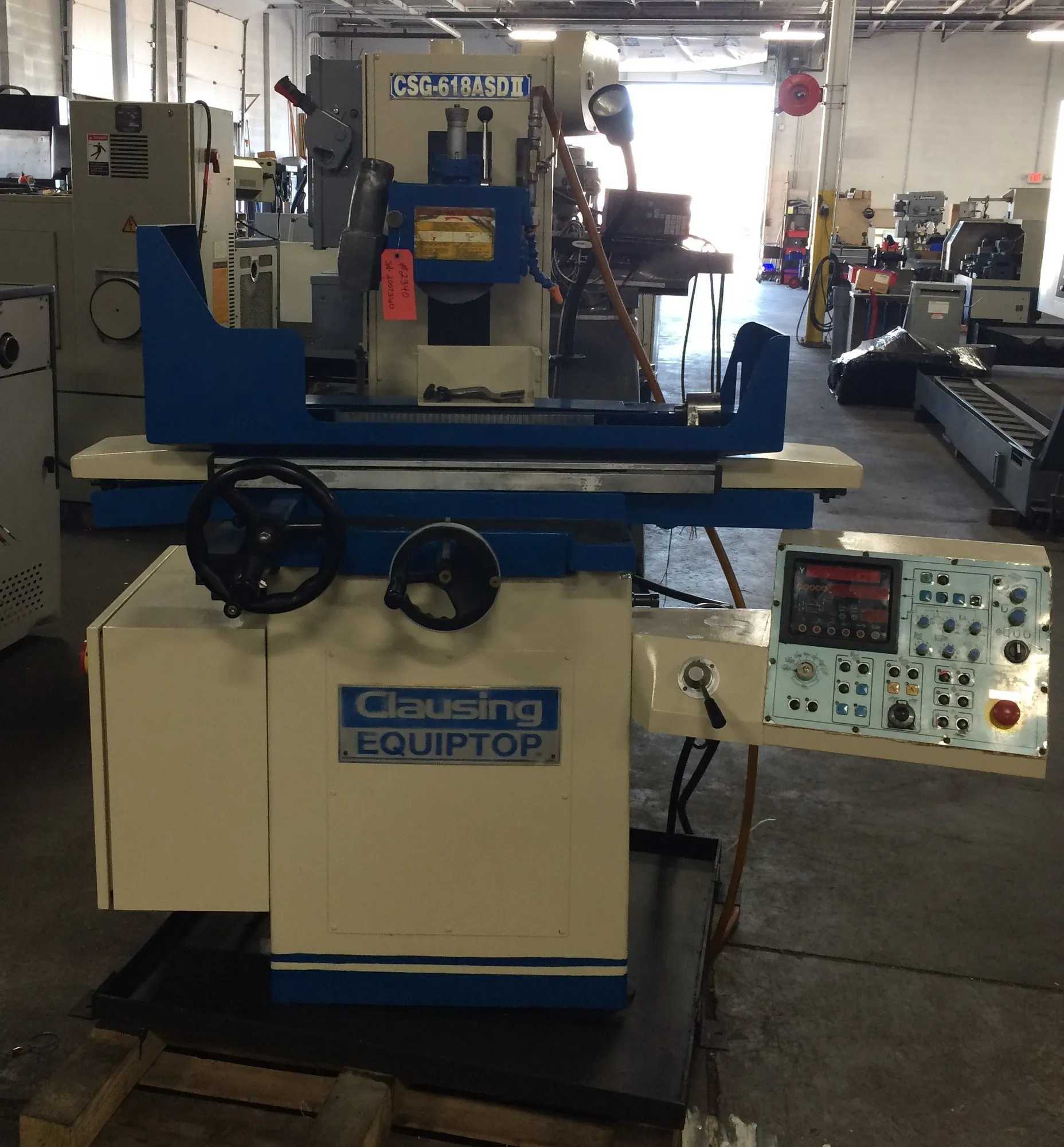

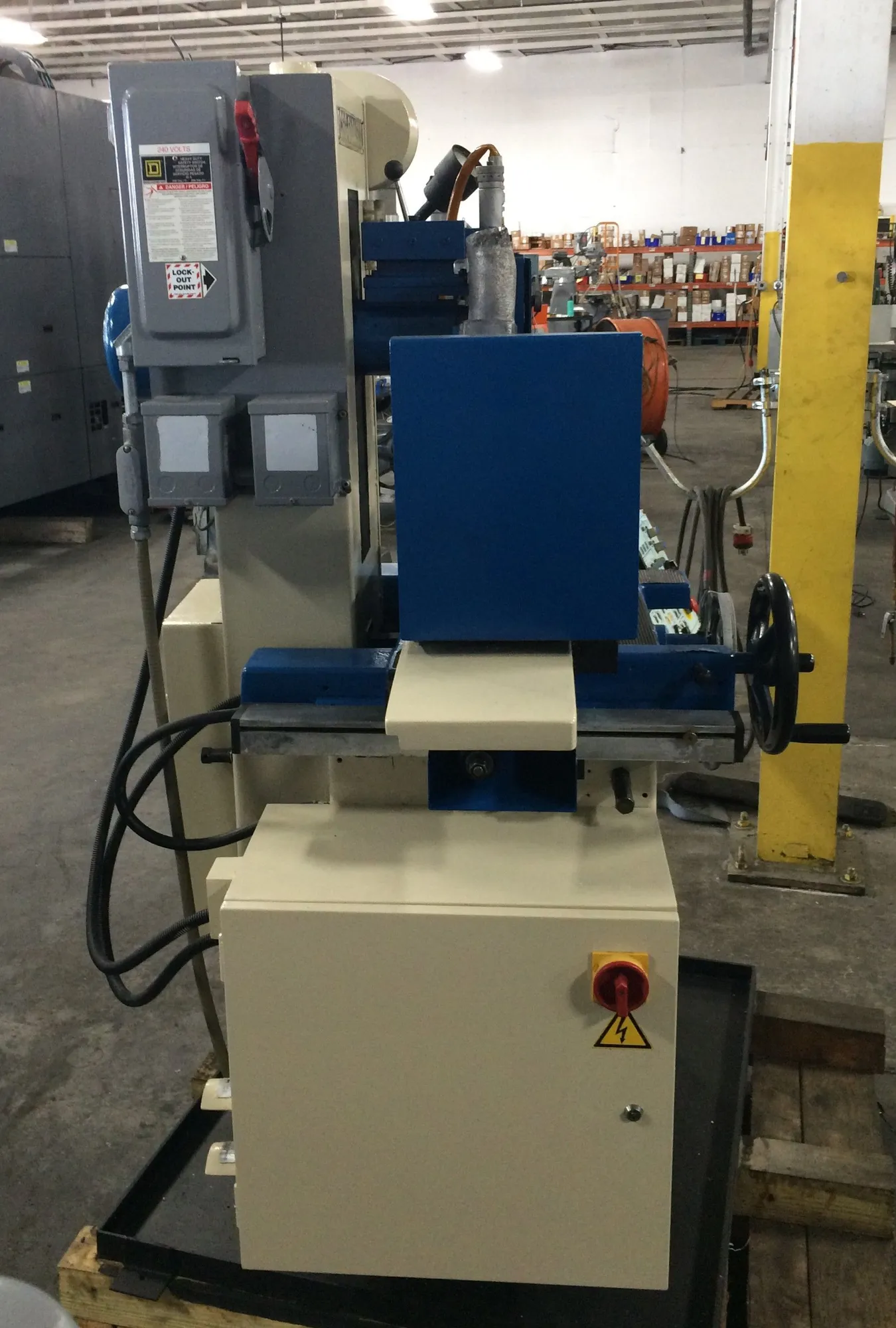

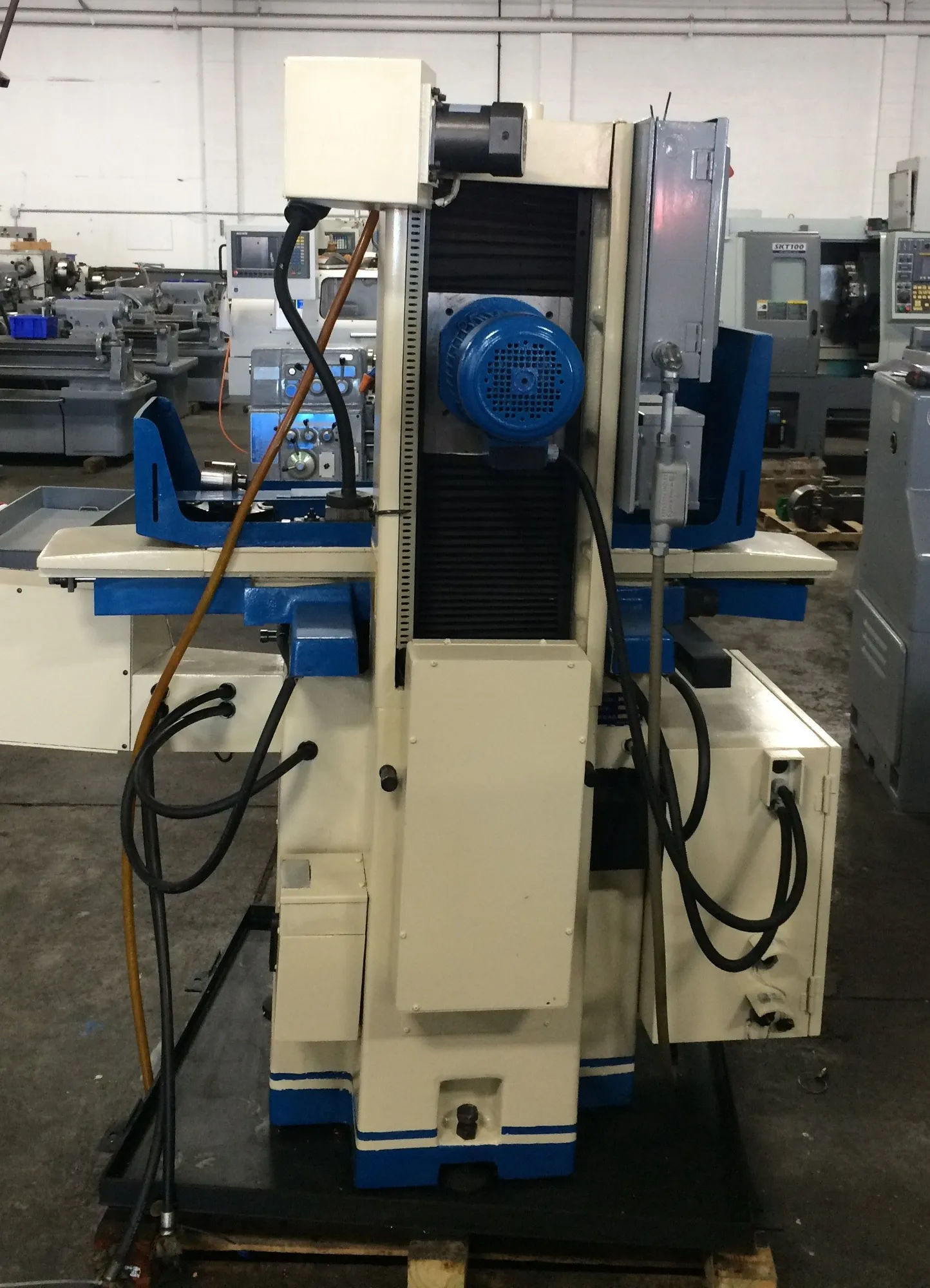

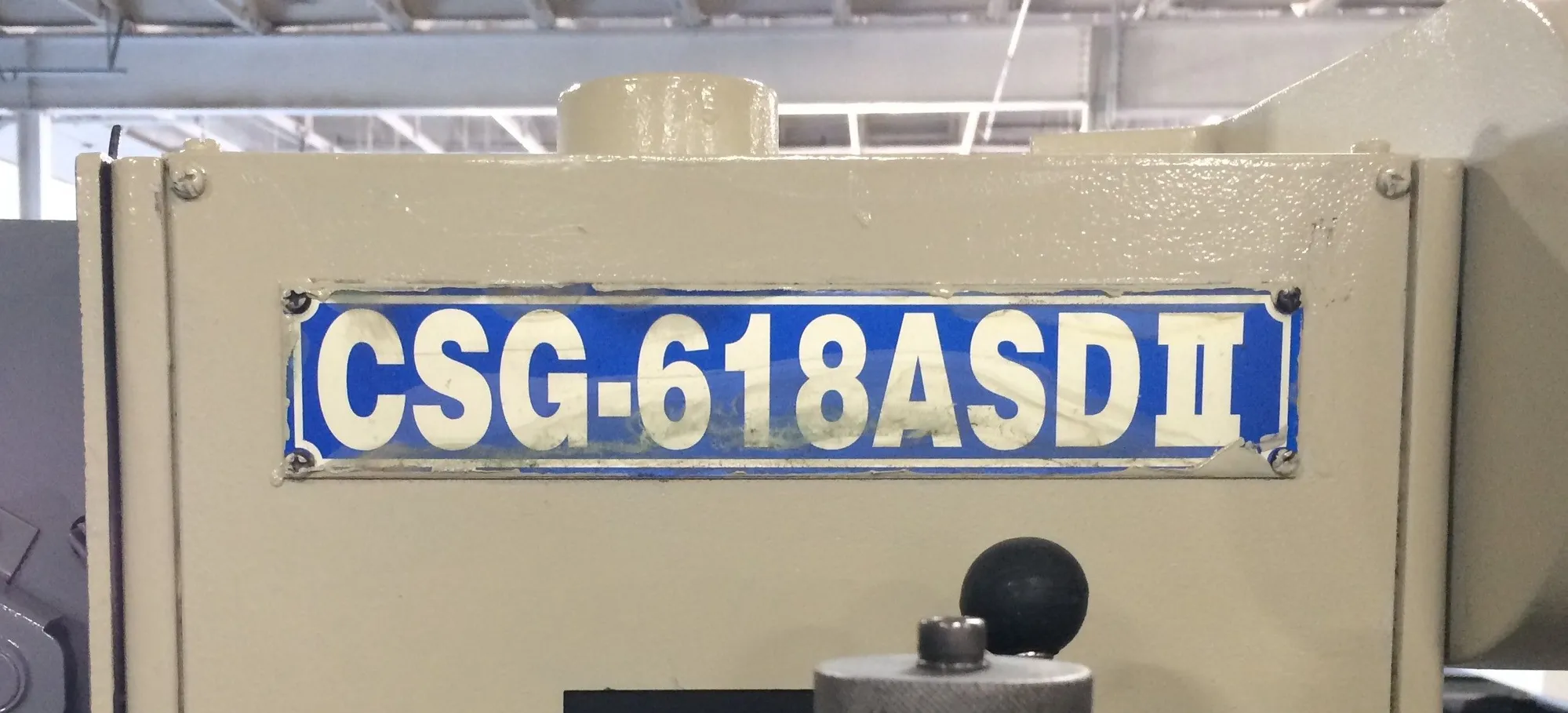

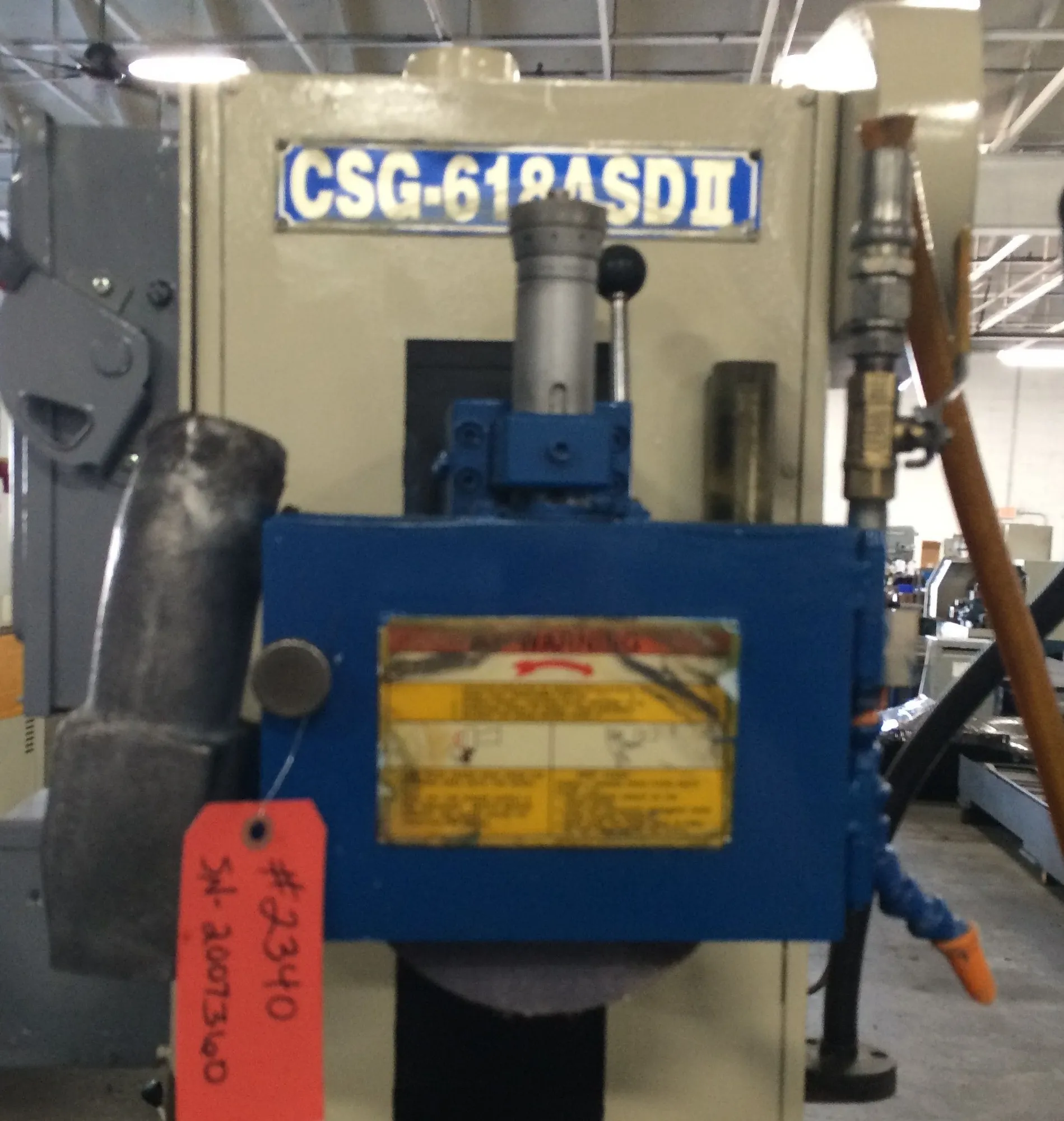

2007 Clausing CSG-618ASD II Surface Grinder, 6" x 18" Table, 2 HP, 3-Axis Automatic

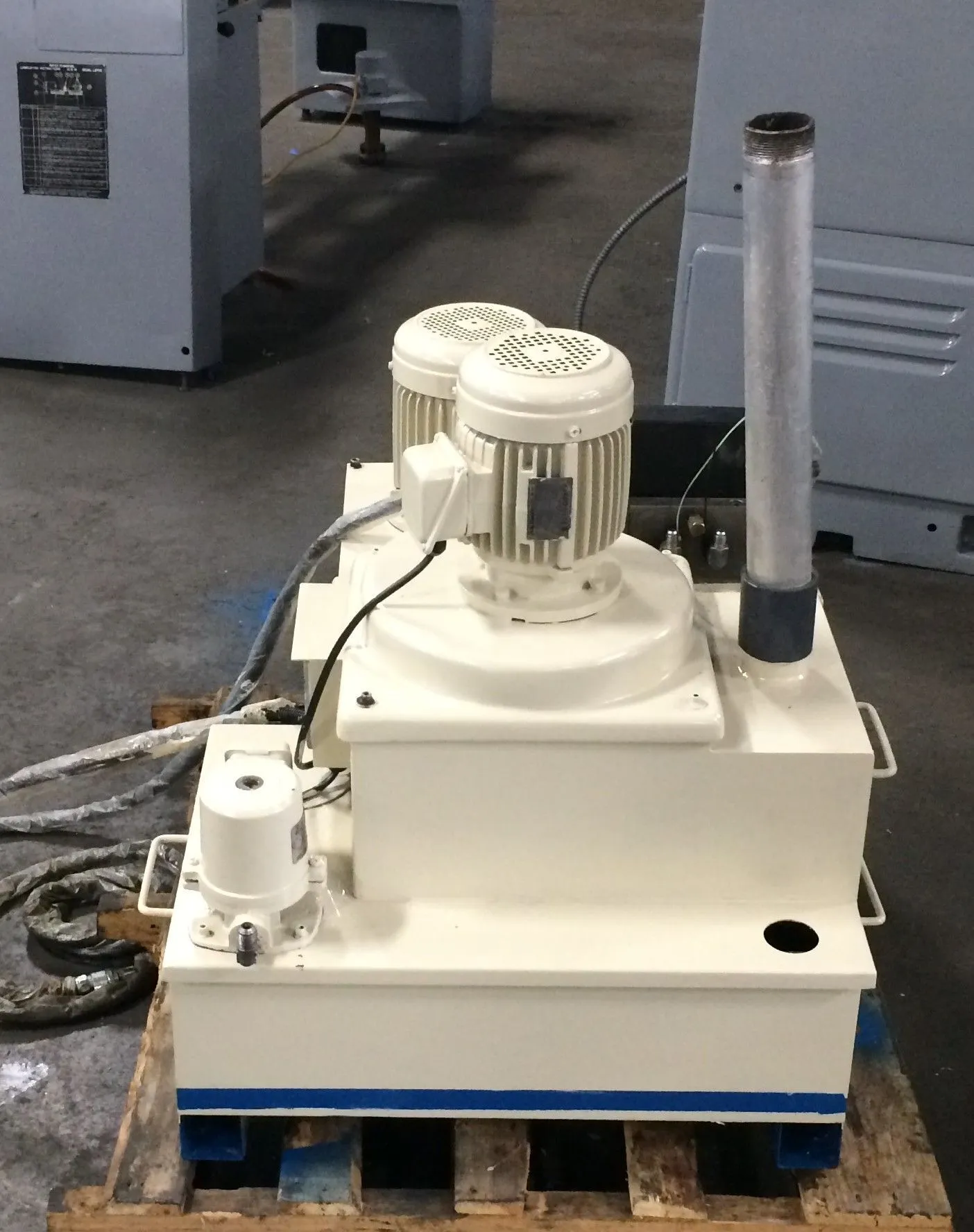

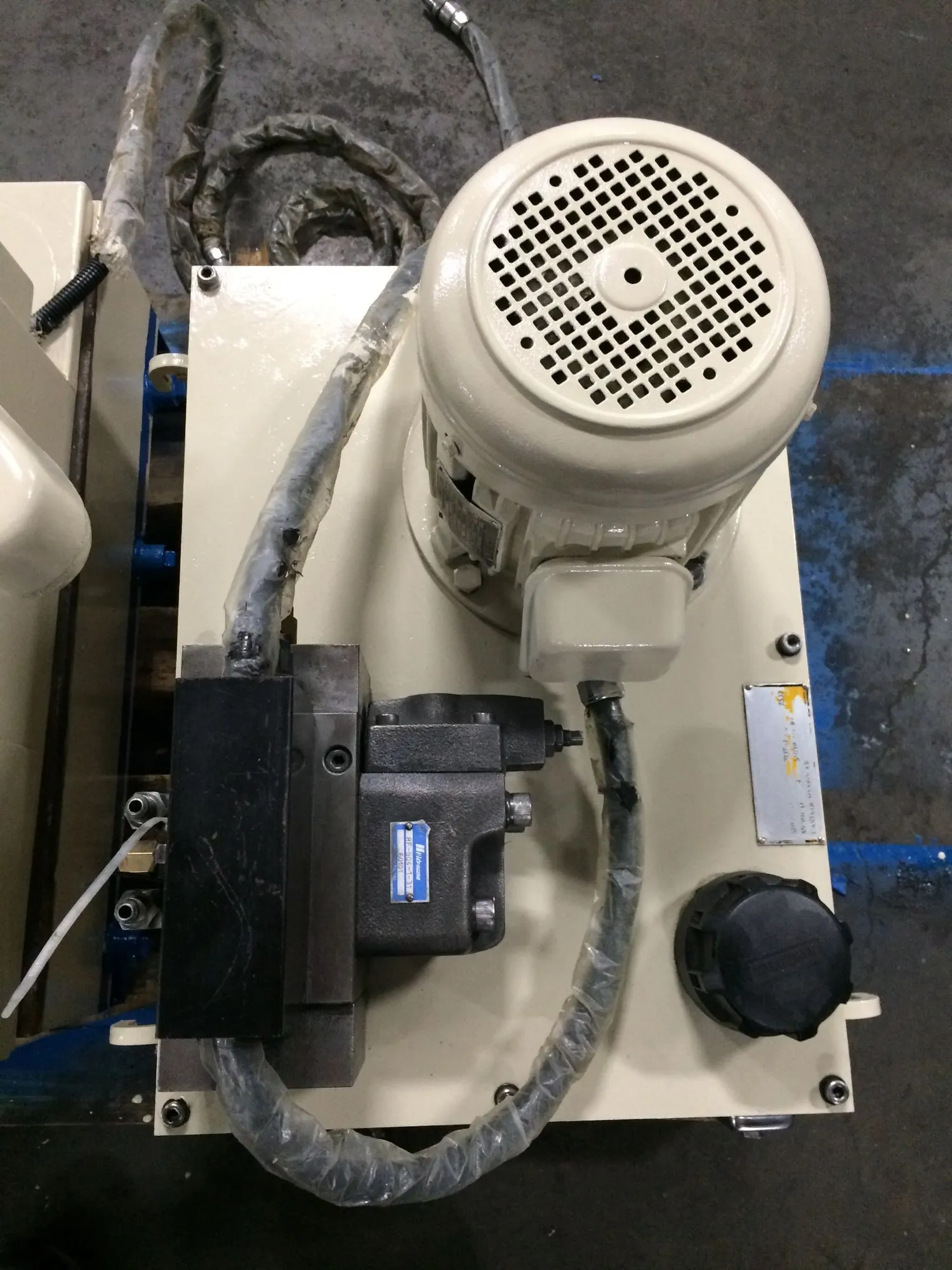

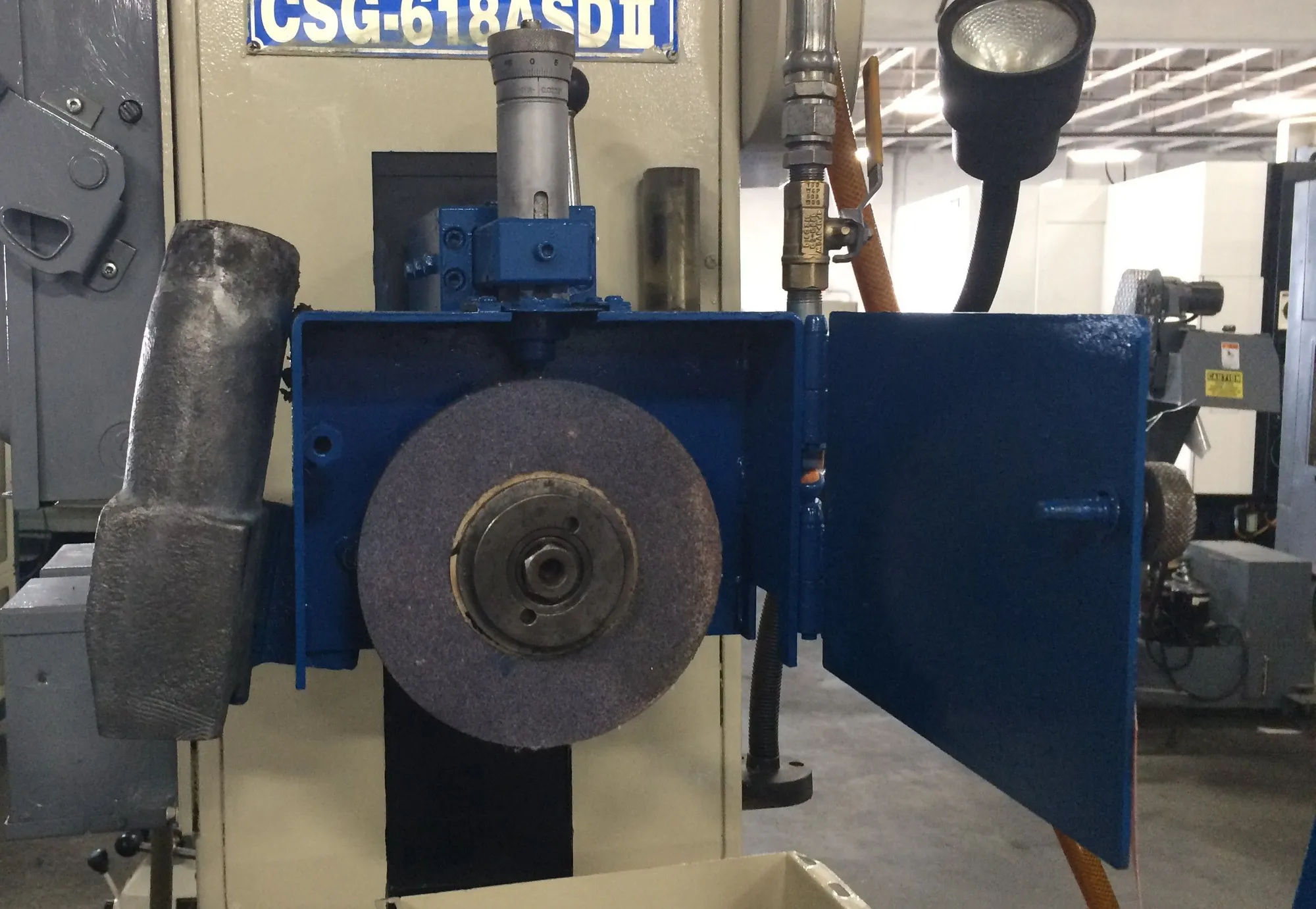

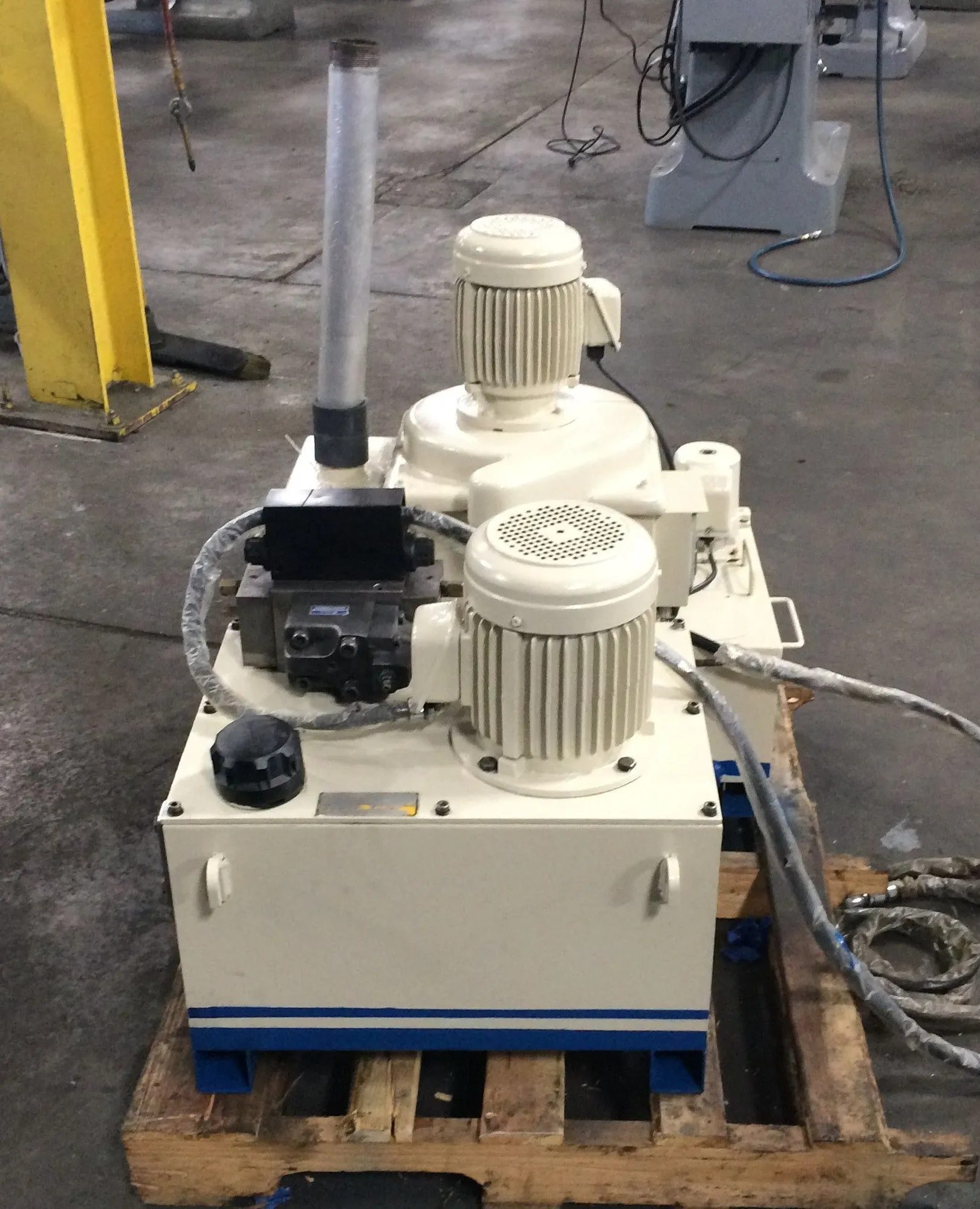

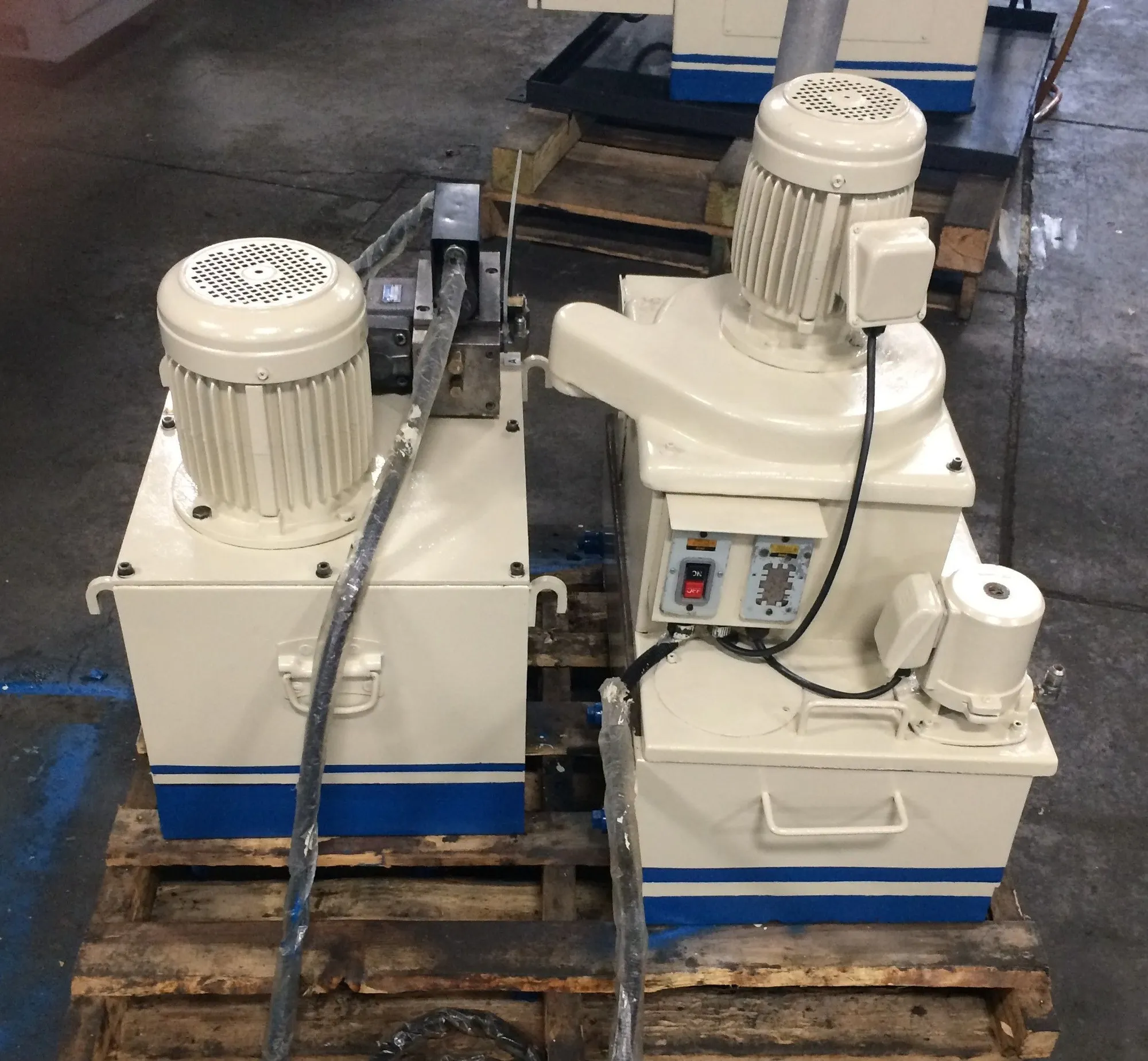

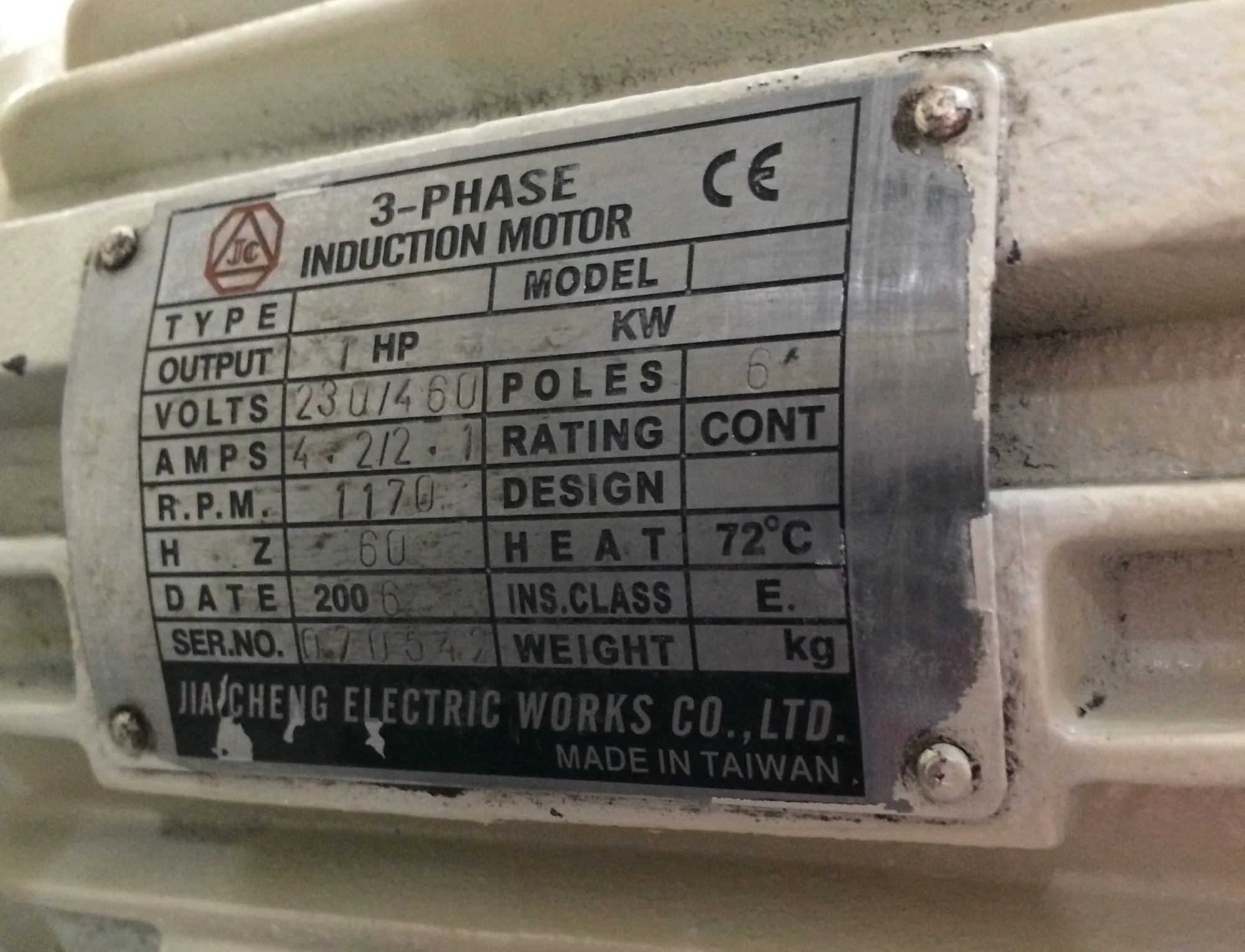

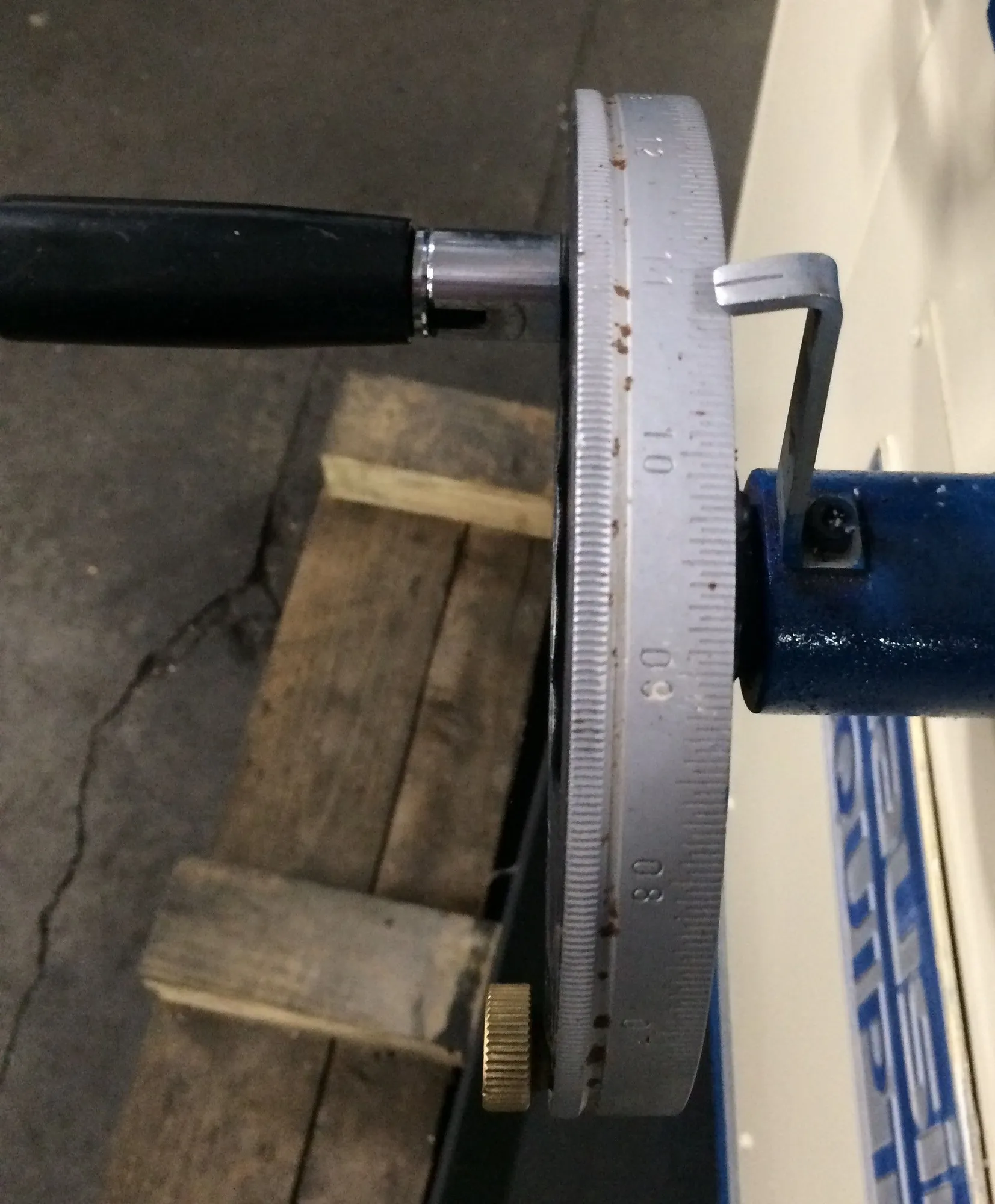

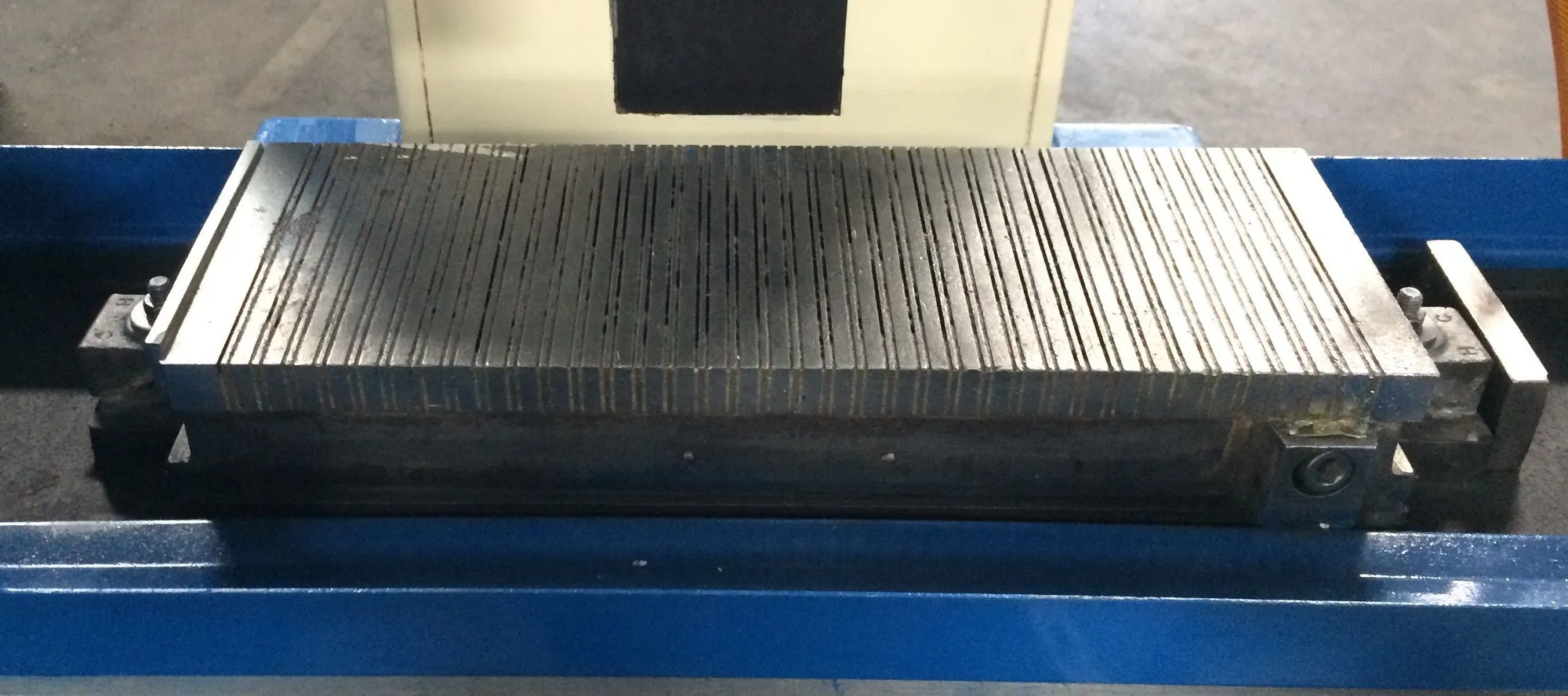

The 2007 Clausing CSG-618ASD II is a precision 3-axis automatic surface grinder featuring a 6 inch by 18 inch table and magnetic chuck. The unit provides a longitudinal hydraulic table travel between 18.9 and 20 inches with speeds infinitely variable from 196 to 984 inches per minute. Crossfeed travel, available in manual or automatic modes, ranges from 7 to 7.68 inches. The machine offers a maximum distance of 18 inches from the table to the spindle center. It is equipped with a 2 HP cartridge-type spindle motor operating at 3450 RPM, supported by preloaded angular contact ball bearings. The system utilizes an 8-inch diameter grinding wheel with a width of 0.5 to 0.75 inches and a 1.25-inch bore. For precision movement, the vertical handwheel provides graduations of 0.0001 inches while the crossfeed handwheel features 0.0005-inch graduations. Construction includes hand-scraped V and flat ways with Turcite-B coating on the table ways. Additional technical features include a 1 HP hydraulic motor, a 40W vertical rapid feed motor, an automatic lubrication system, a table-mounted diamond dresser, and a servo motor-driven crossfeed. The machine weighs approximately 1,808 lbs and has physical dimensions of 71.3 inches in length, 44.6 inches in width, and 65.4 inches in height.
