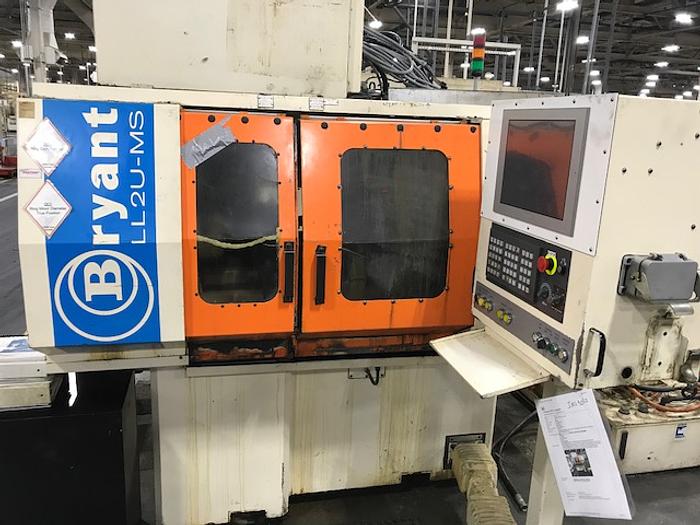

2009 Bryant LL2U CNC Grinder, Max Swing 10", ID Range 0.246"-9.500", 60K-90K RPM

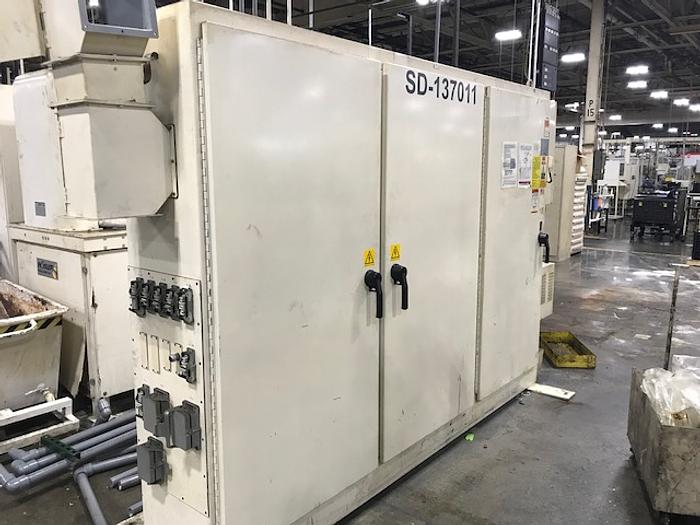

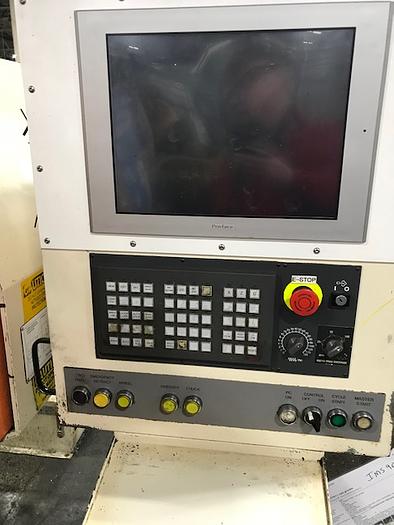

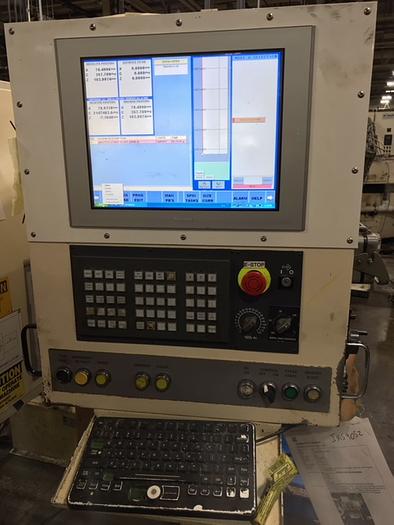

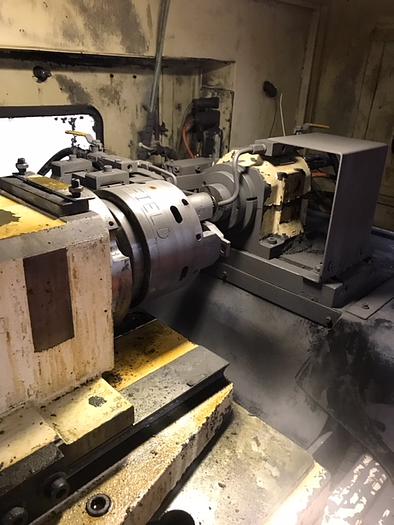

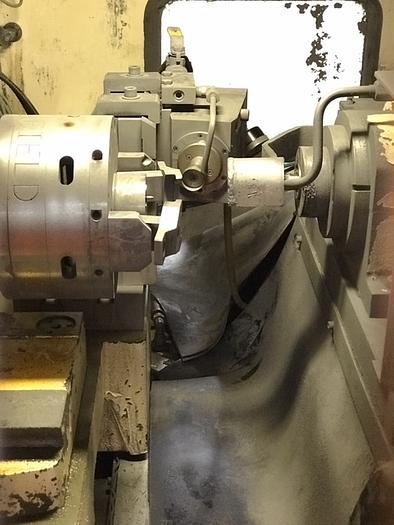

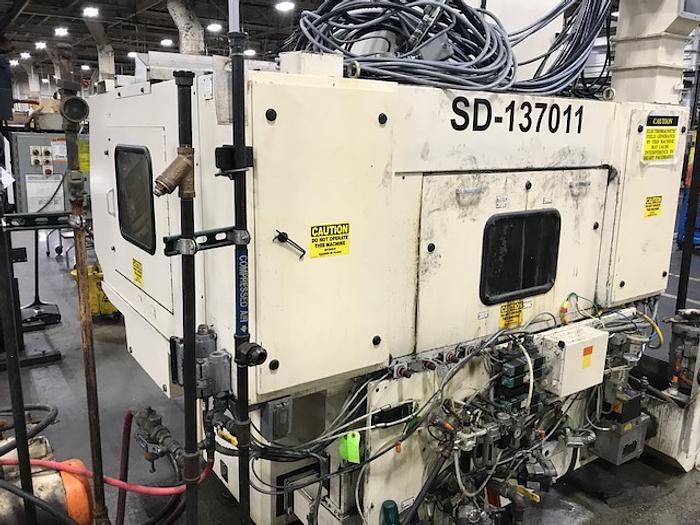

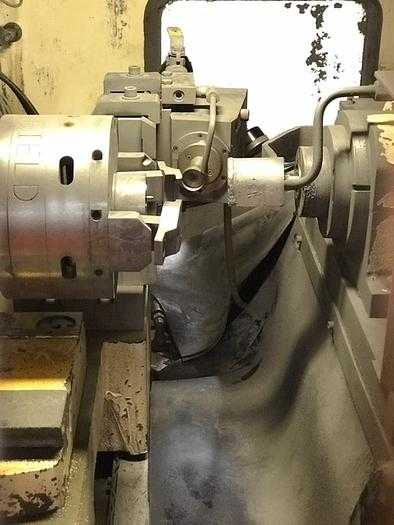

The 2009 Bryant Lectraline LL2U-Multi surface is a CNC internal diameter (ID) grinder designed for precision multi-surface machining. This machine features a maximum swing of 10 inches, a longitudinal travel of 9.843 inches, and a cross travel of 5.906 inches. The internal grinding range accommodates diameters from a minimum of 0.2460 inches to a maximum of 9.500 inches, with an overall grinding length of 3.00 inches. The wheelhead is capable of angles up to 50.00 degrees and operates at variable speeds ranging from 60,000 to 90,000 RPM. Technical specifications for accuracy include a resolution of 0.000010 inches and runout of 0.000039 inches. The unit is equipped with a Siemens CNC control system, a Barnes coolant system, hydraulics, and electrics.
