2007 FANUC M900IA/260L ARTICULATED ROBOT, 260KG PAYLOAD, 3100MM REACH, R30IA CONTROLLER

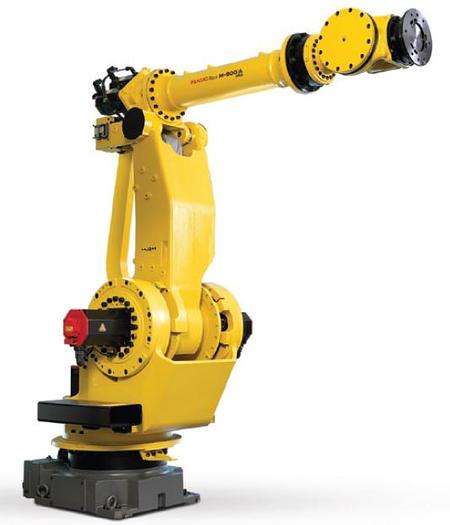

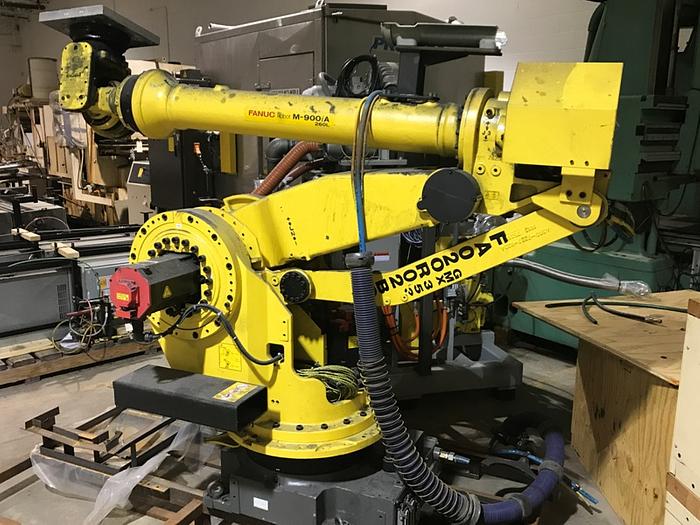

THE 2007 FANUC M900IA/260L IS A SIX-AXIS, ELECTRIC SERVO-DRIVEN ARTICULATED ROBOT ENGINEERED FOR PRECISE, HIGH-PAYLOAD, AND HIGH-SPEED OPERATIONS ACROSS VARIOUS MANUFACTURING AND SYSTEM PROCESSES. THIS MODEL FEATURES A 260KG PAYLOAD CAPACITY, A HORIZONTAL REACH OF 3100MM, AND A REPEATABILITY OF ±0.3MM. THE ROBOT HAS A MASS OF 1800KG. MOTION SPEEDS FOR THE AXES ARE J1 AT 100°/S, J2 AT 105°/S, J3 AT 95°/S, J4 AT 120°/S, J5 AT 120°/S, AND J6 AT 200°/S. THE MOTION RANGE FOR EACH AXIS IS J1 ±180°, J2 ±75°, J3 +90° TO -121°, J4 ±360°, J5 ±125°, AND J6 ±360°. THE SYSTEM IS EQUIPPED WITH AN R30IA CONTROLLER, CONNECTION CABLES, AND A TEACH PENDANT.
