2008 FANUC Robodrill T21IF, 31I-A5, 25.6"X15.7" Table, 440 lbs, 19.7" x, 15.7" Y, 13" Z, 10K RPM

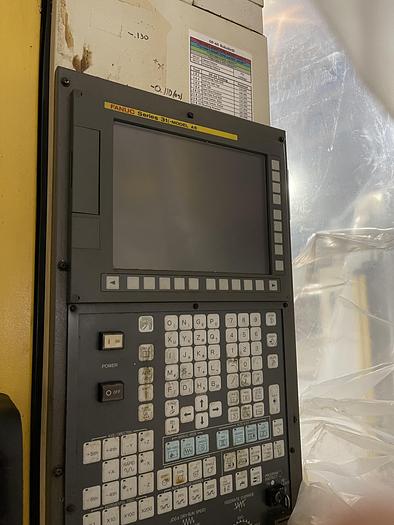

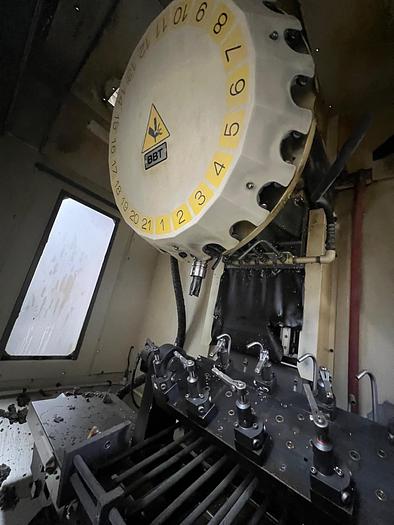

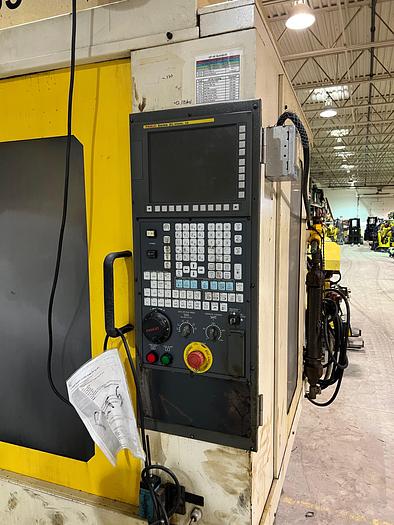

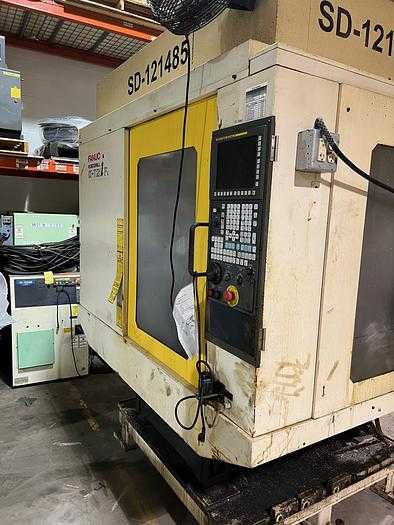

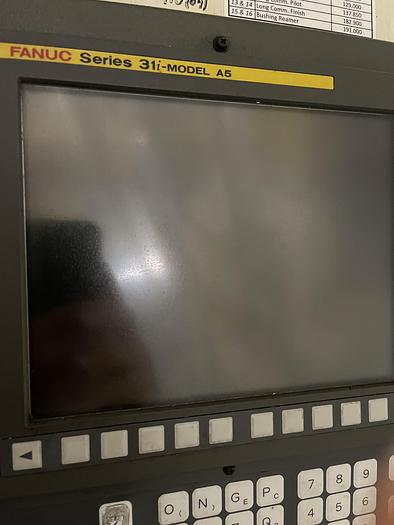

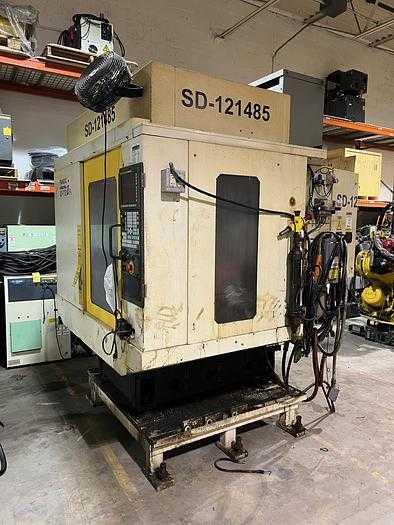

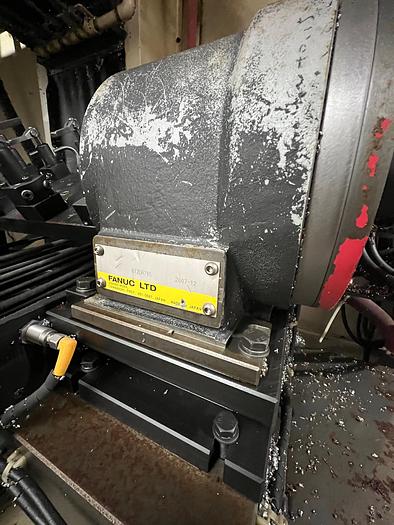

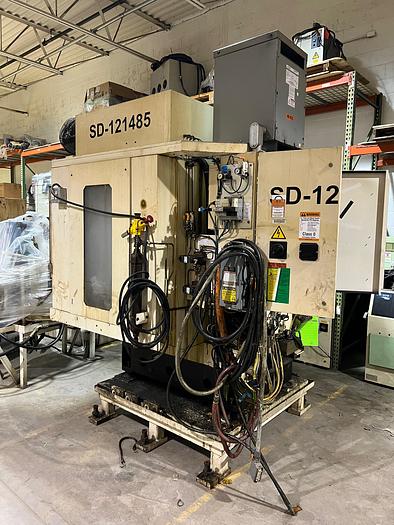

The 2008 FANUC Robodrill T21IF is a CNC vertical machining center equipped with a FANUC 31I-A5 control and a Tsudacoma 4th axis rotary table. The machine features a table size of 25.6 inches by 15.7 inches with a capacity of 440 lbs. Machine travels are 19.7 inches on the X-axis, 15.7 inches on the Y-axis, and 13 inches on the Z-axis. The spindle uses a BT-30 Big Plus taper and offers speeds ranging from 100 to 10,000 RPM, powered by a 7.3/5 HP drive. Distances from spindle to table range from 5.9 inches to 18.9 inches, with an additional 4.25-inch riser, while the spindle center to column distance is 15.748 inches. It is equipped with a 21-station bi-directional high-speed tool turret, providing a tool-to-tool change time of 0.9 to 1.1 seconds. Maximum tool length is 9.8 inches and maximum tool weight is 6.6 lbs. Rapid traverse rates reach 2125 IPM across all axes, with a maximum cutting feed rate of 1181 IPM. The approximate weight of the machine including the 4th axis is 2250 kg.
