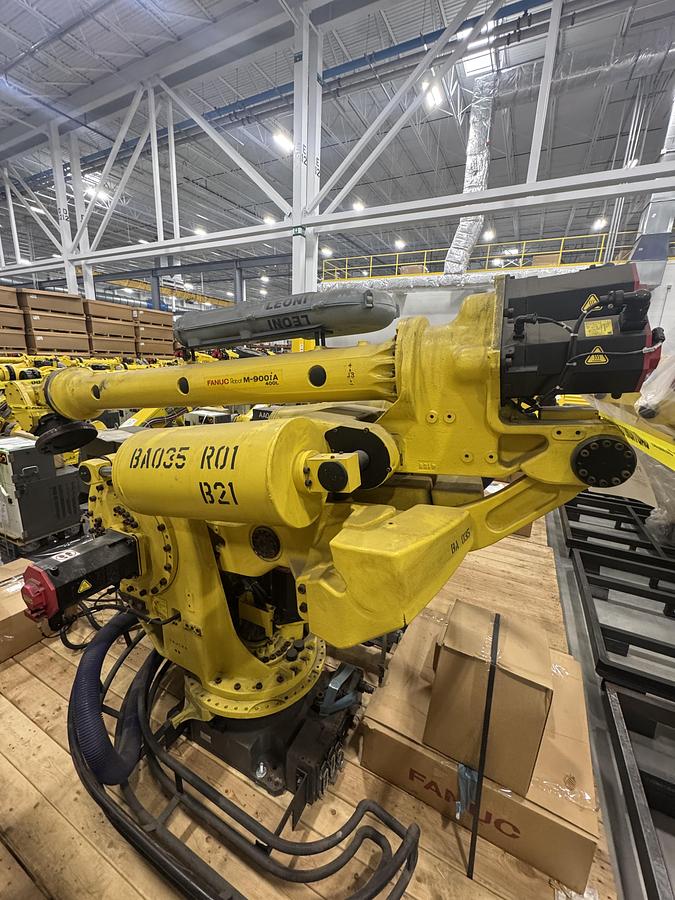

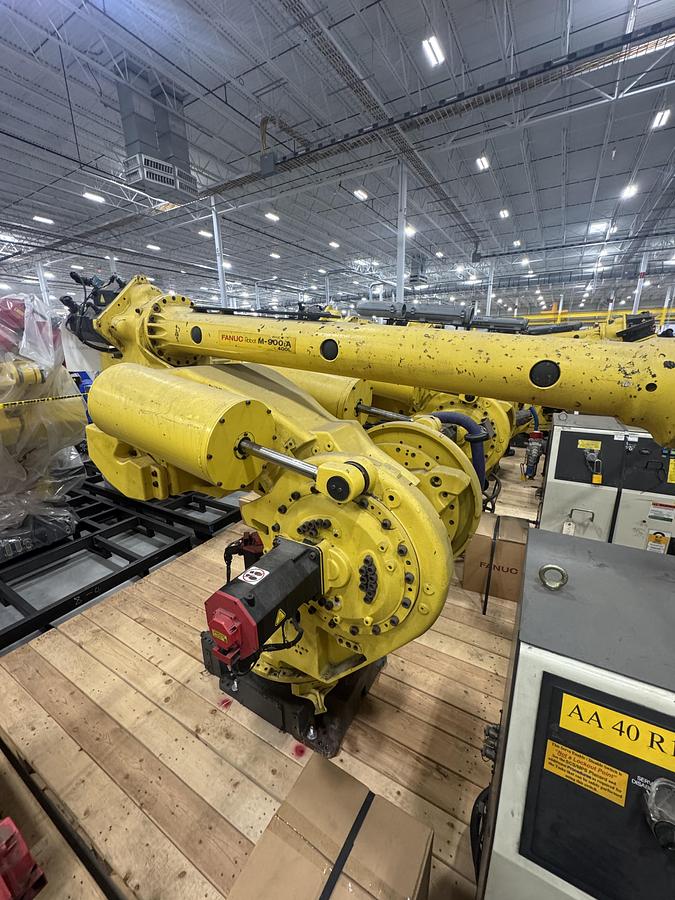

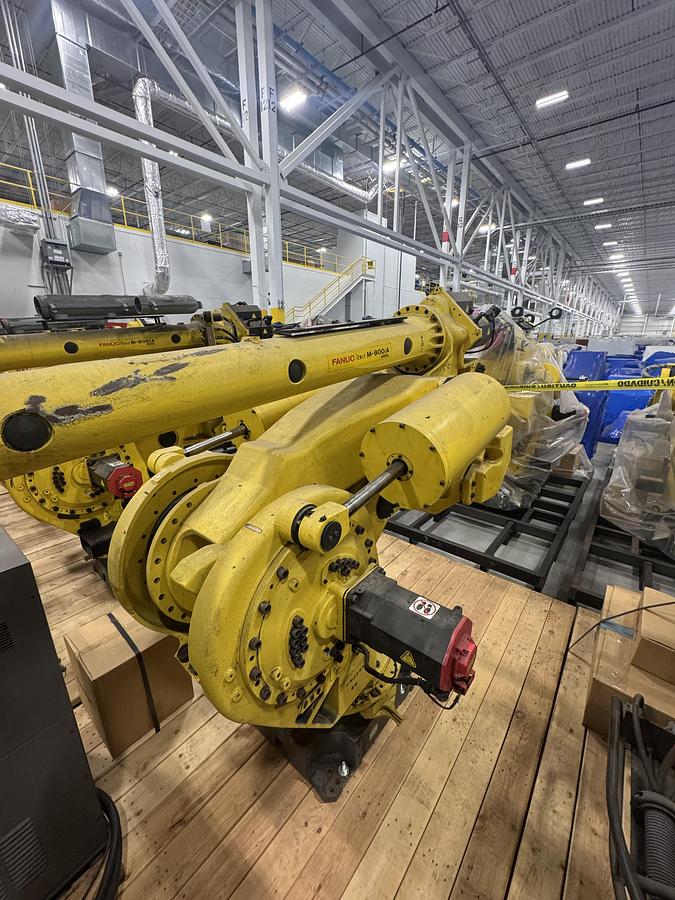

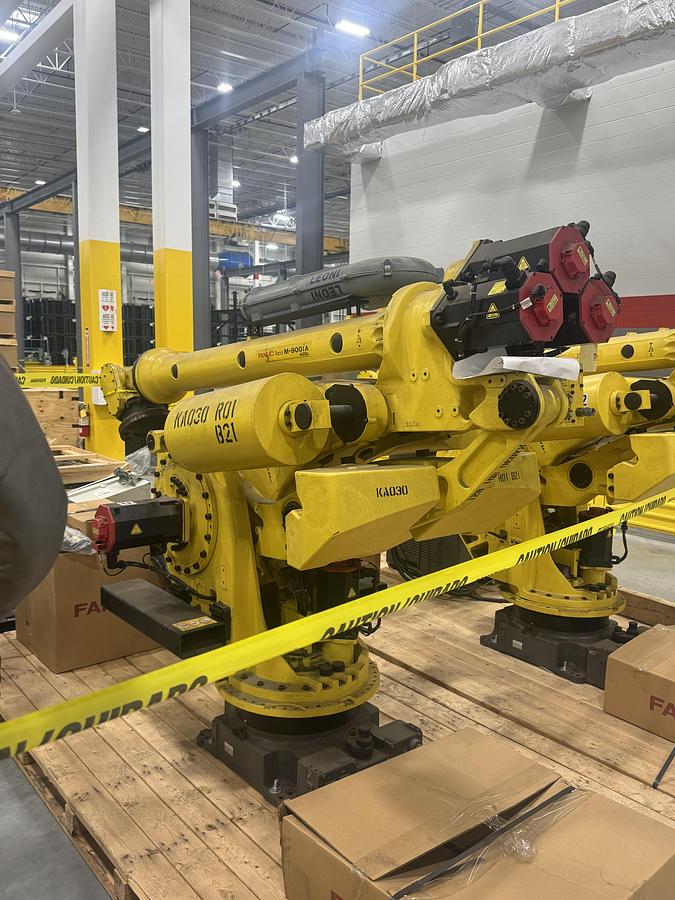

2010 FANUC M-900iA/400L Articulated Robot, 400kg Payload, 3625mm Reach, R-30iA Control

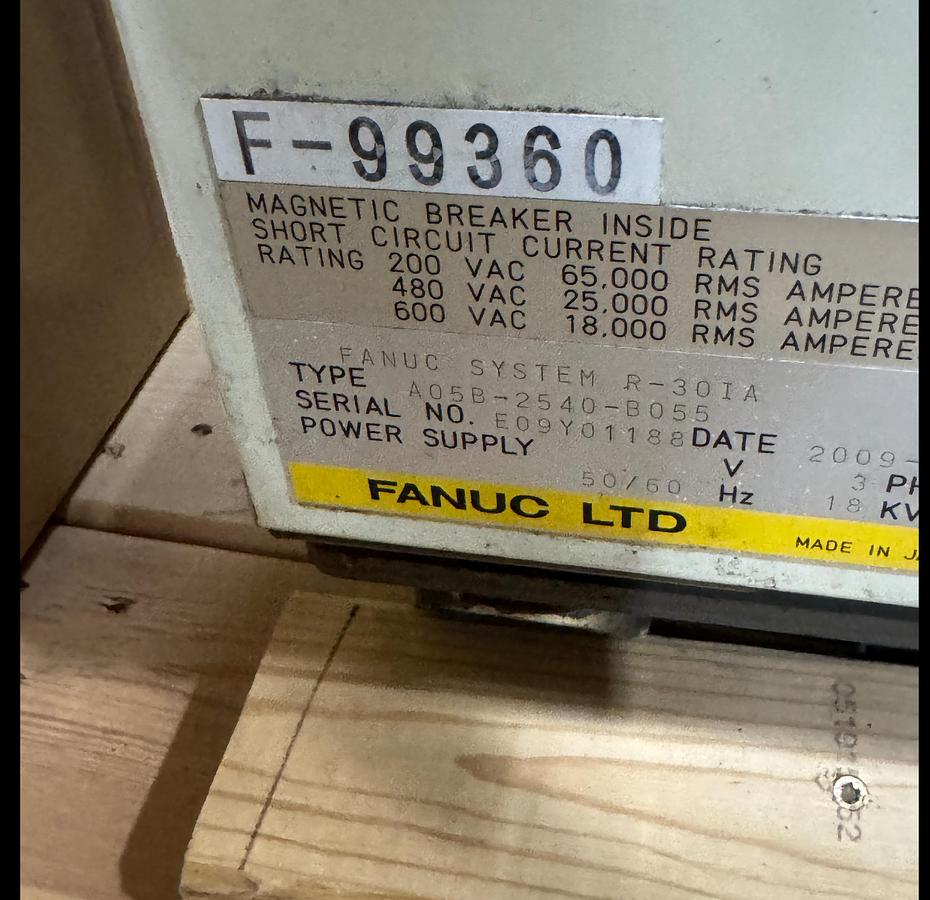

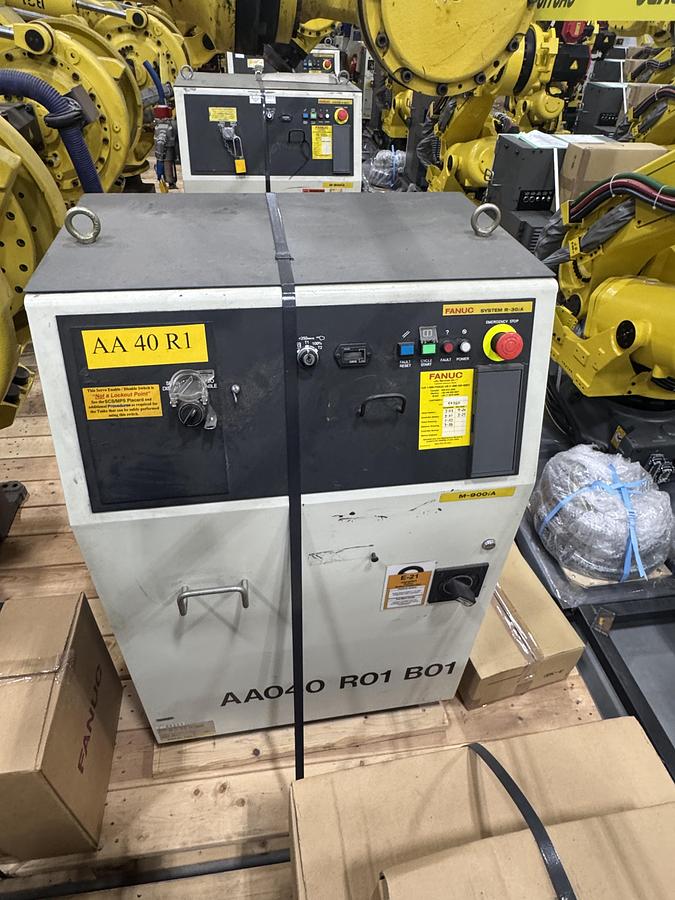

The 2010 FANUC M-900iA/400L is a six-axis articulated industrial robot designed for heavy material handling applications requiring a long reach. This floor-mounted model features a 400 kg payload capacity, a horizontal reach of 3625 mm, and a repeatability of ±0.5 mm. The robot mass is 3150 kg and it includes an IP67-rated wrist suitable for harsh environments. Axis motion speeds are 80°/s for J1, J2, and J3, 100°/s for J4 and J5, and 160°/s for J6. The motion range for the axes is J1 ±360°, J2 ±154°, J3 ±160°, J4 ±720°, J5 ±244°, and J6 ±720°. The system is equipped with an R-30iA controller, teach pendant, and connection cables.
