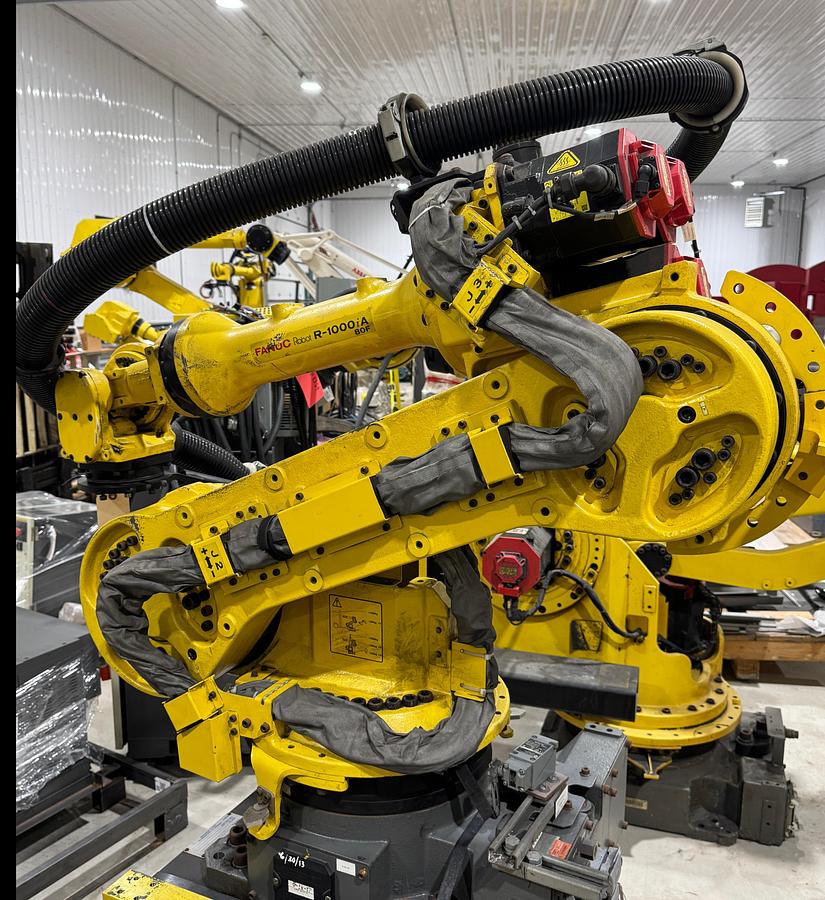

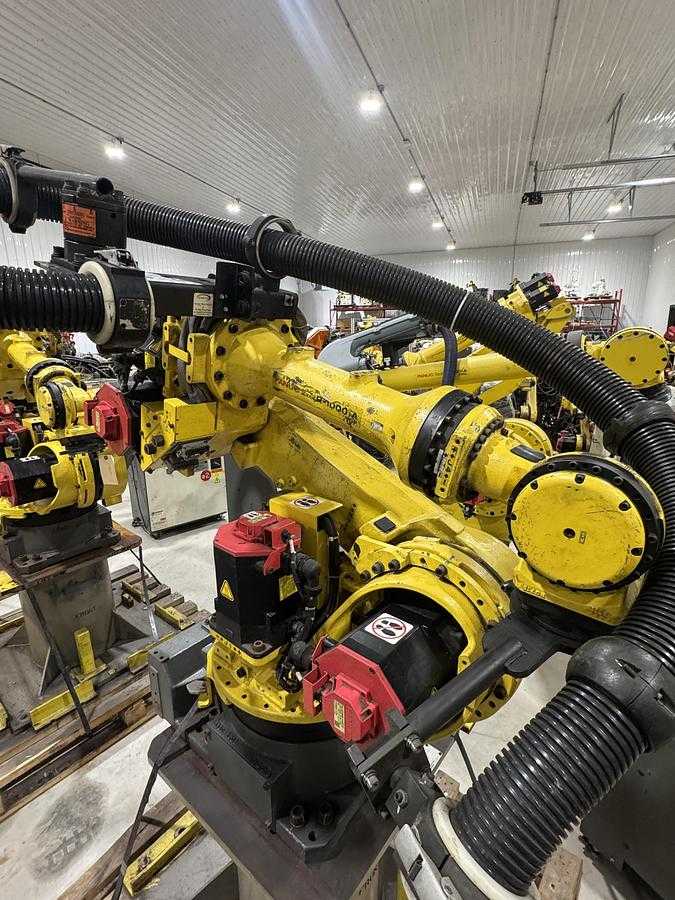

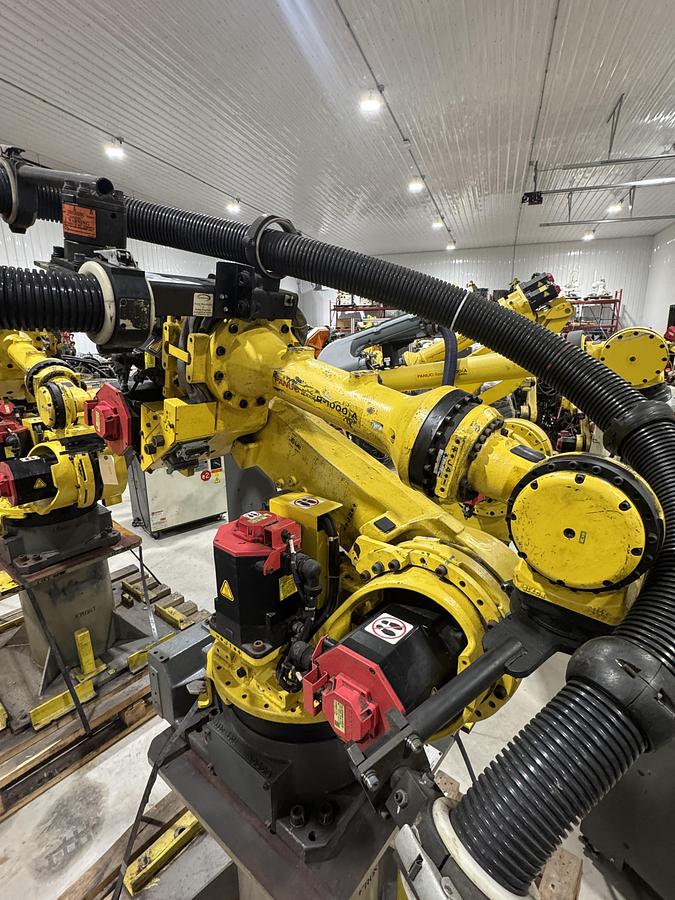

2010 FANUC R-1000iA/80F Articulated Robot, 80 kg Payload, 2230 mm Reach, R-30iA Control

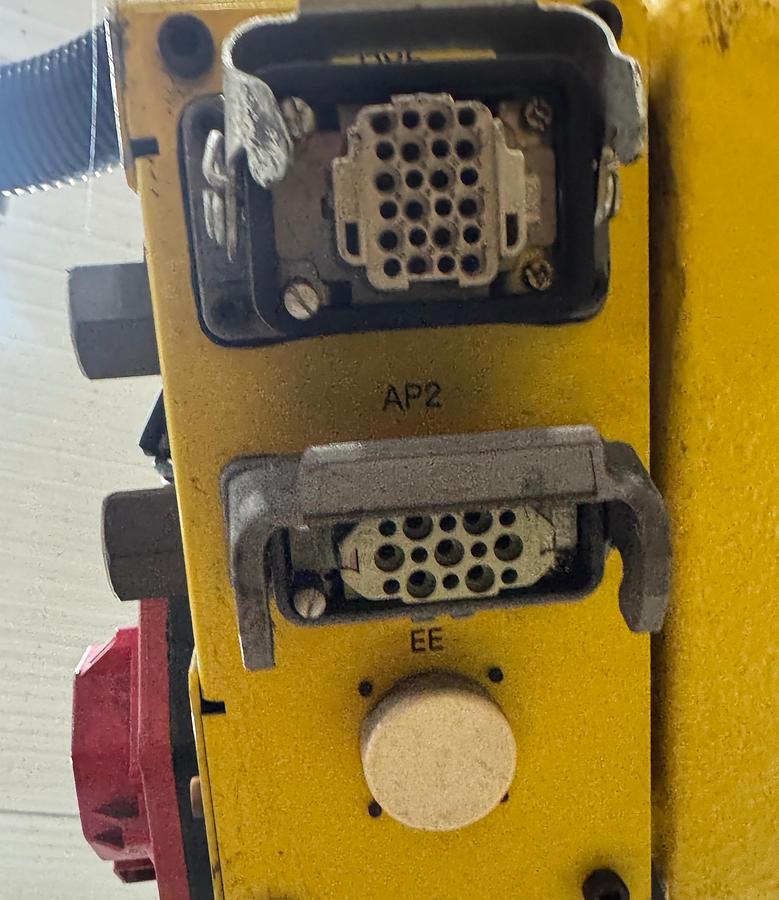

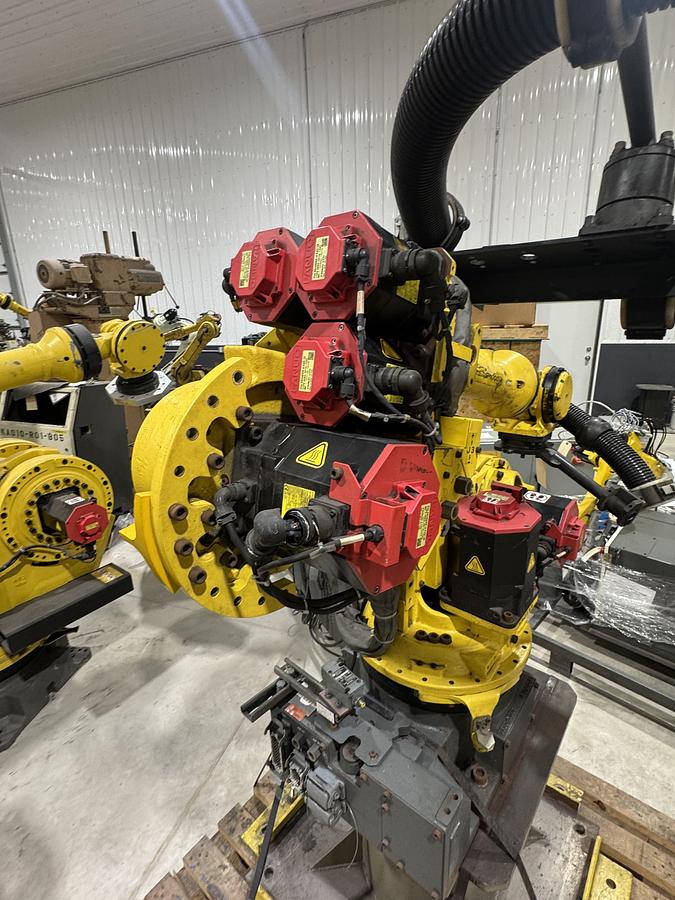

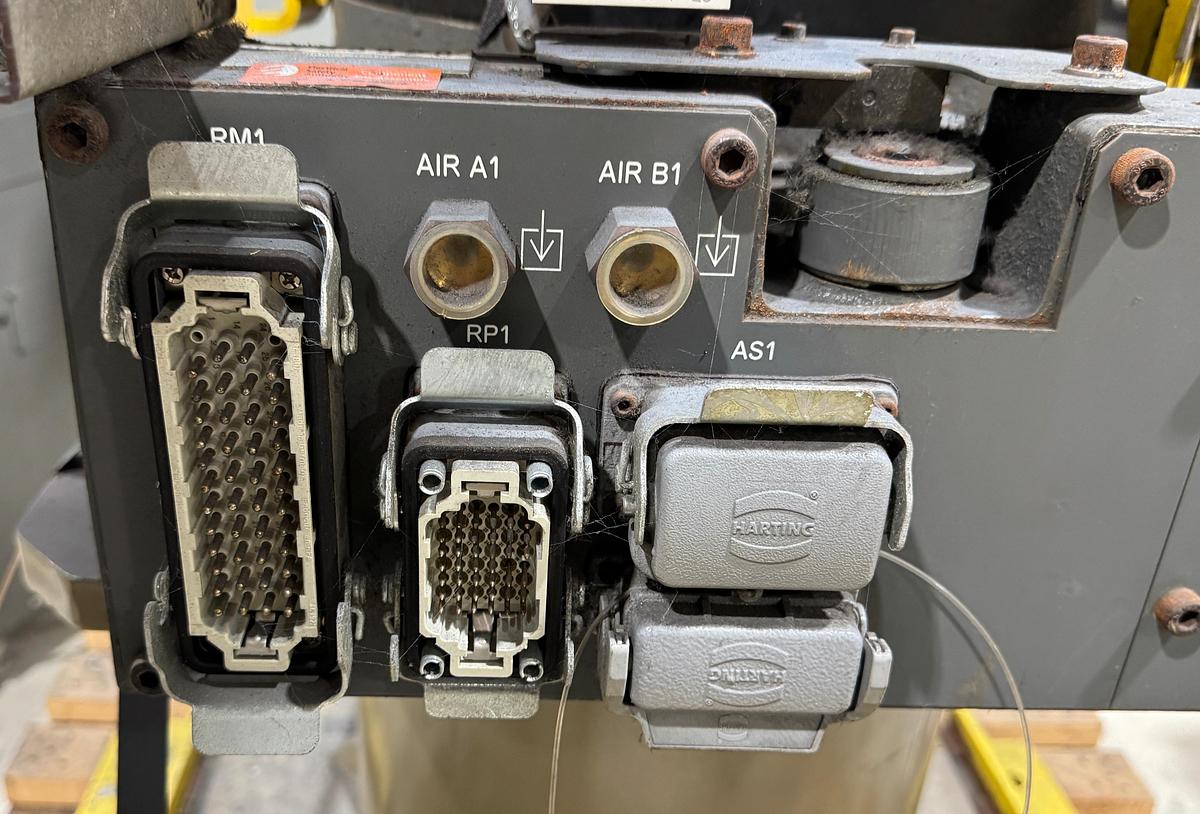

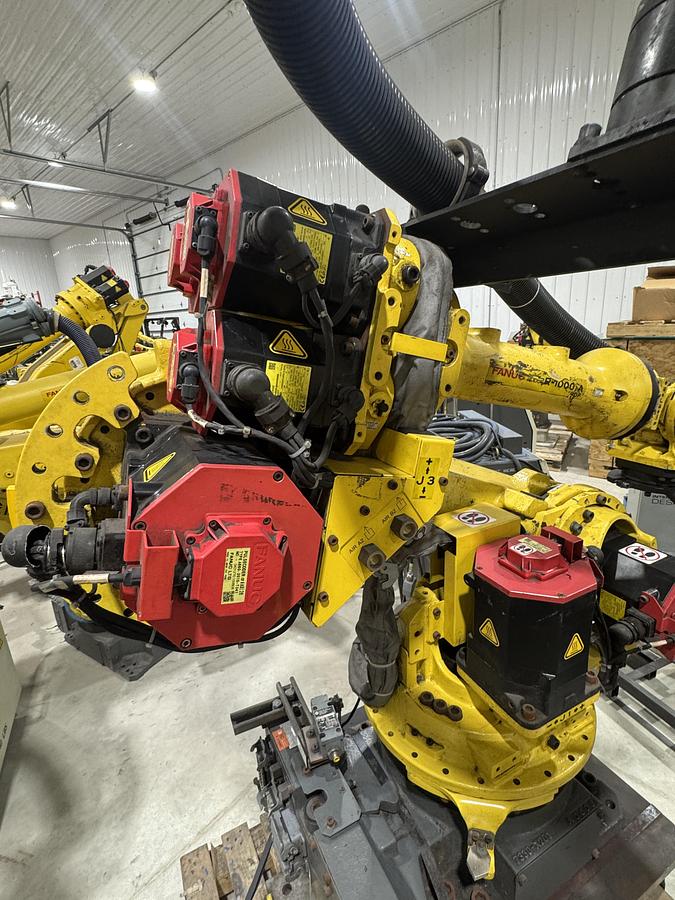

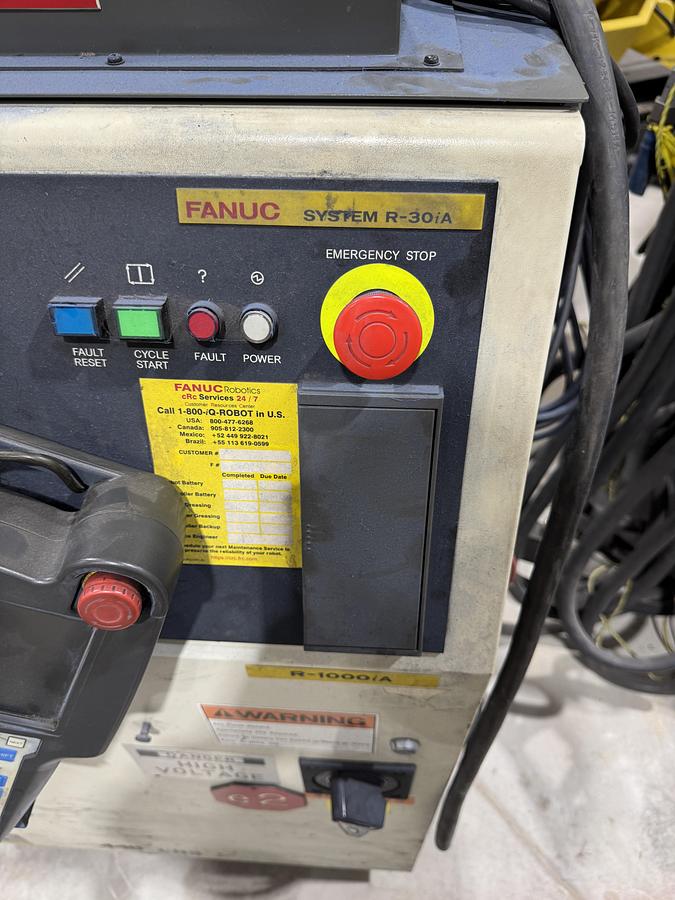

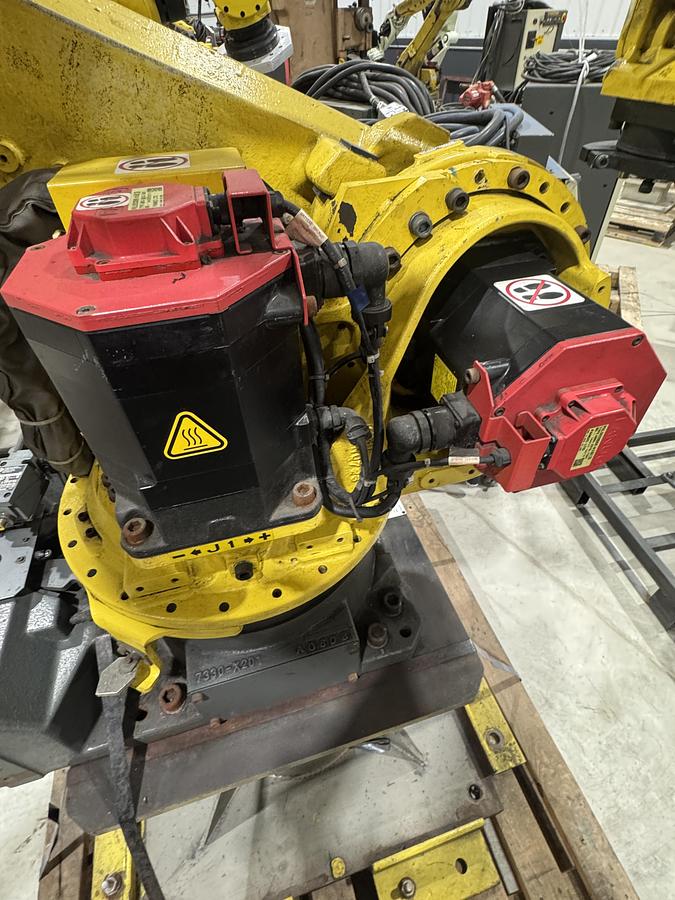

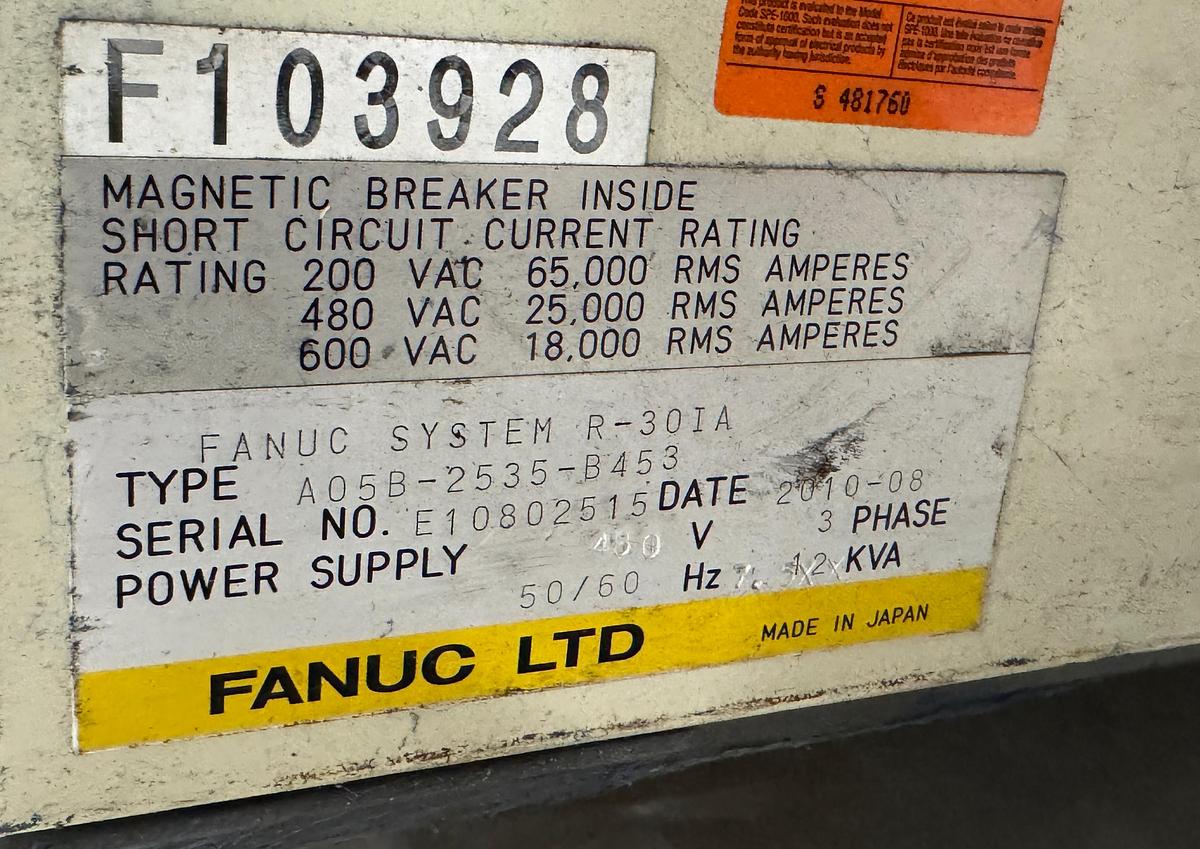

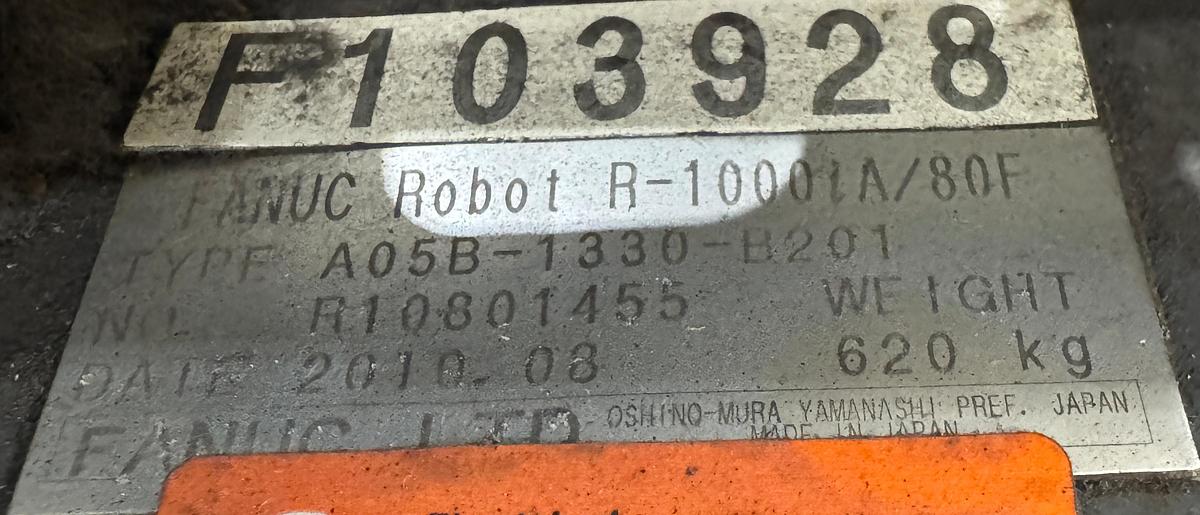

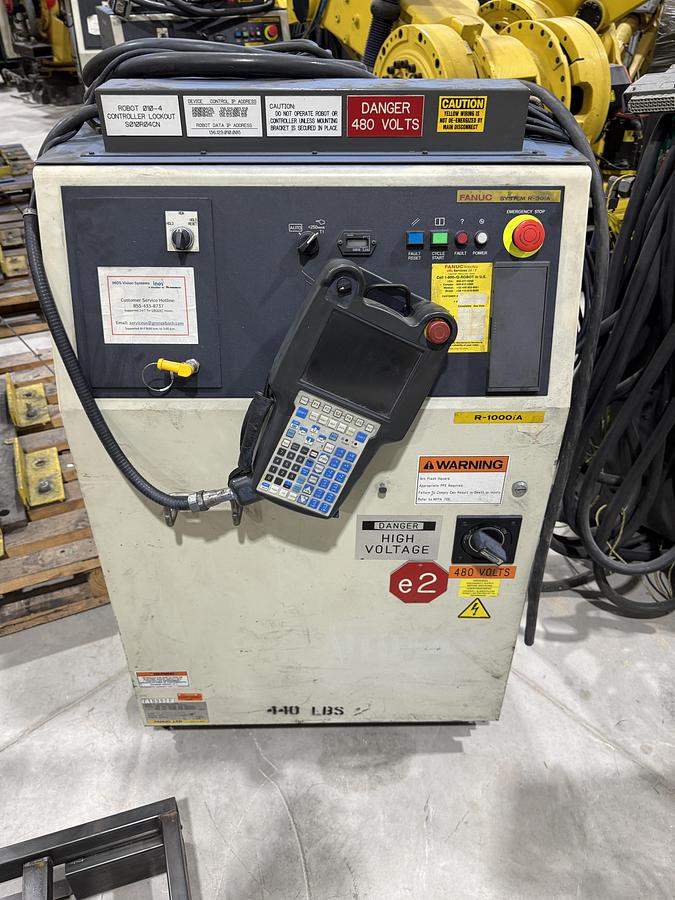

The 2010 FANUC R-1000iA/80F is a six-axis articulated robot designed for high-speed material handling, fiberglass cutting, resistance welding, spot welding, and palletizing applications. It features an 80 kg payload capacity, a horizontal reach of 2230 mm, and a repeatability of ±0.2 mm. The robot has a mass of 620 kg and supports both floor and inverted mounting. It is equipped with a FANUC R-30iA control system, connection cables, and a teach pendant. The compact arm design and small footprint allow for closer positioning in dense production cells. Axis motion speeds are J1 170°/s, J2 140°/s, J3 160°/s, J4 230°/s, J5 230°/s, and J6 350°/s. The motion range for the axes is J1 ±360°, J2 ±245°, J3 ±360°, J4 ±720°, J5 ±250°, and J6 ±720°. The system is built for maximum speed and reliability, featuring EE, ASI, and AP connections.
