2013 FANUC M-710IC/70 ARTICULATED ROBOT, 70KG PAYLOAD, 2050MM REACH, R-30IA CONTROLLER

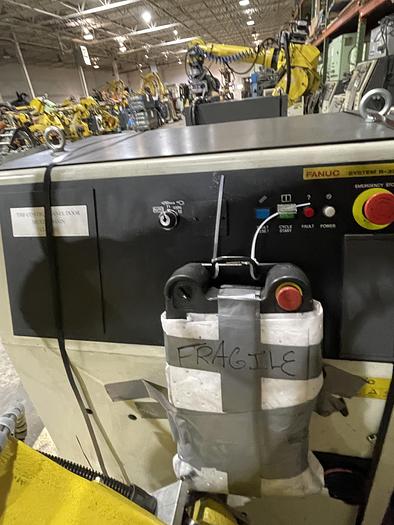

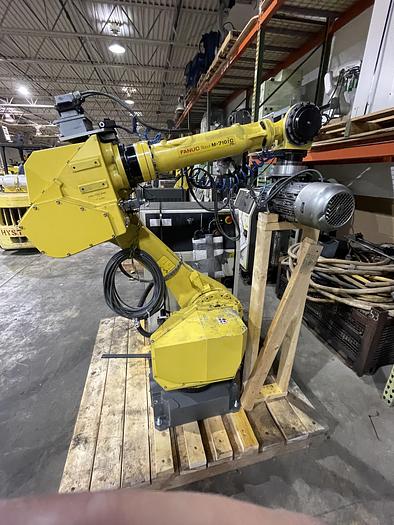

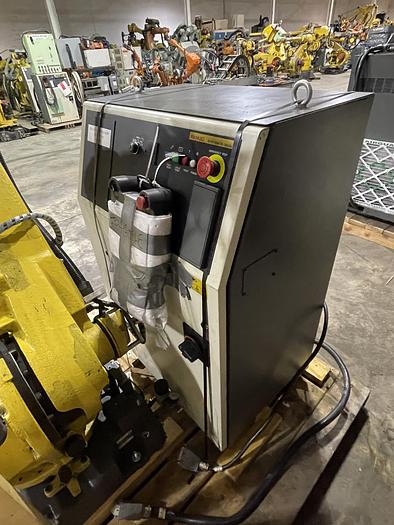

THE 2013 FANUC M-710IC/70 IS A SIX-AXIS ARTICULATED INDUSTRIAL ROBOT DESIGNED FOR MEDIUM-PAYLOAD APPLICATIONS INCLUDING MATERIAL HANDLING, ASSEMBLY, AND WELDING. IT FEATURES A 70 KG PAYLOAD CAPACITY, A HORIZONTAL REACH OF 2050 MM, AND A REPEATABILITY OF ±0.07 MM. THE MECHANICAL UNIT HAS A MASS OF 560 KG AND SUPPORTS FLOOR, INVERTED, AND ANGLE MOUNTING ORIENTATIONS. THE SLIM WRIST AND RIGID ARM DESIGN ALLOW FOR OPERATION IN CONFINED SPACES WHILE MAINTAINING HIGH AXIS SPEEDS. MOTION SPEEDS ARE RATED AT 160 °/S FOR J1, 120 °/S FOR J2 AND J3, AND 225 °/S FOR J4, J5, AND J6. THE MOTION RANGE FOR THE AXES IS J1 ±360°, J2 ±225°, J3 ±440°, J4 ±720°, J5 ±250°, AND J6 ±720°. THIS MODEL IS CONTROLLED BY A FANUC R-30IA CONTROLLER AND INCLUDES A COLOR TEACH PENDANT AND CONNECTION CABLES. THE ROBOT PROVIDES AN IP67-EQUIVALENT RESISTANCE FOR THE WRIST AND J3 ARM TO WITHSTAND HARSH ENVIRONMENTAL CONDITIONS INVOLVING DUST AND LIQUIDS. IT IS SUITABLE FOR A WIDE ARRAY OF APPLICATIONS SUCH AS MACHINE LOADING, PART TRANSFER, PACKAGING, ARC WELDING, AND MATERIAL REMOVAL.
