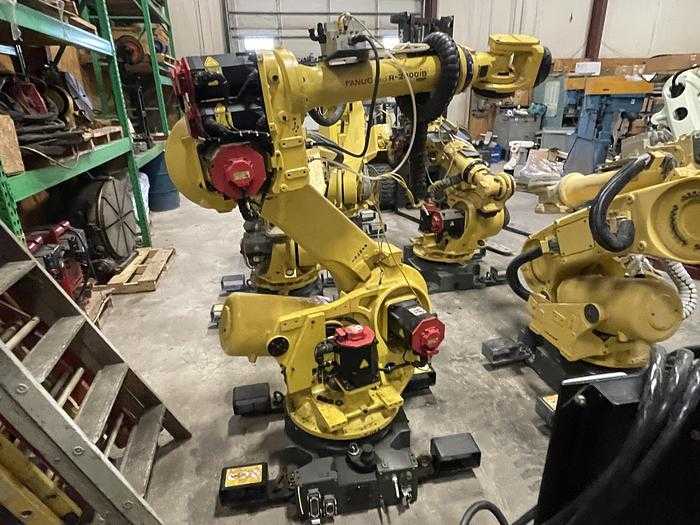

2013 FANUC R-2000IB/165F ARTICULATED ROBOT, 165KG PAYLOAD, 2655MM REACH, R-30IB CONTROLLER

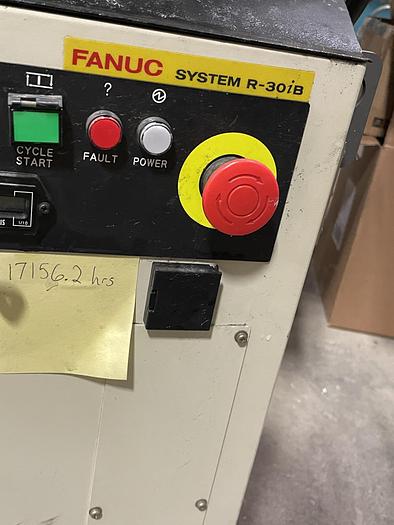

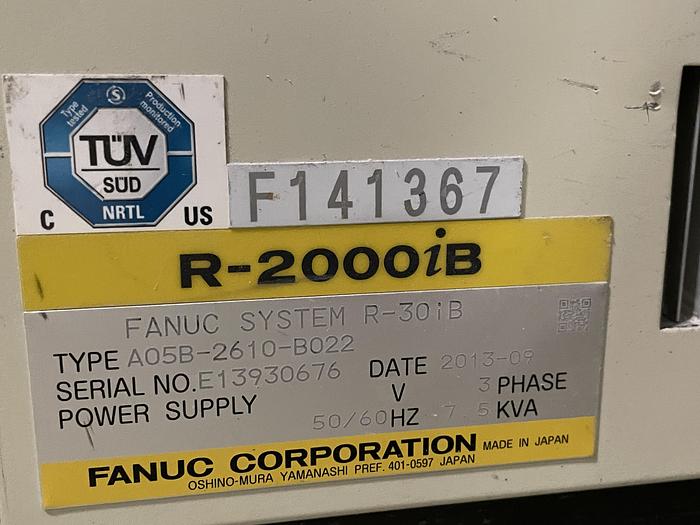

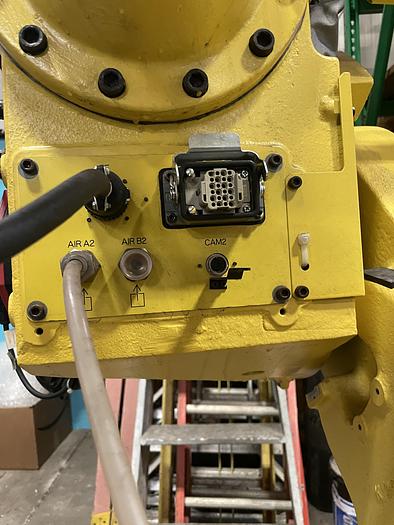

THE 2013 FANUC R-2000IB/165F IS A SIX-AXIS HEAVY PAYLOAD INDUSTRIAL ROBOT DESIGNED FOR HIGH-PRODUCTIVITY APPLICATIONS INCLUDING ASSEMBLY, CUTTING, FOUNDRY, INJECTION MOLDING, MACHINE LOADING, MATERIAL HANDLING, AND SPOT WELDING. IT FEATURES A 165 KG PAYLOAD CAPACITY, A HORIZONTAL REACH OF 2655 MM, AND A REPEATABILITY OF ± 0.2 MM. THE UNIT HAS A MASS OF 1170 KG AND IS DESIGNED FOR FLOOR MOUNTING. IT IS EQUIPPED WITH A FANUC R-30IB CONTROLLER, AN I-TEACH COLOR PENDANT, AND NECESSARY CONNECTION CABLES FOR THE ROBOT AND VISION SYSTEMS. AXIS MOTION SPEEDS ARE 110°/S FOR J1, J2, AND J3, 150°/S FOR J4 AND J5, AND 220°/S FOR J6. THE MOTION RANGE FOR THE AXES IS J1 ±180°, J2 +75°/-60°, J3 +230°/-132°, J4 ±360°, J5 ±125°, AND J6 ±360°. ITS DESIGN INCLUDES A SLIM ARM AND WRIST ASSEMBLY FOR OPERATION IN CONFINED SPACES AND INCORPORATES NUMEROUS PROCESS ATTACHMENT POINTS TO FACILITATE INTEGRATION.
