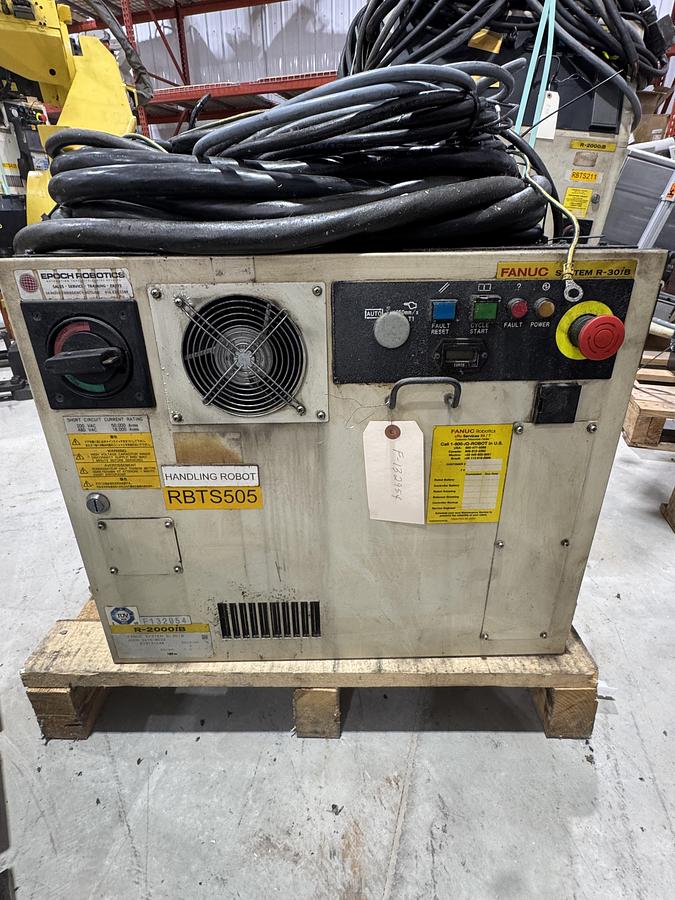

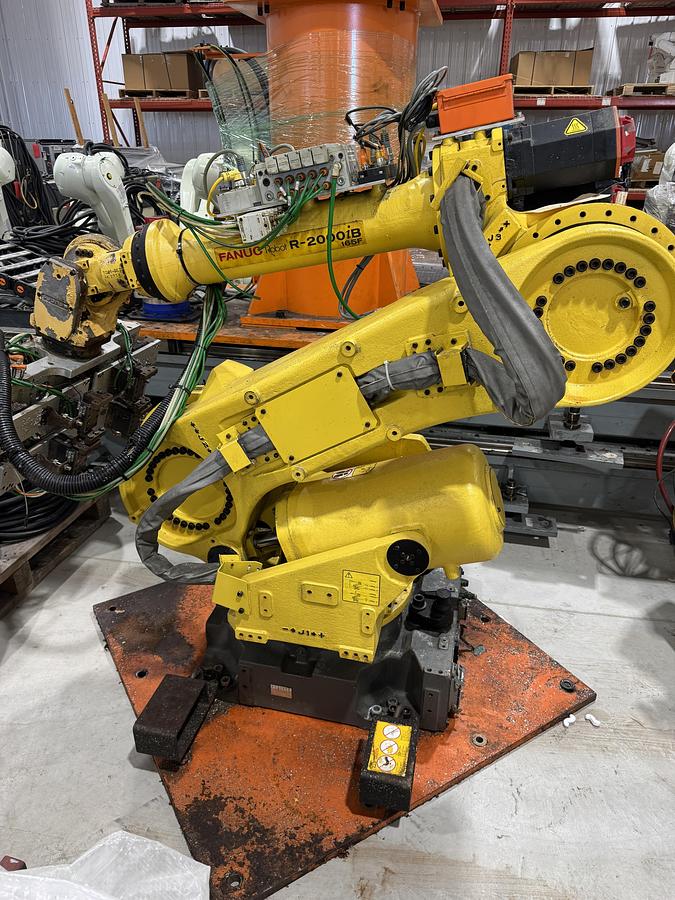

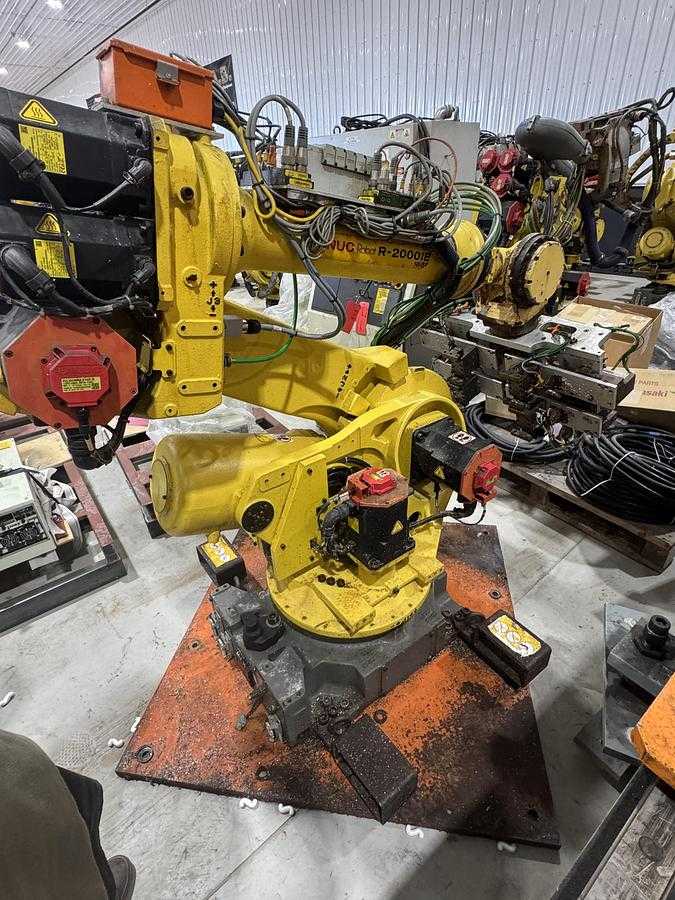

2013 FANUC R-2000IB/165F ARTICULATED ROBOT, 165KG PAYLOAD, 2655MM REACH, R-30IB CONTROLLER

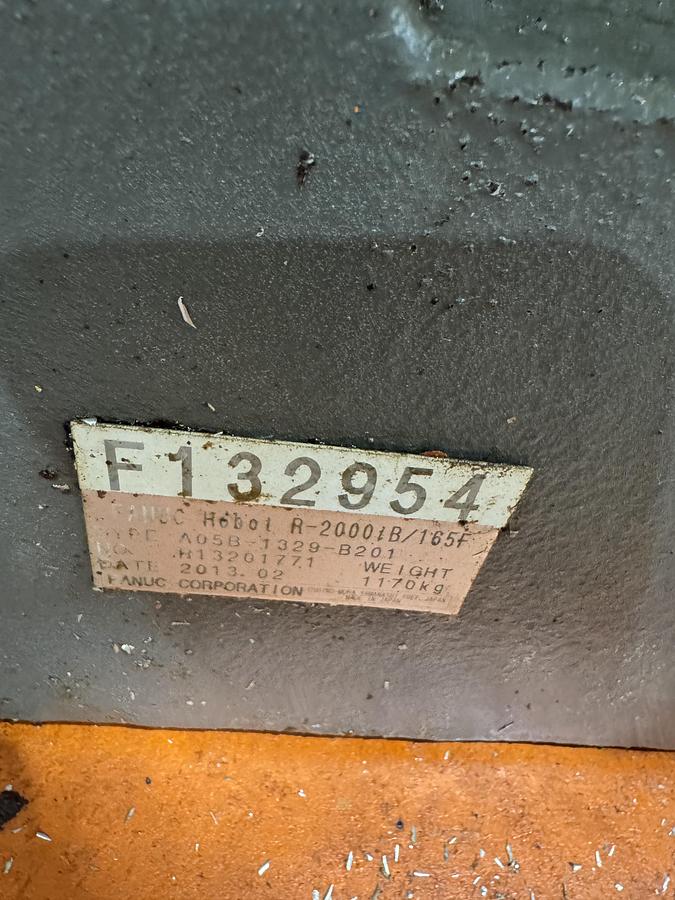

THE 2013 FANUC R-2000IB/165F IS A HIGH-PERFORMANCE, SIX-AXIS ARTICULATED INDUSTRIAL ROBOT DESIGNED FOR HEAVY-DUTY APPLICATIONS SUCH AS MATERIAL HANDLING, SPOT WELDING, DISPENSING, ASSEMBLY, AND MACHINE TENDING. THIS VERSATILE ALL-ROUNDER FEATURES A 165 KG PAYLOAD CAPACITY AND A SIGNIFICANT HORIZONTAL REACH OF 2655 MM. ENGINEERED FOR EFFICIENCY IN CONFINED ENVIRONMENTS, THE ROBOT UTILIZES A SLIM ARM AND COMPACT WRIST ASSEMBLY WITH MULTIPLE PROCESS ATTACHMENT POINTS FOR EASIER INTEGRATION. TECHNICAL SPECIFICATIONS INCLUDE A REPEATABILITY OF ±0.2 MM AND A TOTAL ROBOT MASS OF APPROXIMATELY 1170 KG. THE MOTION RANGE FOR THE AXES IS J1 ±180°, J2 +75° TO -60°, J3 +230° TO -132°, J4 ±360°, J5 ±125°, AND J6 ±360°. MAXIMUM MOTION SPEEDS REACH 110°/S FOR AXES J1, J2, AND J3, 150°/S FOR J4 AND J5, AND 220°/S FOR J6. THE SYSTEM IS COMPATIBLE WITH FANUC R-30IA OR R-30IB CONTROLLERS. THE MECHANICAL UNIT IS DESIGNED FOR FLOOR MOUNTING AND FEATURES A SIMPLIFIED VERTICAL ARTICULATED ARM STRUCTURE TO PROVIDE A LARGE MOTION AREA WHILE MAINTAINING A COMPACT FOOTPRINT. ITS DESIGN SUPPORTS DIVERSE MANUFACTURING TASKS, INCLUDING INJECTION MOLDING, CUTTING, AND FOUNDRY OPERATIONS. WHILE THE PROVIDED DATA NOTES THE DATE OF MANUFACTURE IS AVAILABLE UPON REQUEST OR VERIFICATION, A SPECIFIC YEAR OF MANUFACTURE WAS NOT PROVIDED IN THE SOURCE TEXT.
