2014 FANUC M-900iA/400L Articulated Robot, 400kg Payload, 3625mm Reach, R-30iA Control

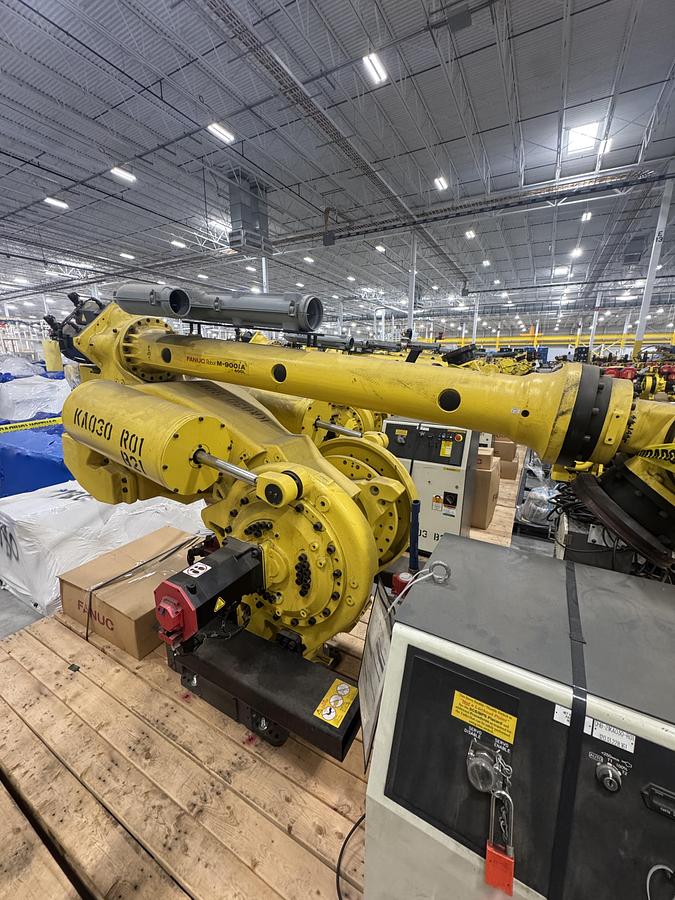

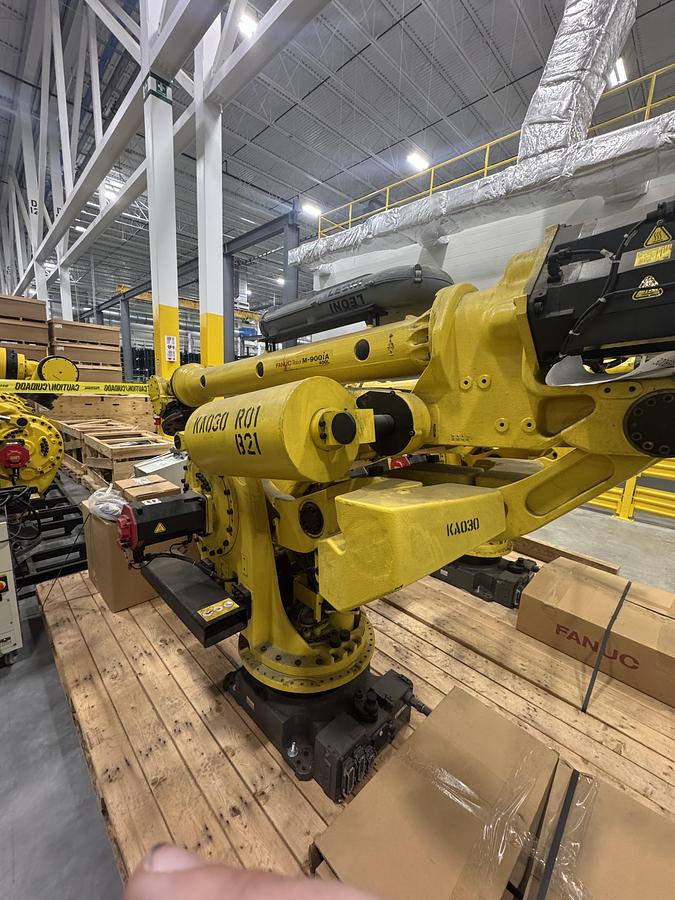

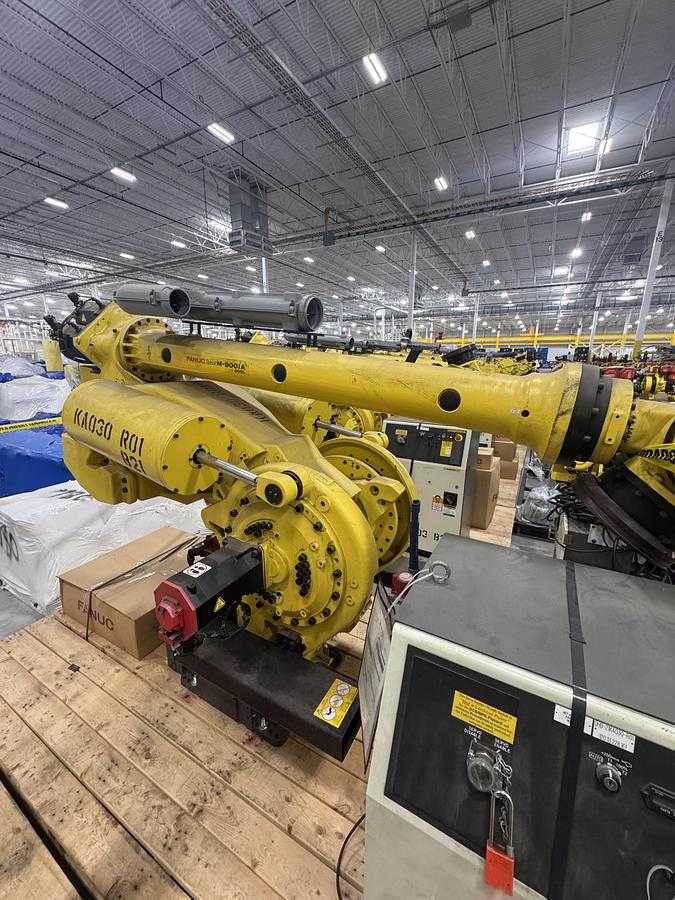

The 2014 FANUC M-900iA/400L is a six-axis articulated industrial robot designed for heavy material handling, part transfer, and applications requiring significant force such as cutting, polishing, and drilling. This floor-mounted model features a 400 kg payload capacity and an extra-long horizontal reach of 3625 mm. The mechanical unit has a mass of 3150 kg and is equipped with an IP67-rated wrist for operation in harsh environments. Performance specifications include a repeatability of ±0.5 mm. Motion speeds are 80°/s for axes J1, J2, and J3, 100°/s for J4 and J5, and 160°/s for J6. The motion range for the axes is J1 ±360°, J2 ±154°, J3 ±160°, J4 ±720°, J5 ±244°, and J6 ±720°. The system is paired with a FANUC R-30iA controller and includes a teach pendant and connection cables.
