2014 FANUC M-900iA/400L Articulated Robot, 400kg Payload, 3625mm Reach, R-30iA Control

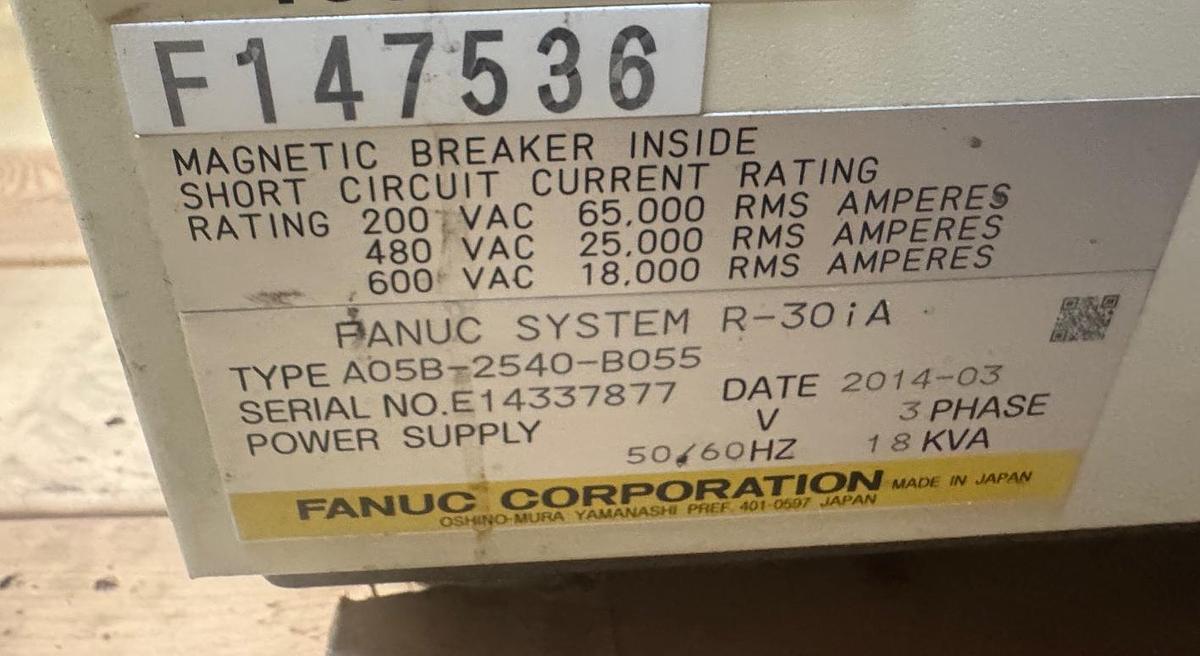

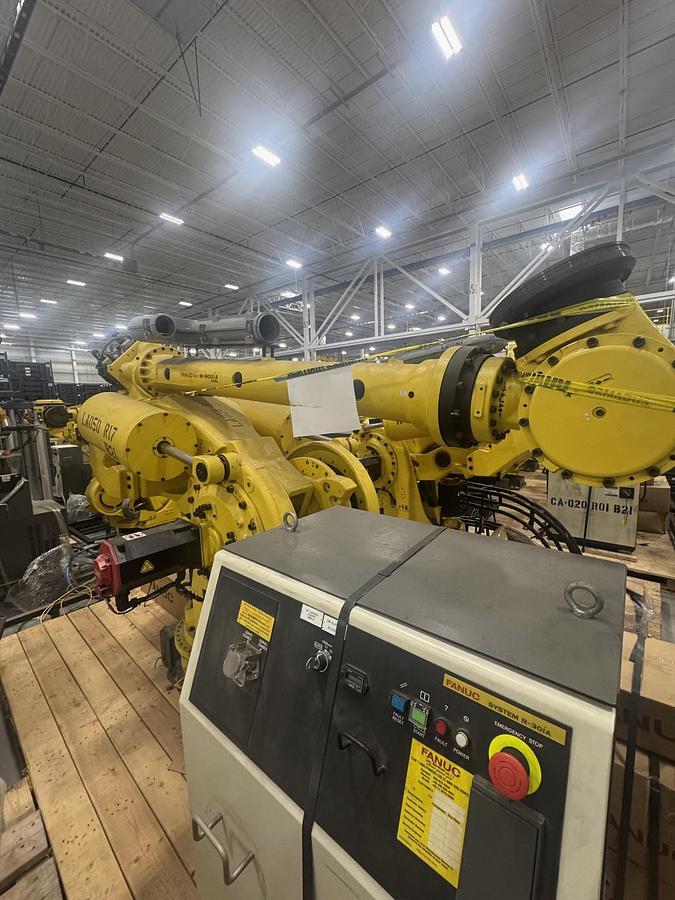

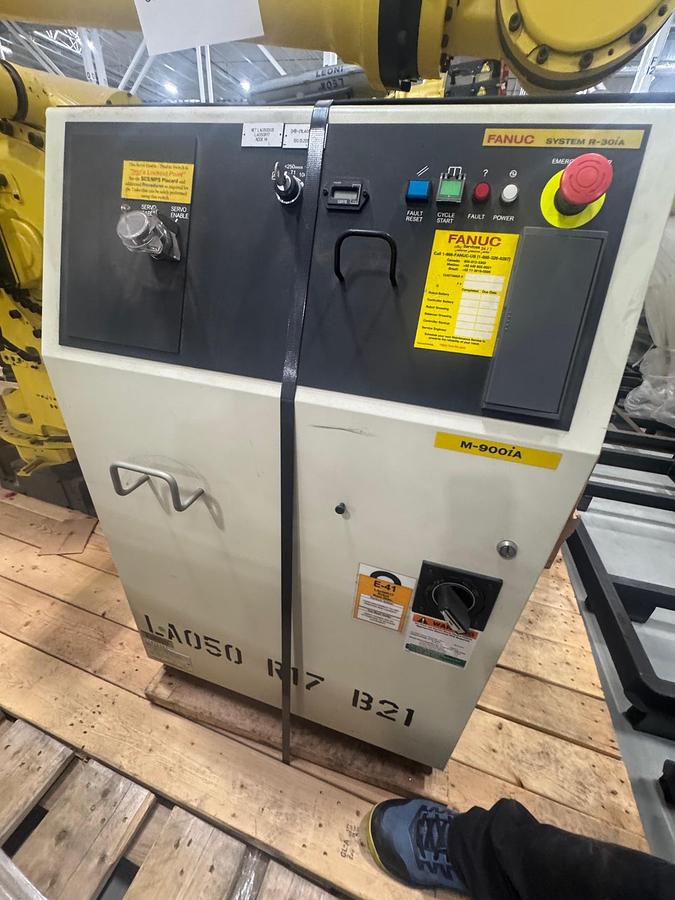

The 2014 FANUC M-900IA/400L is a six-axis, electric servo-driven articulated robot designed for heavy material handling and long-reach industrial applications. It features a 400 kg payload capacity, a horizontal reach of 3625 mm, and a repeatability of ±0.5 mm. The robot has a mechanical mass of 3150 kg and is engineered for floor mounting. Its IP67-rated wrist is constructed to withstand harsh manufacturing environments. Axis motion speeds are 80°/s for J1, J2, and J3, 100°/s for J4 and J5, and 160°/s for J6. The motion range for the axes is J1 ±360°, J2 ±154°, J3 ±160°, J4 ±720°, J5 ±244°, and J6 ±720°. The system is paired with a FANUC R-30IA controller and includes a teach pendant and connection cables.
