2015 FANUC LR MATE 200ID/7LC ROBOT - 7KG PAYLOAD, 717MM REACH, R-30IB CONTROLLER

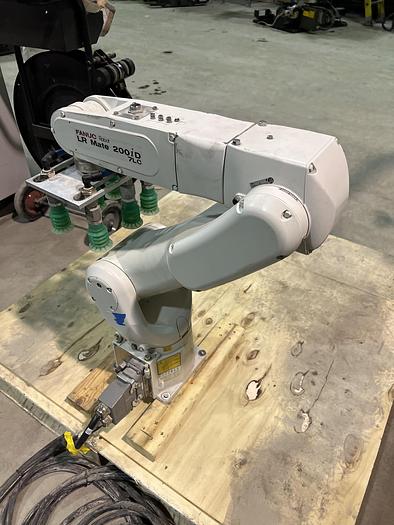

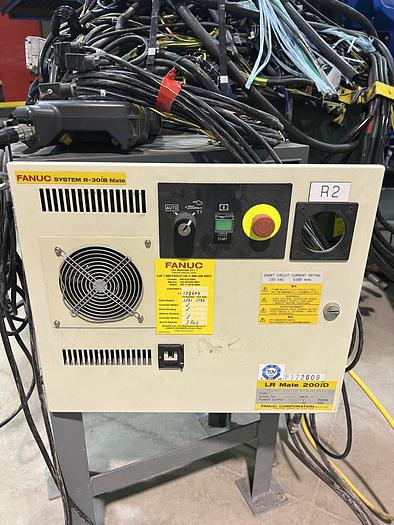

THE 2015 FANUC LR MATE 200ID/7LC IS A SIX-AXIS ARTICULATED CLEAN ROOM ROBOT DESIGNED FOR HIGH-PRECISION APPLICATIONS INCLUDING ASSEMBLY, MATERIAL HANDLING, PACKAGING, PICK AND PLACE, AND MEAT PROCESSING. THIS MODEL IS CLASS 10 CLEAN ROOM CERTIFIED AND FEATURES AN IP67 AND IP69K RATING, ALLOWING FOR HIGH-PRESSURE CLEANING. IT HAS A 7 KG PAYLOAD CAPACITY, A HORIZONTAL REACH OF 717 MM, AND A REPEATABILITY OF ±0.02 MM. THE ROBOT HAS A MASS OF 25KG AND IS DESIGNED FOR FLOOR MOUNTING. IT IS EQUIPPED WITH A FANUC R-30IB CONTROLLER, A TEACH PENDANT, AND CONNECTION CABLES. AXIS MOTION SPEEDS ARE J1 450°/S, J2 380°/S, J3 520°/S, J4 550°/S, J5 545°/S, AND J6 1000°/S. THE MOTION RANGE FOR THE AXES IS J1 ±360°, J2 ±245°, J3 ±420°, J4 ±380°, J5 ±250°, AND J6 ±720°. THE SYSTEM IS ENGINEERED FOR HANDLING SMALL PARTS AND SENSITIVE COMPONENTS IN ENVIRONMENTS REQUIRING FOOD-GRADE GREASE AND HIGH-SPEED AUTOMATION.
