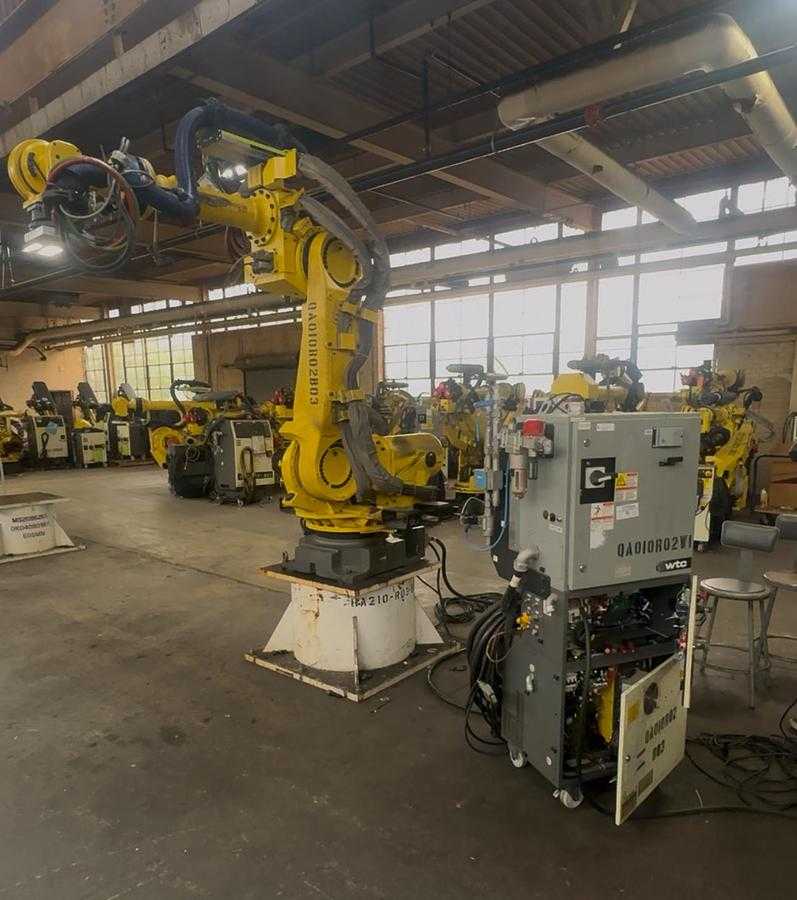

2015 FANUC R-2000IB/210F ARTICULATED ROBOT, PAYLOAD 210KG, REACH 2655MM, R-30IB CONTROLLER

THE 2015 FANUC R-2000IB/210F IS A SIX-AXIS, FLOOR-MOUNTED ARTICULATED ROBOT DESIGNED FOR HEAVY-DUTY INDUSTRIAL APPLICATIONS INCLUDING SPOT WELDING, MATERIAL HANDLING, ASSEMBLY, AND DISPENSING. IT FEATURES A SIGNIFICANT PAYLOAD CAPACITY OF 210 KG AND A HORIZONTAL REACH OF 2,655 MM. THE MECHANICAL UNIT IS CHARACTERIZED BY A SLIM ARM AND WRIST DESIGN, WHICH FACILITATES OPERATION IN CONFINED SPACES AND REDUCES INTERFERENCE WITH PERIPHERAL EQUIPMENT. TECHNICAL SPECIFICATIONS INCLUDE A REPEATABILITY OF ±0.3 MM AND A TOTAL MASS OF 1,240 KG. THE ROBOT’S MOTION SPEEDS ARE 95°/S FOR J1 AND J3, 90°/S FOR J2, 120°/S FOR J4 AND J5, AND 190°/S FOR J6. ITS MOTION RANGE COVERS ±180° FOR J1, +75° TO -60° FOR J2, +230° TO -132° FOR J3, ±360° FOR J4 AND J6, AND ±125° FOR J5. THIS MODEL IS EQUIPPED WITH A FANUC R-30IB CONTROLLER, A COLOR TEACH PENDANT, AND 14-METER CONNECTION CABLES. THE R-2000IB SERIES IS ENGINEERED FOR HIGH-SPEED PERFORMANCE AND RELIABILITY, OFFERING A LARGE WORK ENVELOPE WITH THE CAPABILITY TO REACH OVERHEAD AND BEHIND THE BASE. ITS ARTICULATED STRUCTURE AND RIGID DRIVE TRAIN MAKE IT SUITABLE FOR DIVERSE MANUFACTURING TASKS REQUIRING HIGH PRECISION AND HEAVY LIFTING CAPABILITIES.
