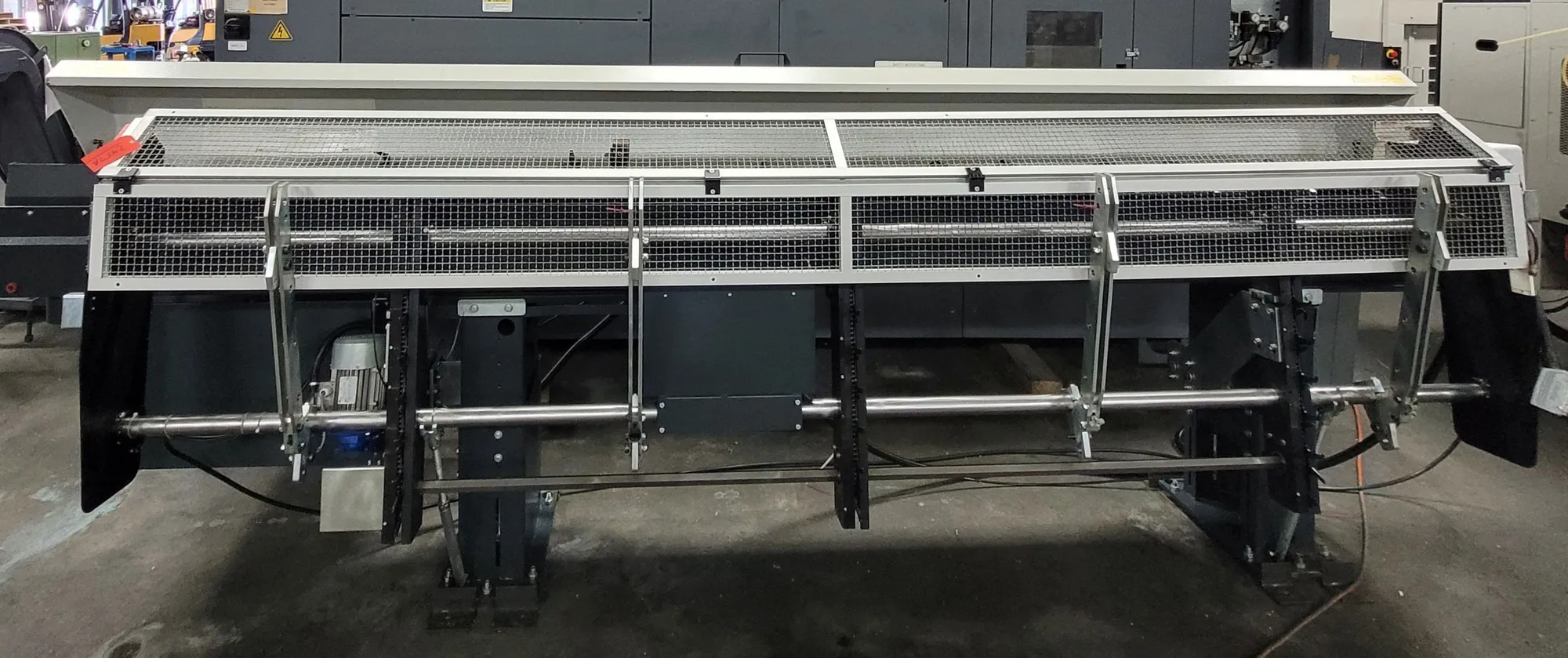

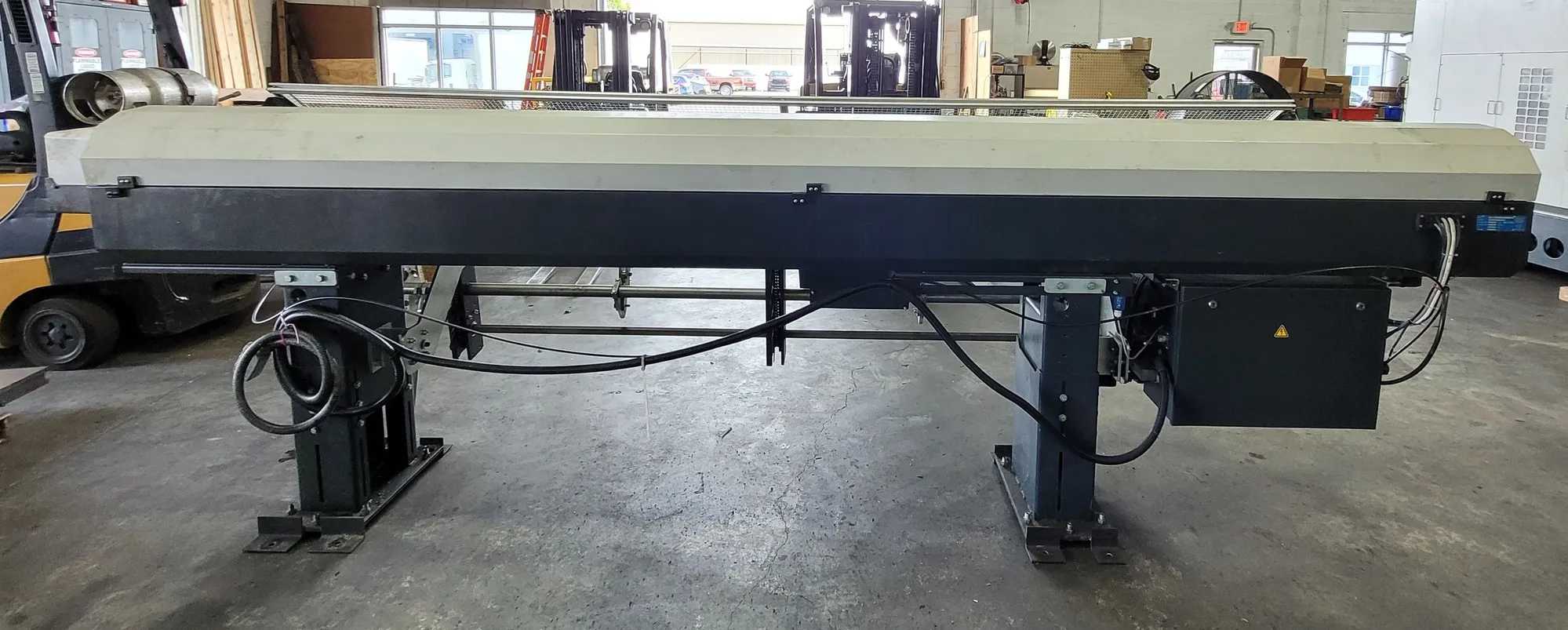

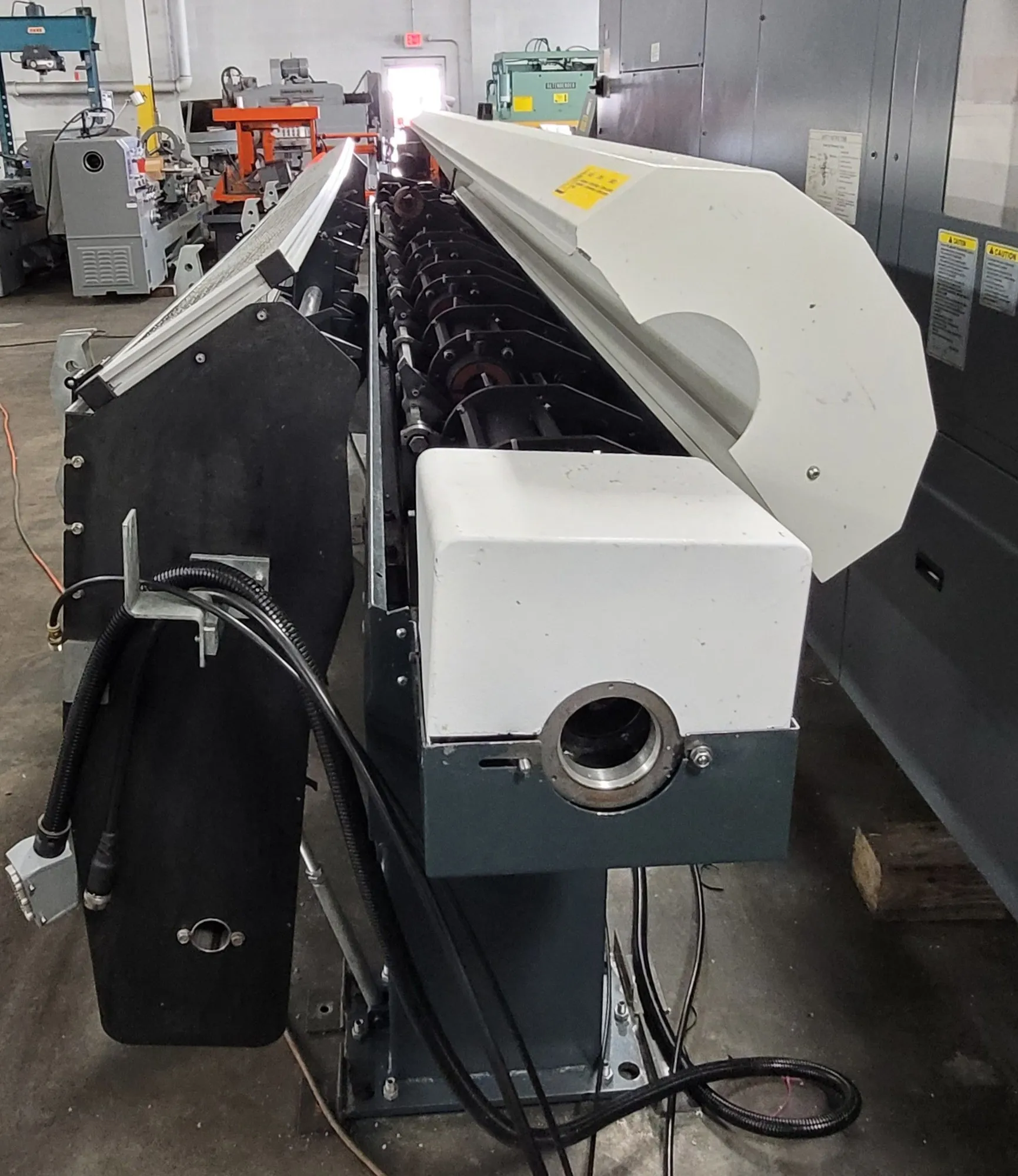

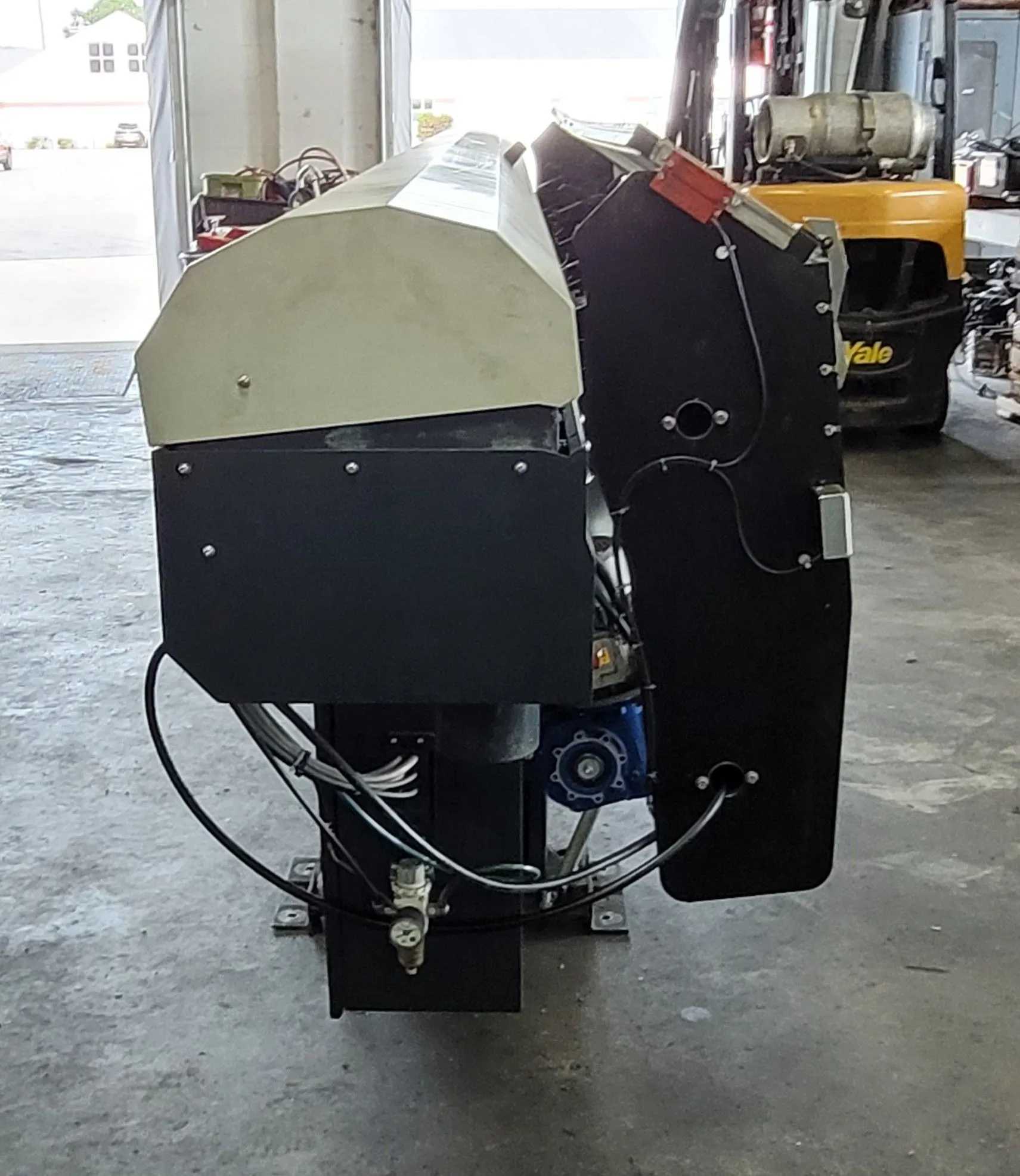

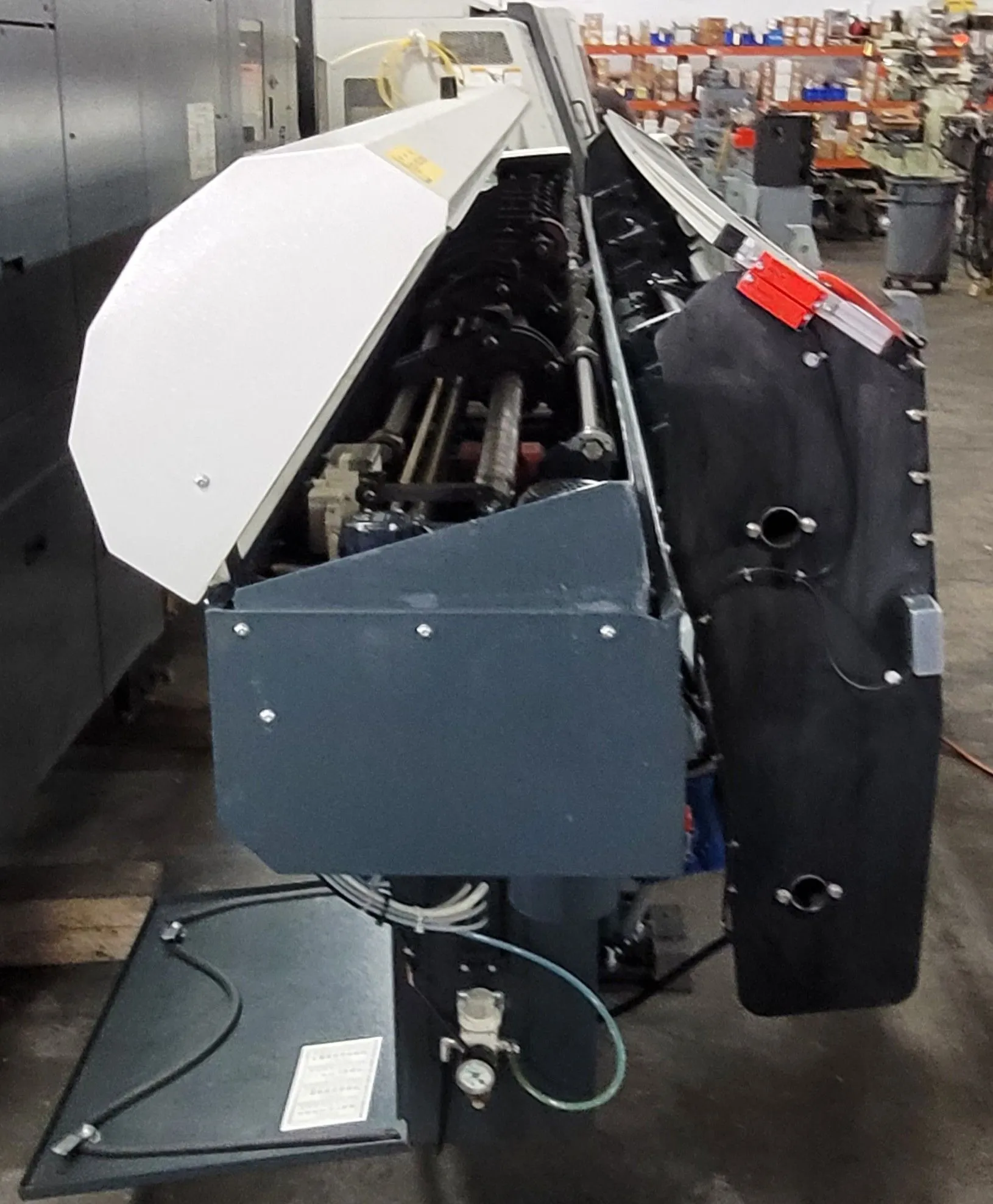

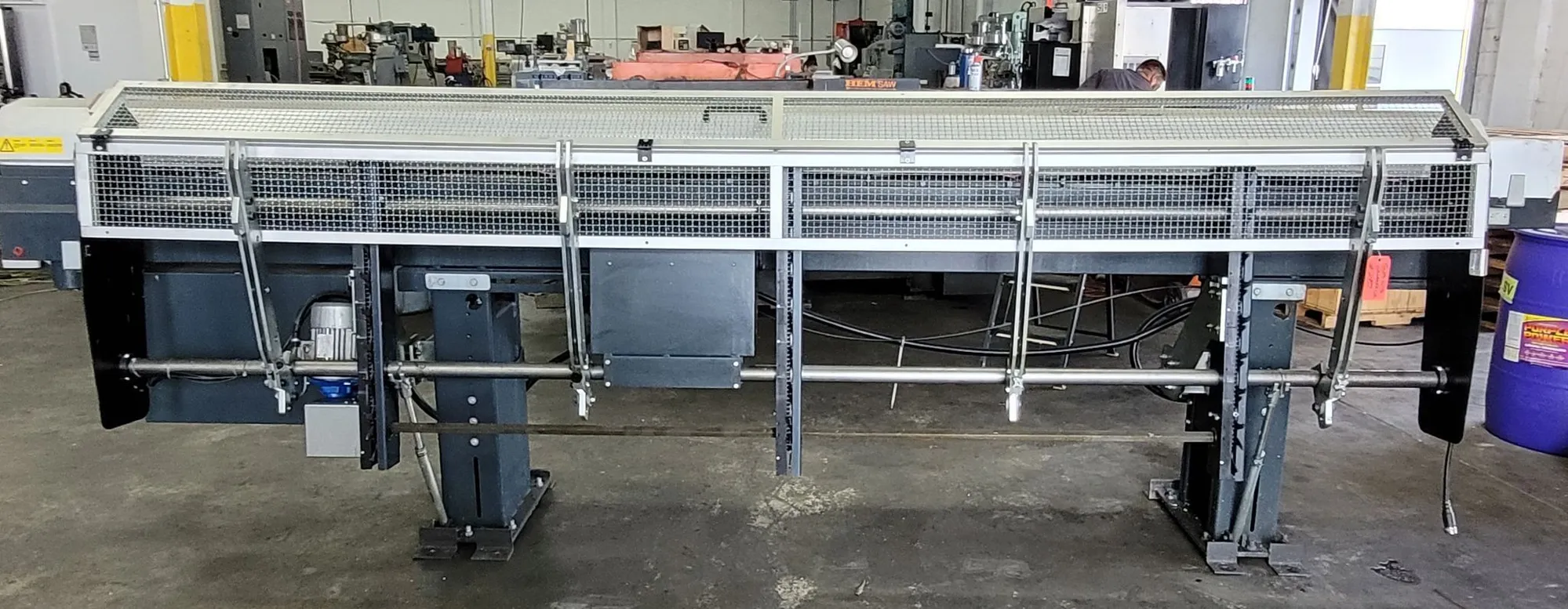

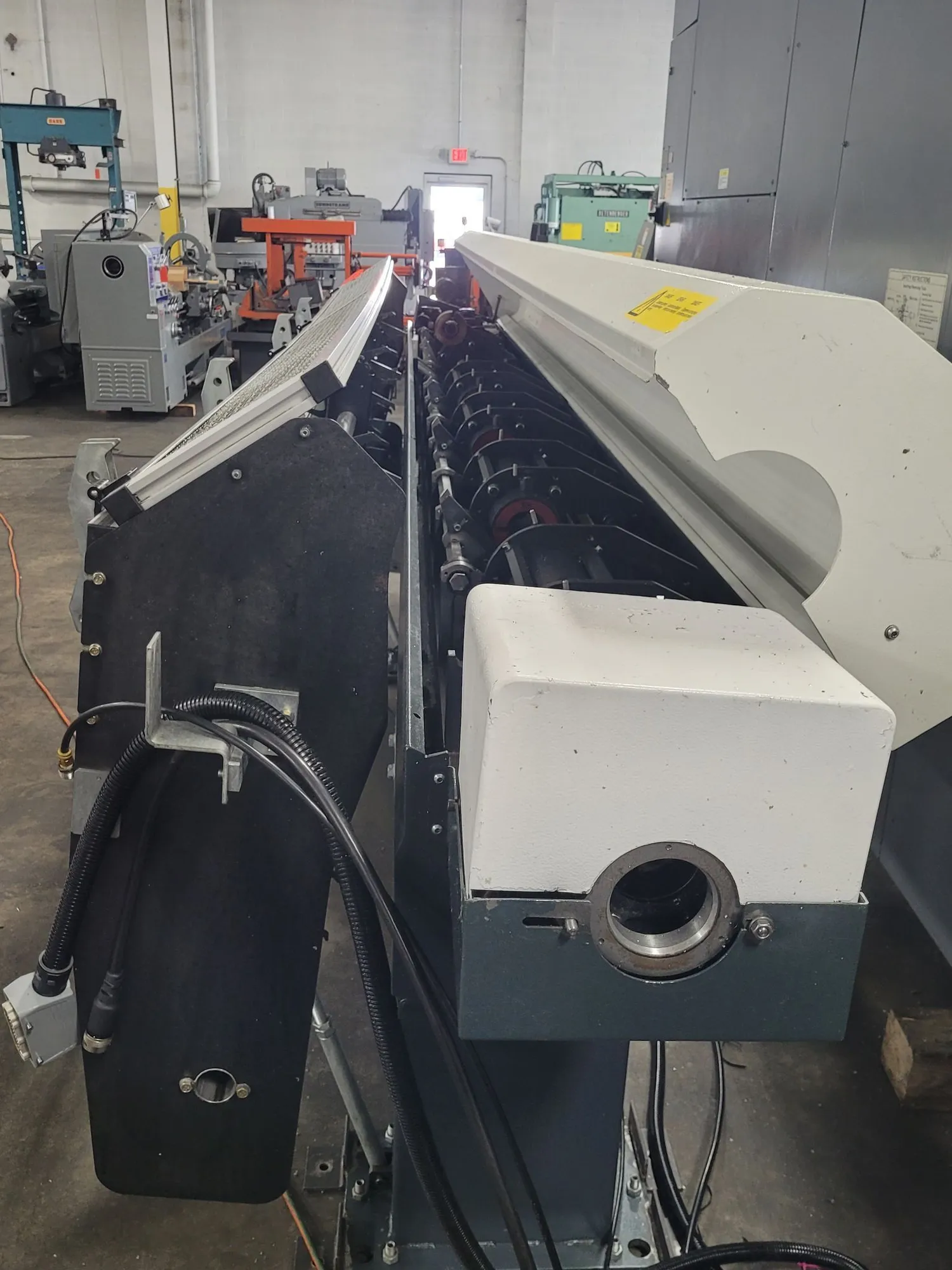

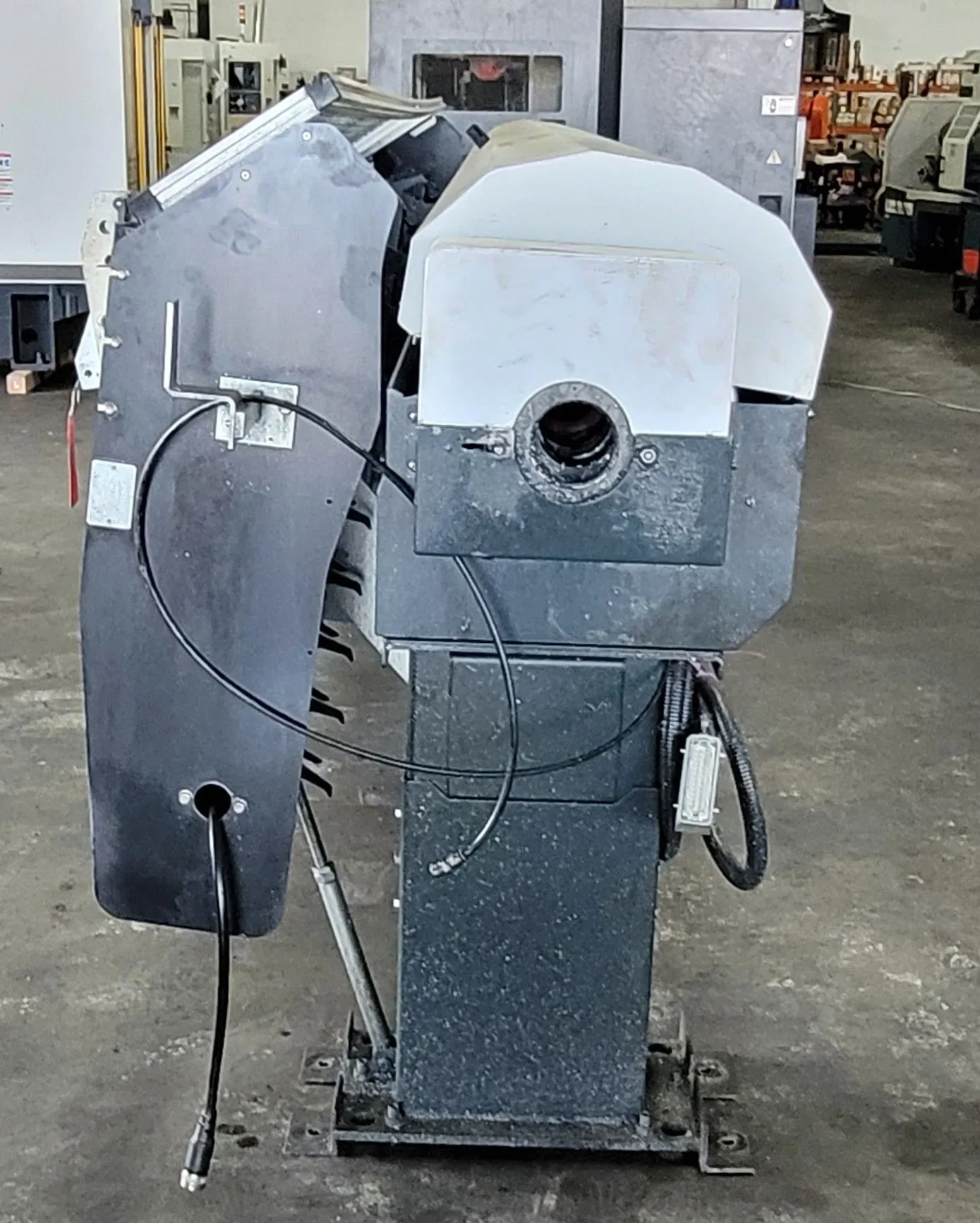

2015 LNS SPRINT 565 BAR FEEDER, 5-65MM, 220-480V, FIXED HEADSTOCK

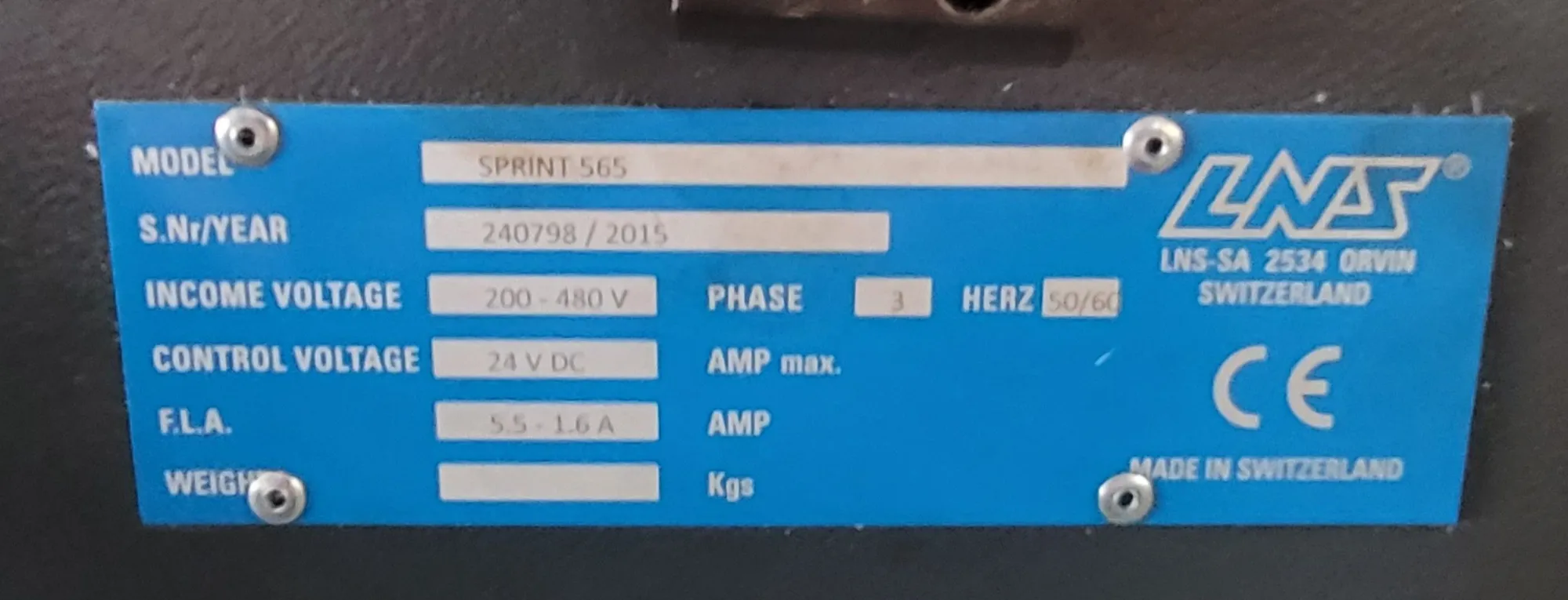

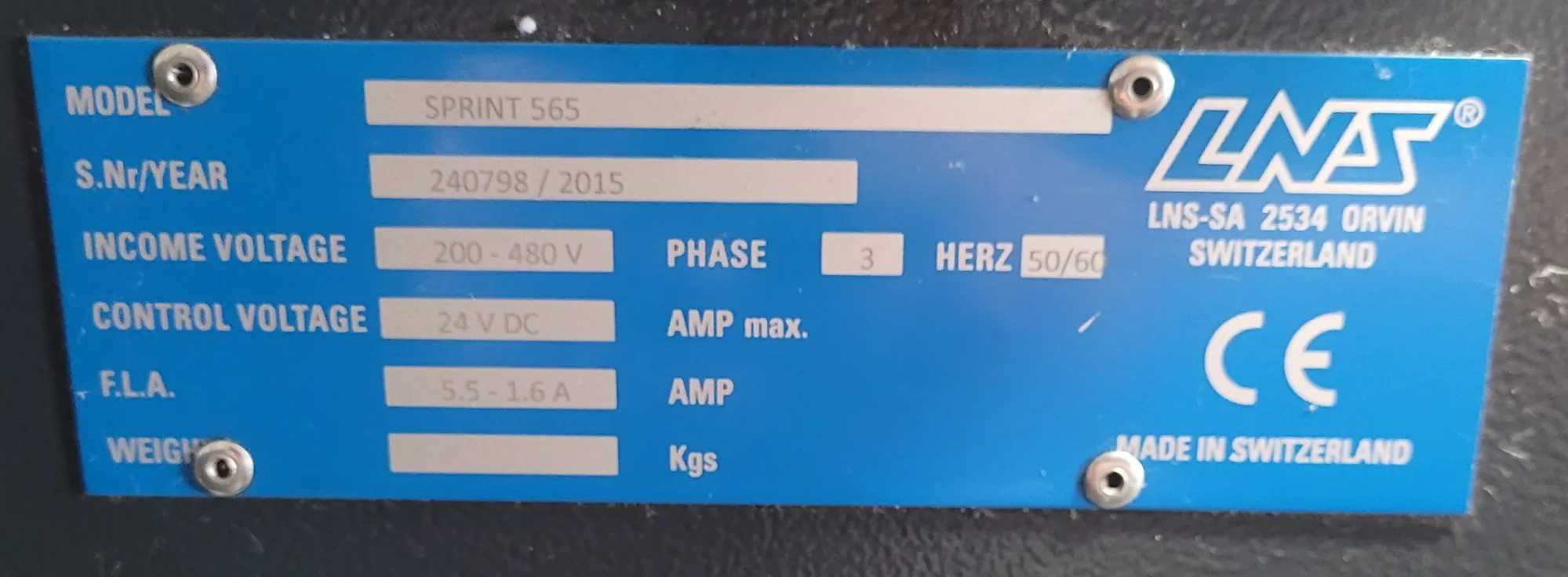

THE LNS SPRINT 565 IS A SWISS-MADE BAR FEEDER MANUFACTURED IN 2015, DESIGNED FOR FIXED HEADSTOCK TYPE MACHINES. IT OPERATES ON AN INCOME VOLTAGE OF 220-480V WITH A 24V DC CONTROL VOLTAGE, 3-PHASE POWER, A FREQUENCY OF 50/60 HZ, AND A FULL LOAD AMPERAGE (FLA) OF 5.5-1.6A. THIS BAR FEEDER ACCOMMODATES A DIAMETER RANGE OF 5 MM TO 65 MM (1/4" TO 2-1/2") AND SUPPORTS BAR LENGTH OPTIONS OF 2200 MM, 3200 MM, 3800 MM, AND 4200 MM (UP TO APPROXIMATELY 14 FEET). THE SYSTEM PROVIDES A LOADING CAPACITY OF 9 BARS FOR THE MAXIMUM 65 MM DIAMETER OR 11 BARS FOR A 52 MM DIAMETER, WITH A MAXIMUM REMNANT LENGTH OF 450 MM. EFFICIENCY FEATURES INCLUDE A PARTIAL CHANGEOVER TIME OF 2 MINUTES AND A TOTAL CHANGEOVER TIME OF 10 MINUTES. THE MACHINE HAS AN APPROXIMATE WEIGHT OF 3,080 LBS (1,397 KG) AND OVERALL PHYSICAL DIMENSIONS MEASURING 180”L X 54”W X 58”H.
