2016 ABB IRB 7600 500/2.55 Articulated Robot, 500kg Payload, 2550mm Reach, IRC5 Controller

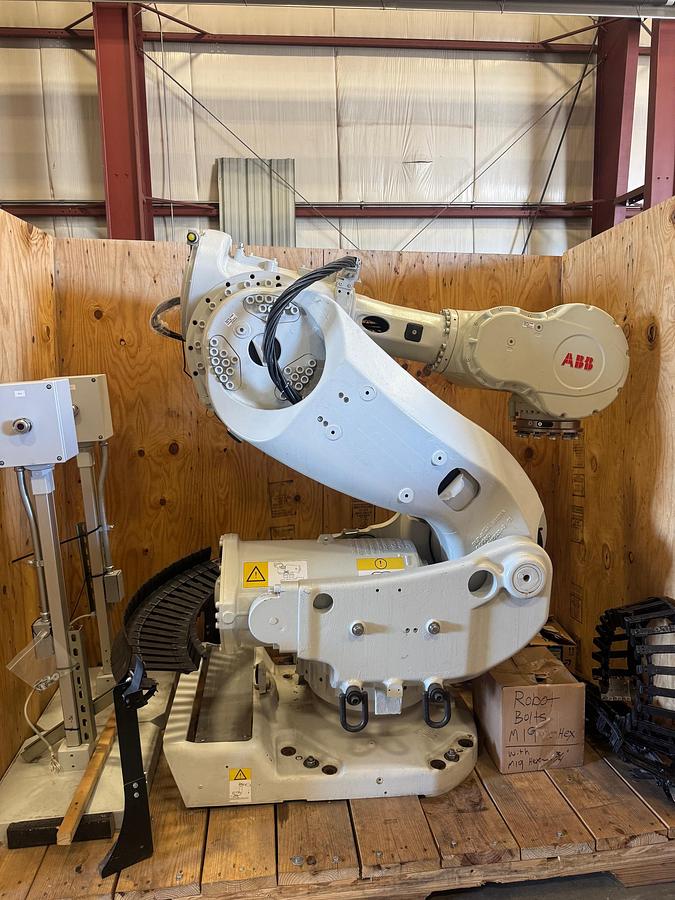

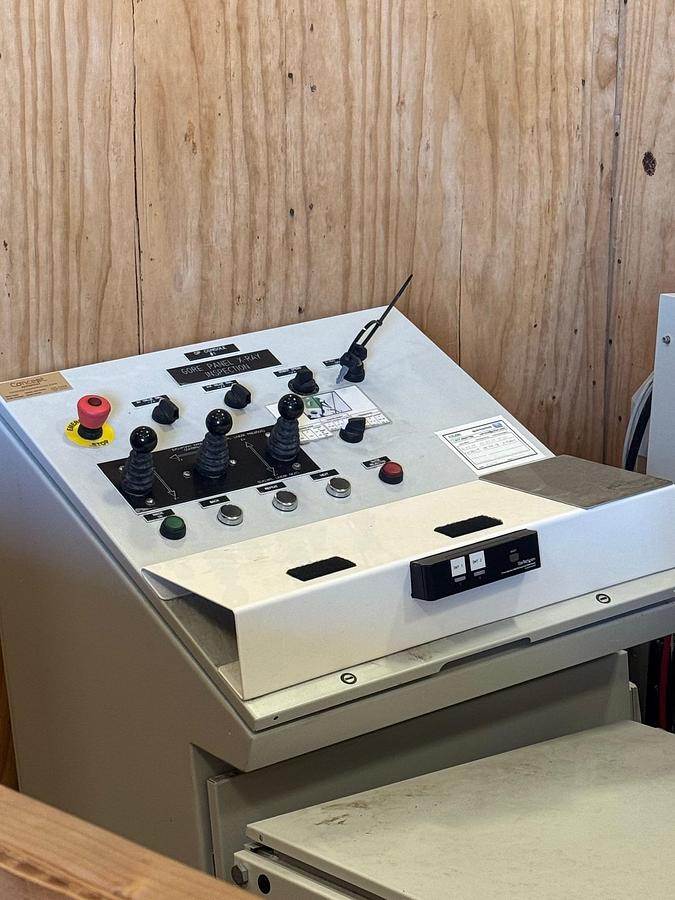

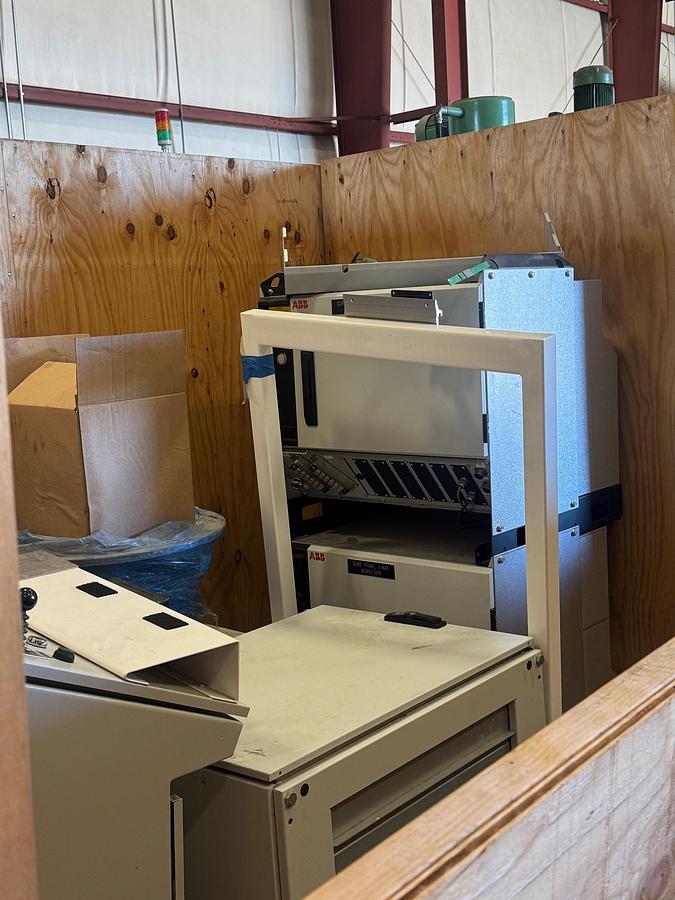

The 2016 ABB IRB 7600 500/2.55 is a six-axis articulated industrial robot designed for heavy-duty applications. It features a high payload capacity of 500 kg and a horizontal reach of 2550 mm. This floor-mounted system is engineered with a rigid design and powerful acceleration to handle heavy and wide parts, such as engine blocks, car bodies, and heavy pallets. Technical specifications include motion speeds of 75°/s for J1, 50°/s for J2, 55°/s for J3, 100°/s for J4 and J5, and 160°/s for J6. The motion range for the axes is J1 ±180°, J2 +85° to -60°, J3 +60° to -180°, J4 ±300°, J5 ±100°, and J6 ±360°. The robot is integrated with an IRC5 controller and is equipped with a teach pendant, connection cables, and an operator station. Safety and performance features include collision detection, an electronically stabilized path, an active brake system, and self-tuning performance. Typical applications include machine loading and tending, material handling, order picking, packaging, and palletizing.
