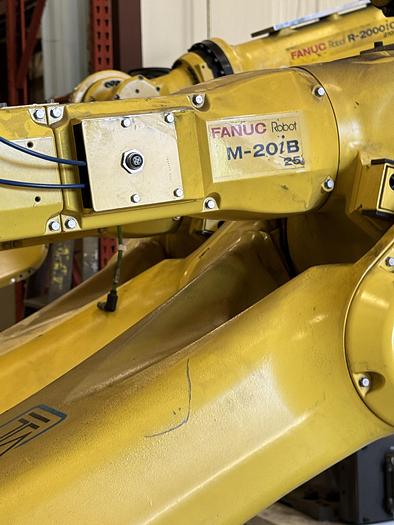

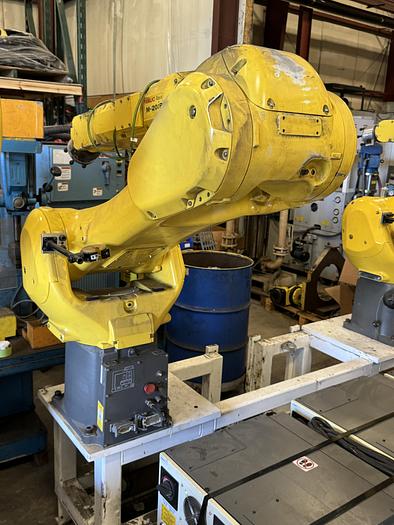

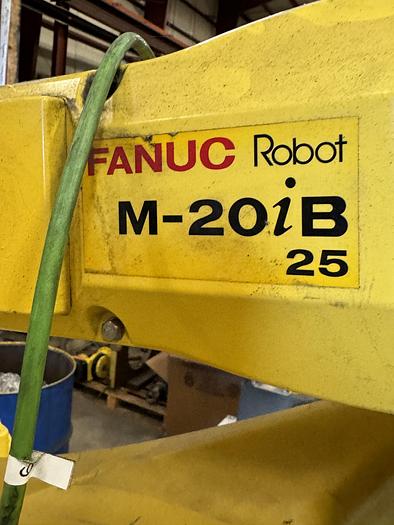

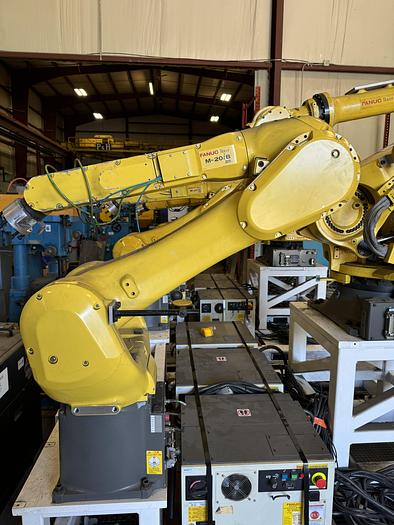

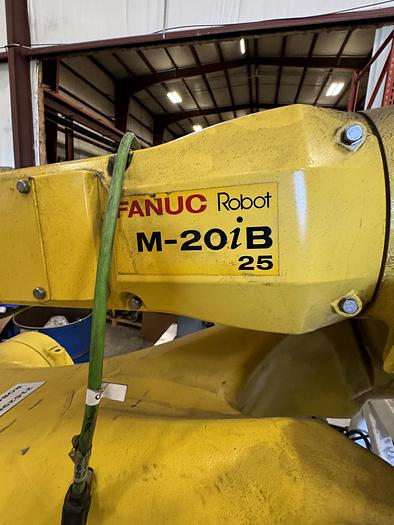

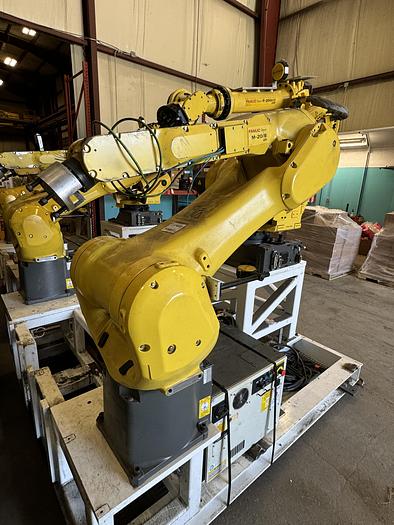

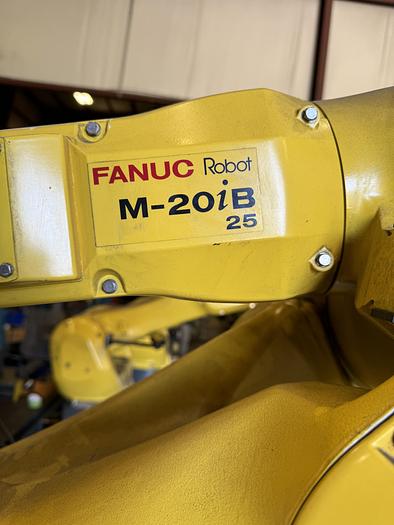

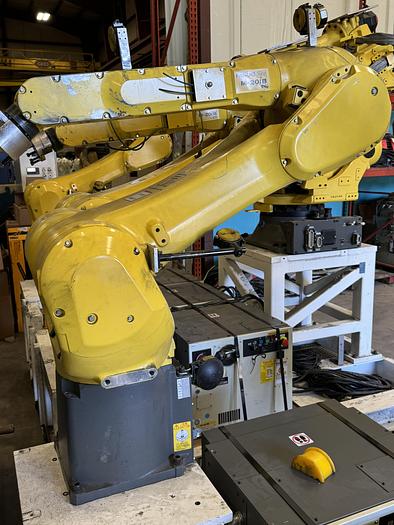

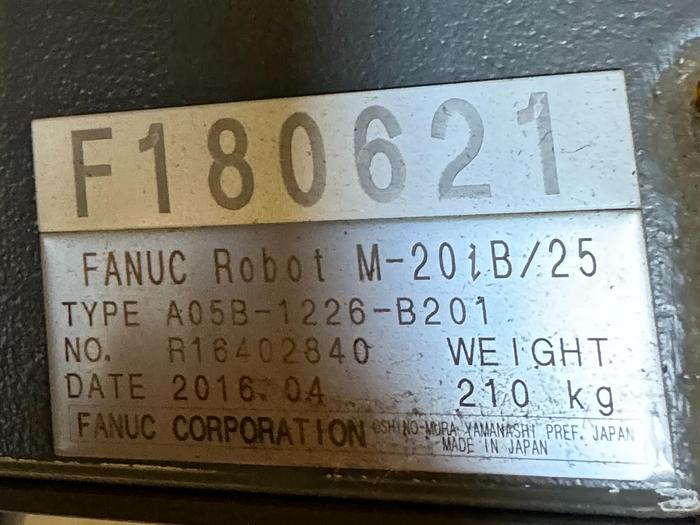

2016 FANUC M-20IB/25 ARTICULATED ROBOT, 25KG PAYLOAD, 1853MM REACH, R-30IB CONTROLLER

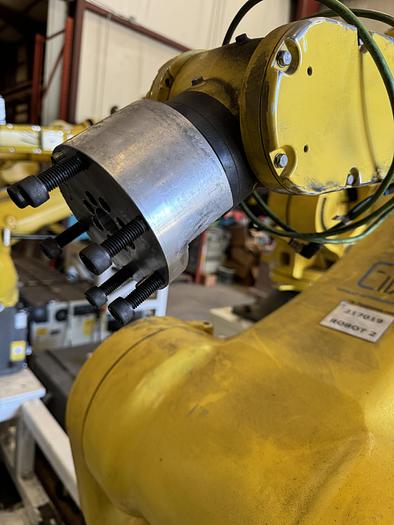

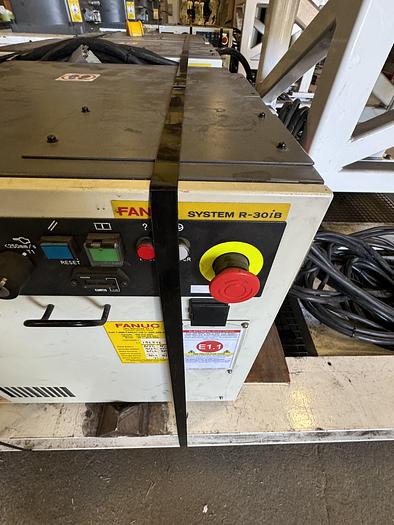

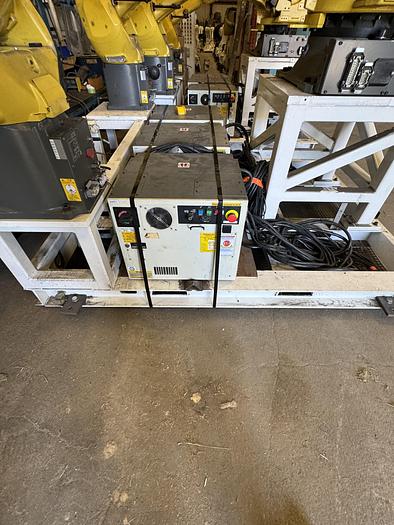

THE 2016 FANUC M-20IB/25 IS A SIX-AXIS ARTICULATED ROBOT DESIGNED FOR HIGH-PERFORMANCE APPLICATIONS INCLUDING MATERIAL HANDLING, PICK AND PLACE, MACHINE TENDING, LOADING, MATERIAL REMOVAL, DEBURRING, AND WATERJET PROCESSES. IT FEATURES A 25 KG PAYLOAD CAPACITY, AN 1853 MM HORIZONTAL REACH, AND A REPEATABILITY OF ±0.05 MM. THE ROBOT HAS A MASS OF 250 KG AND SUPPORTS FLOOR, INVERTED, AND ANGLE MOUNTING. THE UNIT INCORPORATES AN ADVANCED DESIGN WITH A LIGHTWEIGHT HOLLOW UPPER ARM AND WRIST, ALLOWING FOR INTERNAL CABLE ROUTING TO PROTECT THE DRESS PACK. AXIS MOTION SPEEDS ARE 205°/S FOR J1 AND J2, 260°/S FOR J3, 415°/S FOR J4 AND J5, AND 880°/S FOR J6. THE MOTION RANGE FOR THE AXES IS J1 +340° TO -360°, J2 ±240°, J3 ±303°, J4 ±400°, J5 ±290°, AND J6 ±540°. THE SYSTEM IS EQUIPPED WITH A FANUC R-30IB CONTROLLER, A COLOR I-TEACH PENDANT, AND CONNECTION CABLES.
