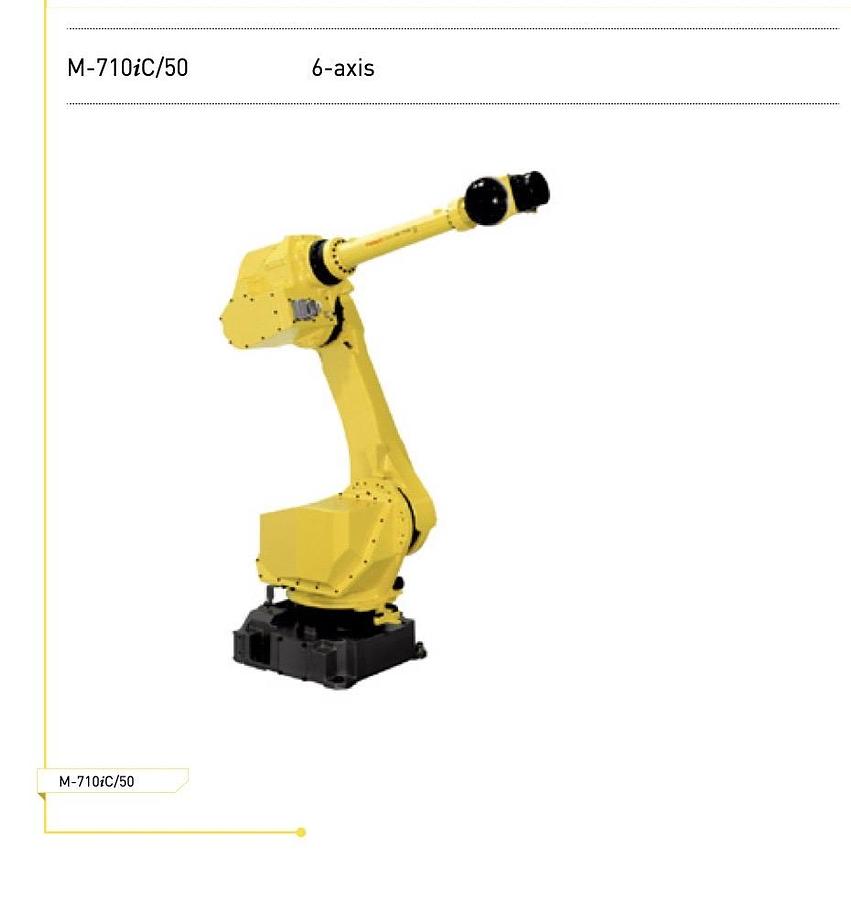

2016 FANUC M-710iC/50 Articulated Robot, 50kg Payload, 2050mm Reach, R-30iB Controller

The 2016 FANUC M-710iC/50 is a six-axis articulated robot designed for applications including assembly, arc welding, dispensing, machine tending, and palletizing. It features a 50 kg payload capacity, a 2050 mm horizontal reach, and a repeatability of ±0.07 mm. The robot has a mass of 560 kg and supports floor, inverted, and angle mounting. It is equipped with a FANUC R-30iB control, connection cables, and a teach pendant. Axis motion speeds are 175°/s for J1, J2, and J3, 250°/s for J4 and J5, and 355°/s for J6. The motion range for the axes is J1 ±360°, J2 ±225°, J3 ±440°, J4 ±720°, J5 ±250°, and J6 ±720°. The system also includes camera and EE connections.
