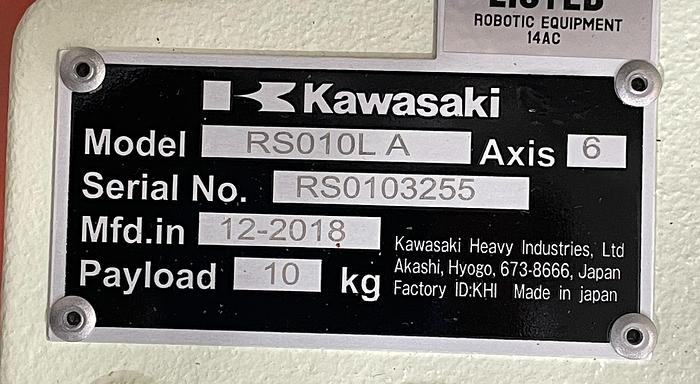

2018 KAWASAKI RS010L ARTICULATED ROBOT, 10 KG PAYLOAD, 1925 MM REACH, E01 CONTROLLER

THE 2018 KAWASAKI RS010L IS A SIX-AXIS INDUSTRIAL ROBOT FROM THE R SERIES DESIGNED FOR GENERAL-PURPOSE APPLICATIONS INCLUDING MIG AND ARC WELDING, MATERIAL HANDLING, WATER JET CUTTING, FIBERGLASS CUTTING, AND MACHINE TENDING. IT FEATURES A 10 KG PAYLOAD CAPACITY, A MAXIMUM REACH OF 1925 MM, AND A POSITIONAL REPEATABILITY OF ±0.05 MM. THE ROBOT HAS A MASS OF 230 KG AND SUPPORTS FLOOR AND CEILING MOUNTING. IT IS EQUIPPED WITH A KAWASAKI E01 CONTROLLER, COLOR TEACH PENDANT, CONNECTION CABLES, TRANSFORMER, AND RISER. THE UNIT PROVIDES HIGH-SPEED OPERATION WITH MAXIMUM AXIS SPEEDS OF 190°/S (JT1), 205°/S (JT2), 210°/S (JT3), 400°/S (JT4), 360°/S (JT5), AND 610°/S (JT6). MOTION RANGES ARE ±180° (JT1), +155° TO -105° (JT2), +150° TO -163° (JT3), ±270° (JT4), ±145° (JT5), AND ±360° (JT6). THE WRIST MOMENT IS RATED AT 22 NM FOR JT4 AND JT5, AND 10 NM FOR JT6, WHILE THE MOMENT OF INERTIA IS 0.7 KG·M² FOR JT4 AND JT5, AND 0.2 KG·M² FOR JT6. THE ROBOT OFFERS ENVIRONMENTAL PROTECTION WITH AN IP67 RATING FOR THE WRIST AND IP65 FOR THE BASE AXES, UTILIZING A DOUBLE SEAL CONSTRUCTION AND WATER-RESISTANT ELECTRICAL CONNECTIONS. INTEGRATED FEATURES INCLUDE BUILT-IN PNEUMATIC LINES AND INTERNAL WIRING FOR SENSORS AND SOLENOID VALVES.
