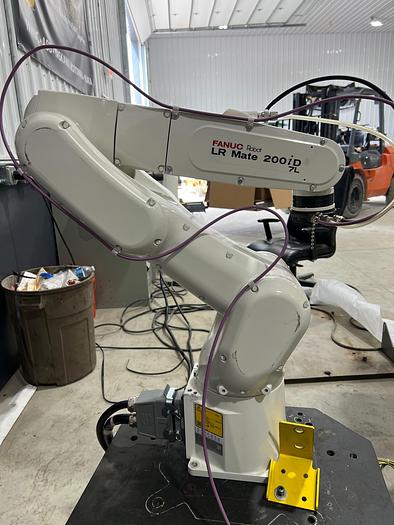

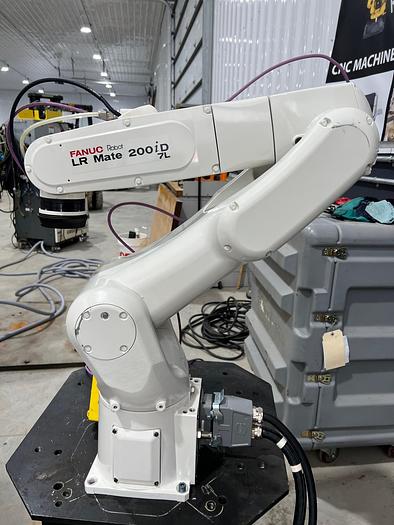

2019 FANUC LR MATE 200ID/7L ARTICULATED ROBOT, 7KG PAYLOAD, 911MM REACH, R-30IB MATE PLUS

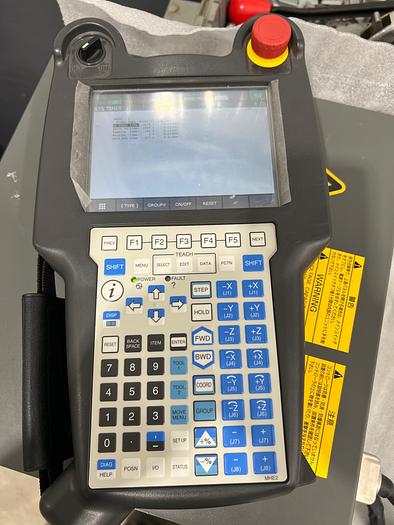

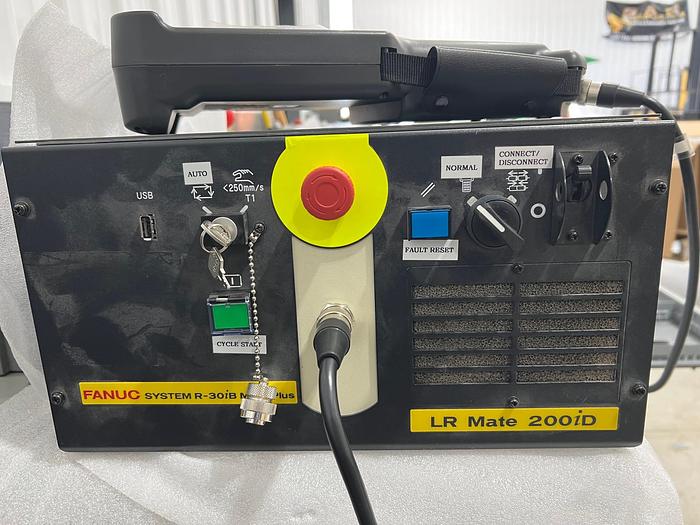

THE 2019 FANUC LR MATE 200ID/7L IS A SIX-AXIS ARTICULATED ROBOT DESIGNED FOR VERSATILE INDUSTRIAL APPLICATIONS. IT FEATURES A 7KG PAYLOAD CAPACITY, A HORIZONTAL REACH OF 911MM, AND A REPEATABILITY OF ±0.03MM. THE ROBOT HAS A MASS OF 27KG AND SUPPORTS FLOOR, INVERTED, AND ANGLE MOUNTING CONFIGURATIONS. AXIS MOTION SPEEDS ARE 370°/S FOR J1, 310°/S FOR J2, 410°/S FOR J3, 550°/S FOR J4, 545°/S FOR J5, AND 1000°/S FOR J6. THE MOTION RANGE FOR THE AXES IS J1 +340° TO -360°, J2 ±245°, J3 ±420°, J4 ±380°, J5 ±250°, AND J6 ±720°. THE SYSTEM IS EQUIPPED WITH A FANUC R30IB MATE PLUS COMPACT CONTROLLER, ROBOT CONNECTION CABLES, AND A FANUC COLOR I-PENDANT.
