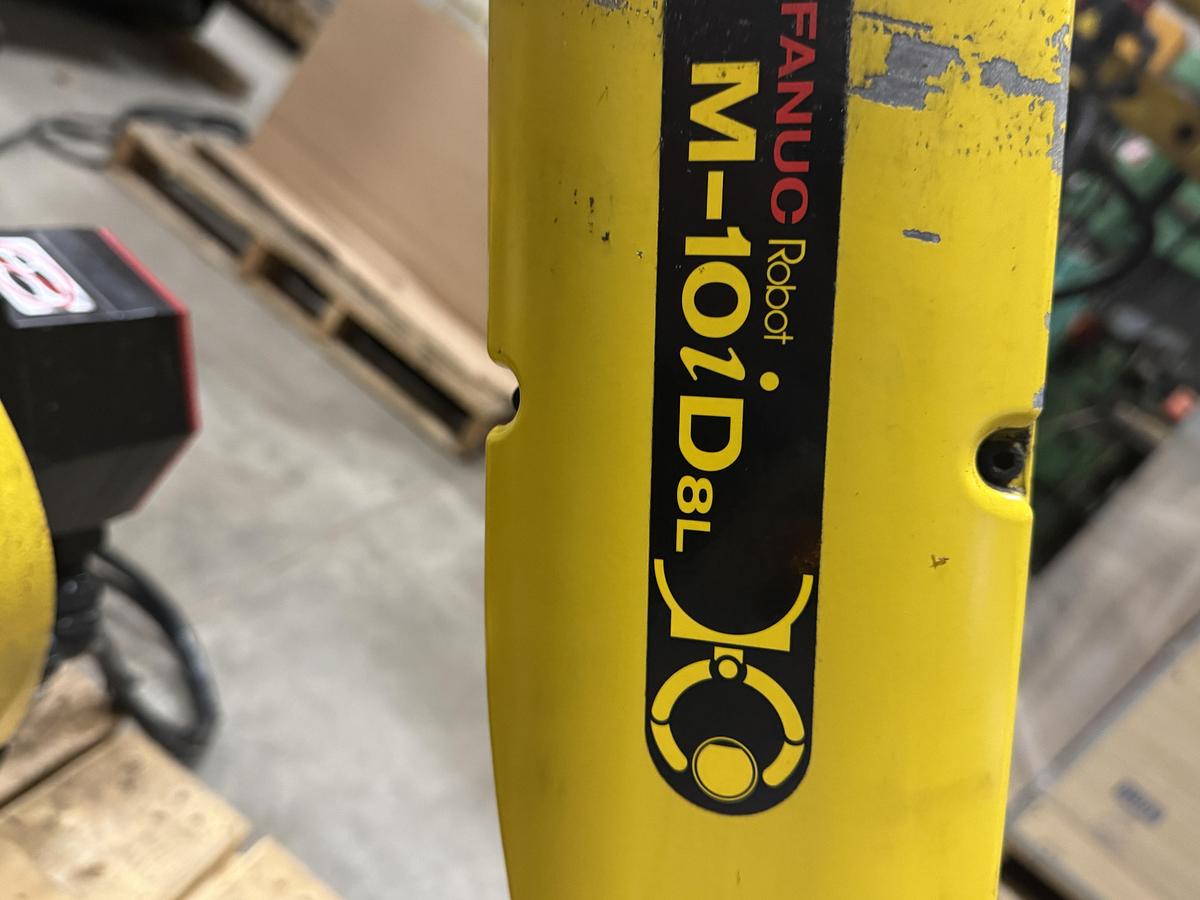

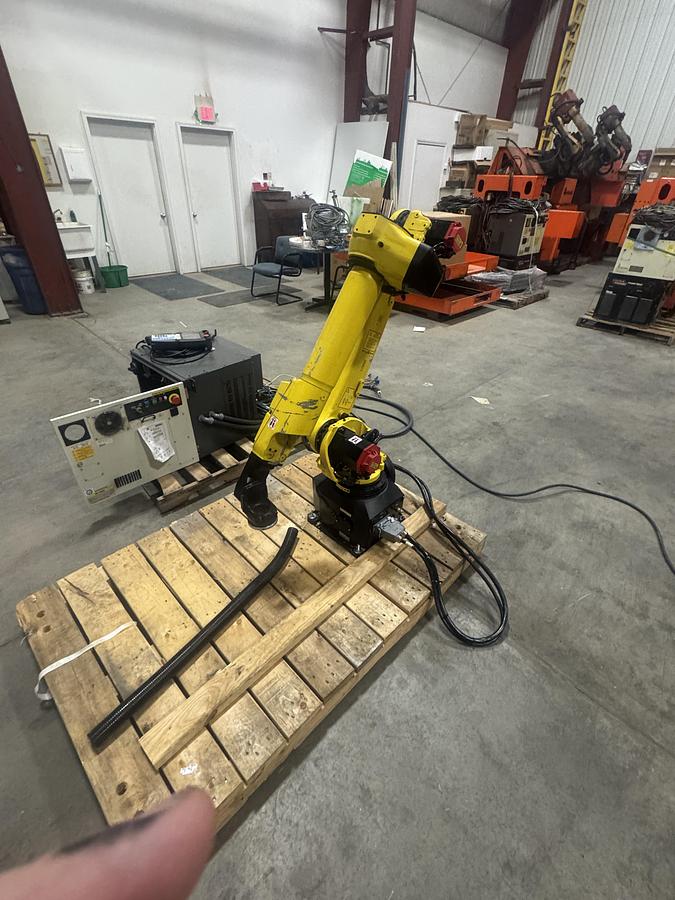

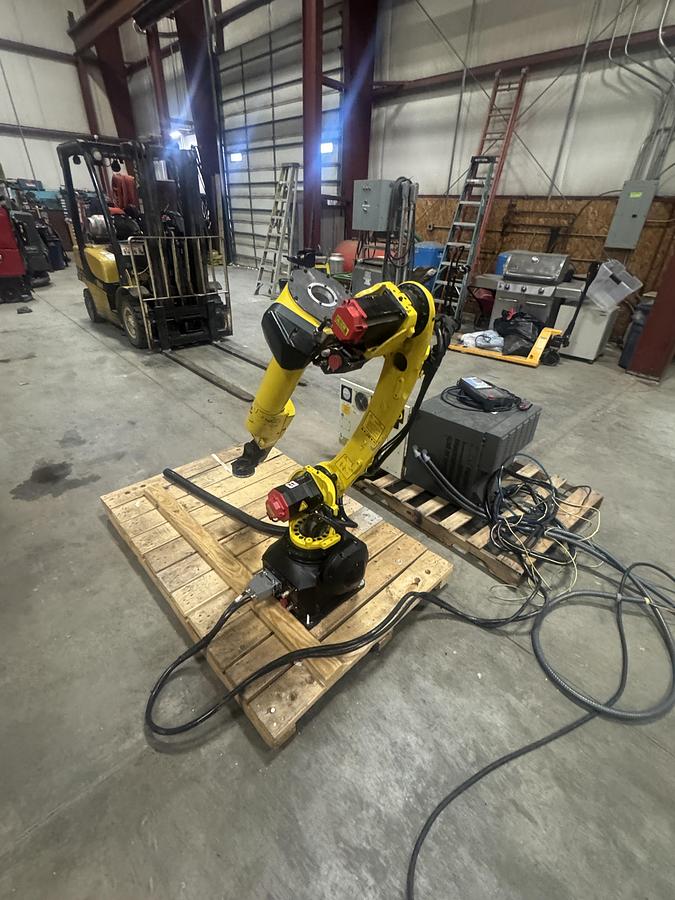

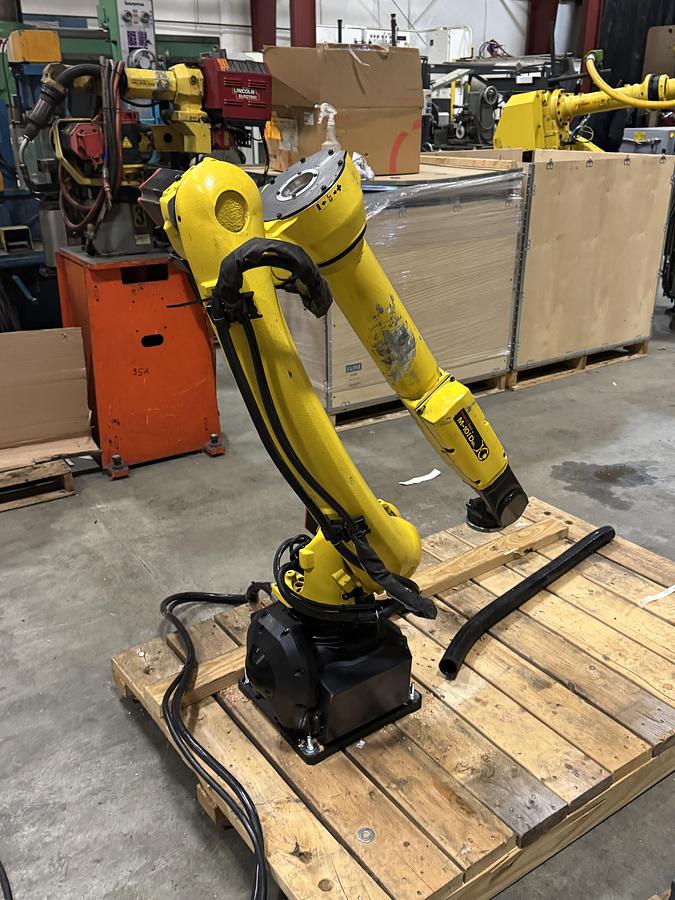

2020 FANUC M-10ID/8L Articulated Robot, 8kg Payload, 2032mm Reach, R-30iB Plus Control

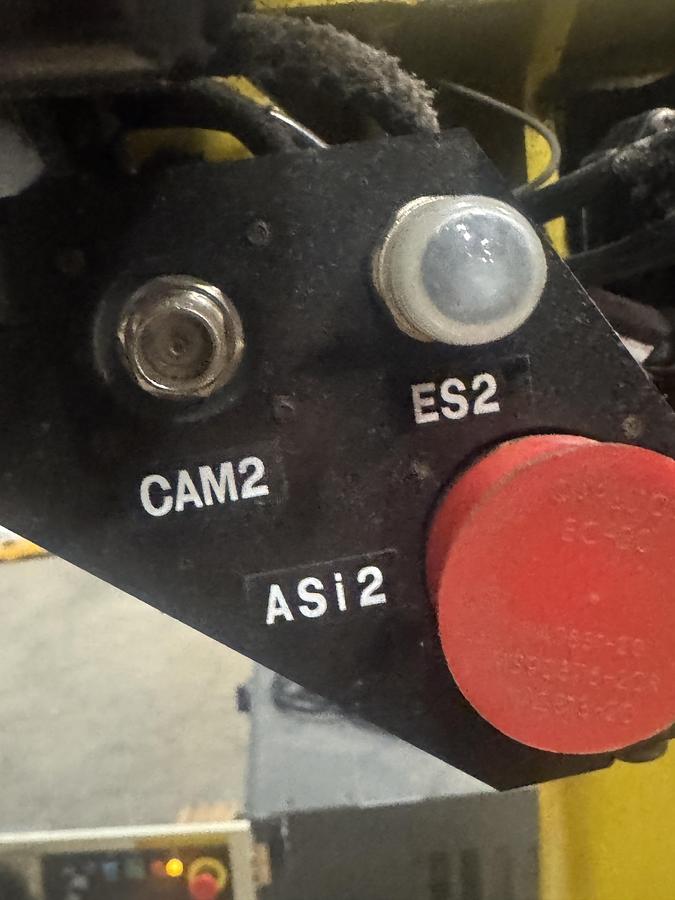

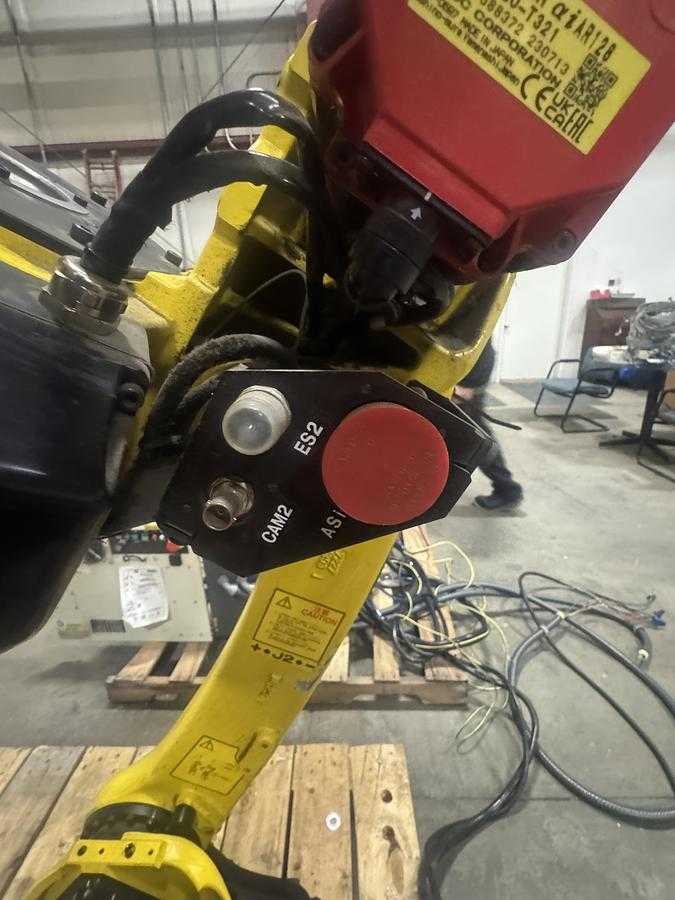

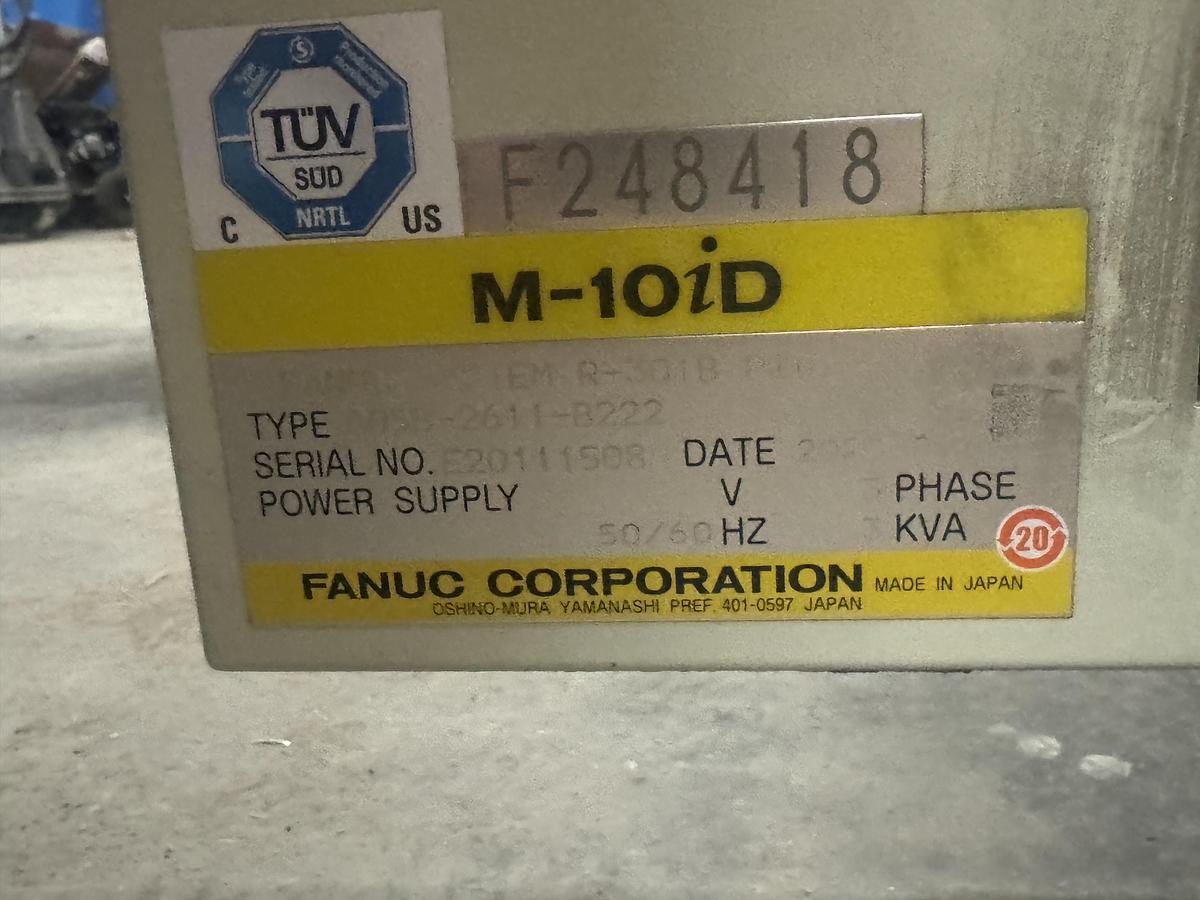

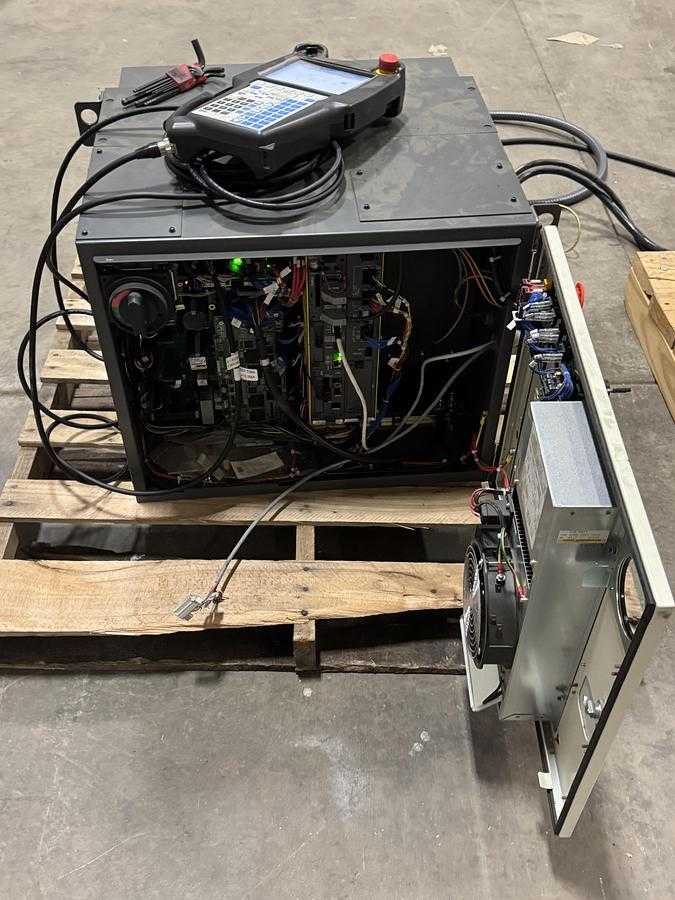

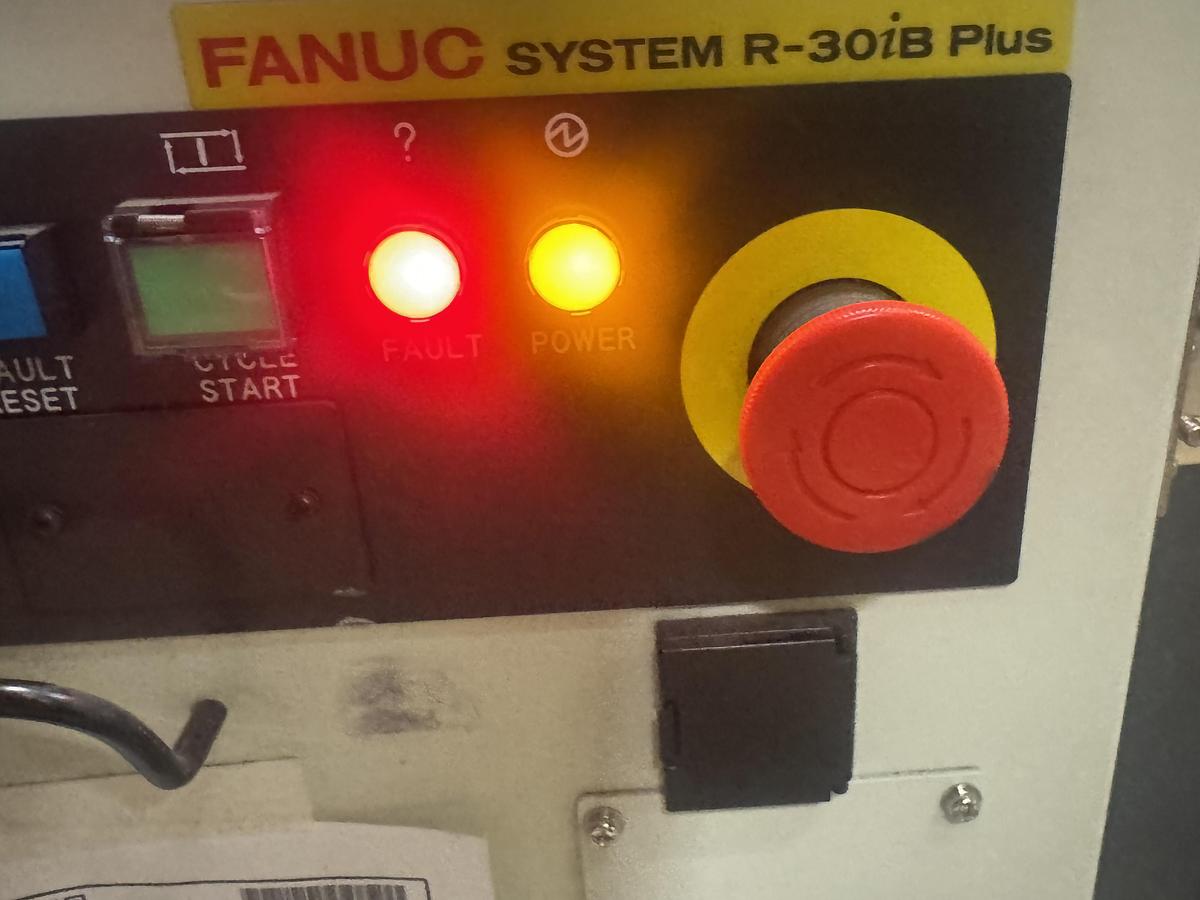

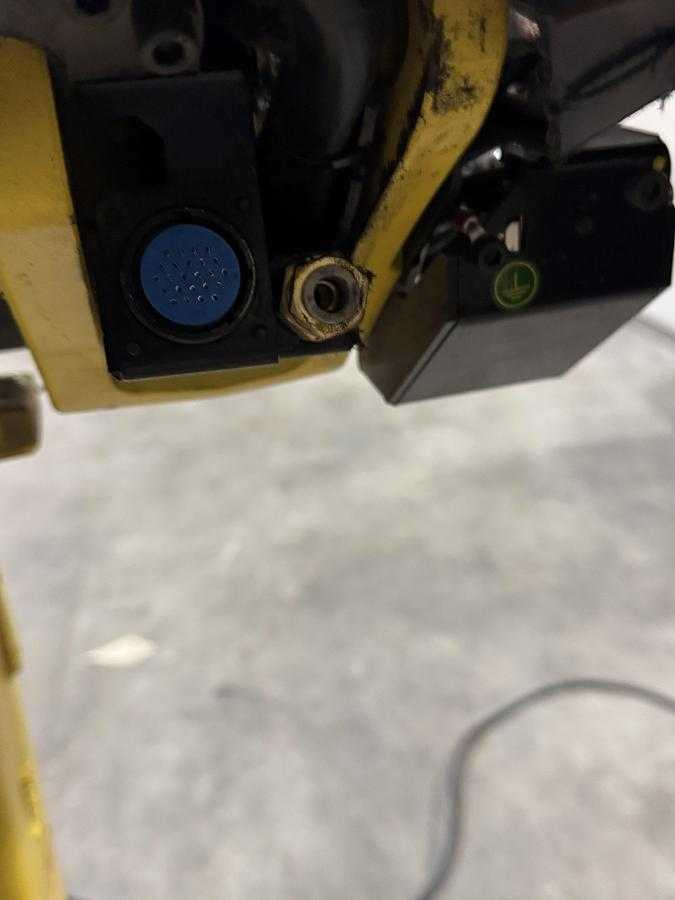

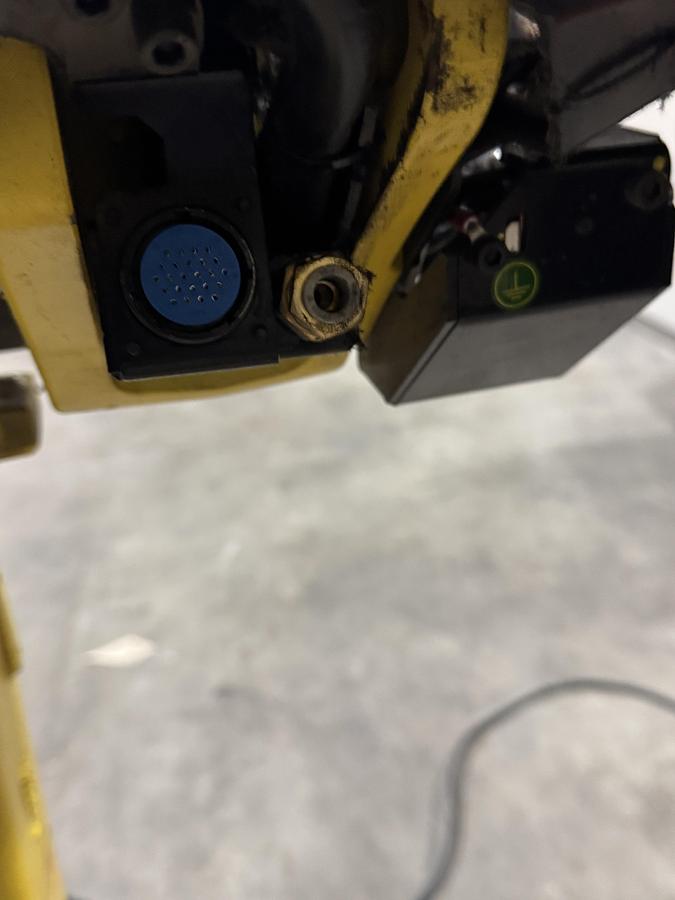

The 2020 FANUC M-10ID/8L is a six-axis articulated robot designed for material handling, arc-welding, machine tending, and packaging applications. It features a long-reach design of 2,032 mm, a payload capacity of 8 kg, and a repeatability of ±0.03 mm. The robot has a mass of 180 kg and supports floor, angle, and inverted mounting. Its design includes a hollow wrist and thru-arm routing for cable management, including internally routed camera and Ethernet cabling. Axis motion speeds are 210°/s for J1 and J2, 220°/s for J3, 430°/s for J4, 450°/s for J5, and 720°/s for J6. The motion range for the axes is J1 ±340°, J2 ±235°, J3 ±455°, J4 ±380°, J5 +360°, and J6 +900°. The system is equipped with a FANUC R-30iB Plus controller, a color teach pendant with a touch screen, and robot connection cables.
