2023 ABB IRB 4600-40/2.55 Articulated Robot, 40kg Payload, 2550mm Reach, IP67, IRC5 Control

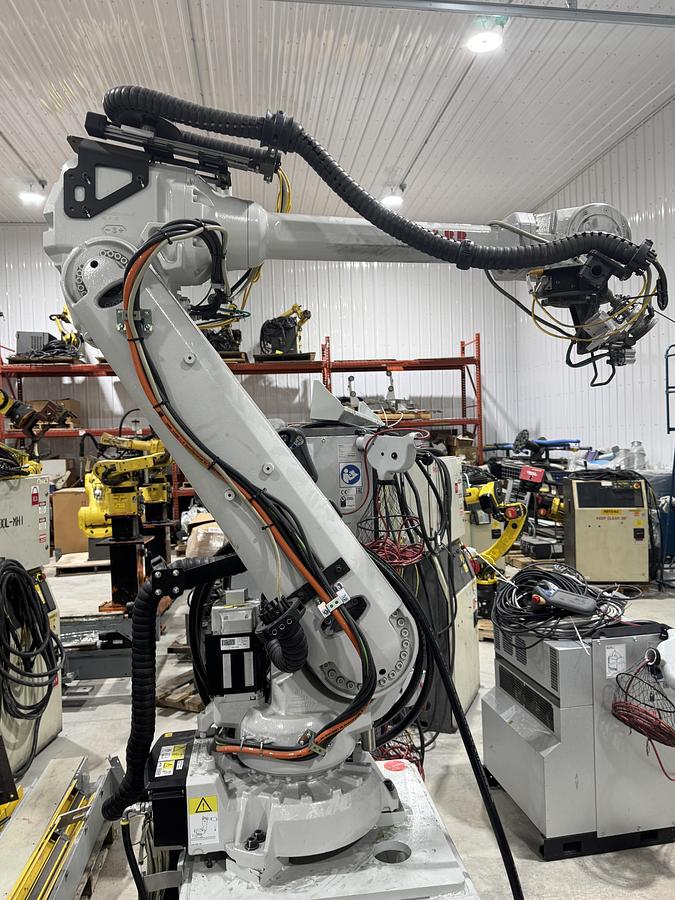

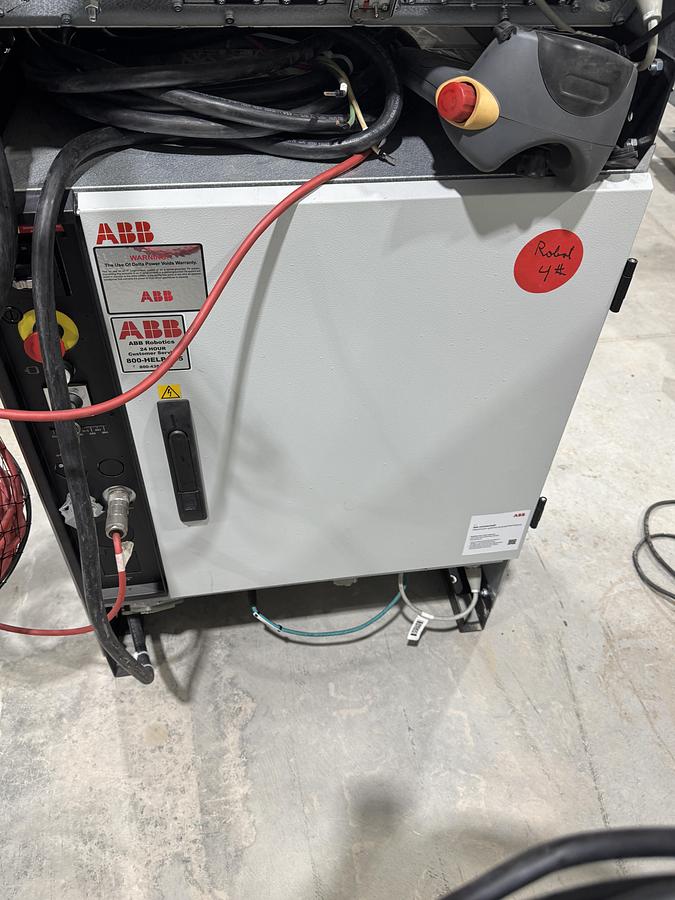

The 2023 ABB IRB 4600-40/2.55 is a high-performance six-axis articulated robot designed for applications such as arc welding, assembly, cutting, dispensing, machine tending, material handling, packaging, and palletizing. It features a 40 kg payload capacity, a 2550 mm reach, and a repeatability of 0.05 mm. The robot has a mass of 412 kg and supports flexible mounting options including floor, inverted, and angle. Its compact design incorporates a slim swing base radius, a fine elbow, and a compact wrist to minimize footprint and allow for placement closer to served machines. Motion speeds for the axes are 175°/s for J1, J2, and J3, 360°/s for J4 and J6, and 250°/s for J5. The range of motion is J1 ±180°, J2 +150° to -90°, J3 +75° to -180°, J4 ±400°, J5 +120° to -125°, and J6 ±400°. The system is protected to IP67 standards and includes an ABB IRC5 controller, an IRB 4600-40/2.55 mechanical unit, and connection cables.
