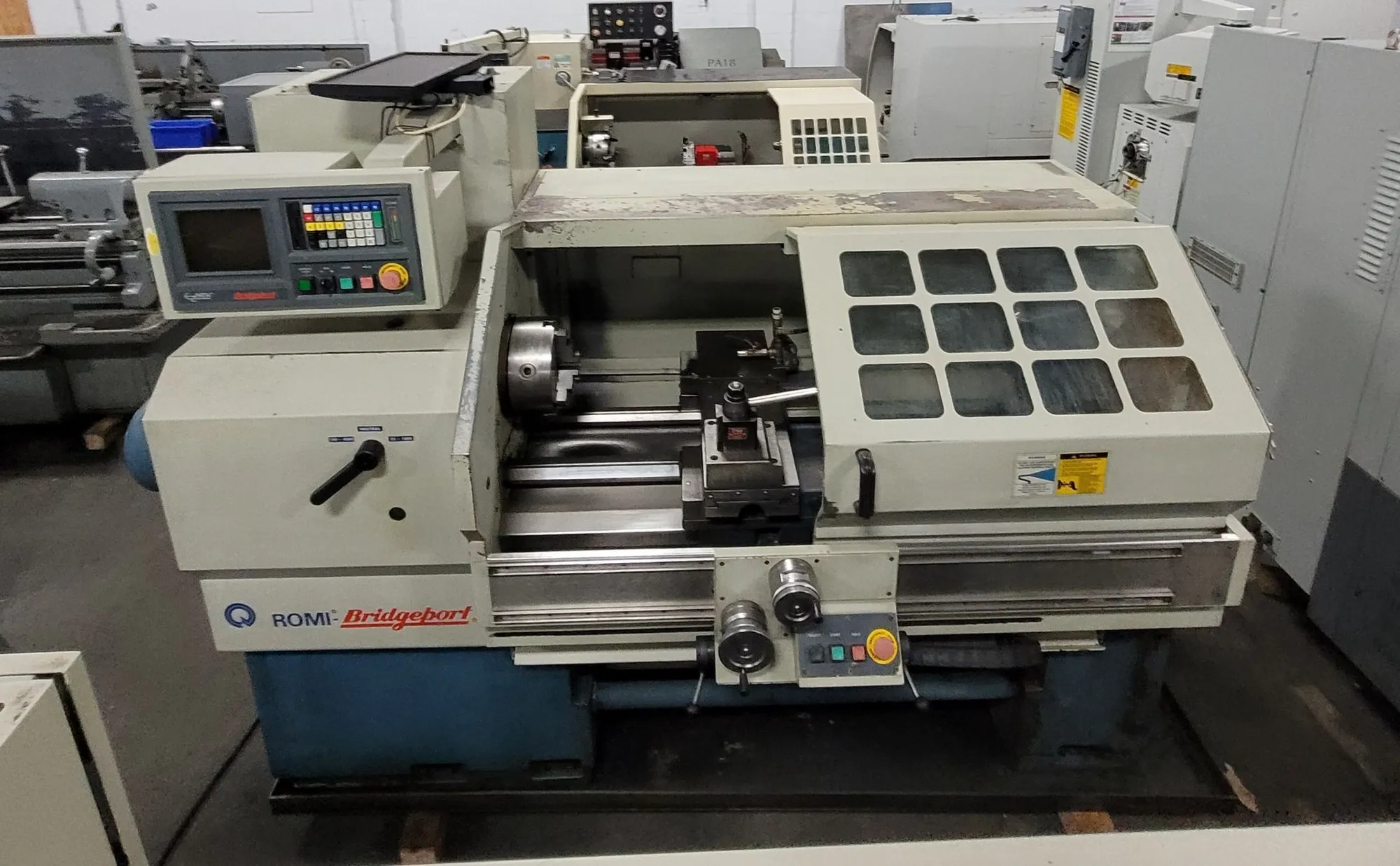

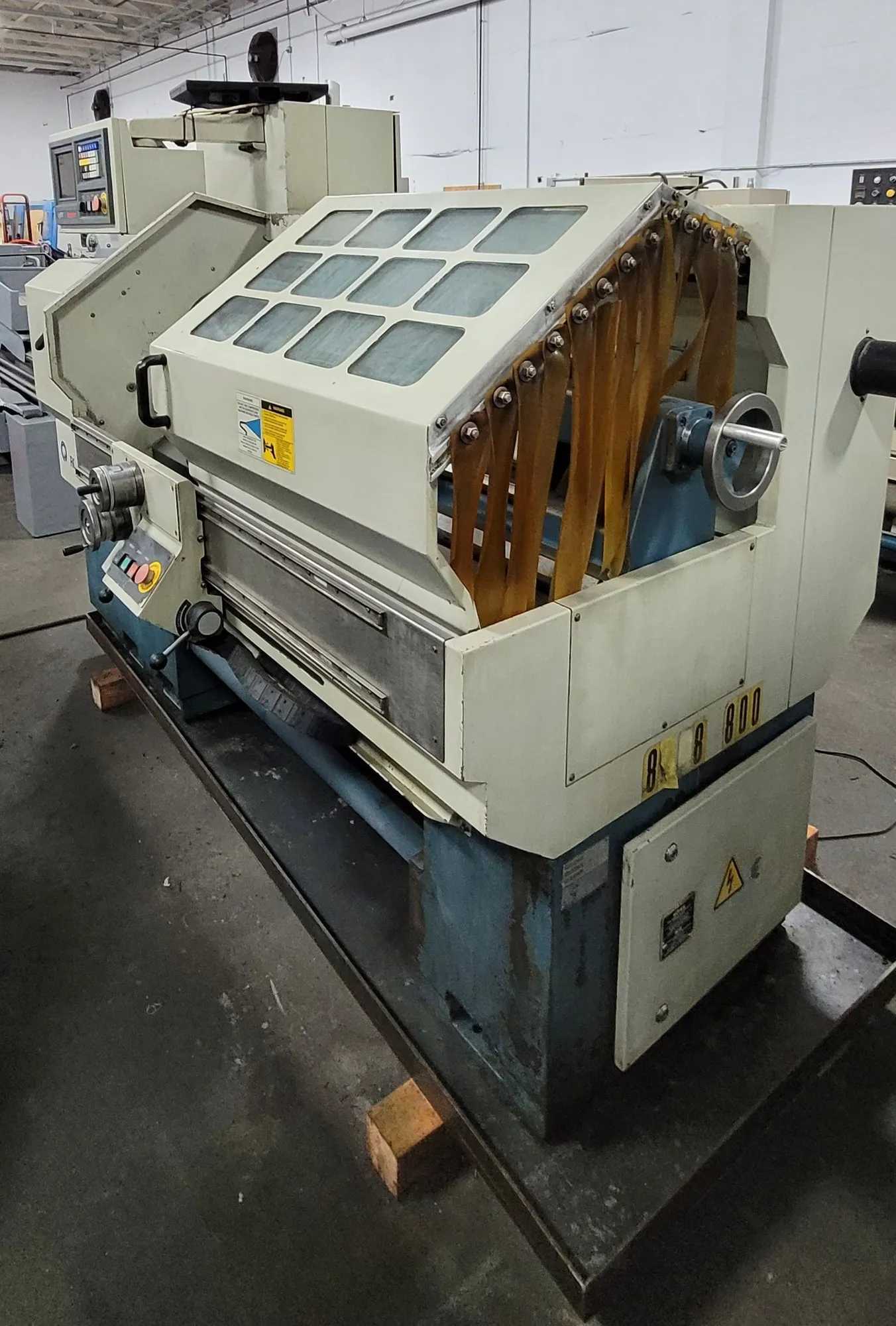

BRIDGEPORT ROMI EZ-PATH S CNC TEACH LATHE, 18" X 40", 7.5 HP, 4000 RPM, 10" 3-JAW CHUCK

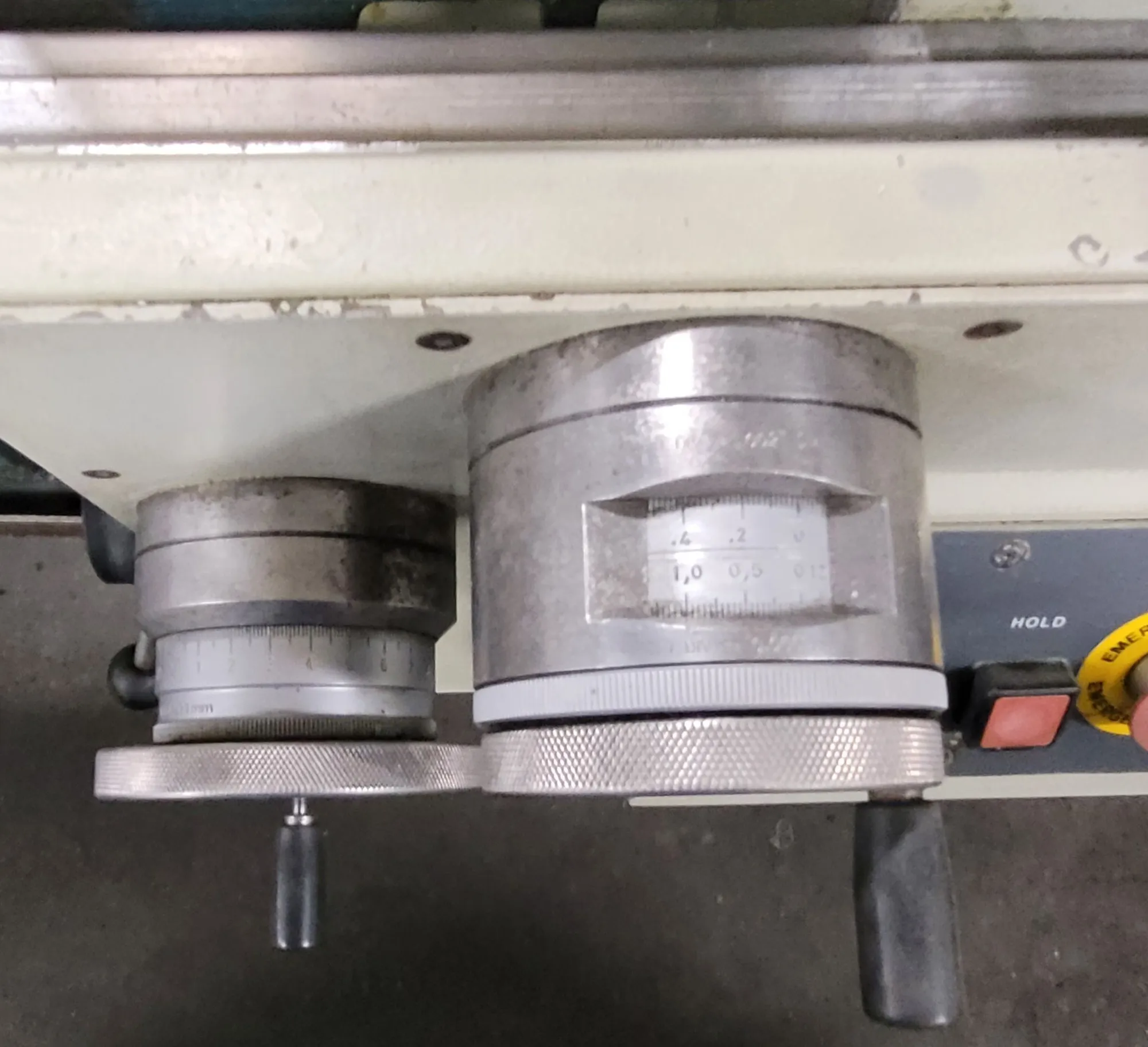

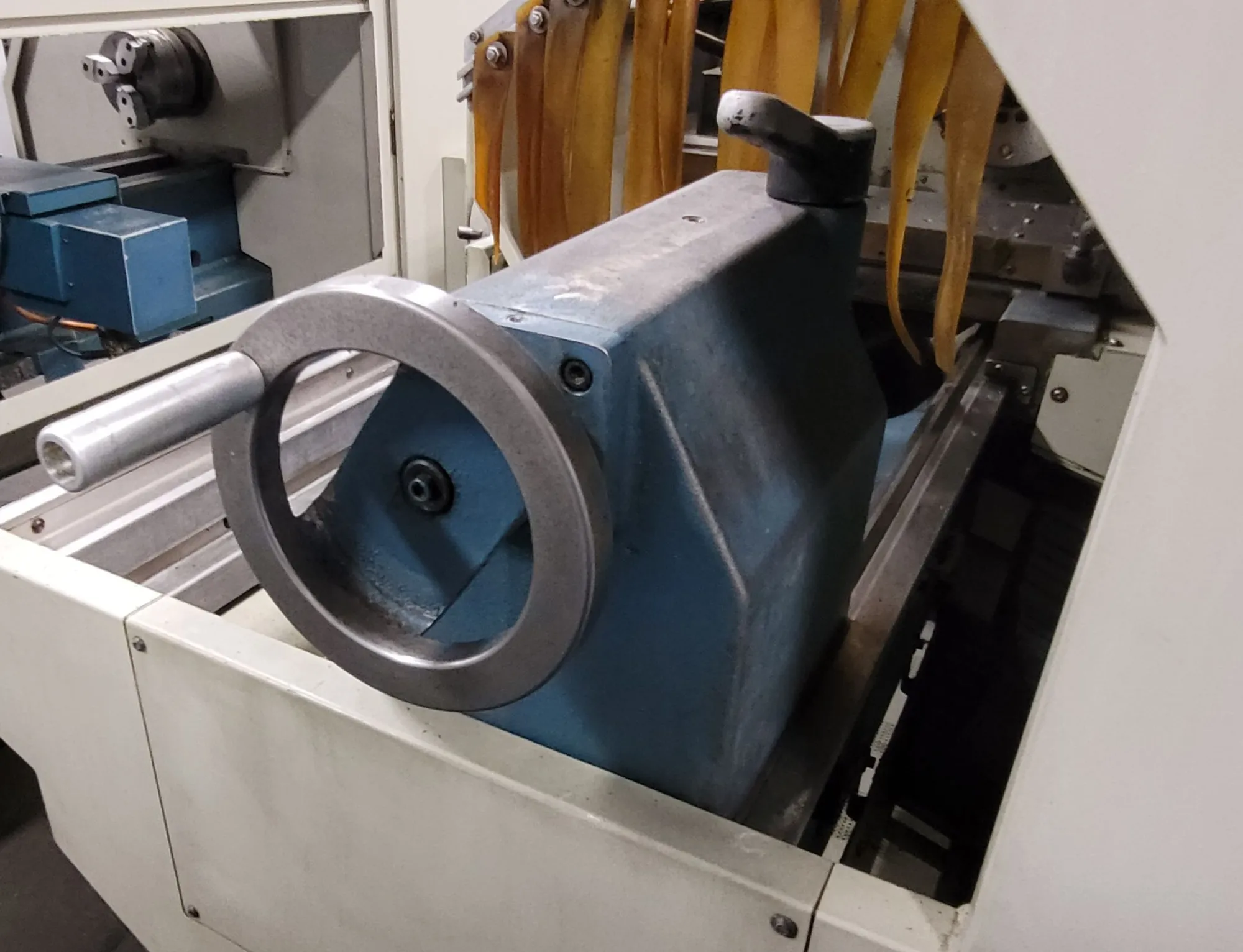

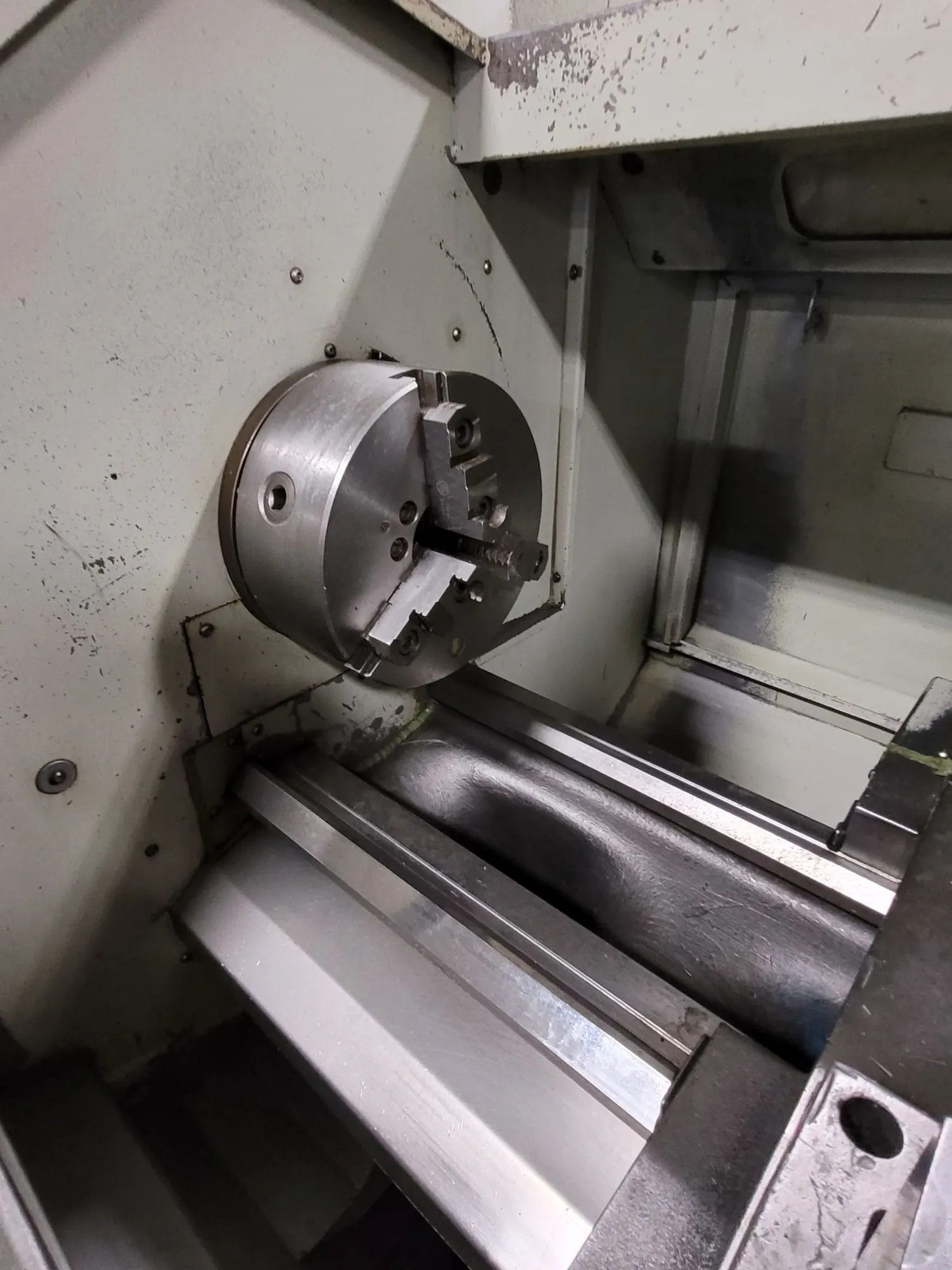

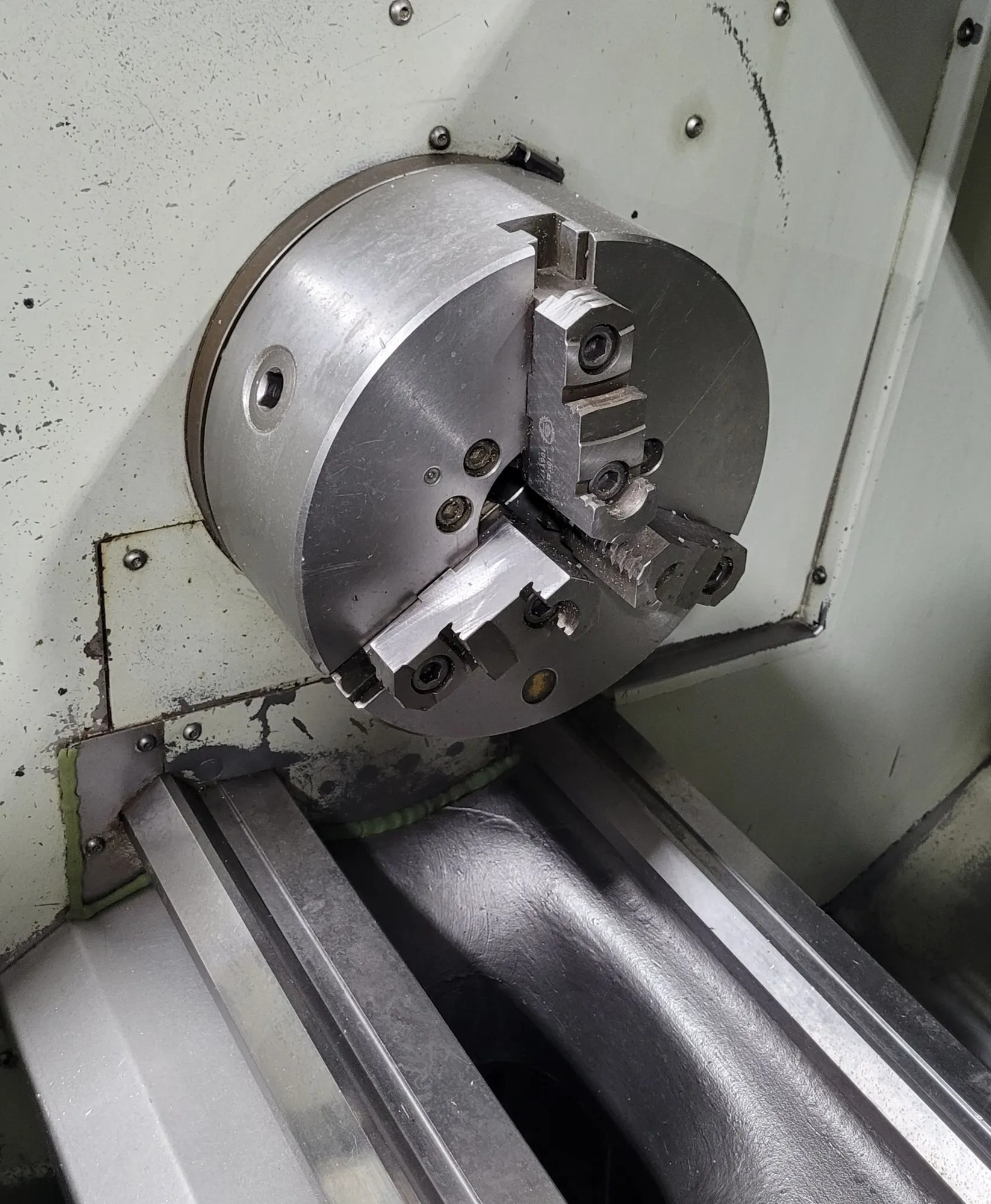

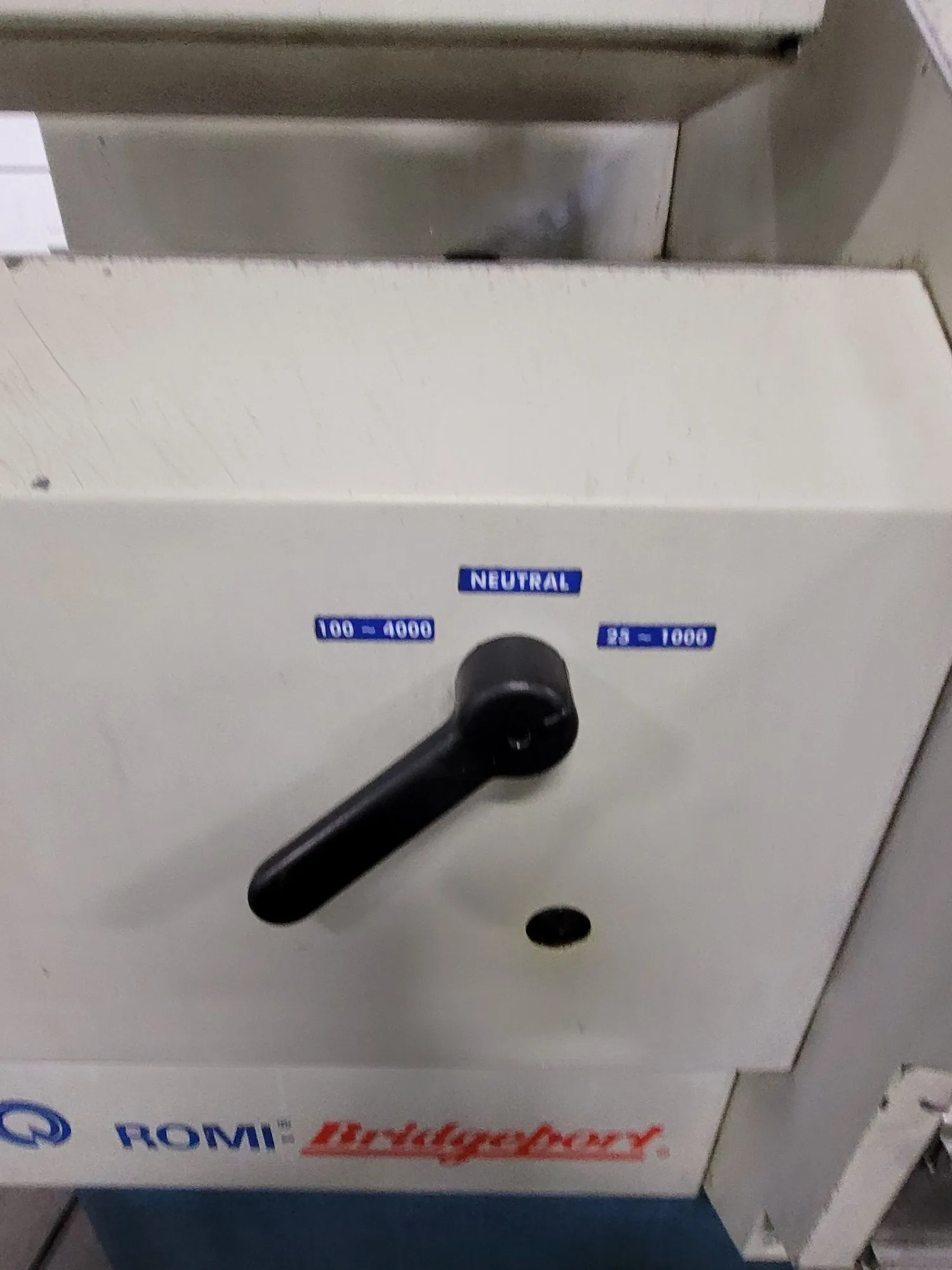

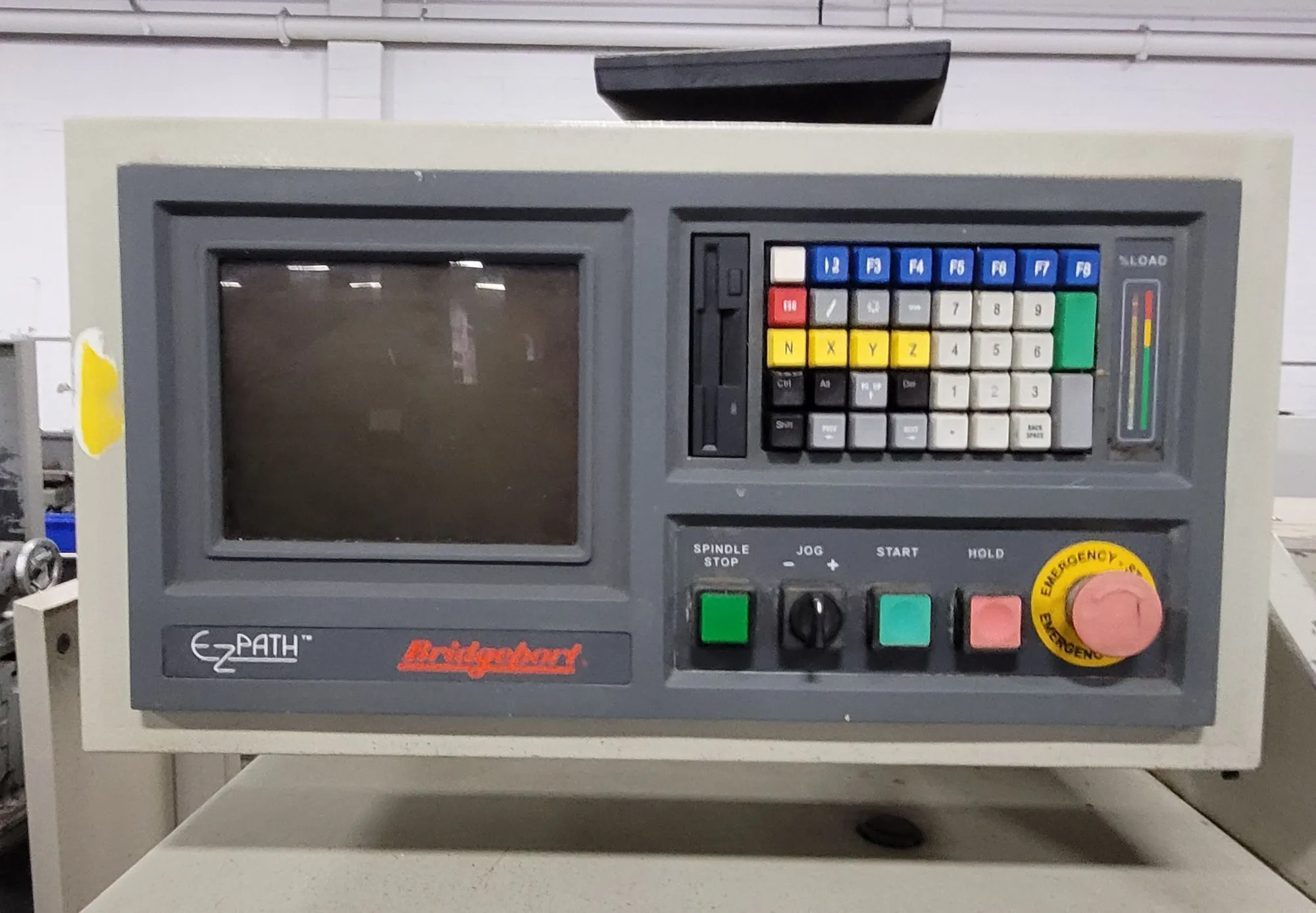

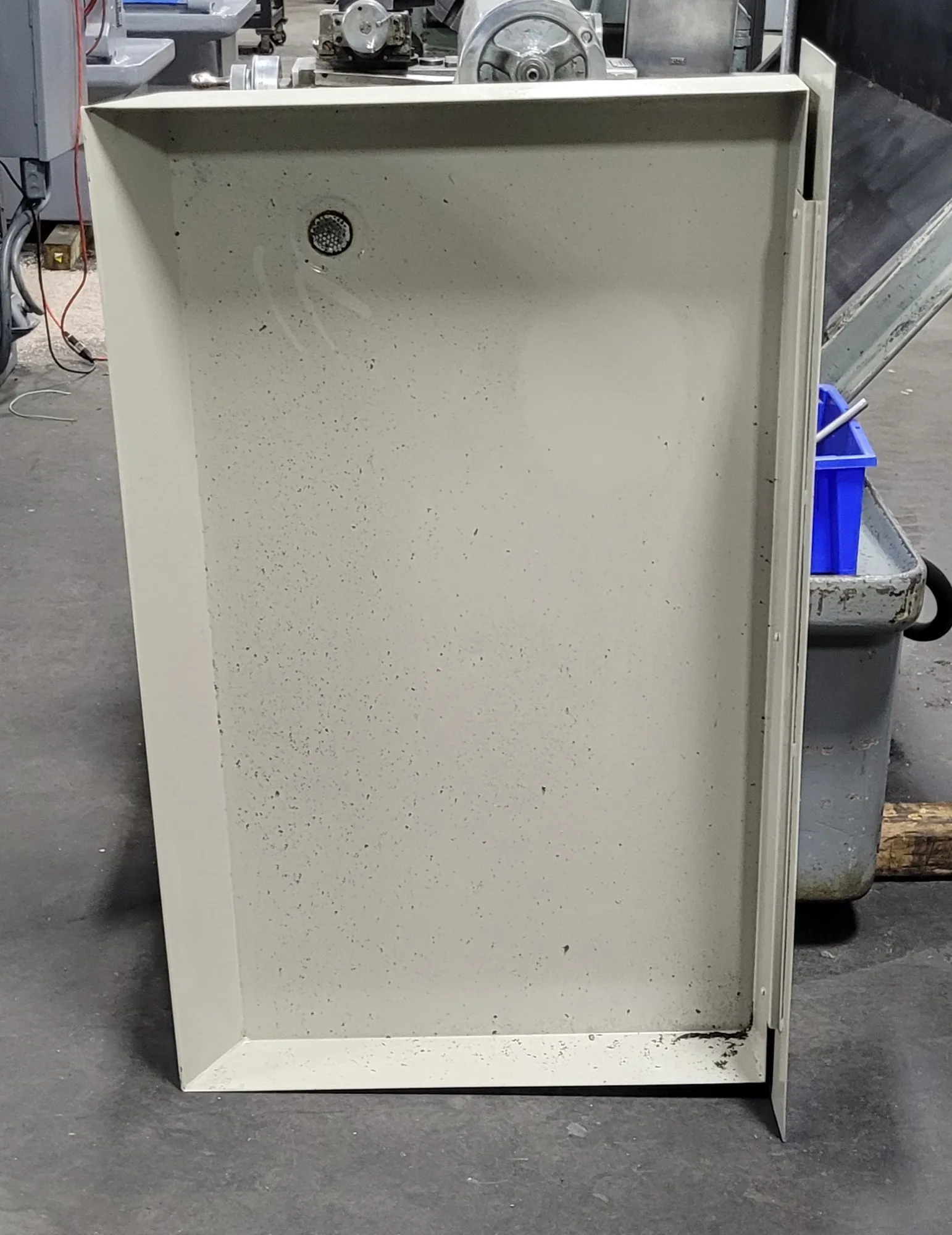

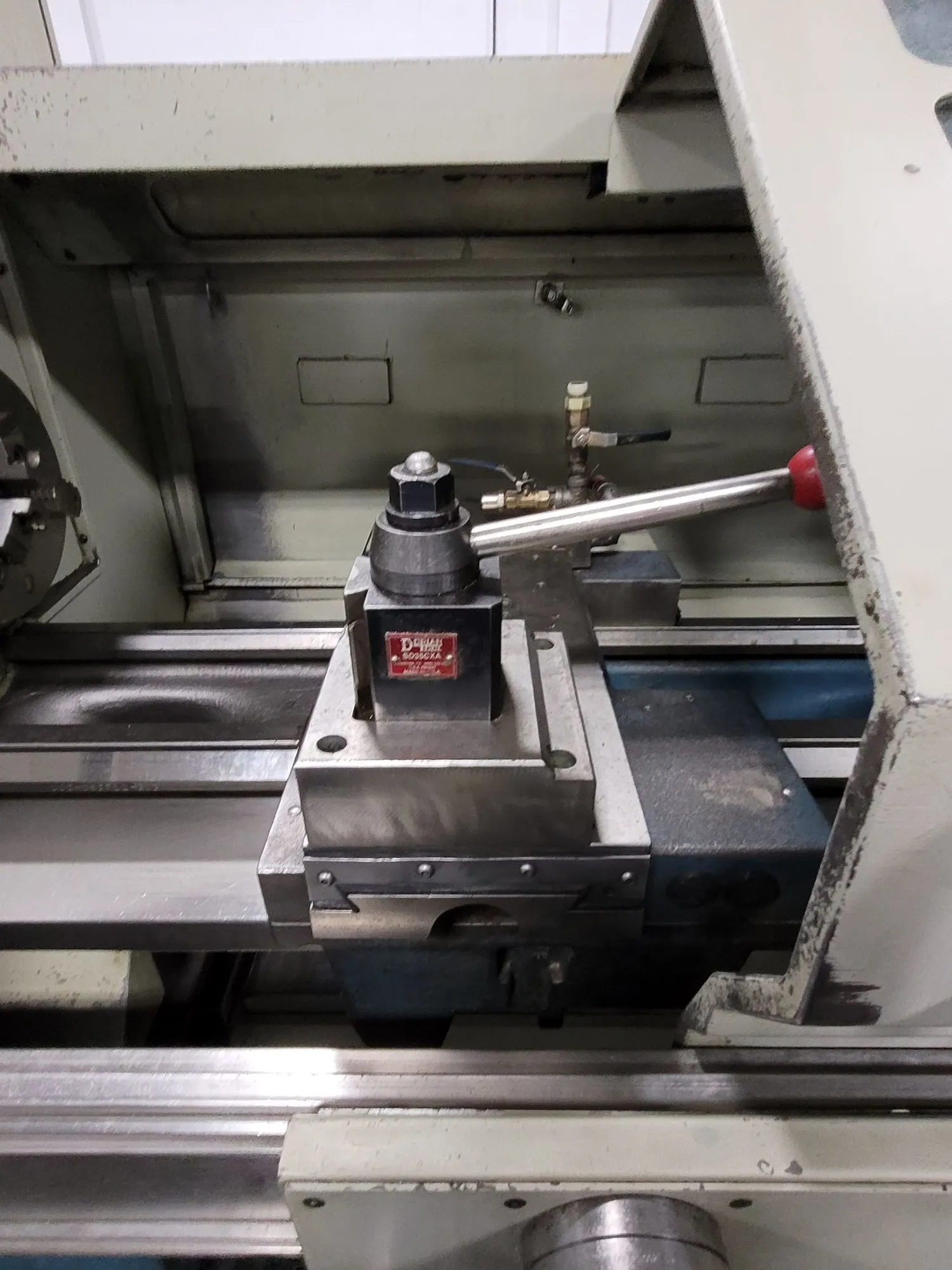

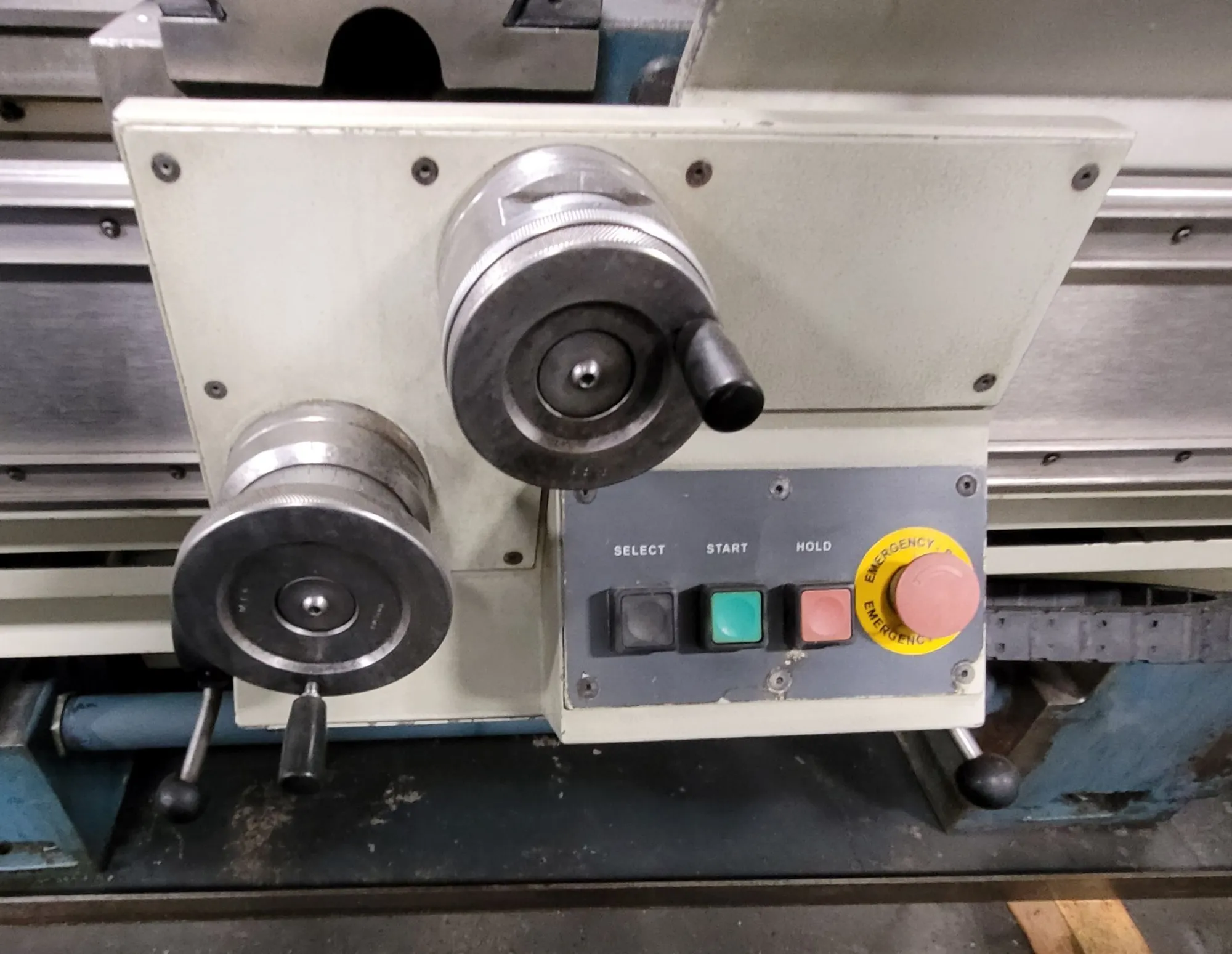

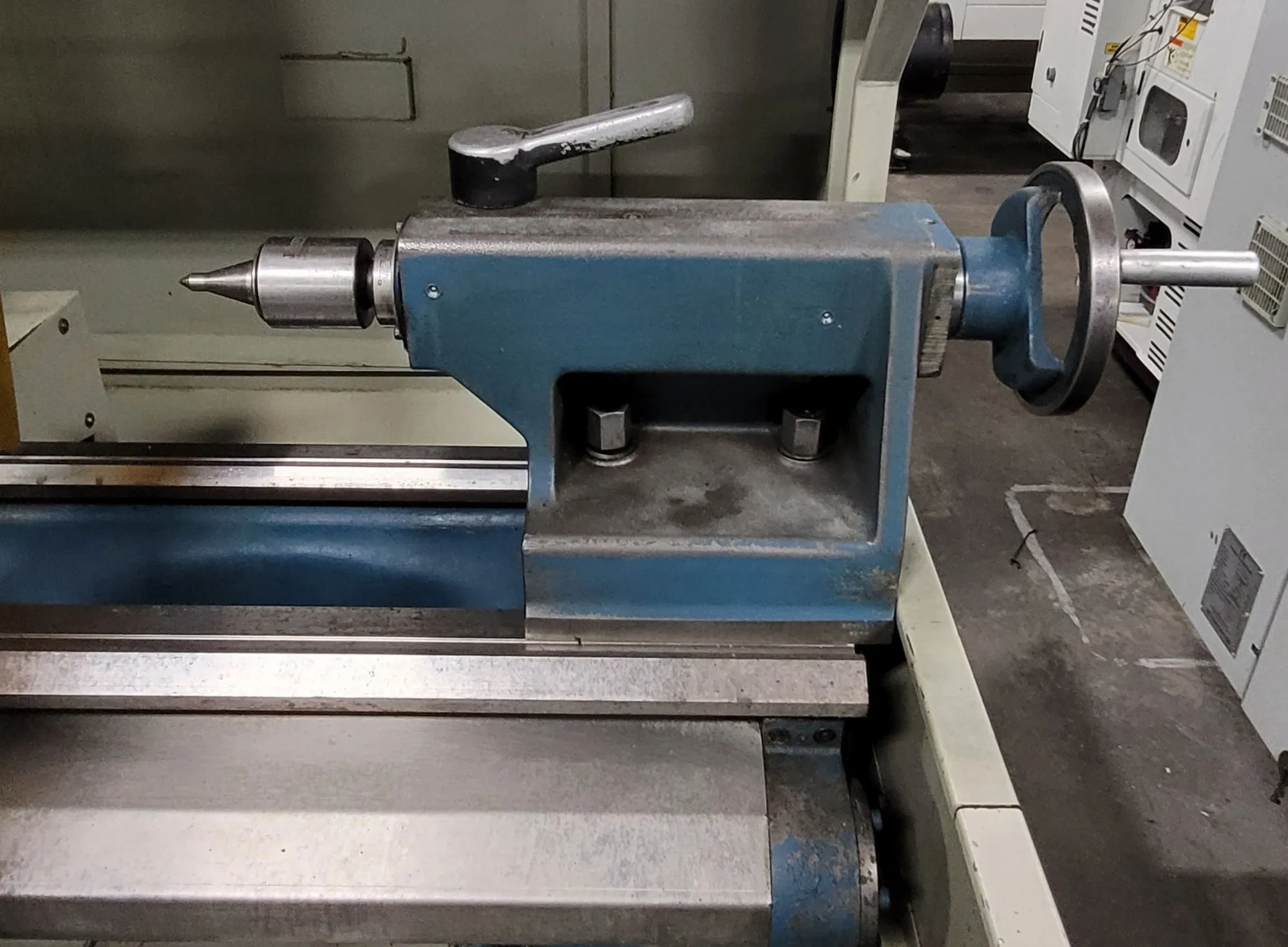

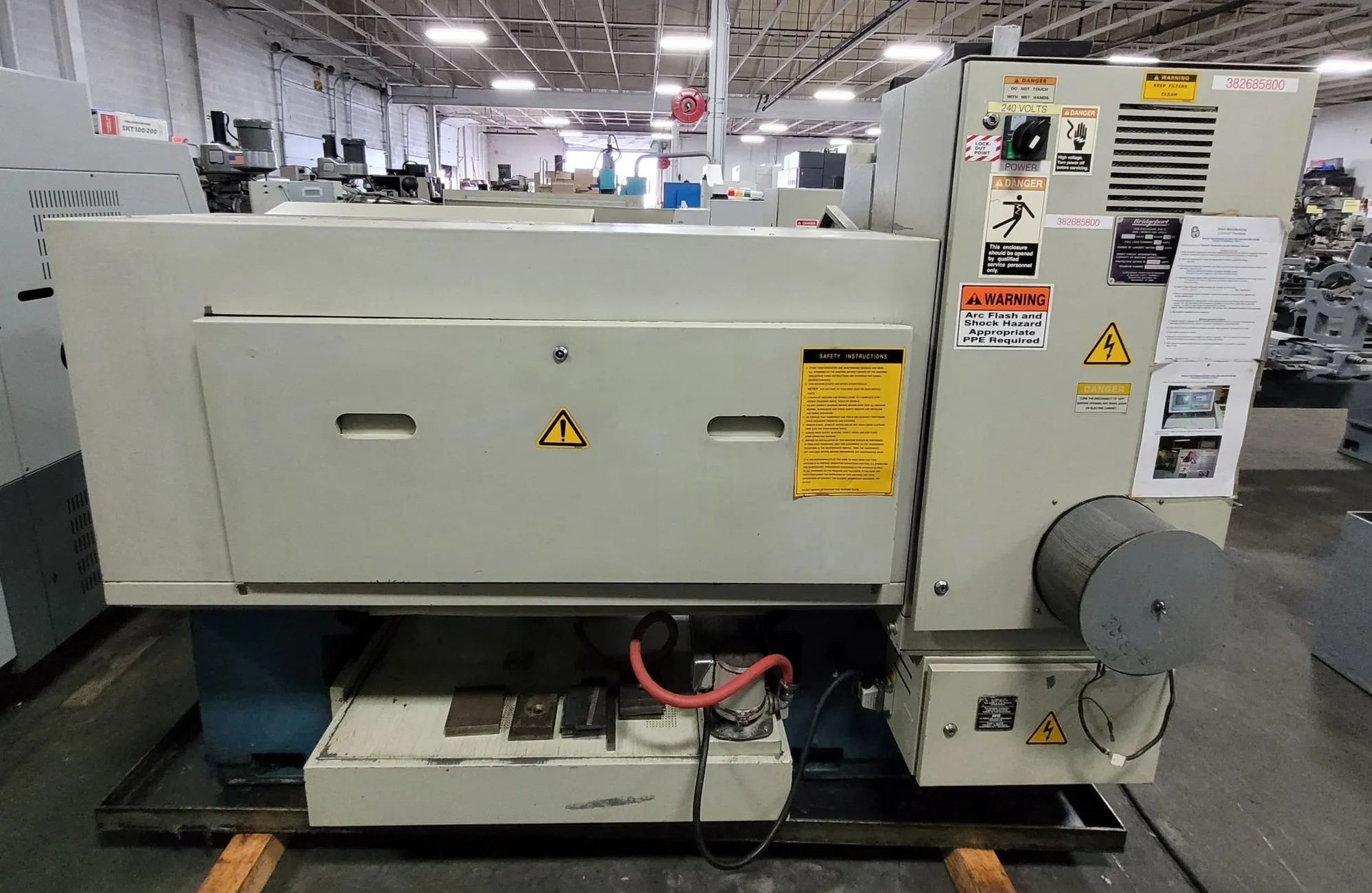

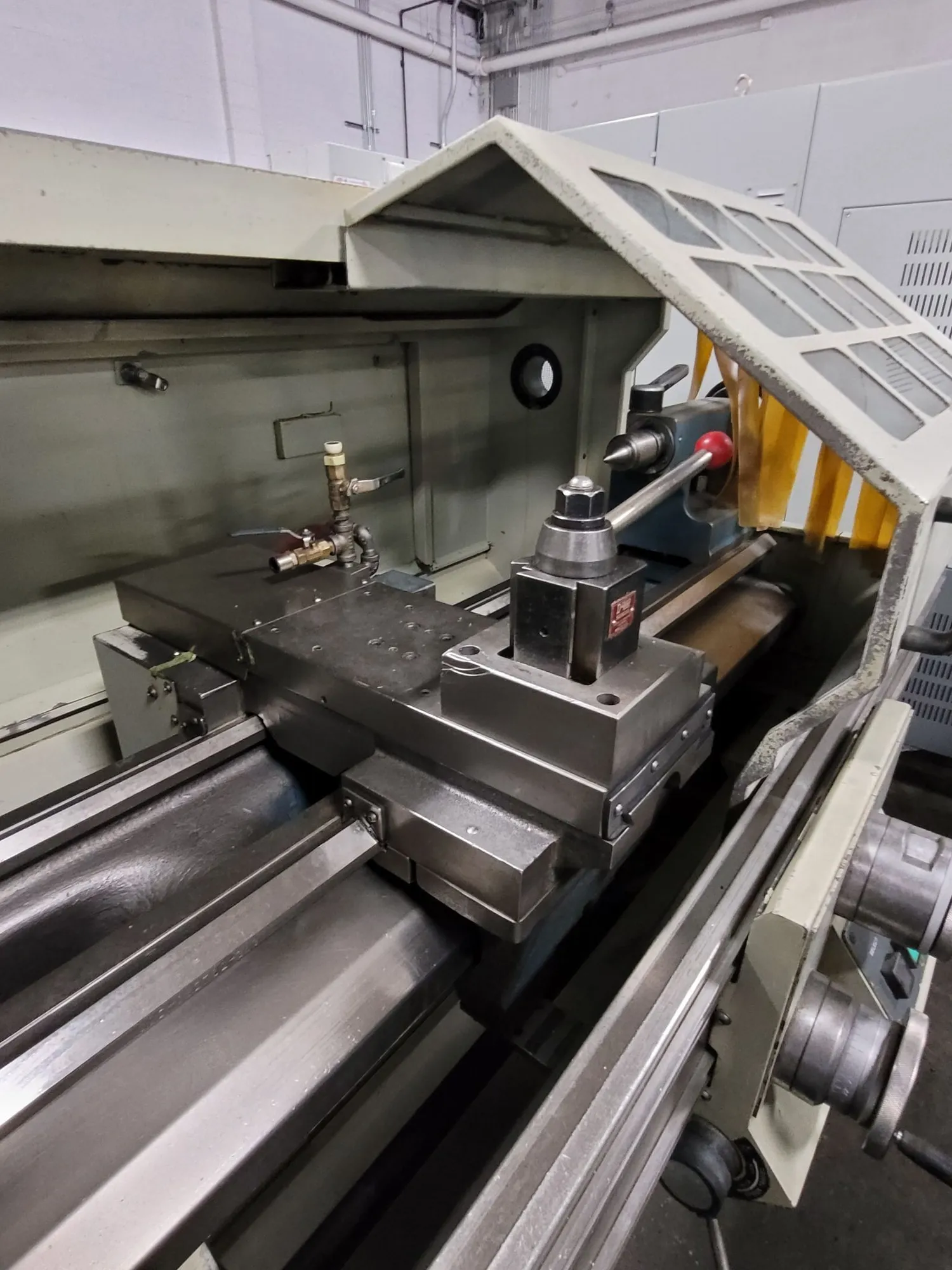

THE BRIDGEPORT ROMI EZ-PATH S IS AN 18 INCH X 40 INCH CNC TEACH LATHE EQUIPPED WITH A BRIDGEPORT EZ PATH CNC CONTROL AND DUAL ELECTRONIC HANDWHEELS. THIS 2-AXIS MACHINE FEATURES AN 18 INCH MAXIMUM SWING AND A 40 INCH DISTANCE BETWEEN CENTERS, WITH TRAVEL SPECIFICATIONS OF 8.6 INCHES ON THE X-AXIS AND 40 INCHES ON THE Z-AXIS. THE SPINDLE IS DRIVEN BY A 7.5 HP MOTOR, PROVIDING A SPEED RANGE FROM 25 TO 4,000 RPM, AND UTILIZES AN A2-5 SPINDLE NOSE WITH A 2.08 INCH BORE. RAPID TRAVERSE RATES REACH 295 IPM FOR THE X-AXIS AND 394 IPM FOR THE Z-AXIS. STANDARD EQUIPMENT INCLUDES A 10 INCH 3-JAW CHUCK, A MANUAL TAILSTOCK WITH A 4.7 INCH QUILL TAPER, AND A GEARED HEADSTOCK. THE LATHE ALSO FEATURES A DORIAN QUICK-CHANGE TOOL POST WITH TOOL HOLDERS, INCH/METRIC THREADING CAPABILITIES, A CENTRAL AUTOMATIC LUBRICATION SYSTEM, AND A COOLANT SYSTEM WITH A CHIP PAN. THE UNIT REQUIRES 220 V, 3-PHASE ELECTRICAL POWER. PHYSICAL DIMENSIONS ARE APPROXIMATELY 100 INCHES LONG, 49 INCHES WIDE, AND 77 INCHES HIGH, WITH A WEIGHT OF APPROXIMATELY 4,900 LBS.
