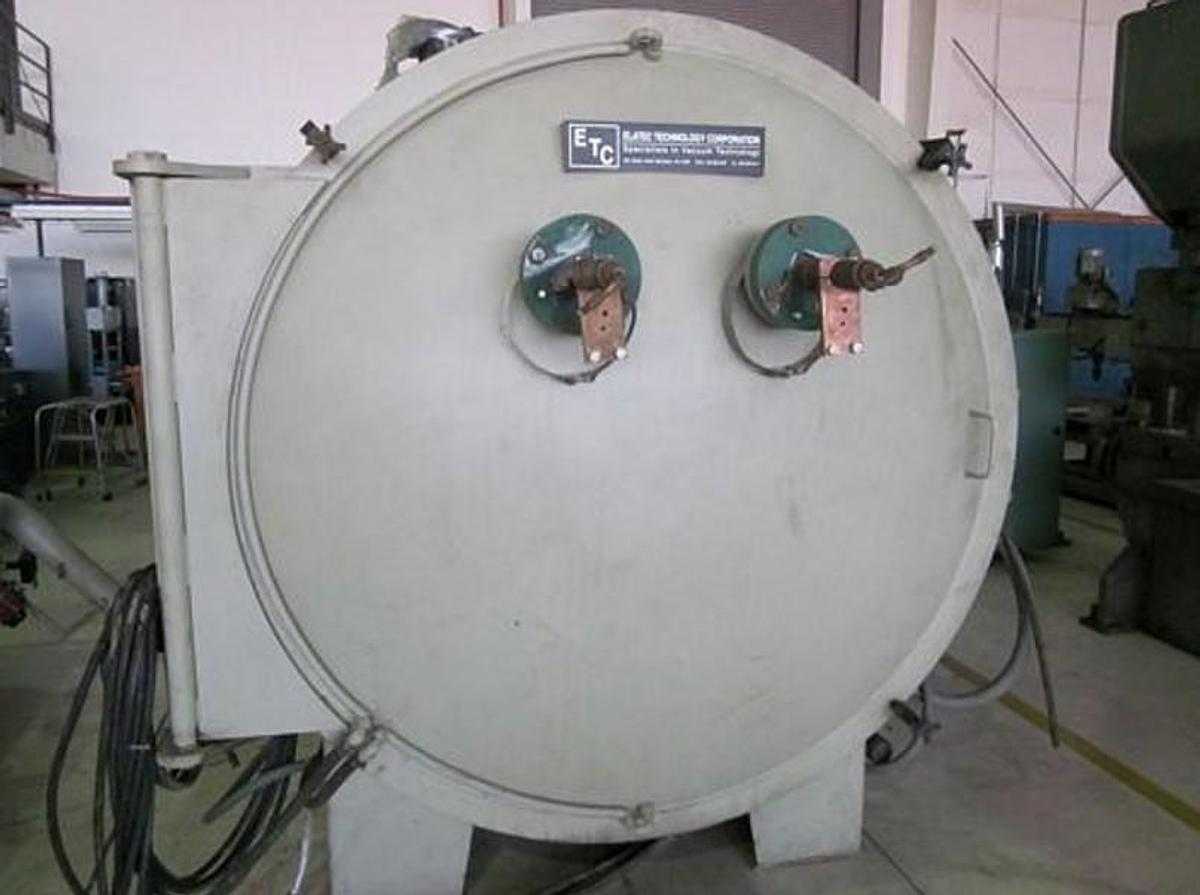

Etc Elatec System VII Multipurpose Vacuum Furnace, 1000C-2200C, Stainless Steel Chamber

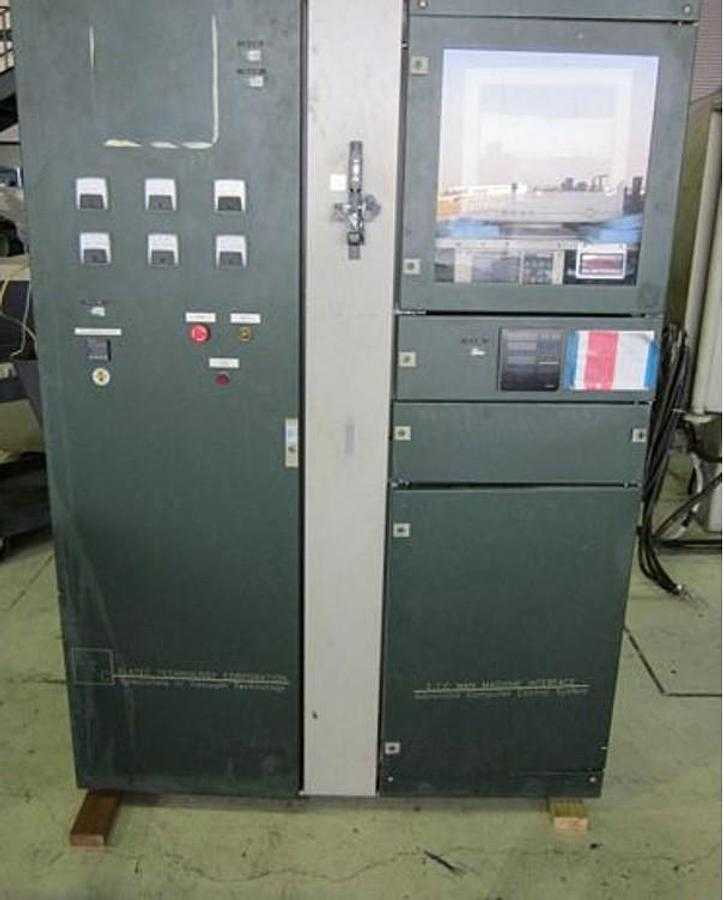

The Etc Elatec Elevec VII is a multipurpose vacuum furnace designed for vacuum and inert atmosphere metallurgical processes. This cold wall vacuum furnace features a stainless steel chamber with water-cooled jackets and baffled cooling. The system is designed for versatility, accommodating interchangeable accessories to perform melting, sintering, brazing, welding, outgassing, annealing, heat treating, or quenching. Standard configurations for the System VII series support operating temperatures ranging from 1000°C to 2200°C, with specialized units capable of reaching up to 3000°C. The furnace supports a wide range of hot zone materials, including graphite and metal options such as molybdenum and tungsten, depending on temperature requirements. It operates across pressure ranges from 10-6 TORR up to 1-3 PSIG with gases such as argon, nitrogen, and hydrogen. Pumping system options include mechanical, diffusion, turbomolecular, or cryogenic units. The unit's construction includes rigid or flexible water-cooled busswork for electrical efficiency and a graphic control panel for operation. While the year of manufacture for this specific unit is not explicitly stated in the documentation, the system follows the technical specifications of the Centorr Vacuum Industries System VII and Super VII product lines.
