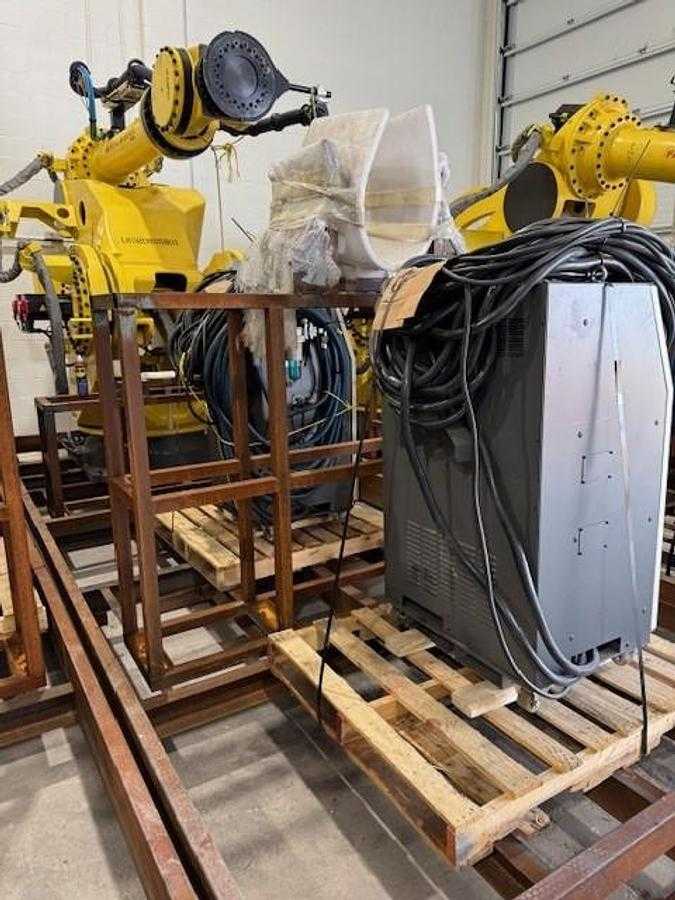

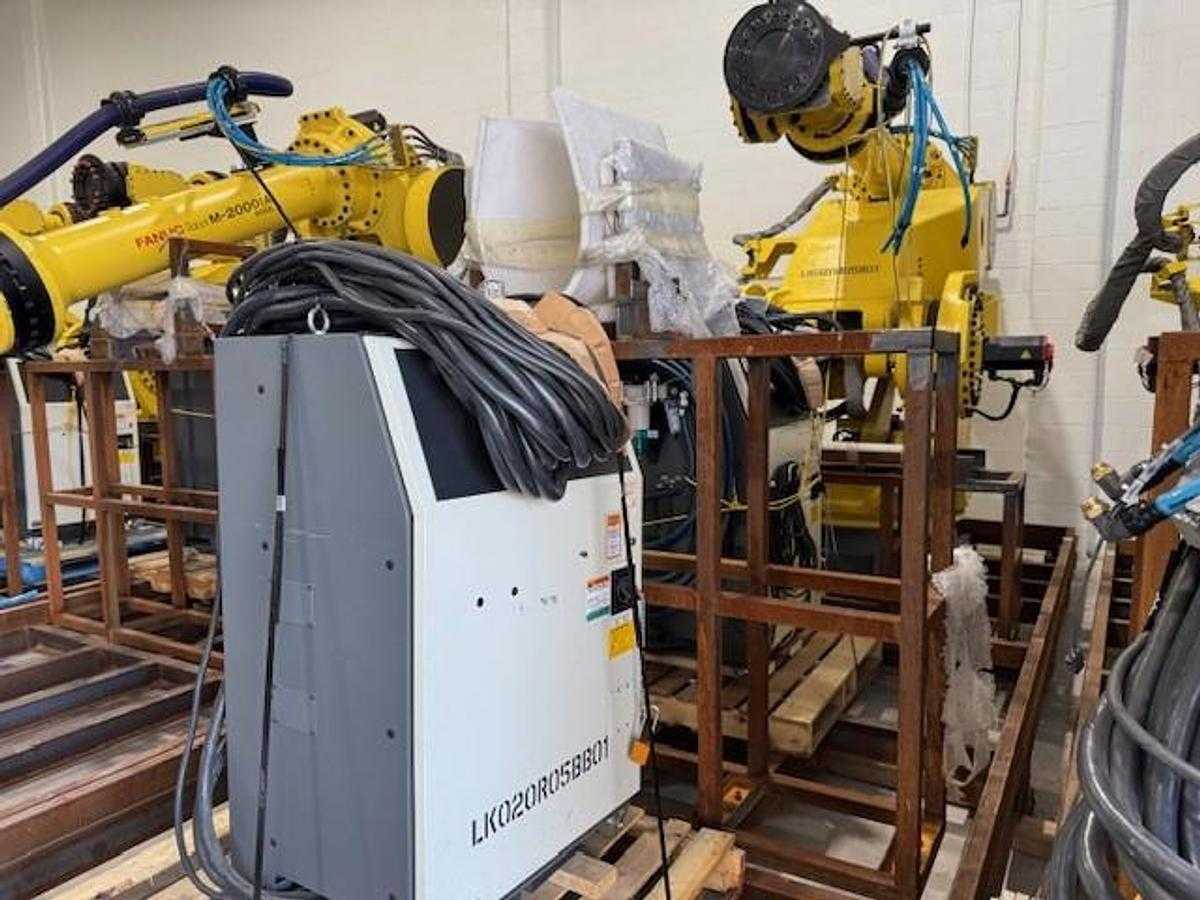

FANUC M-2000IA/900L ARTICULATED ROBOT, 900KG PAYLOAD, 4683MM REACH, R-30IB CONTROLLER

THE FANUC M-2000IA/900L IS A SIX-AXIS ARTICULATED ROBOT DESIGNED FOR HEAVY-DUTY MATERIAL HANDLING, PALLETIZING, AND FIBERGLASS CUTTING APPLICATIONS, PARTICULARLY WITHIN THE AUTOMOTIVE AND HEAVY MACHINERY INDUSTRIES. THIS MODEL FEATURES A 900 KG PAYLOAD CAPACITY AND A HORIZONTAL REACH OF 4683 MM, WITH A VERTICAL REACH EXTENDING TO 6200 MM. THE ROBOT IS DESIGNED FOR FLOOR MOUNTING AND HAS A TOTAL MASS OF 9600 KG. TECHNICAL PERFORMANCE INCLUDES A REPEATABILITY OF ±0.5 MM. AXIS MOTION SPEEDS ARE RATED AT 45°/S FOR J1, 30°/S FOR J2 AND J3, 50°/S FOR J4 AND J5, AND 70°/S FOR J6. THE MOTION RANGE FOR THE AXES IS J1 ±330°, J2 ±160°, J3 ±165°, J4 ±720°, J5 ±240°, AND J6 ±720°. THE SYSTEM IS EQUIPPED WITH AN R-30IB CONTROLLER.
