Hps NMK045KB 45 kVA 480V to 208Y/120V 3-Phase Ventilated Transformer NEMA 3R

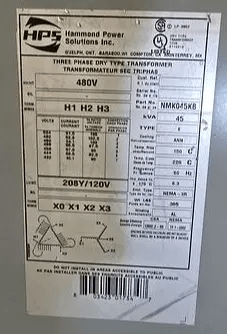

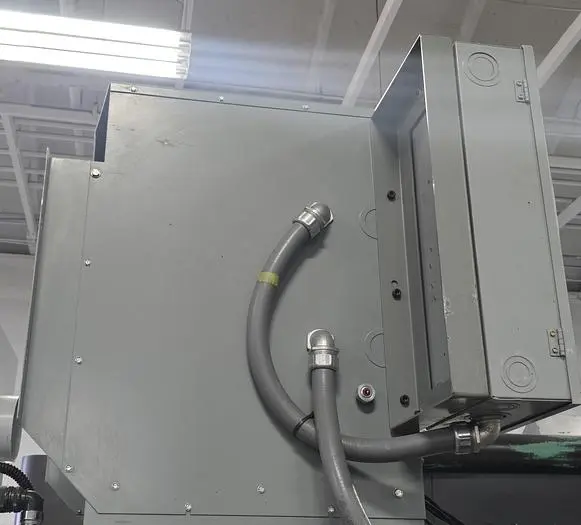

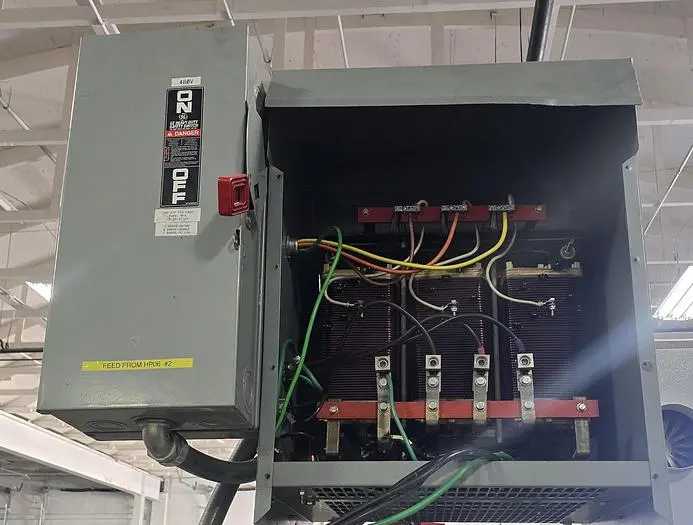

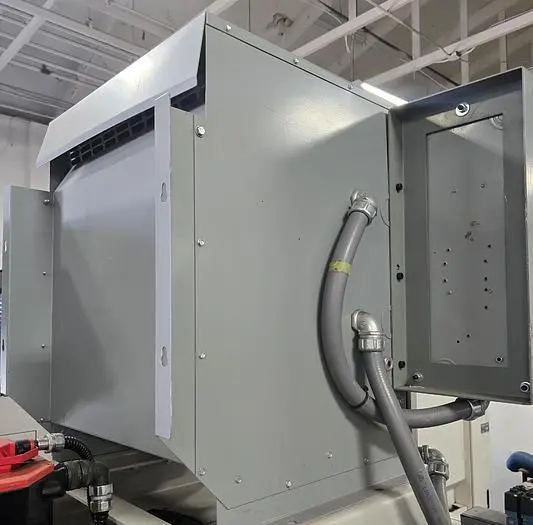

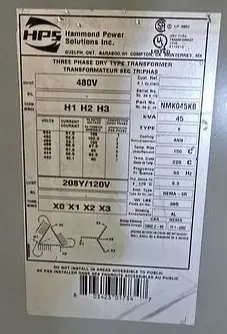

This is a Hammond Power Solution 45 kVA, 3-phase transformer, model NMK045KB, with a GE heavy duty safety switch. It features a primary voltage rating of 480V and a secondary voltage rating of 208Y/120V, operating at a 60Hz frequency. The unit utilizes aluminum winding and is designed for a 150 degree C temperature rise. Construction is ventilated with a NEMA 3R enclosure rating. The enclosure dimensions are 29.00 x 21.50 x 19.50" (H x W x D), and the total weight is 370 lb. (168kg).
