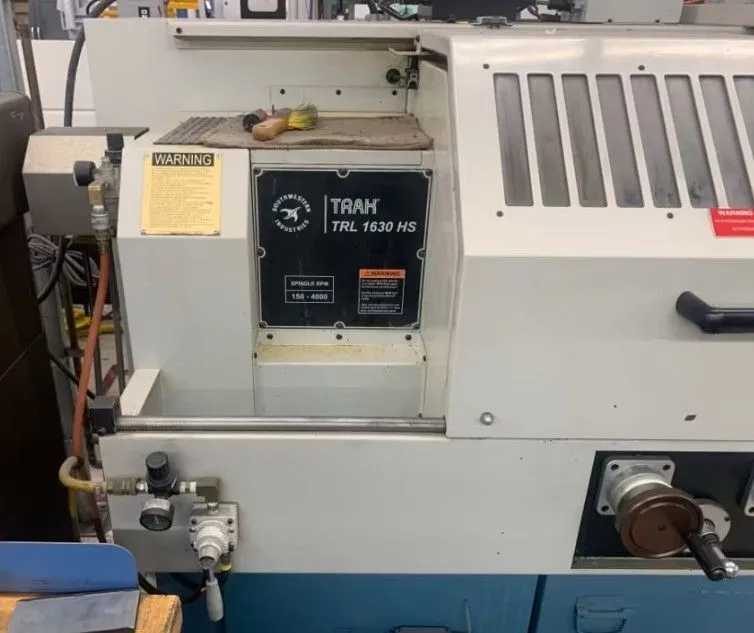

SWI TRAK 1630HSSX CNC/Manual Toolroom Lathe With Hyd Collet Closer & 8 Station Turret

The 2010 SWI TRAK Model 1630HS-SX is a 2-axis CNC/manual toolroom flat-bed engine lathe equipped with the ProtoTRAK SLX CNC system, 8 Station Turret, & Hydraulic 5C Collet Closer Swing - 16" Machining Length - 30" # Axis - 2 Bar Capacity - 1.57" Power - 7.5 hp Max RPM - 4,000 RPM Turning Dia - 8.6" Tailstock - Yes Live Tooling - No Sub Spindle - No Control - CNC (ProtoTRAK SLX Control) Dimensions - 79 x 40 x 56” Weight - 3,420 SWI TRAK 1630HSSX CNC/Manual Toolroom Lathe w/ Hydraulic Collet Closer & 8 Station Turret Specifications: ProtoTRAK SLX Control 8 Station Turret Hydraulic Collet Closer Chuck Speed Range 155-4000rpm Machine Specifications • Height of Centers-8” • Distance between centers-30” • Swing over bed -16” • Swing over saddle wings-16” • Swing over cross slide-8.6” • Cross slide travel-8.5” • Tool section max-3/4” • Coolant tank capacity – 9.3 gal. • Width of Bed-12.6” • Height of Bed-12.6” • Spindle Nose - A2-4 • Spindle through hole-1.57” • Spindle taper-MT#5 • Taper in reduction sleeve -N/A • Spindle dia at front bearing-2.56” • Number of bearings-5 • Spindle speed range (RPM)-150-4000 • Optional Tailstock Quill travel-5” - Quill diameter-2.36” - Quill taper hole-MT#4 • Spindle Motor HP -7.5 • Power requirements, control-110V; 1P; 8 A • Power requirements, machine-220V;3P;60Hz • Amps full load current-25 • Dimensions net - 79 x 40 x 56” • Dimensions shipping - 87 x 45 x 67” • Weight net - 2,875 lbs. • Weight shipping – 3,420 lbs. • Maximum rapid feed X - 100 • Maximum rapid feed Z - 150 • Coolant pump motor -1/8 HP • Spindle motor brake - Dynamic braking • Way surface hardness - 400 – 450 HB • Head stock lubrication - Grease • Sliding door for easy set-ups • Bedways hardened and ground • Sliding surfaces Turcite coated • Dovetails on cross slide, V-ways on saddle • Adjustable saddle gibs Machine Options • Hydraulic Collet closer • Coolant pump • Indexer 8-station • Work lamp • Tailstock SWI TRAK 1630HSSX CNC/Manual Toolroom Lathe w/ Hydraulic Collet Closer & 8 Station Turret Specifications: ProtoTRAK SLX Control 8 Station Turret Hydraulic Collet Closer Chuck Speed Range 155-4000rpm Machine Specifications • Height of Centers-8” • Distance between centers-30” • Swing over bed -16” • Swing over saddle wings-16” • Swing over cross slide-8.6” • Cross slide travel-8.5” • Tool section max-3/4” • Coolant tank capacity – 9.3 gal. • Width of Bed-12.6” • Height of Bed-12.6” • Spindle Nose - A2-4 • Spindle through hole-1.57” • Spindle taper-MT#5 • Taper in reduction sleeve -N/A • Spindle dia at front bearing-2.56” • Number of bearings-5 • Spindle speed range (RPM)-150-4000 • Optional Tailstock Quill travel-5” - Quill diameter-2.36” - Quill taper hole-MT#4 • Spindle Motor HP -7.5 • Power requirements, control-110V; 1P; 8 A • Power requirements, machine-220V;3P;60Hz • Amps full load current-25 • Dimensions net - 79 x 40 x 56” • Dimensions shipping - 87 x 45 x 67” • Weight net - 2,875 lbs. • Weight shipping – 3,420 lbs. • Maximum rapid feed X - 100 • Maximum rapid feed Z - 150 • Coolant pump motor -1/8 HP • Spindle motor brake - Dynamic braking • Way surface hardness - 400 – 450 HB • Head stock lubrication - Grease • Sliding door for easy set-ups • Bedways hardened and ground • Sliding surfaces Turcite coated • Dovetails on cross slide, V-ways on saddle • Adjustable saddle gibs Machine Options • Hydraulic Collet closer • Coolant pump • Indexer 8-station • Work lamp • Tailstock SWI TRAK 1630HSSX CNC/Manual Toolroom Lathe w/ Hydraulic Collet Closer & 8 Station Turret Specifications: ProtoTRAK SLX Control 8 Station Turret Hydraulic Collet Closer Chuck Speed Range 155-4000rpm Machine Specifications • Height of Centers-8” • Distance between centers-30” • Swing over bed -16” • Swing over saddle wings-16” • Swing over cross slide-8.6” • Cross slide travel-8.5” • Tool section max-3/4” • Coolant tank capacity – 9.3 gal. • Width of Bed-12.6” • Height of Bed-12.6” • Spindle Nose - A2-4 • Spindle through hole-1.57” • Spindle taper-MT#5 • Taper in reduction sleeve -N/A • Spindle dia at front bearing-2.56” • Number of bearings-5 • Spindle speed range (RPM)-150-4000 • Optional Tailstock Quill travel-5” - Quill diameter-2.36” - Quill taper hole-MT#4 • Spindle Motor HP -7.5 • Power requirements, control-110V; 1P; 8 A • Power requirements, machine-220V;3P;60Hz • Amps full load current-25 • Dimensions net - 79 x 40 x 56” • Dimensions shipping - 87 x 45 x 67” • Weight net - 2,875 lbs. • Weight shipping – 3,420 lbs. • Maximum rapid feed X - 100 • Maximum rapid feed Z - 150 • Coolant pump motor -1/8 HP • Spindle motor brake - Dynamic braking • Way surface hardness - 400 – 450 HB • Head stock lubrication - Grease • Sliding door for easy set-ups • Bedways hardened and ground • Sliding surfaces Turcite coated • Dovetails on cross slide, V-ways on saddle • Adjustable saddle gibs Machine Options • Hydraulic Collet closer • Coolant pump • Indexer 8-station • Work lamp • Tailstock
