DENSO HS035A1-N20-W5N 4 SCARA ROBOTS

Specifications & Market Value

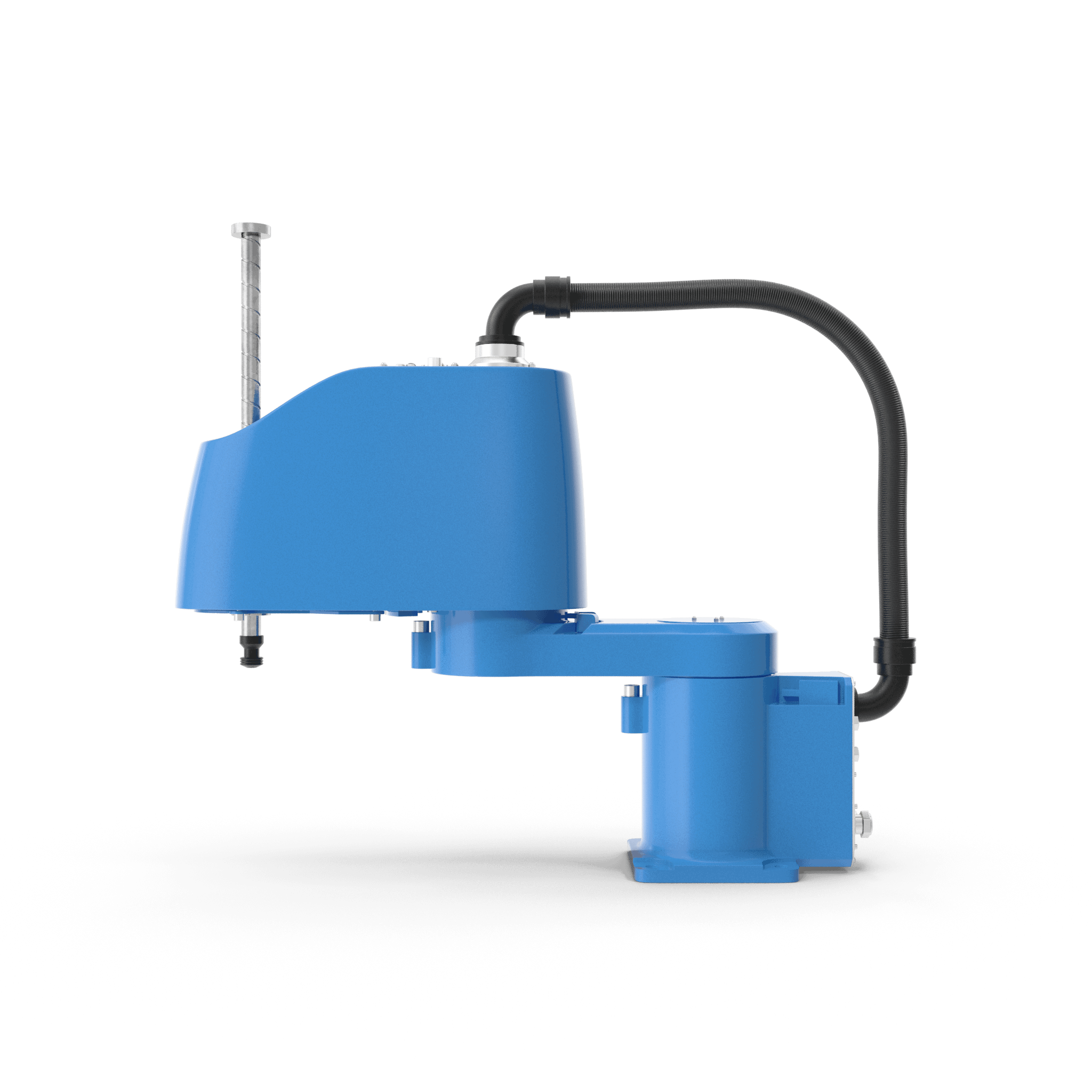

DENSO HS035A1-N20-W5N 4 DENSO HS035A1-N20-W5N SCARA ROBOT, 4-AXIS, 5KG PAYLOAD, 350MM REACH, 24KG WEIGHT equipment image
Reference image
Have one to sell?
Sell one like thisSell something else

Equipment Overview

OEM
DENSO
Model
HS035A1-N20-W5N 4
Year of manufacture
-

Technical Description

THE DENSO HS035A1-N20-W5N IS A 4-AXIS SCARA ROBOT DESIGNED FOR INDUSTRIAL AUTOMATION. IT FEATURES A MAXIMUM PAYLOAD CAPACITY OF 5 KG AND A HORIZONTAL REACH OF 350 MM. THE ROBOT ARM ITSELF WEIGHS 24 KG. POSITIONAL REPEATABILITY IS SPECIFIED AT ±0.01 MM. AXIS RANGES INCLUDE J1 (ROTATION) AT ±180°, J2 (ARM SWEEP) AT ±150°, J3 (VERTICAL STROKE) AT ±200 MM, AND J4 (WRIST ROTATION) AT ±360°. JOINT SPEEDS ARE RATED AT J1: 400°/S, J2: 400°/S, J3: 1100 MM/S, AND J4: 1000°/S. OPERATION REQUIRES AN AIR PRESSURE RANGE OF 0.05 TO 0.35 MPA, WITH A MAXIMUM ALLOWABLE PRESSURE OF 0.59 MPA. IT IS COMPATIBLE WITH DENSO RC8A OR RC8 CONTROLLERS AND SUPPORTS FLOOR, CEILING, AND WALL MOUNTING CONFIGURATIONS.

Technical Attributes

# of Axes
4
Max Reach
350 mm
Control System
DENSO RC8A OR RC8
Payload Capacity
5 kg

Category

  1. INDUSTRIAL ROBOTS
  2. → SCARA ROBOTS
