2010 Samsung Mcv 50 Vertical Machining Center, FANUC 0I-Md, 10K RPM, 30 ATC, CAT 40, Coolant

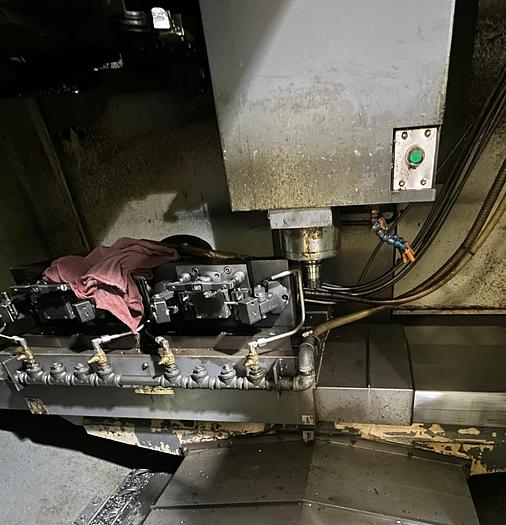

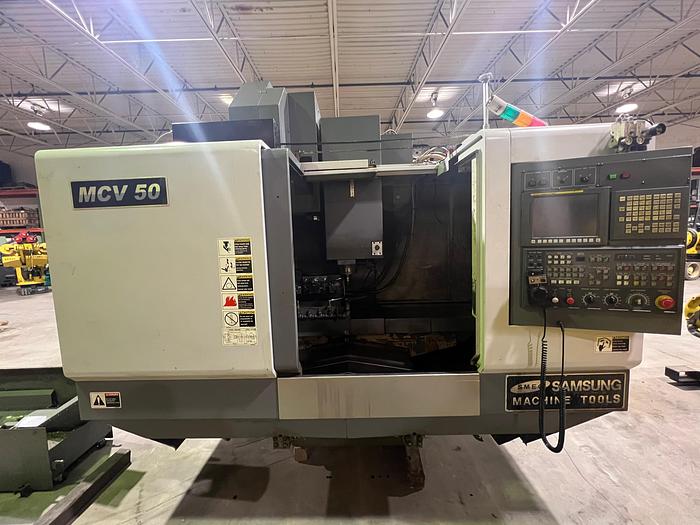

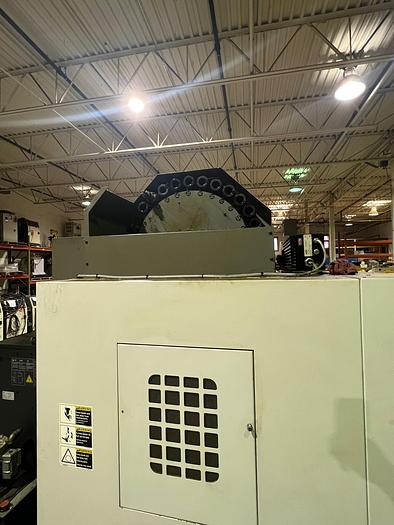

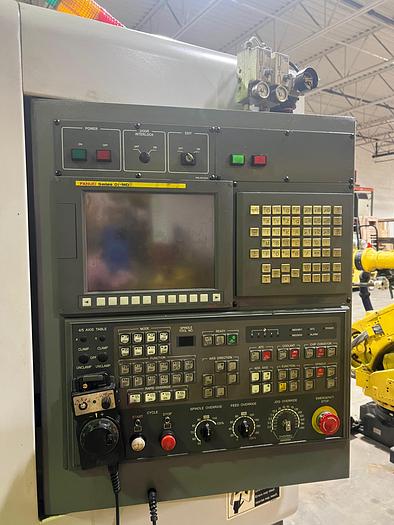

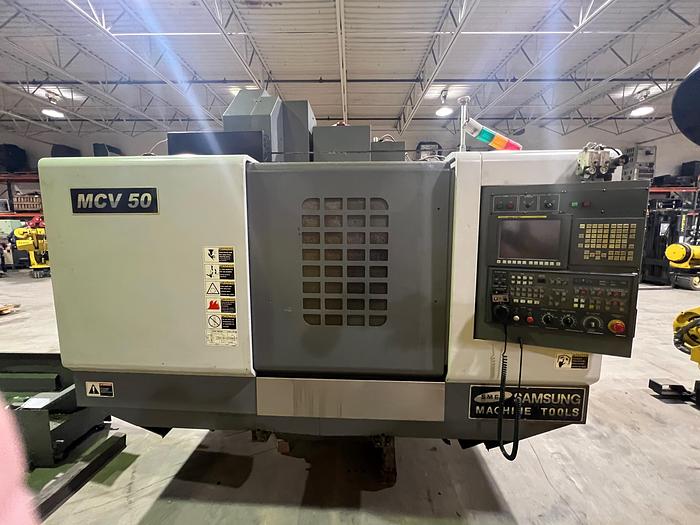

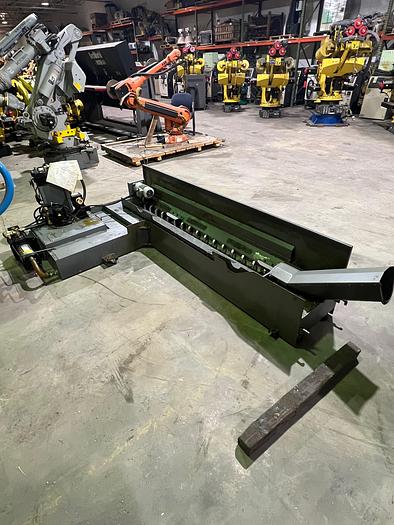

The 2010 Samsung Mcv 50 is a vertical machining center equipped with a FANUC 0I-MD control system. This three-axis machine features a table size of 36.22" x 19.69" with a maximum table capacity of 1,322 pounds. Its travel dimensions are 35.43" on the X-axis, 19.69" on the Y-axis, and 20.08" on the Z-axis. Rapid traverse rates reach 1,417 IPM for the X and Y axes and 1,181 IPM for the Z-axis. The spindle utilizes a CAT 40 taper, operates at speeds up to 10,000 RPM, and is powered by a 20 HP main motor. The tool changer has a capacity for 30 tools, and the system includes coolant through the spindle capabilities. The machine's physical dimensions are 102" x 87" x 100" with a total weight of 13,800 pounds. It is further equipped with a coolant pan and chip conveyor.
