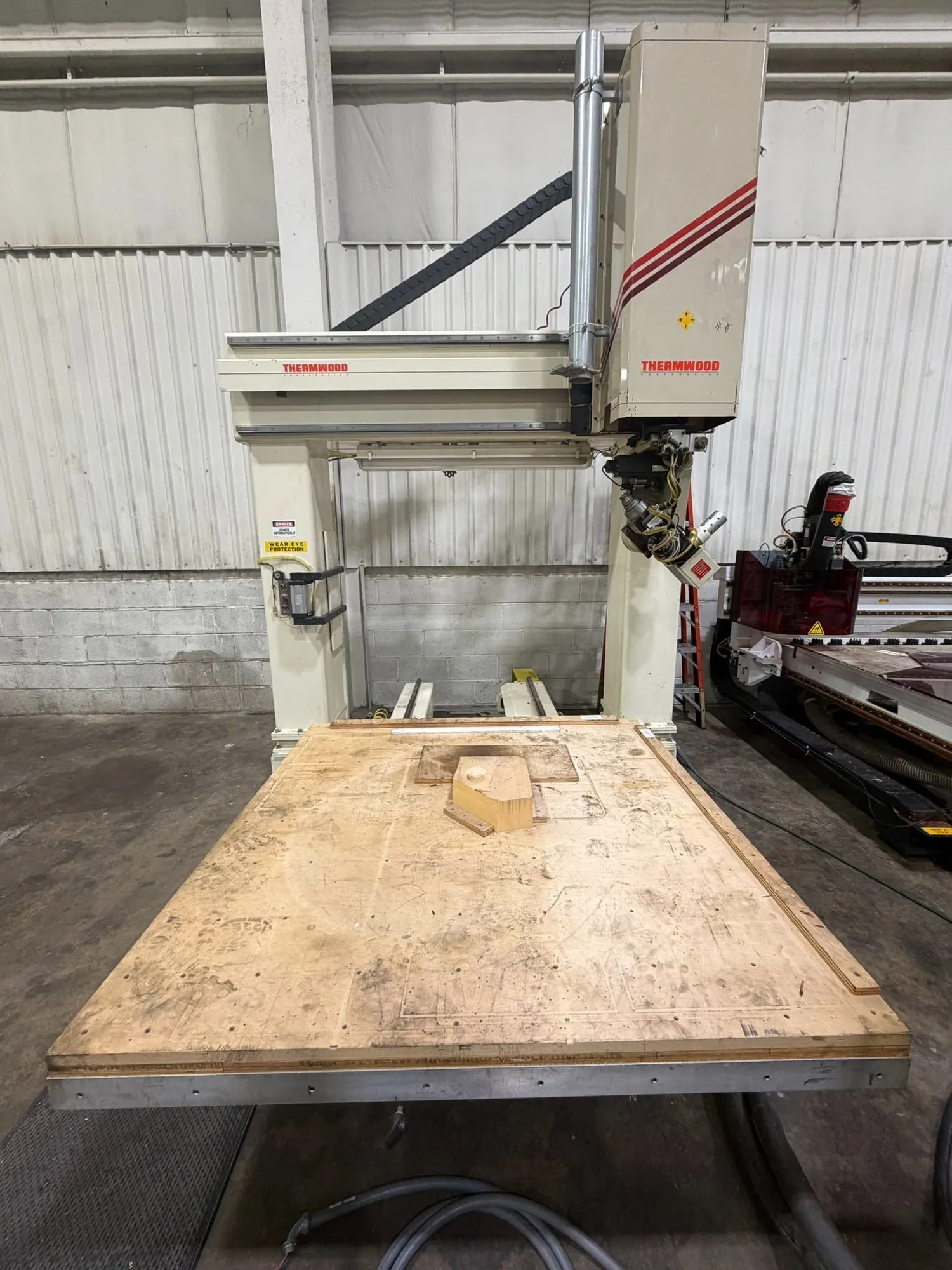

1999 THERMWOOD C67 5-AXIS CNC ROUTER, 5'X5' TABLE, 8HP SPINDLE, 24" Z, 60" X/Y TRAVEL

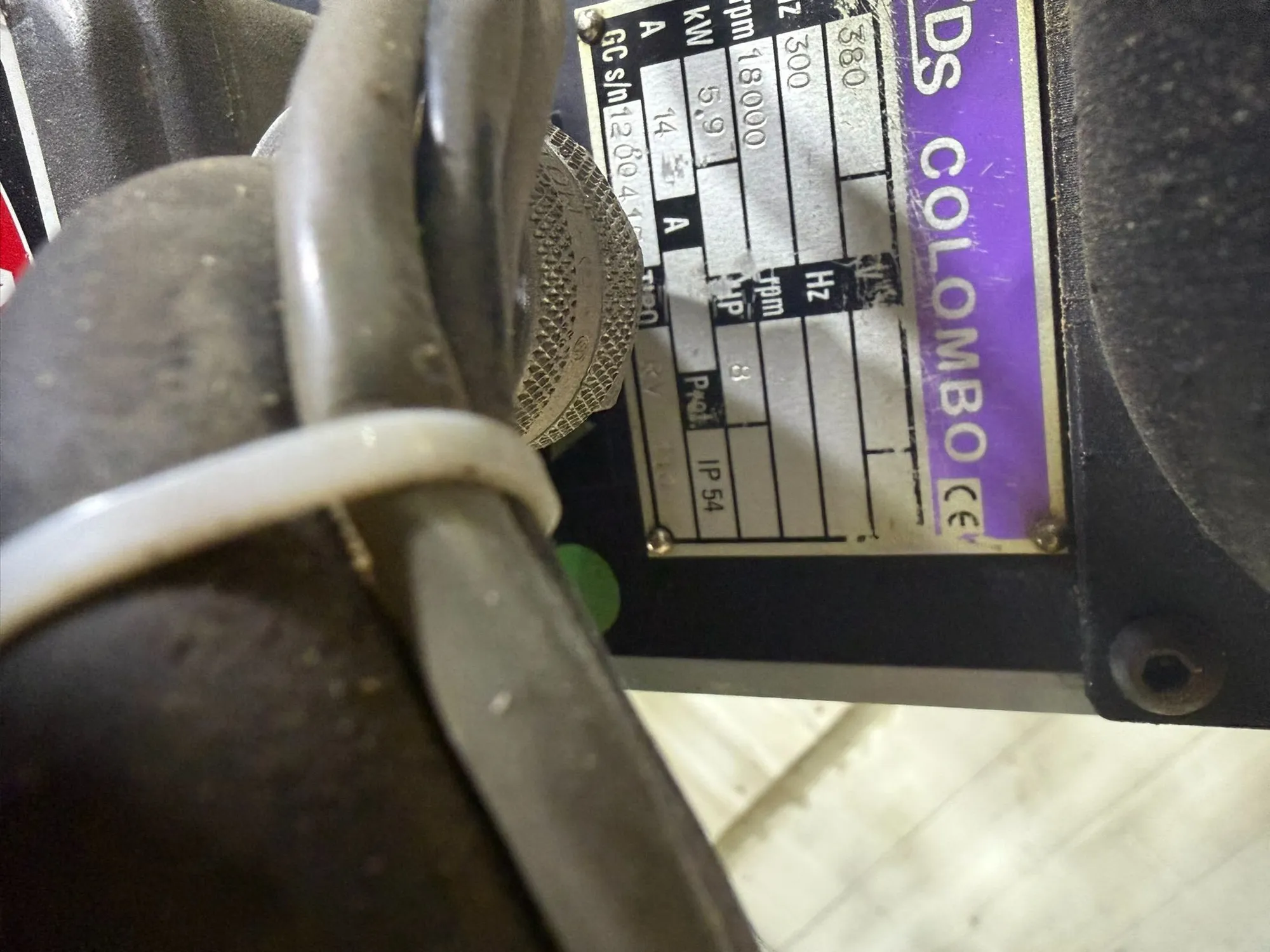

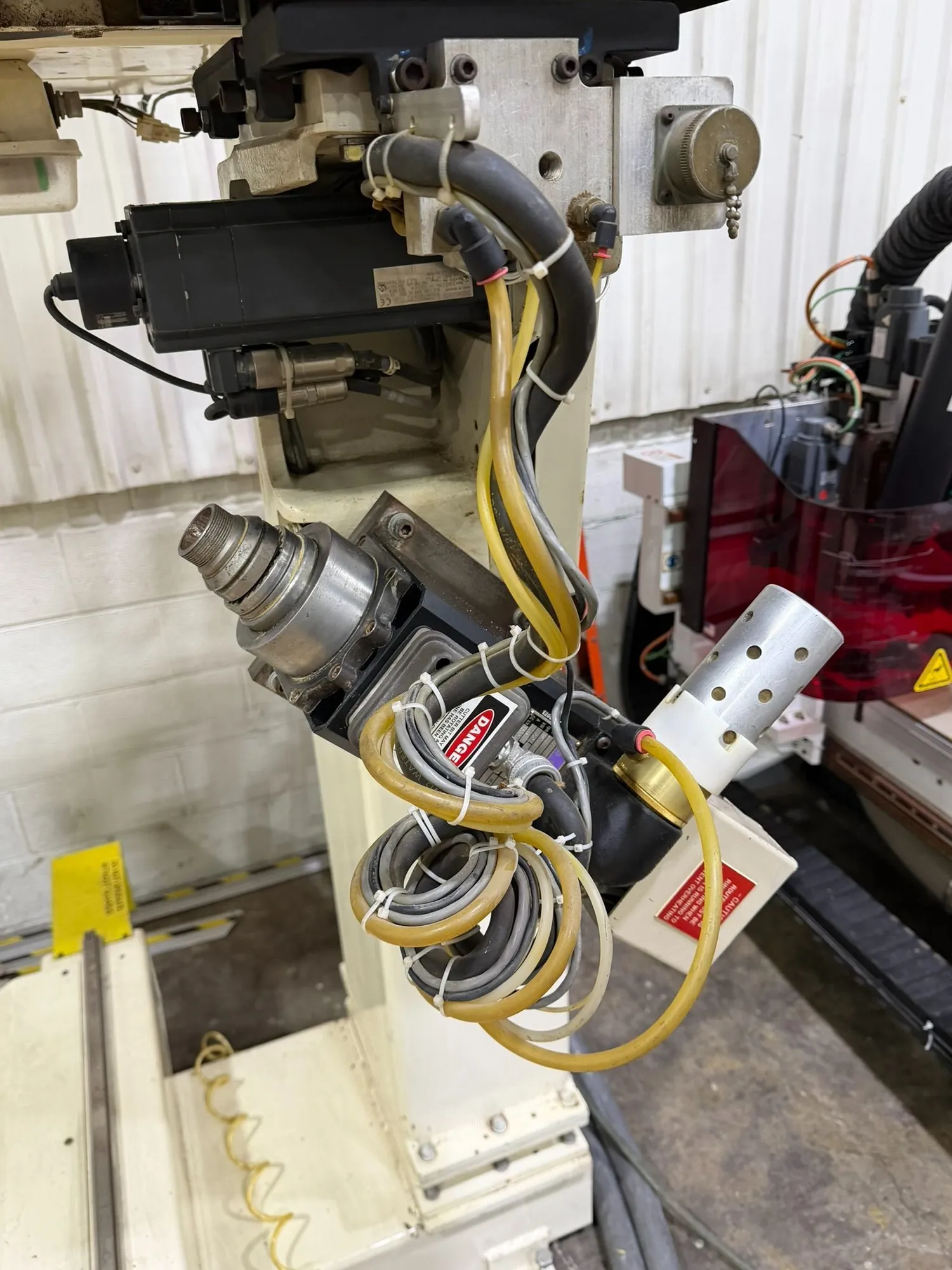

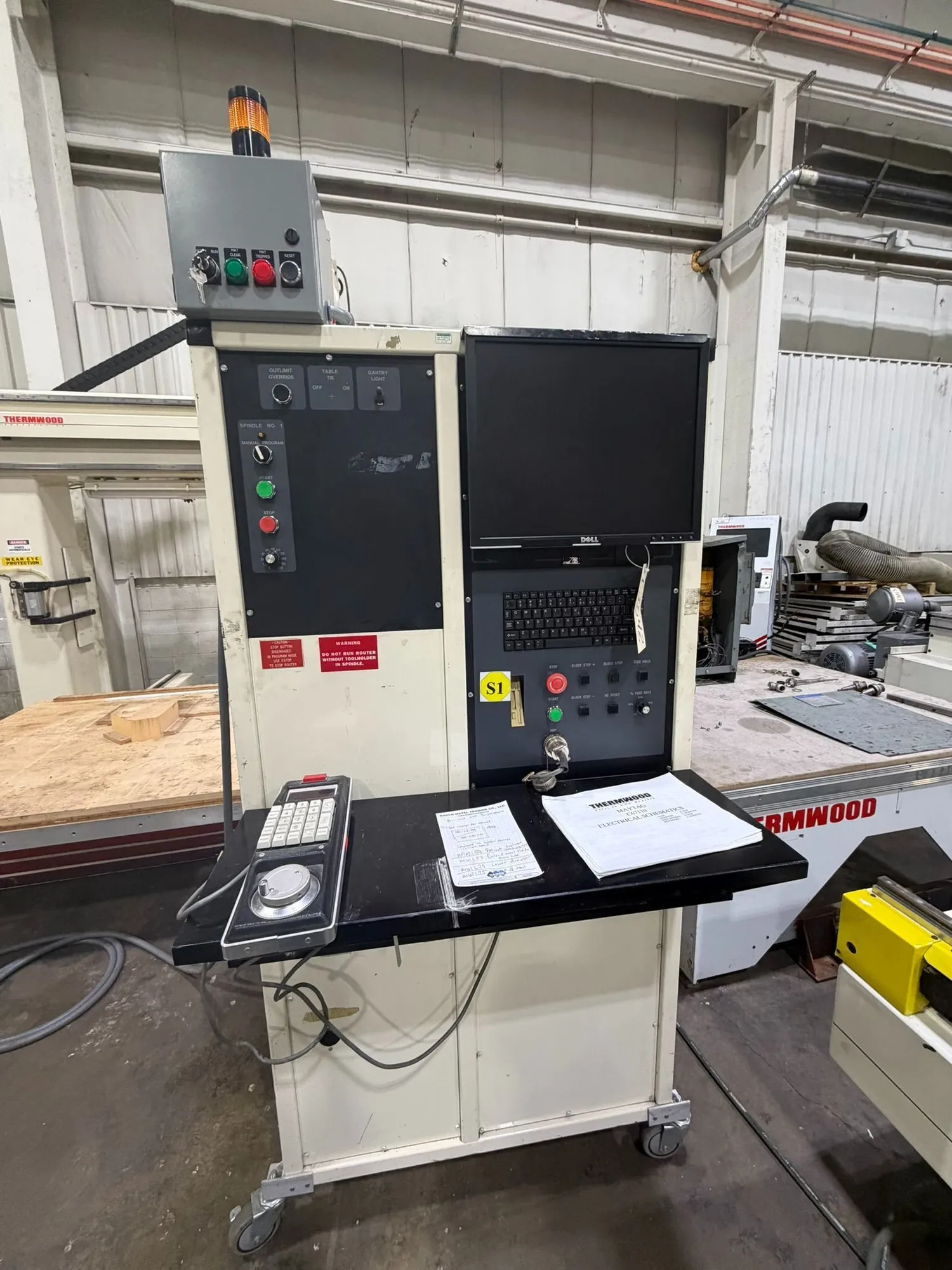

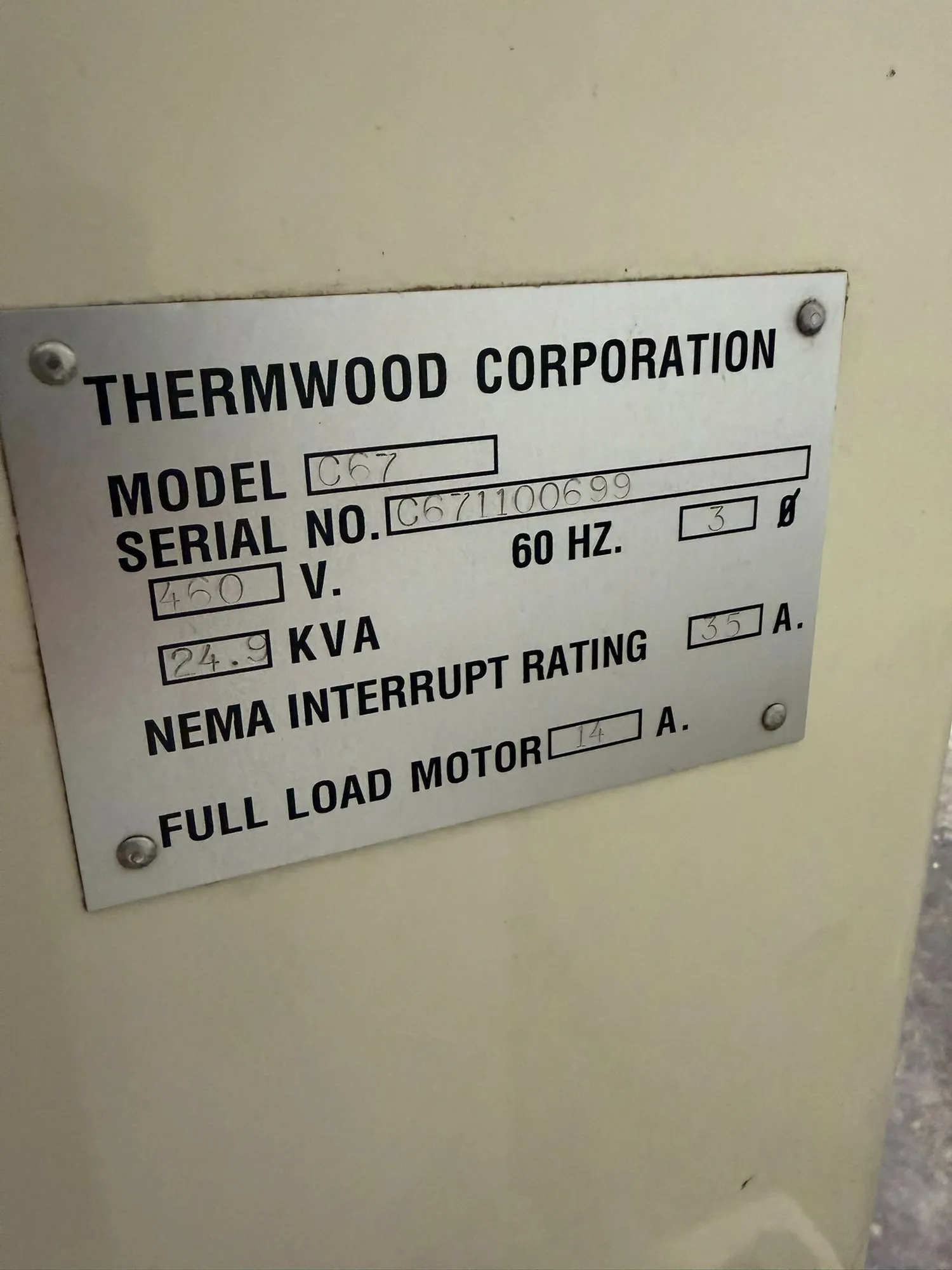

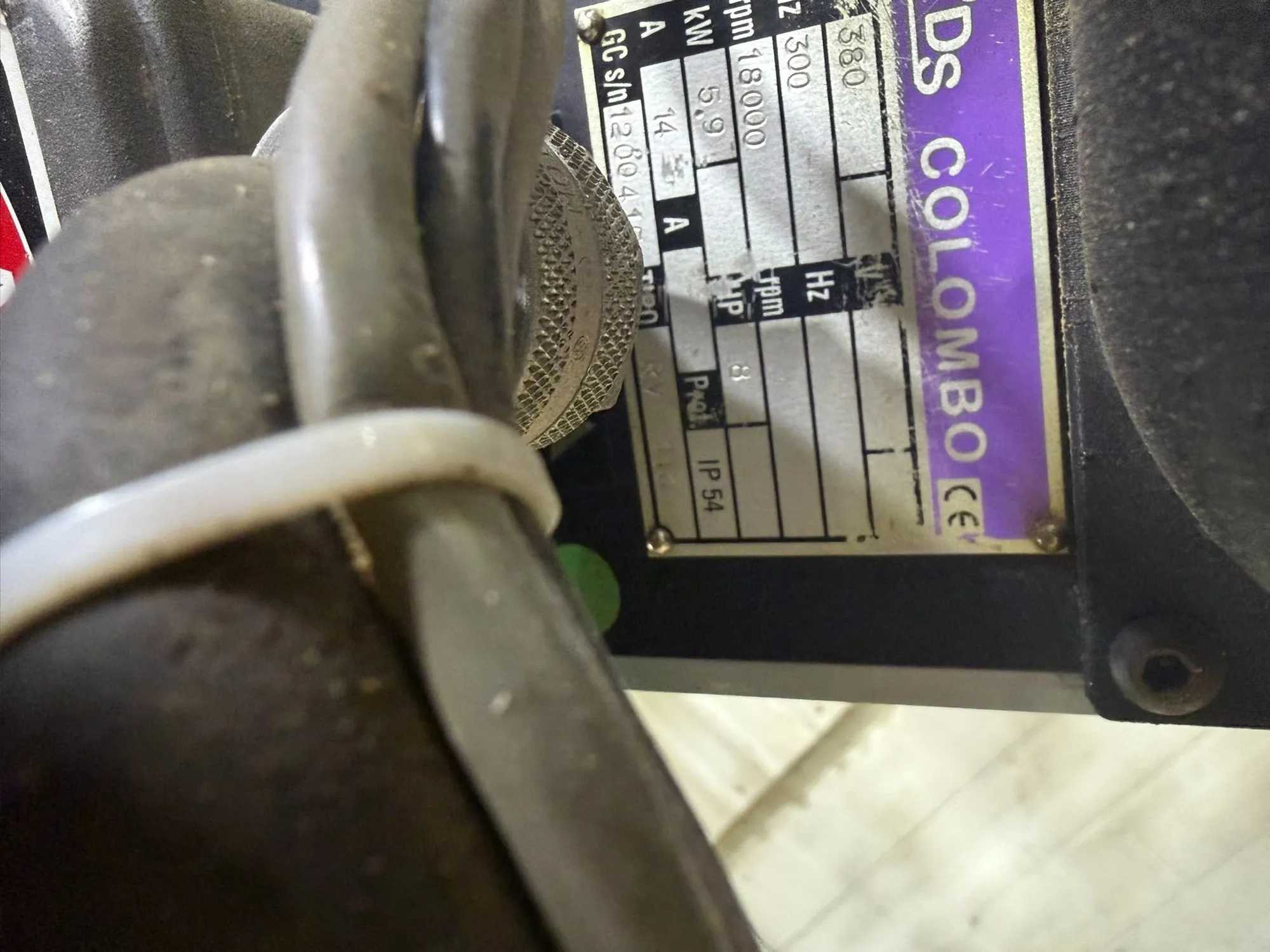

THE THERMWOOD MODEL C67 IS A HEAVY-DUTY, ENTRY-LEVEL 5-AXIS CNC ROUTER DESIGNED FOR HIGH-SPEED TRIMMING OF THREE-DIMENSIONAL PARTS, PATTERNS, AND MOLDS. THIS SPECIFIC MACHINE FEATURES A 5' X 5' MOVING SOLID ALUMINUM TABLE IN A FIXED-GANTRY CONFIGURATION. IT IS EQUIPPED WITH FIVE PROGRAMMABLE AXES OF MOTION, INCLUDING 60 INCHES OF TRAVEL IN THE X AND Y AXES AND 24 INCHES OF Z-AXIS STROKE. ROTARY CAPABILITIES INCLUDE 360-DEGREE C-AXIS ROTATION AND 180-DEGREE B-AXIS TILT, SUPPORTING FULL FIVE-AXIS SIMULTANEOUS MOTION. THE SPINDLE SYSTEM CONSISTS OF AN 8 HP COLOMBO DUAL-END SPINDLE CAPABLE OF VARIABLE SPEEDS RANGING FROM 3,000 TO 18,000 RPM. TOOL MANAGEMENT IS HANDLED BY A 6-POSITION GANTRY-LEG AUTOMATIC TOOL CHANGER. THE MACHINE IS OPERATED VIA A THERMWOOD CNC WINDOWS-BASED SUPERCONTROL SYSTEM, WHICH UTILIZES SIEMENS INTELLIGENT SERVO DRIVES AND 3D LASER-COMPENSATED AXIS ALIGNMENT FOR HIGH-PRECISION REPEATABILITY. ADDITIONAL FEATURES INCLUDE AN AUTOMATIC LUBRICATION SYSTEM AND A HAND-HELD TEACH PENDANT FOR MANUAL POSITIONING. PERFORMANCE SPECIFICATIONS INCLUDE FEED SPEEDS UP TO 900 IPM. ELECTRICAL REQUIREMENTS ARE 220 OR 440 VOLT, 3 PHASE, 60 CYCLE, WITH A COMPRESSED AIR REQUIREMENT OF 90 PSI. THE ENGINEERED STEEL CONSTRUCTION PROVIDES A RIGID PLATFORM FOR INDUSTRIAL APPLICATIONS IN THE AEROSPACE, AUTOMOTIVE, AND COMPOSITES INDUSTRIES.
