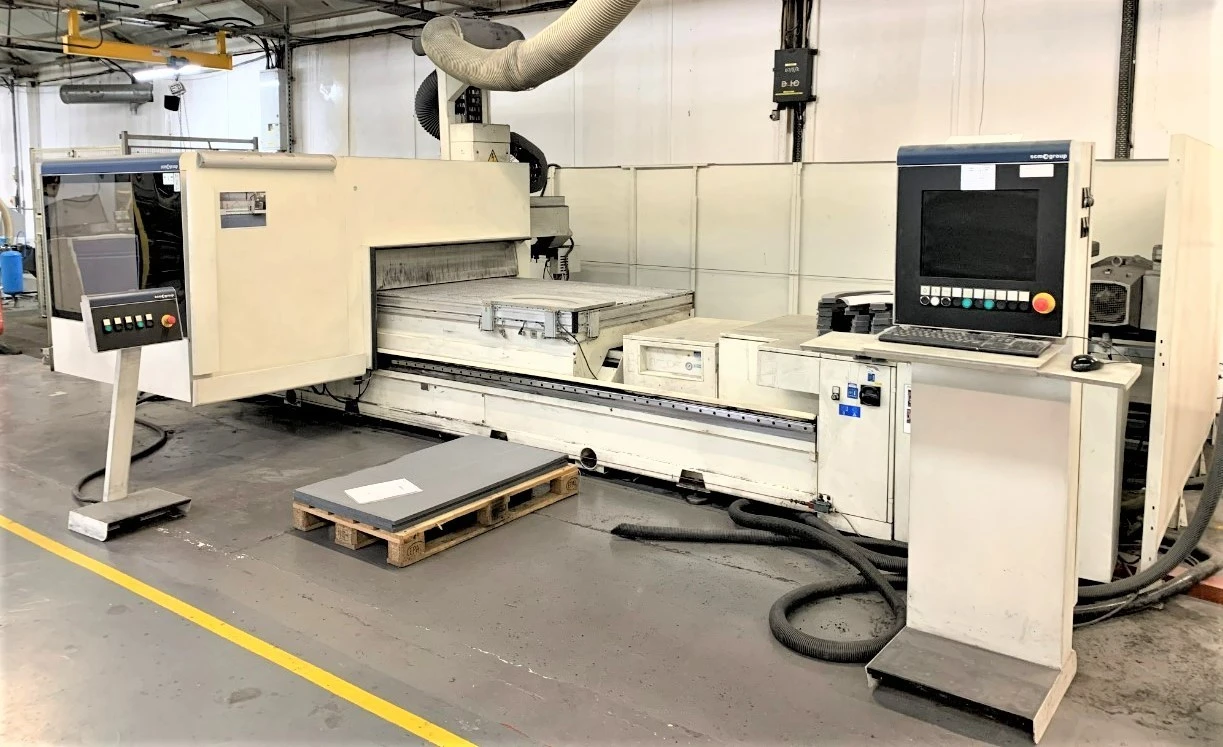

2013 Scm Accord 30 Fx-M CNC Machining Center, 3-Axis, 8.5kW Spindle, 24K RPM

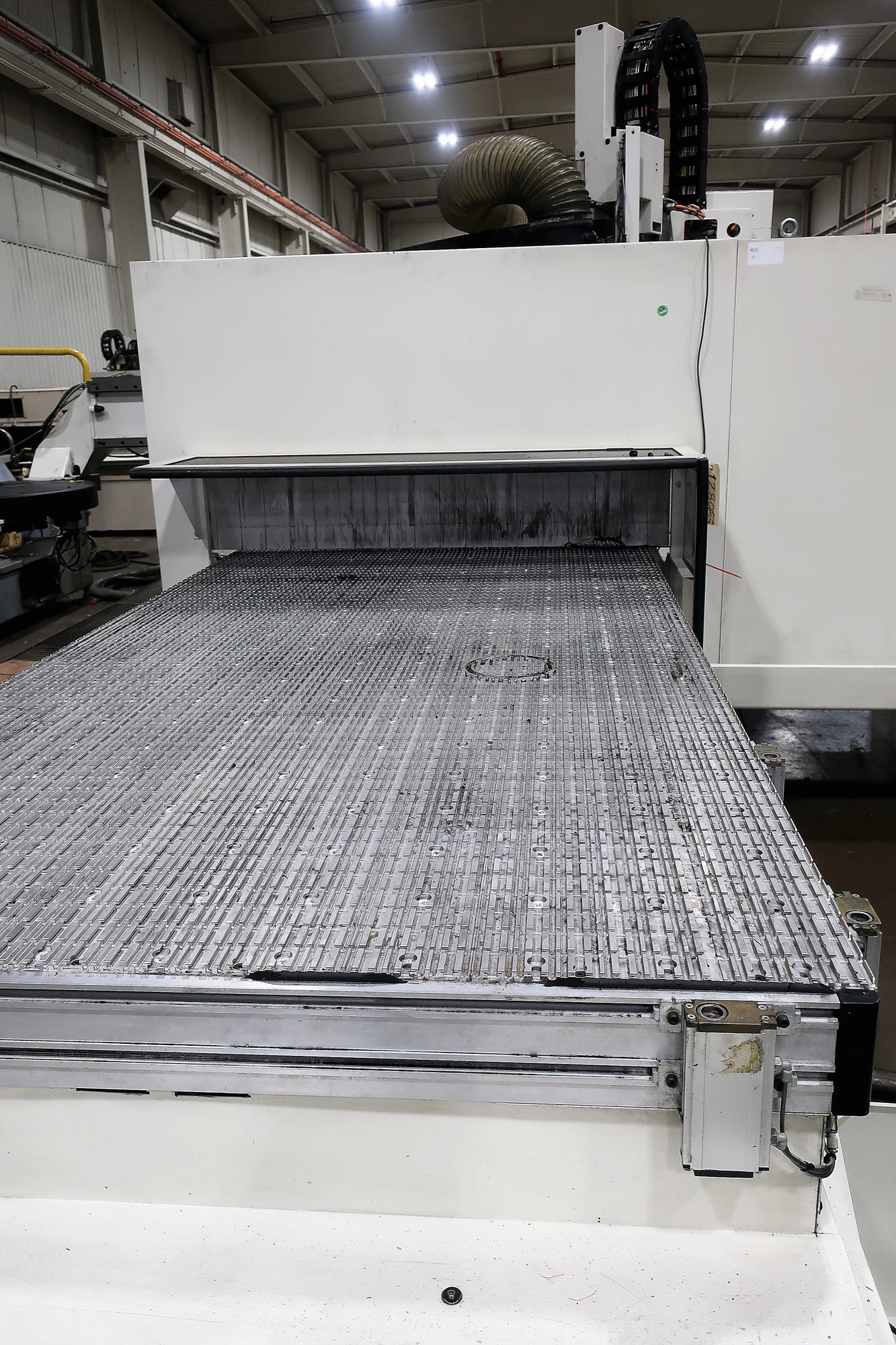

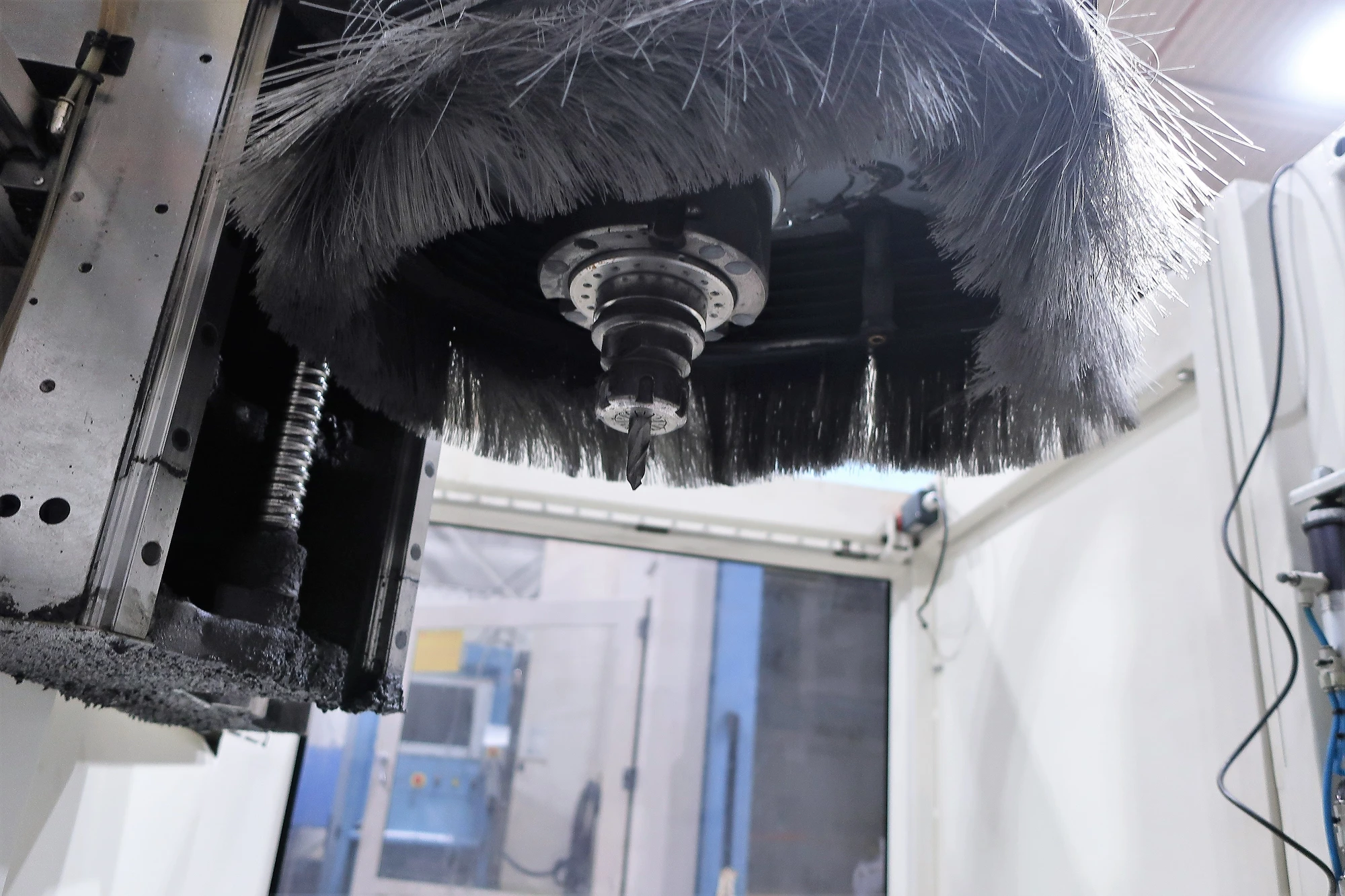

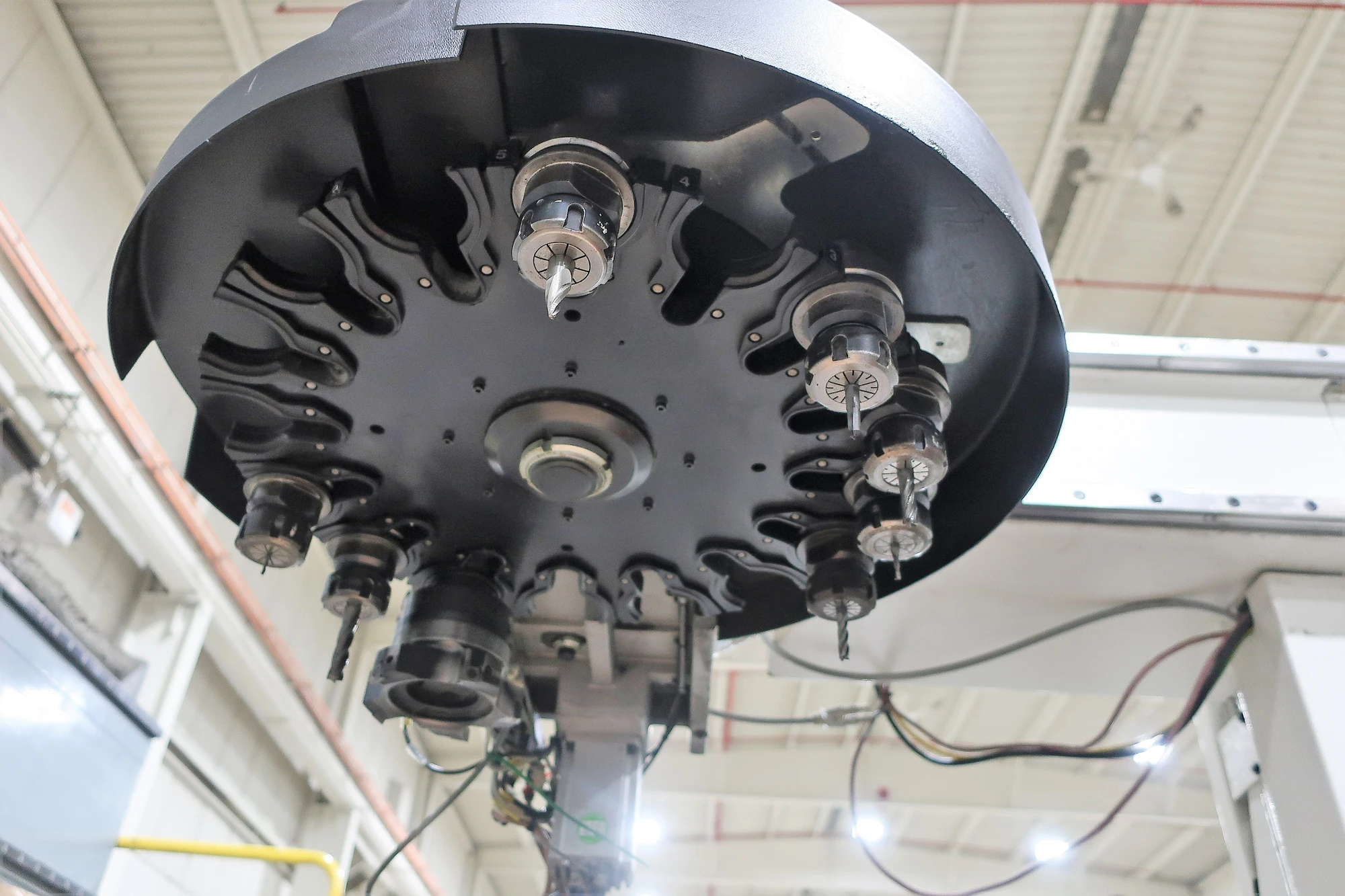

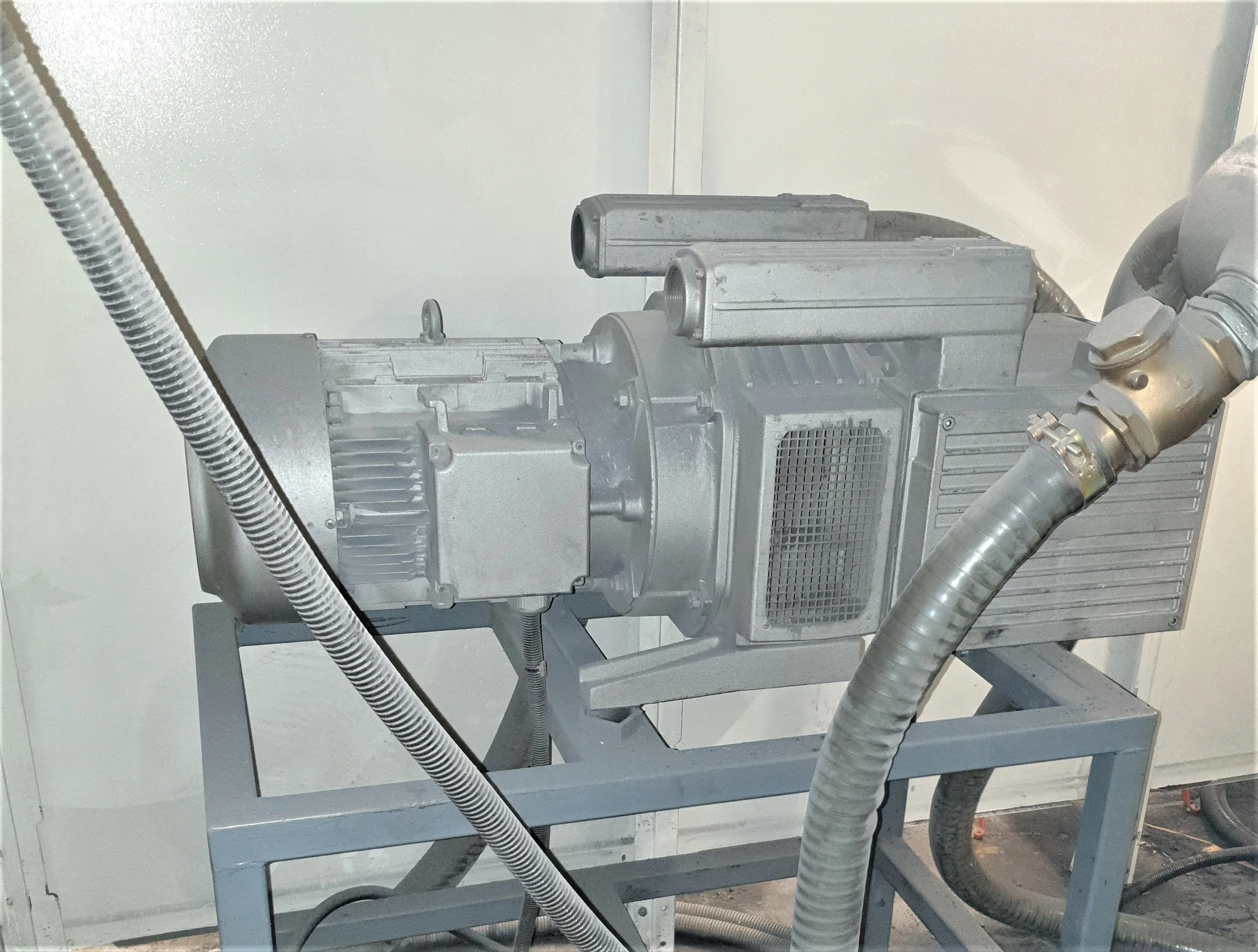

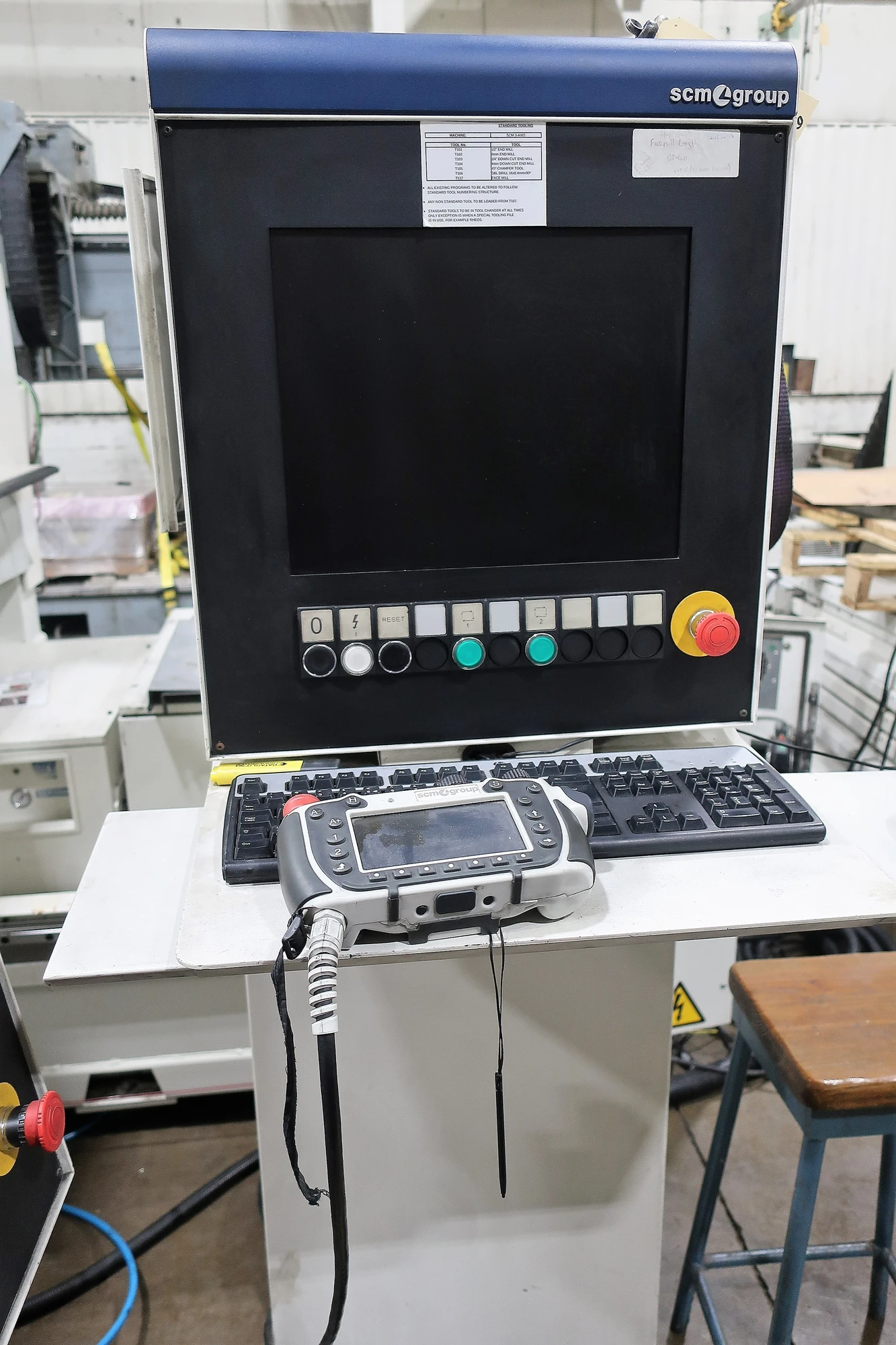

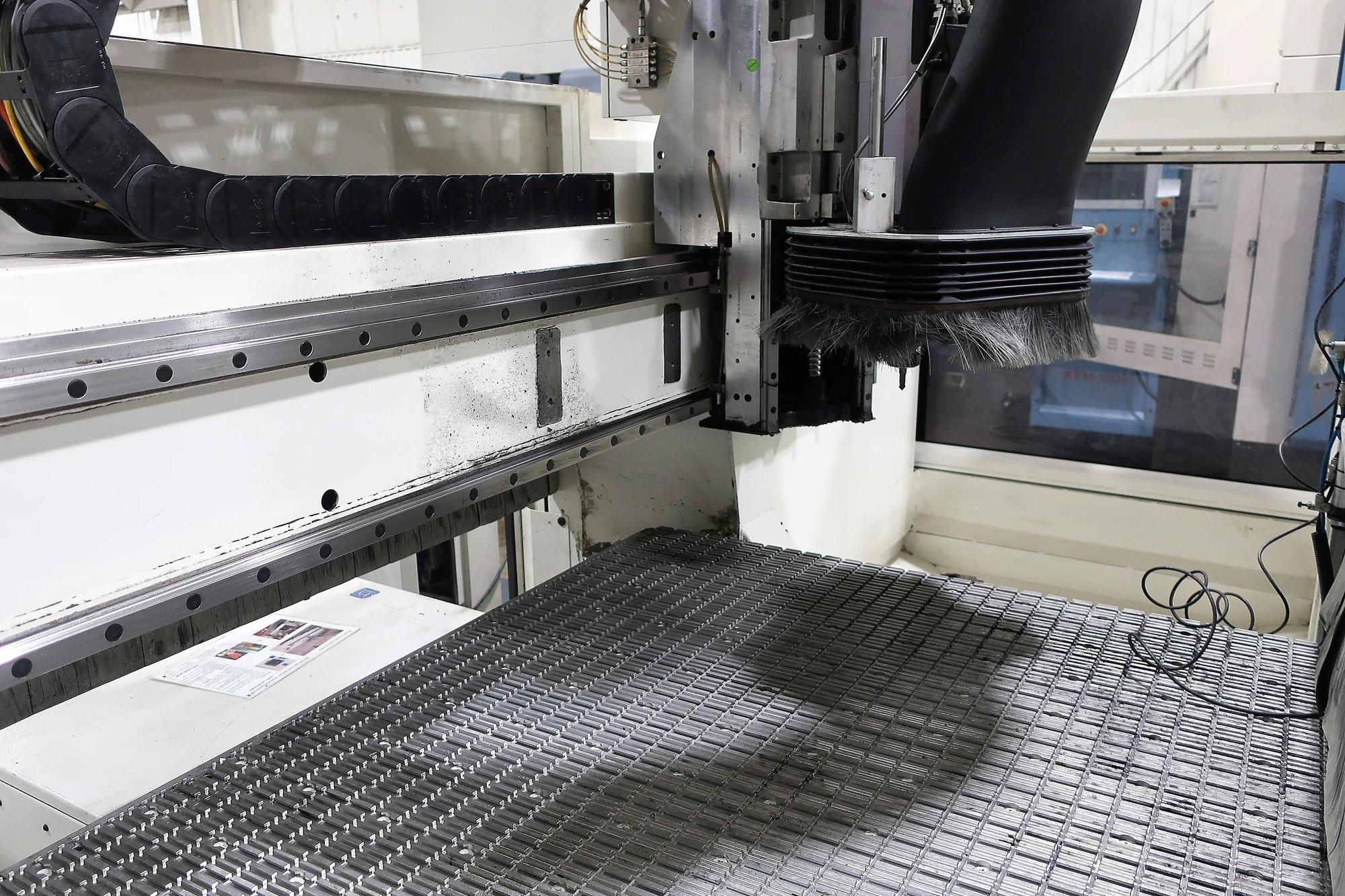

The SCM Accord 30 FX-M is a CNC machining center designed for flexible production of panels including solid wood, plywood, chipboard, and MDF. The machine features a rigid mobile gantry structure and a multifunction aluminum worktable suitable for nesting applications. Technical specifications include an X-axis working area of 3,650 mm and a Y-axis working area of 1,320 mm, with a component passage of 250 mm. The machine is equipped with a 3-axis electrospindle with power ranging from 8.5 kW to 13 kW and a maximum rotation speed of 24,000 RPM. Axis speeds reach up to 90 m/min in X and Y. The unit includes a 16-position tool changer and operates with the XILOG PLUS control system. Additional features include a 2-zone vacuum table, vacuum pump system, and compressed air requirements between 170 and 300 NL/min.
