2006 THERMWOOD CS45 CNC ROUTER, 5' X 12', 24,000 RPM, 10.5 HP, 7 ATC, 3-AXIS

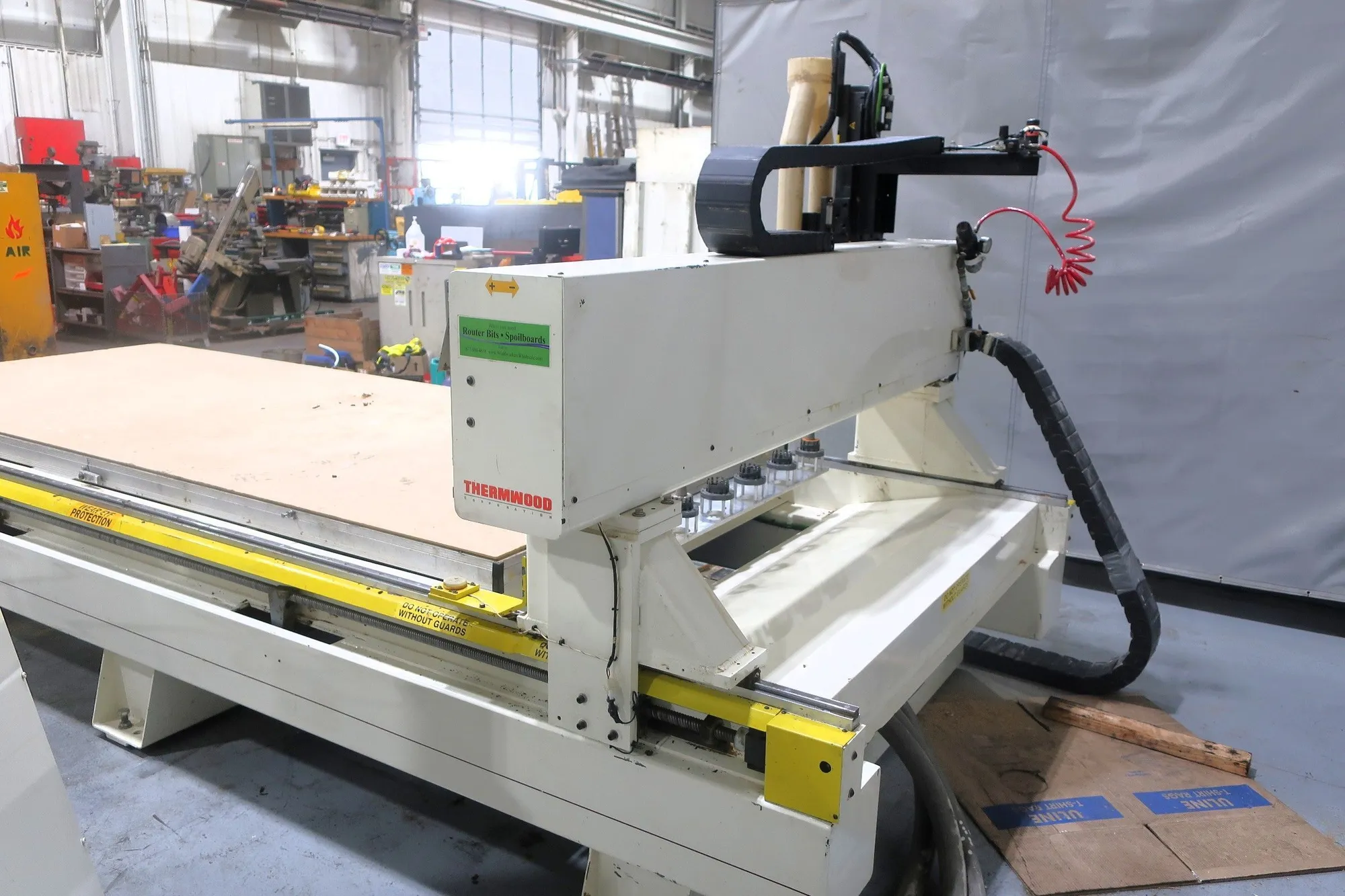

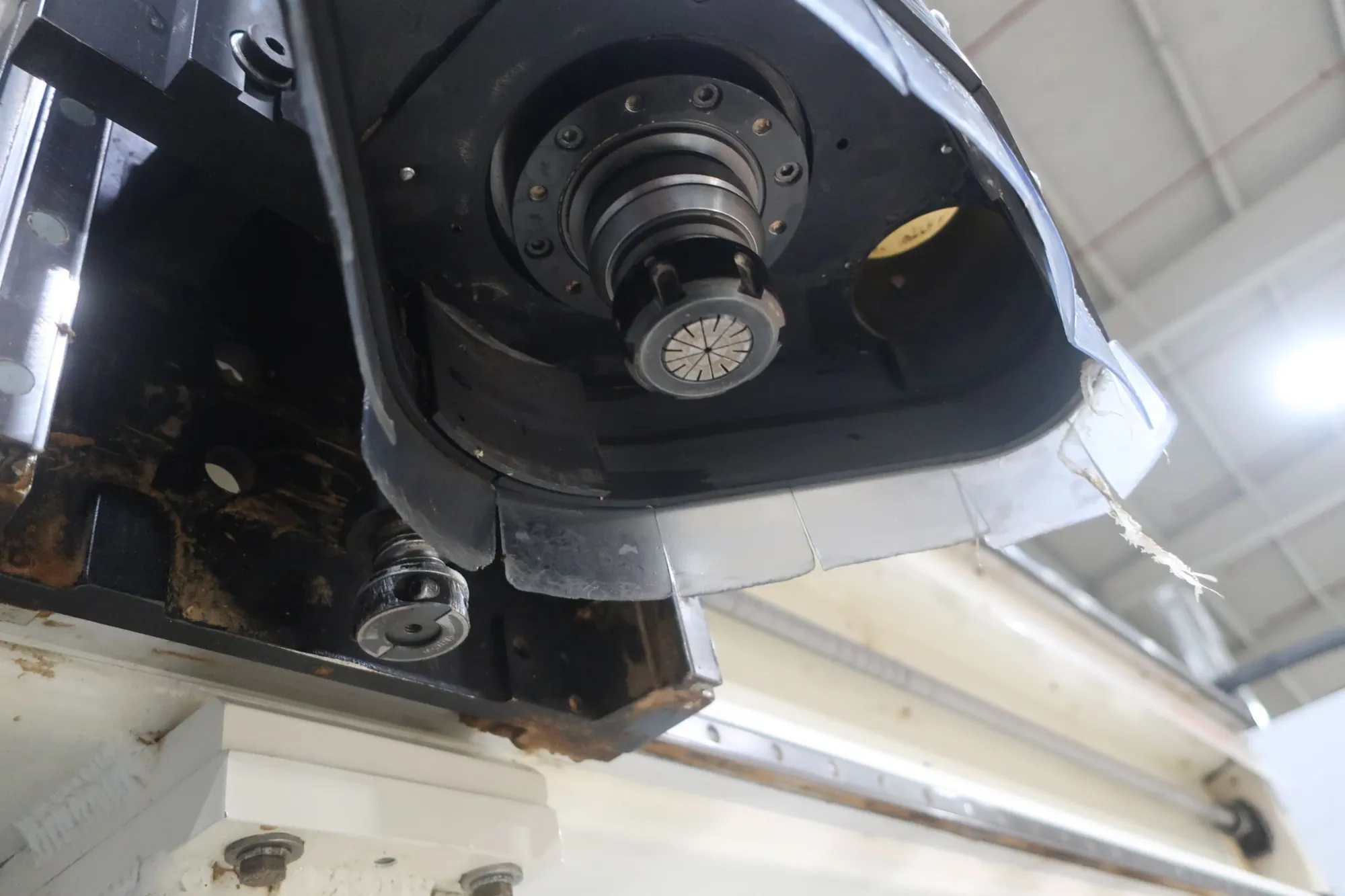

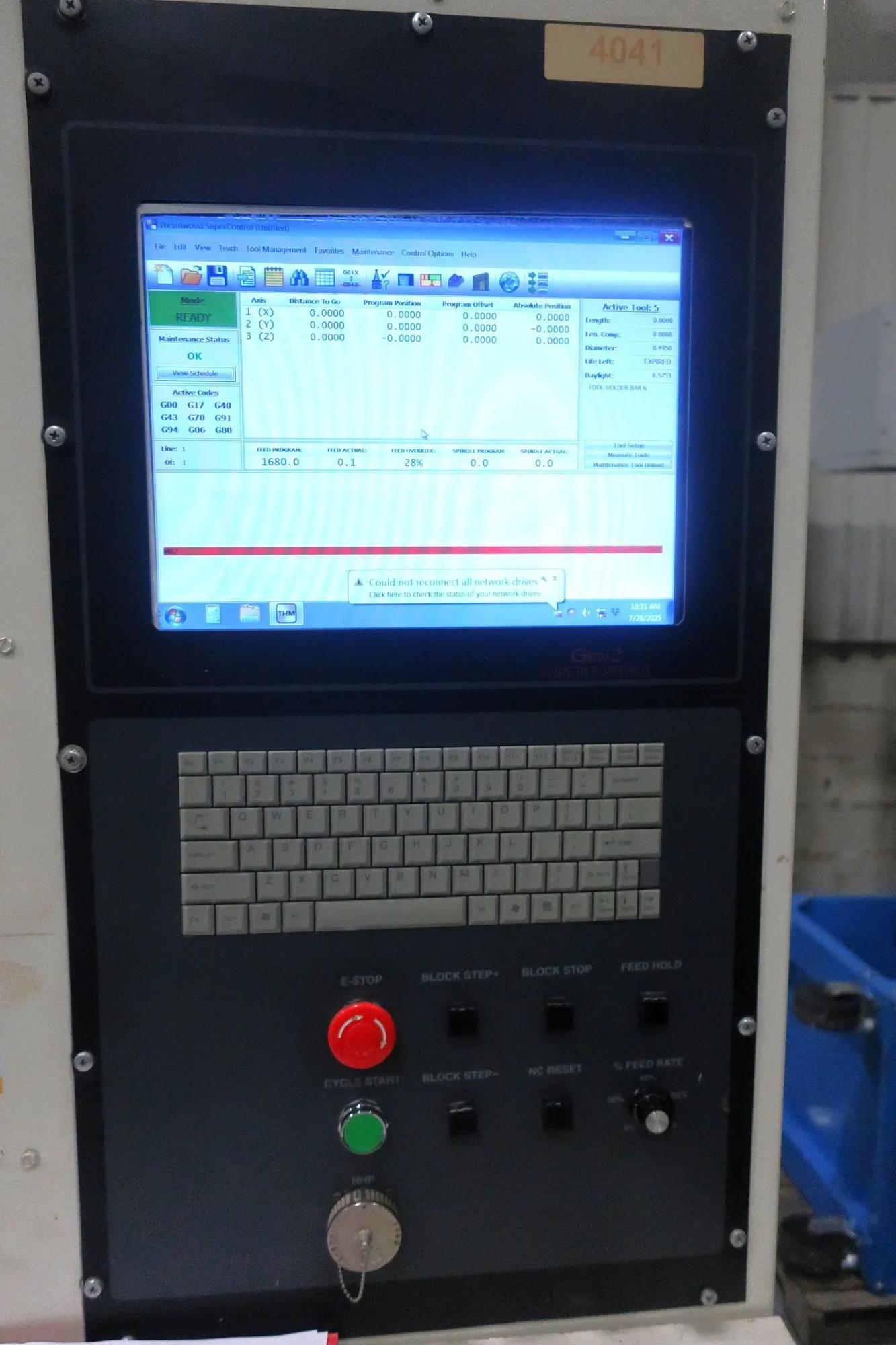

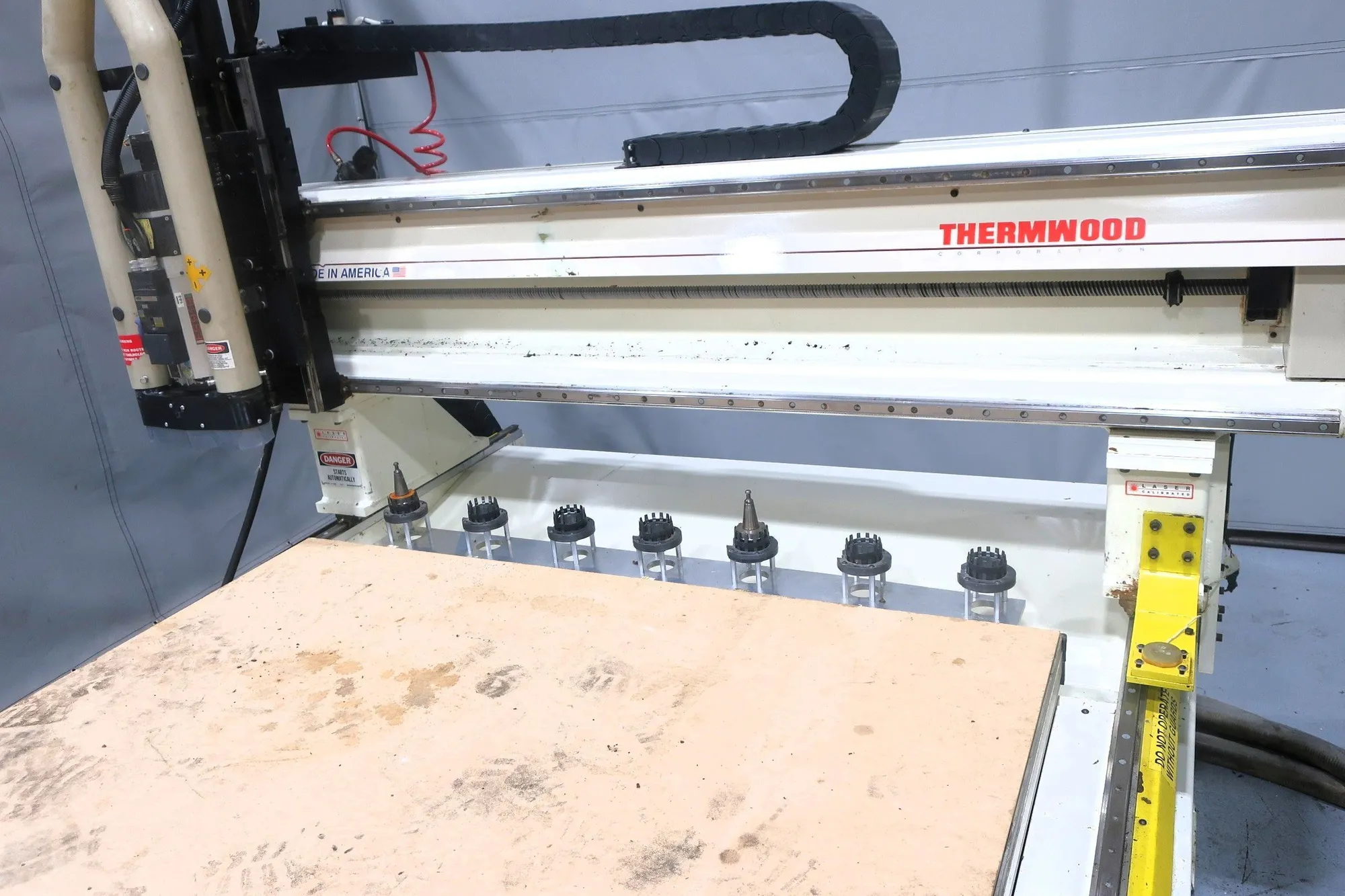

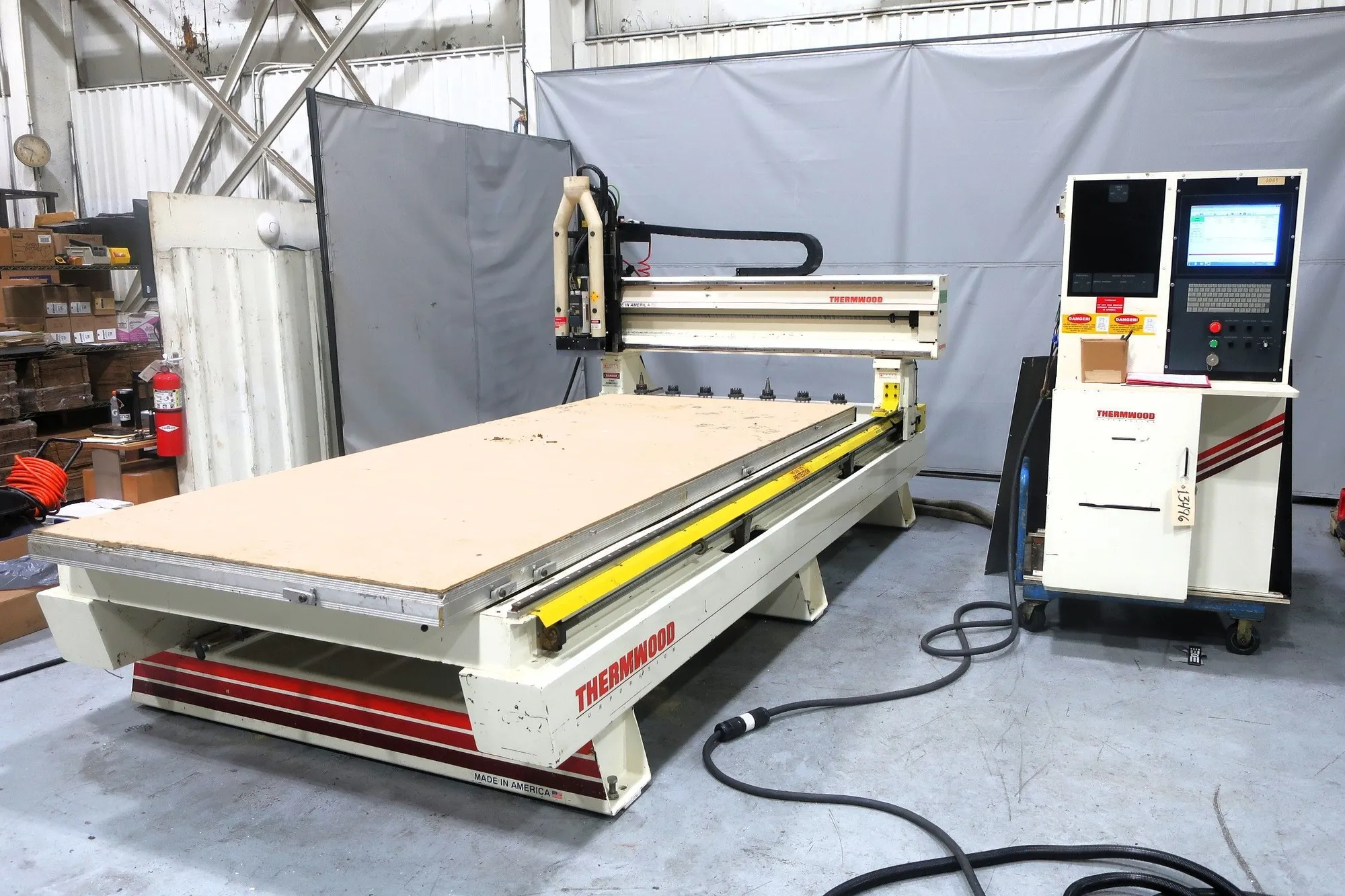

THE THERMWOOD CS45 IS A 3-AXIS CNC ROUTER FEATURING A MOVING GANTRY DESIGN WITH A MACHINED ALUMINUM TABLE. THE MACHINE OFFERS AXIS TRAVELS OF 144 INCHES IN X, 74.2 INCHES IN Y, AND 9.8 INCHES IN Z. IT IS EQUIPPED WITH A 10.5 HP SPINDLE CAPABLE OF SPEEDS UP TO 24,000 RPM AND INCLUDES A 7-POSITION AUTOMATIC TOOL CHANGER. THE UNIT UTILIZES CLOSED-LOOP AC SERVO MOTORS DRIVING PRECISION BALL SCREWS ON ALL AXES, WITH FEED SPEEDS UP TO 1200 IPM ON THE X AND Y AXES. ADDITIONAL FEATURES INCLUDE A SINGLE-ZONE ACRYLIC VACUUM PLENUM WITH MANUAL POP-UP PINS, AUTOMATIC LUBRICATION SYSTEM, Q-CORE CNC UPGRADE, WINDOWS 7 SOFTWARE, AND TOOL LENGTH MEASUREMENT SYSTEM.
