Kentucky
Aucto ID: #125040
Buy Now
Verified Seller

2017 Haas GR-712 CNC Gantry Router, 145" X, 85" Y, 15 HP, 8100 RPM, 4238 Hours

Asking Price:
$109,500.00

Financing From: $1,814/mo

Get pre-approved in minutes — no credit impact

Apply

Delivery Options

Rigging · Included

Loading · Included

Shipping · Buyer or

Removal Deadline · 30 days

Product Description

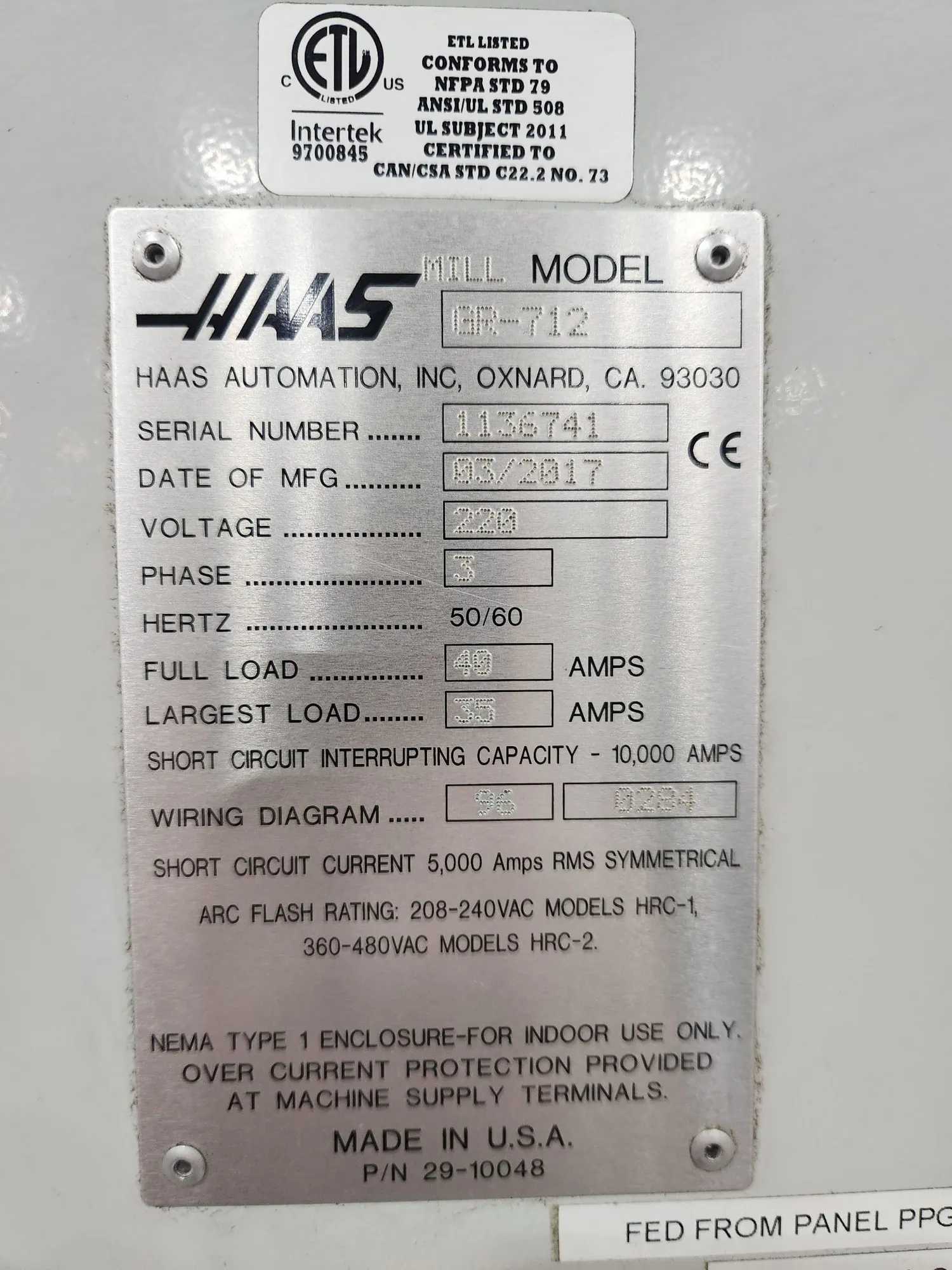

New 2017 Control - CNC (Haas NGC control) Dimensions - 226 × 137 × 116 Weight - 24000 Haas model GR 712 CNC Gantry Router s/n 1136741 new 03/2017 Spindle on time 4,238:15 hours as of 9-01-26. Runs on the standard Haas NGC control consistent with all other Haas CNC machine tools. 3 Phase Hertz: 50/60 Amps: 35 (Largest Load) - 40 (Full Load) Equipped with: HAAS GR-712 2017 – CAPACITY Specification Value Machine Type CNC Gantry Router Number of Axes: 3 Table Size: 144″ × 72″ Table Load Capacity: 6,000 lbs Between Columns: 86″ X Travel: 145″ Y Travel: 85″ Z Travel: 11″ Spindle Taper: 40 Taper Spindle Interface: CT / BT 40 Spindle Speed: 8,100 RPM Spindle Motor: 15 HP Tool Capacity: 20 Tools 4th Axis: Configuration Dependent Material Capability: Aluminum, Plastics, Composites, Non-Ferrous Materials The GR-712 is specifically intended for large-format machining and routing applications. Haas describes the GR series as capable of cutting aluminum and other metals while also providing the speed required for plastics and lighter materials. HAAS GR-712 2017 – SPINDLE Specification Maximum Spindle Speed: 8,100 RPM Spindle Motor: 15 HP Maximum Torque: 48 ft-lb @ 1,500 RPM Spindle Taper: 40 Taper Tool Interface: CT or BT 40 Drive System: Direct-Speed Belt Drive Spindle Configuration: Vertical High-Speed Machining: Yes Heavy-Duty Capability: Configuration / Material Dependent The 15 HP, 8,100 RPM spindle provides a useful balance of speed and cutting capability for aluminum, plastics, composites, and non-ferrous materials. The spindle produces approximately 48 ft-lb of maximum torque at 1,500 RPM. The GR-712 is a very large machine. Haas lists shipping dimensions of approximately 226 × 137 × 116 inches and a standard shipping weight of approximately 24,000 lbs. Other Notes: https://machinetoolindex.com/machines/haas-gr-712 - For More specifications The HAAS GR-712 2017 is designed for large-format machining applications across industries where conventional CNC machining centers cannot provide sufficient table size or travel. Aerospace Automotive Transportation Marine Defense Composite Manufacturing Plastics Manufacturing Aluminum Manufacturing Industrial Equipment Architectural Manufacturing Sign Manufacturing General Precision Manufacturing Tooling & Fixtures Contract Manufacturing The machine’s exceptionally large X/Y work envelope makes it especially useful for large panels, composite structures, aluminum components, fixtures, molds, and oversized industrial parts. Available for inspection under power. Haas model GR 712 CNC Gantry Router s/n 1136741 new 03/2017 Spindle on time 4,238:15 hours as of 9-01-26. Runs on the standard Haas NGC control consistent with all other Haas CNC machine tools. 3 Phase Hertz: 50/60 Amps: 35 (Largest Load) - 40 (Full Load) Equipped with: HAAS GR-712 2017 – CAPACITY Specification Value Machine Type CNC Gantry Router Number of Axes: 3 Table Size: 144″ × 72″ Table Load Capacity: 6,000 lbs Between Columns: 86″ X Travel: 145″ Y Travel: 85″ Z Travel: 11″ Spindle Taper: 40 Taper Spindle Interface: CT / BT 40 Spindle Speed: 8,100 RPM Spindle Motor: 15 HP Tool Capacity: 20 Tools 4th Axis: Configuration Dependent Material Capability: Aluminum, Plastics, Composites, Non-Ferrous Materials The GR-712 is specifically intended for large-format machining and routing applications. Haas describes the GR series as capable of cutting aluminum and other metals while also providing the speed required for plastics and lighter materials. HAAS GR-712 2017 – SPINDLE Specification Maximum Spindle Speed: 8,100 RPM Spindle Motor: 15 HP Maximum Torque: 48 ft-lb @ 1,500 RPM Spindle Taper: 40 Taper Tool Interface: CT or BT 40 Drive System: Direct-Speed Belt Drive Spindle Configuration: Vertical High-Speed Machining: Yes Heavy-Duty Capability: Configuration / Material Dependent The 15 HP, 8,100 RPM spindle provides a useful balance of speed and cutting capability for aluminum, plastics, composites, and non-ferrous materials. The spindle produces approximately 48 ft-lb of maximum torque at 1,500 RPM. The GR-712 is a very large machine. Haas lists shipping dimensions of approximately 226 × 137 × 116 inches and a standard shipping weight of approximately 24,000 lbs. Other Notes: https://machinetoolindex.com/machines/haas-gr-712 - For More specifications The HAAS GR-712 2017 is designed for large-format machining applications across industries where conventional CNC machining centers cannot provide sufficient table size or travel. Aerospace Automotive Transportation Marine Defense Composite Manufacturing Plastics Manufacturing Aluminum Manufacturing Industrial Equipment Architectural Manufacturing Sign Manufacturing General Precision Manufacturing Tooling & Fixtures Contract Manufacturing The machine’s exceptionally large X/Y work envelope makes it especially useful for large panels, composite structures, aluminum components, fixtures, molds, and oversized industrial parts. Available for inspection under power. https://www.youtube.com/watch?v=cyeqrZDhSnc

Core Specifications

Manufacturer: HAAS

Model: GR-712

Year: 2017

Weight: 24,000 lb

Packaging Type: 1 Piece

Packaging Dimensions: 226 in L x 137 in W x 116 in H

Packaging Weight: 24,000 lb

Condition: Good - Item functions as originally intended, shows minimal signs of wear.

Usage: 4,238 hours
