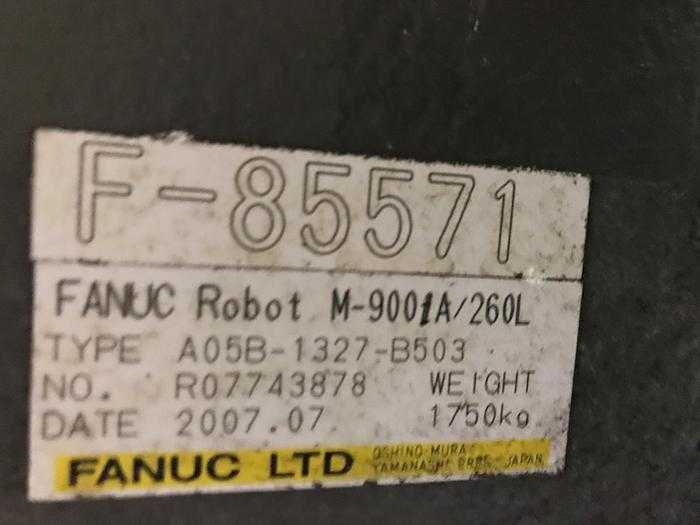

2007 FANUC M900IA/260L ARTICULATED ROBOT, 260 KG PAYLOAD, 3100 MM REACH, R30IA CONTROLLER

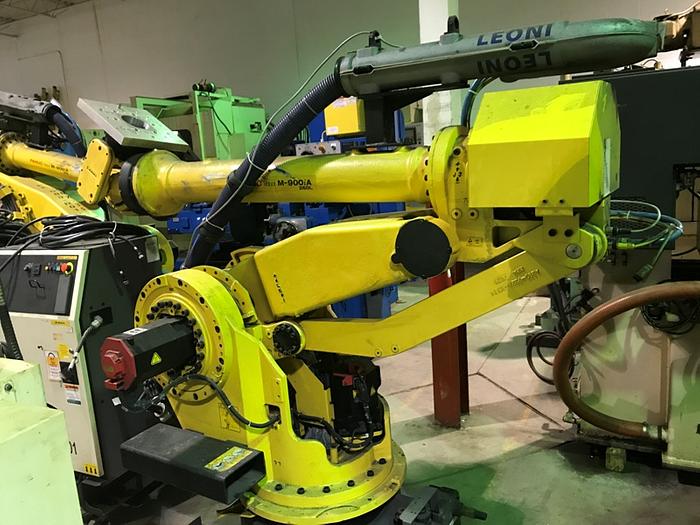

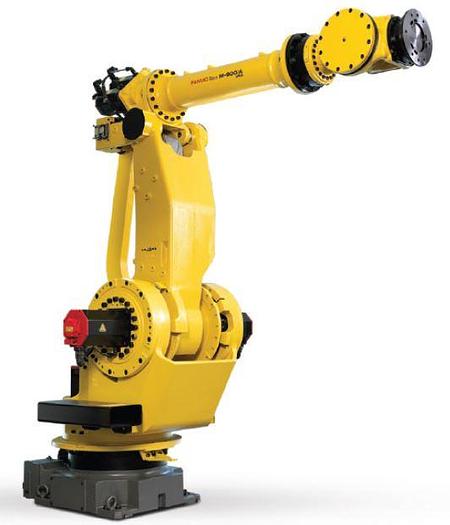

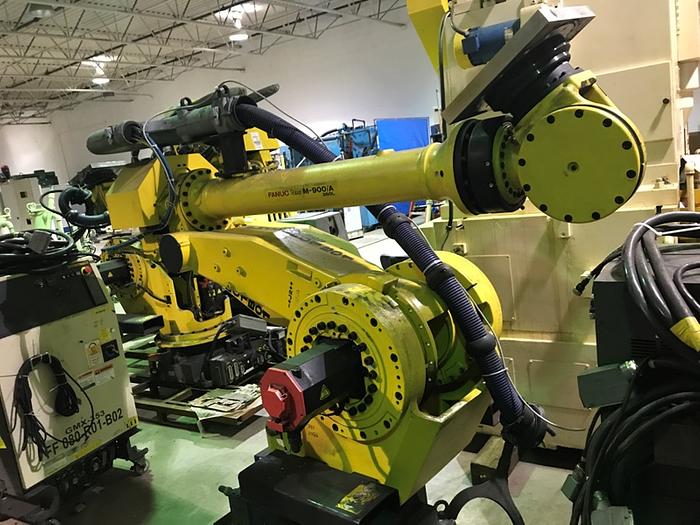

THE 2007 FANUC M900IA/260L IS A SIX-AXIS ARTICULATED CNC ROBOT DESIGNED FOR HEAVY-DUTY INDUSTRIAL APPLICATIONS. IT FEATURES A PAYLOAD CAPACITY OF 260 KG AND A HORIZONTAL REACH OF 3100 MM WITH A REPEATABILITY OF ±0.3 MM. THE ROBOT MASS IS 1800 KG. THIS MODEL IS EQUIPPED WITH AN R30IA CONTROLLER, CABLES, AND A TEACH PENDANT. AXIS MOTION SPEEDS ARE J1 AT 100 °/S, J2 AT 105 °/S, J3 AT 95 °/S, J4 AT 120 °/S, J5 AT 120 °/S, AND J6 AT 200 °/S. THE MOTION RANGE FOR THE AXES IS J1 ±180°, J2 ±75°, J3 +90° TO -121°, J4 ±360°, J5 ±125°, AND J6 ±360°.
