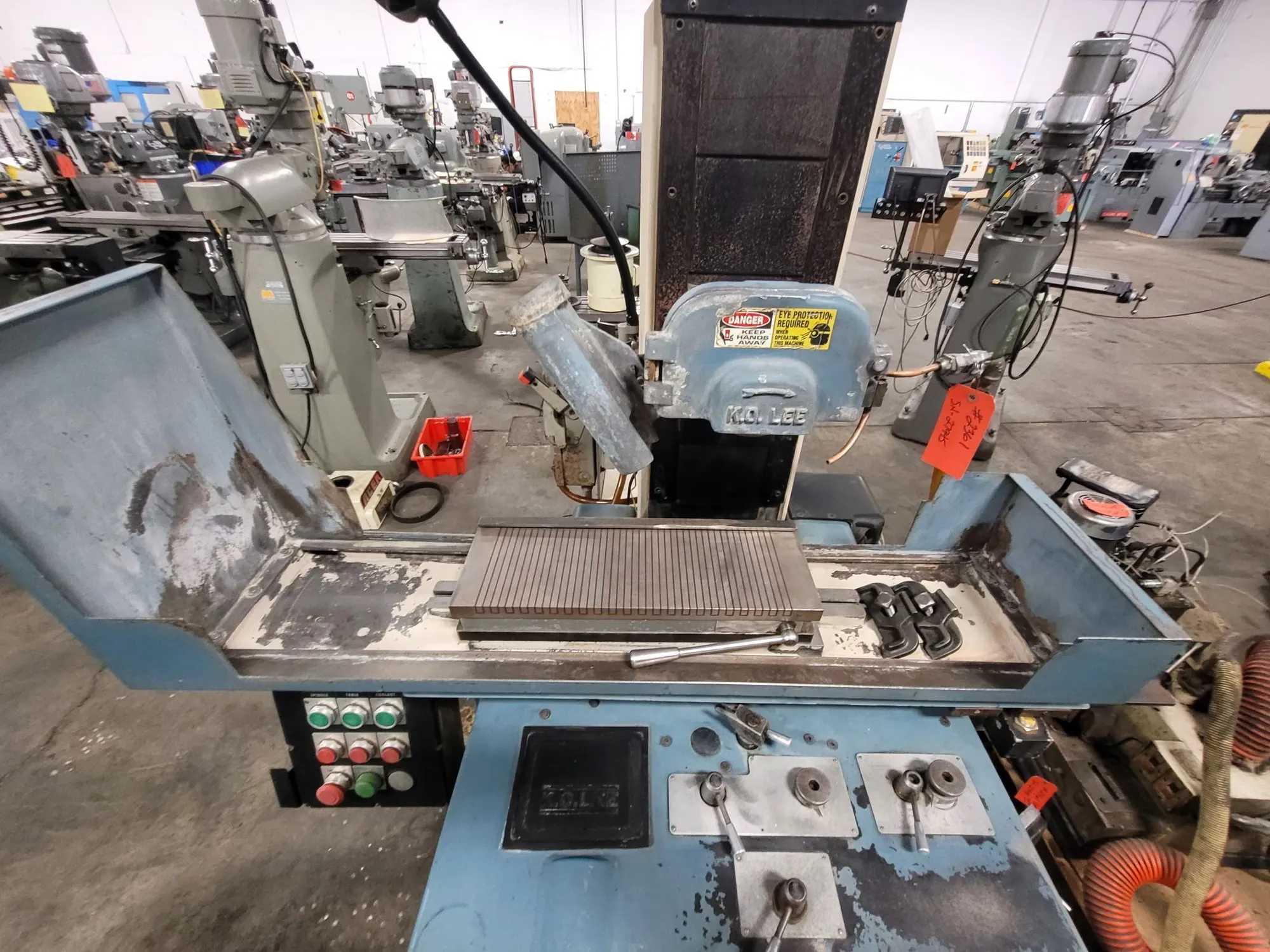

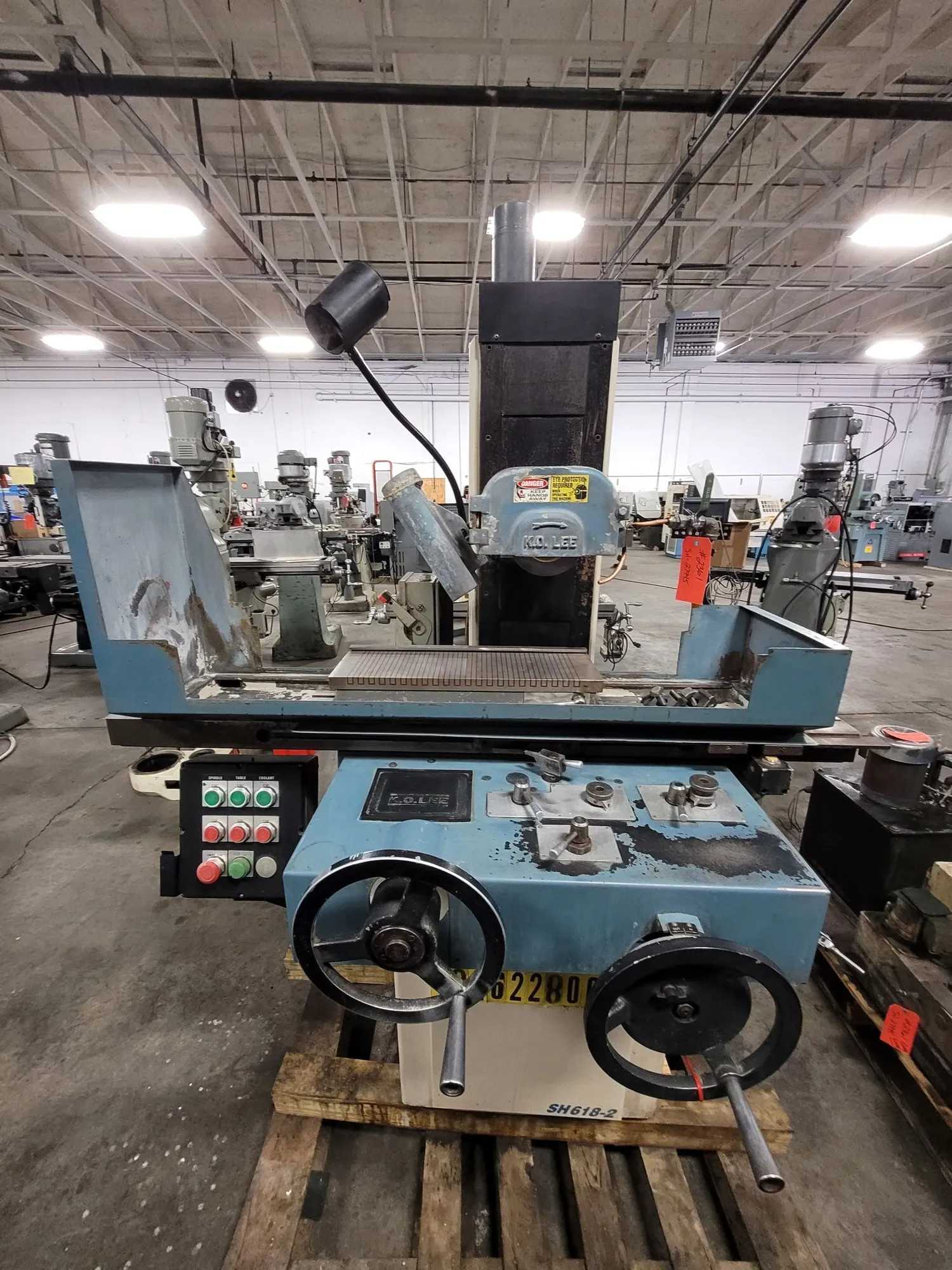

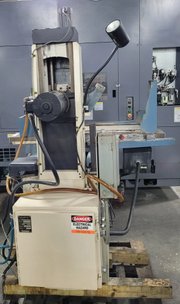

K.O. LEE SH618-2 HYDRAULIC SURFACE GRINDER, 6.25"X16" TABLE, 2 HP, 3-AXIS, MAG CHUCK

THE K.O. LEE SH618-2 IS A 3-AXIS HYDRAULIC SURFACE GRINDER DESIGNED FOR HIGH-PRECISION METALWORKING APPLICATIONS. CONSTRUCTED WITH A MEEHANITE CAST IRON BODY AND TURCITE-B COATED SLIDEWAYS, THE MACHINE FEATURES A TABLE SIZE OF 6.25 INCHES BY 16 INCHES. TECHNICAL SPECIFICATIONS INCLUDE A LONGITUDINAL TABLE TRAVEL OF 20 TO 21 INCHES, A CROSS FEED TRAVEL OF 9.25 INCHES, AND A MAXIMUM DISTANCE UNDER THE SPINDLE RANGING FROM 12 TO 19.625 INCHES. THE UNIT IS EQUIPPED WITH A 2 HP DIRECT-DRIVE SPINDLE MOTOR OPERATING AT 3600 RPM. IT UTILIZES AN 8-INCH DIAMETER GRINDING WHEEL WITH A WIDTH OF 0.75 INCHES AND A 1.25-INCH HOLE. FUNCTIONAL FEATURES INCLUDE AUTOMATIC HYDRAULIC LONGITUDINAL AND CROSS FEEDS, A HYDRAULIC SYSTEM, A COOLANT SYSTEM, AND A WALKER CERMAX PERMANENT MAGNETIC CHUCK. THE APPROXIMATE MACHINE WEIGHT IS BETWEEN 2,000 AND 2,500 LBS.
