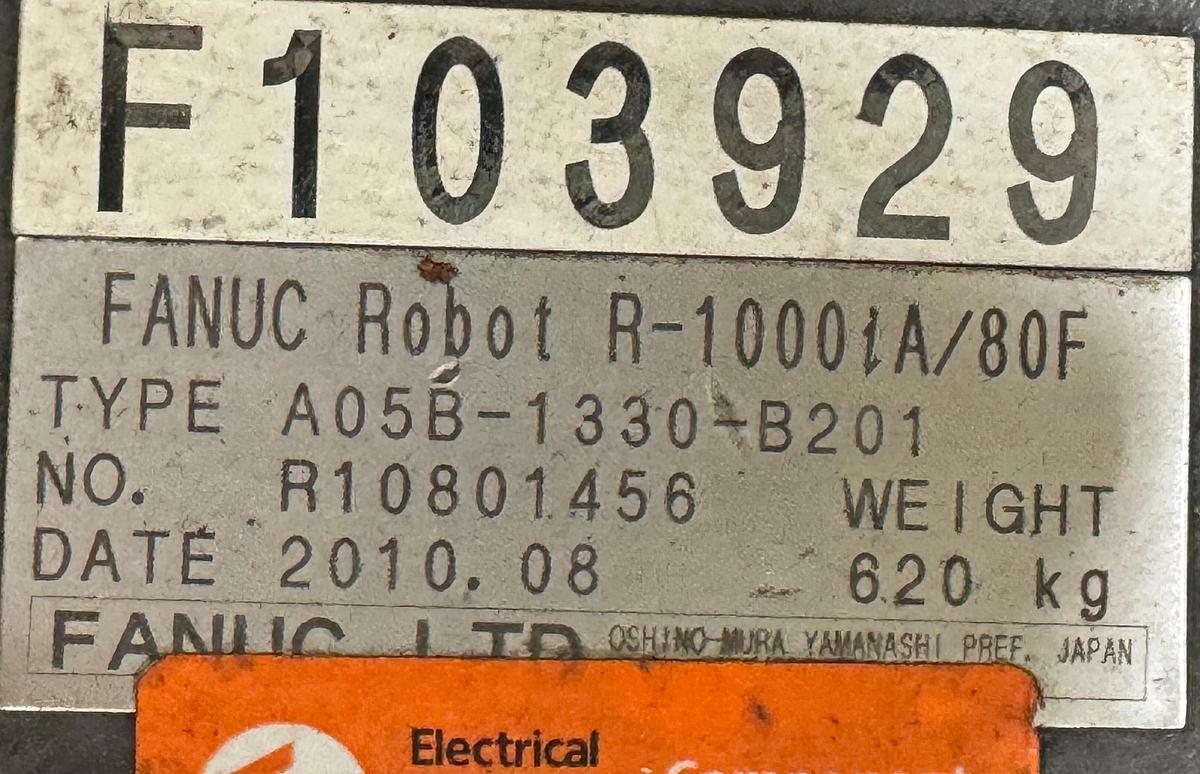

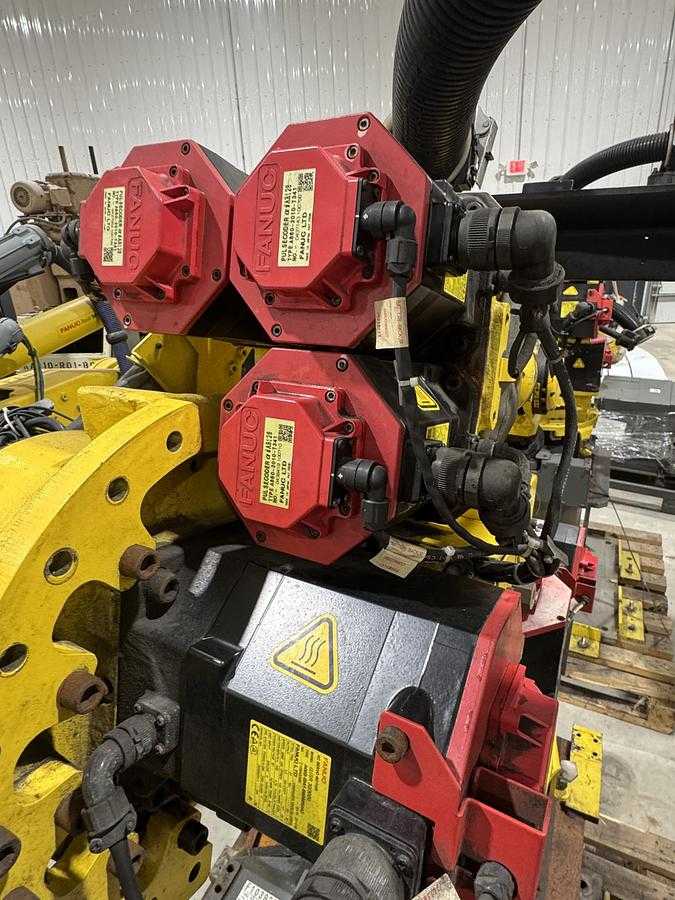

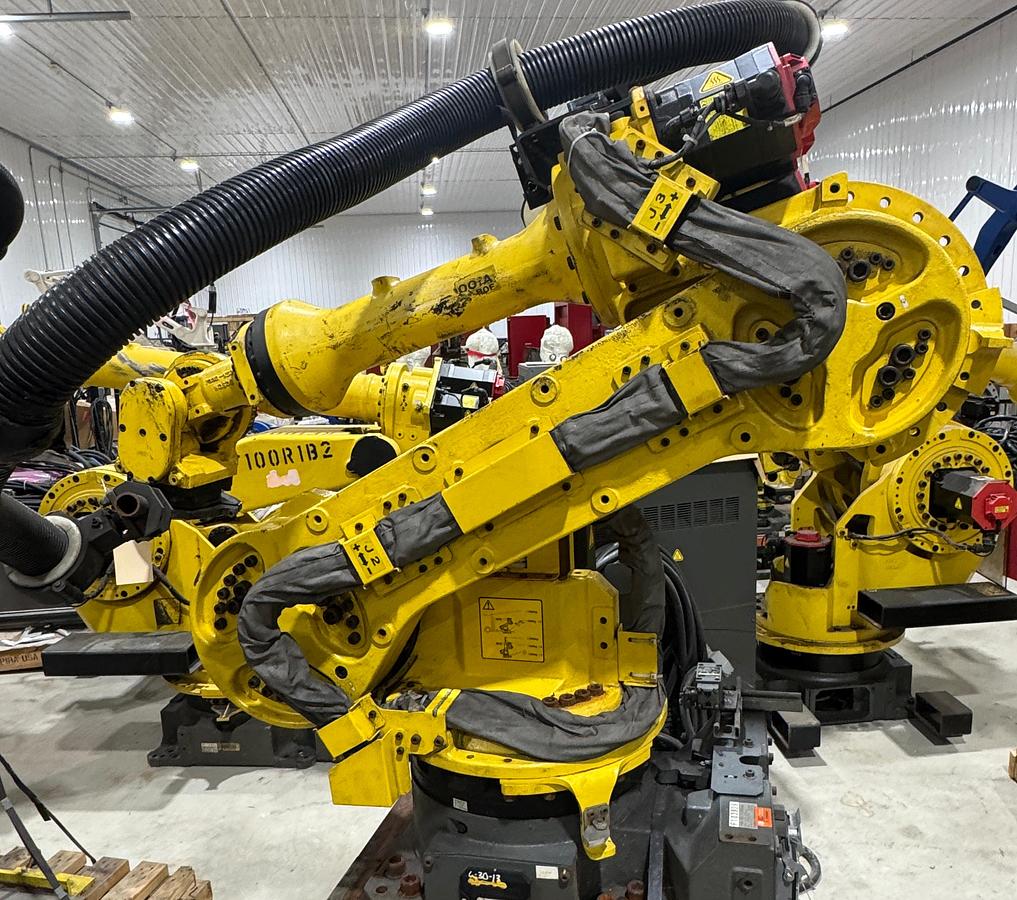

2010 FANUC R-1000iA/80F Robot - 80kg Payload, 2230mm Reach, 620kg Mass

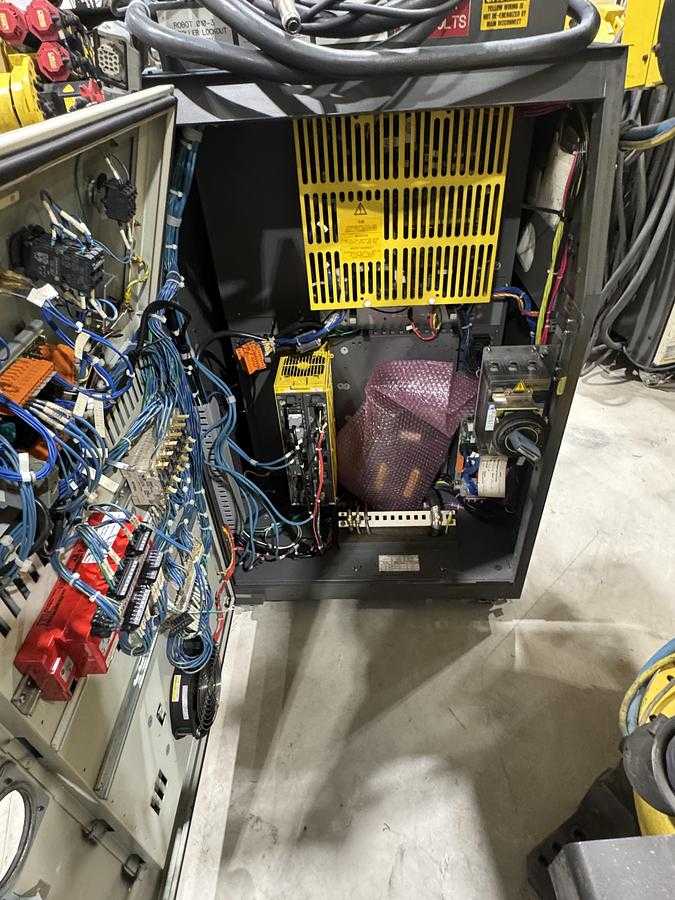

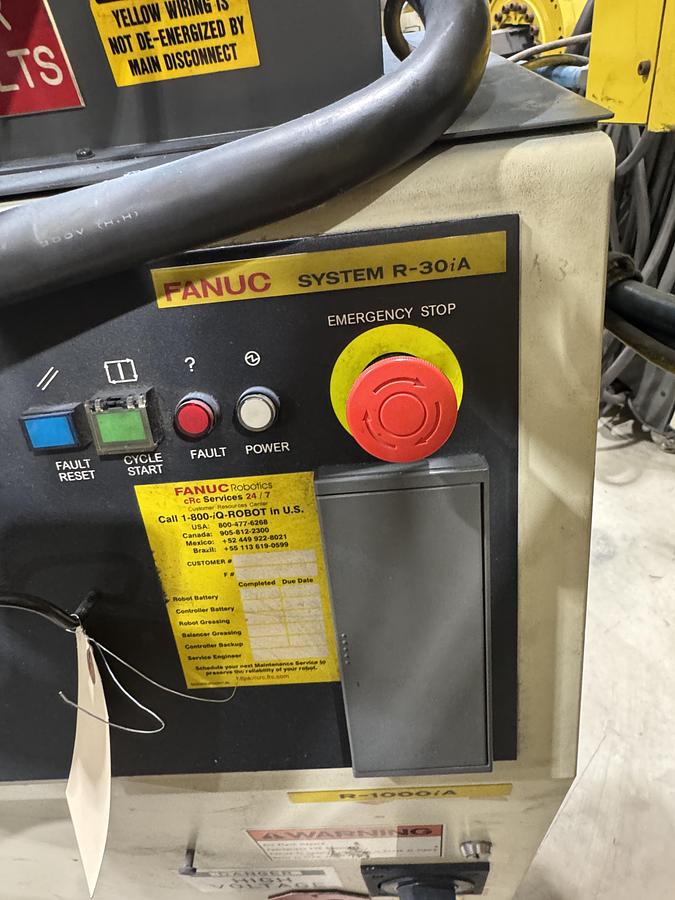

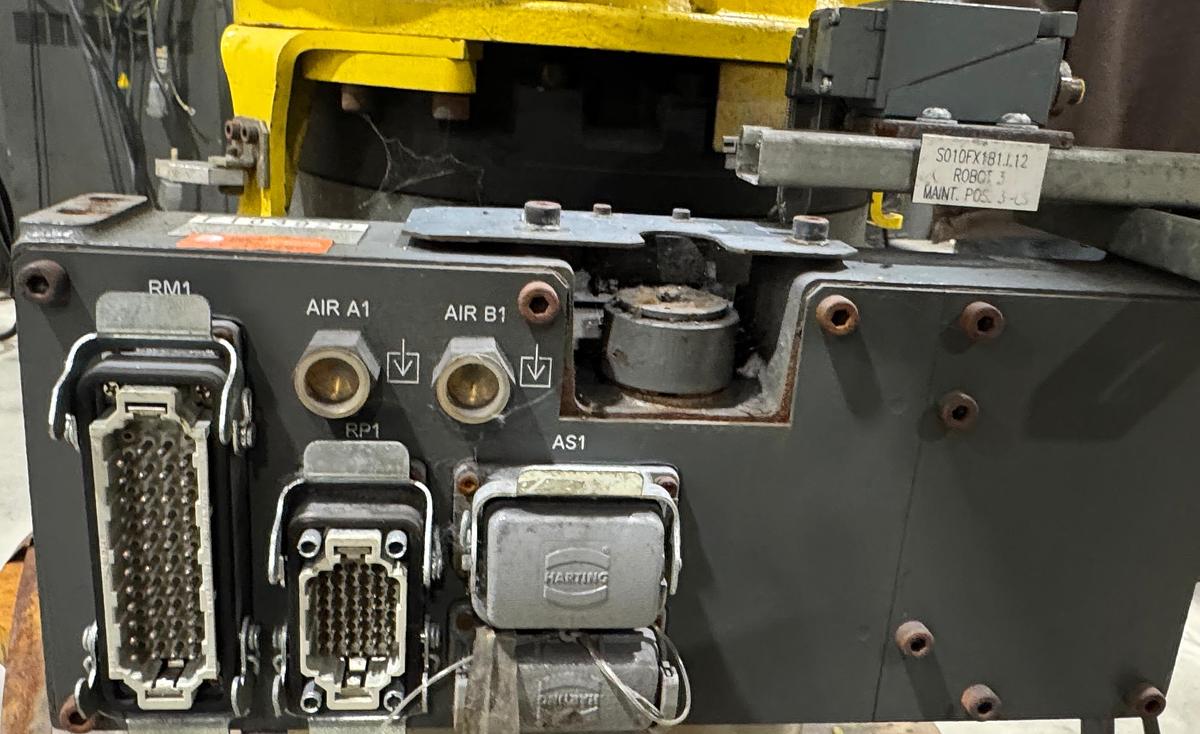

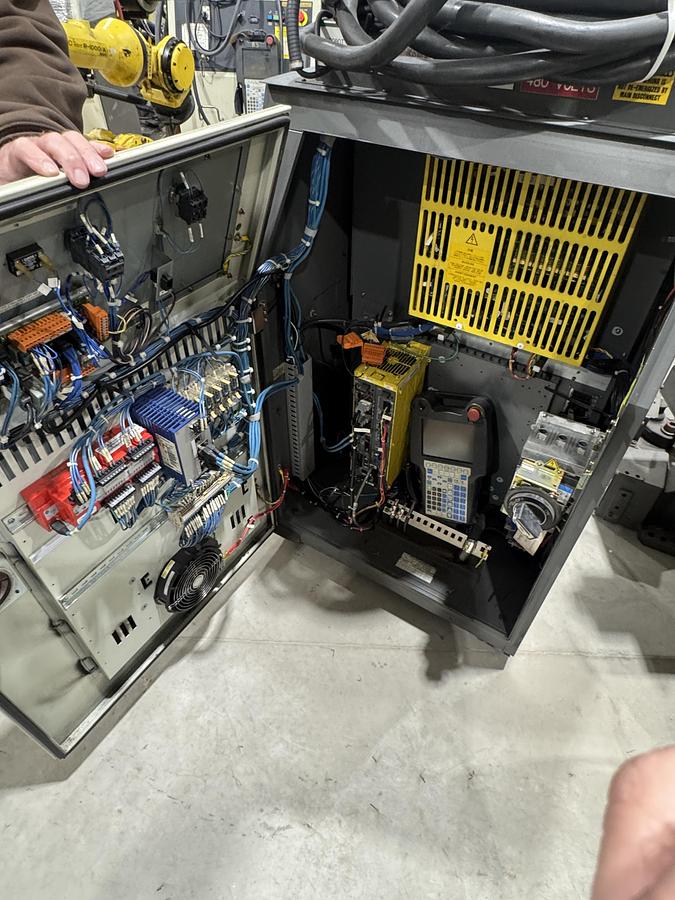

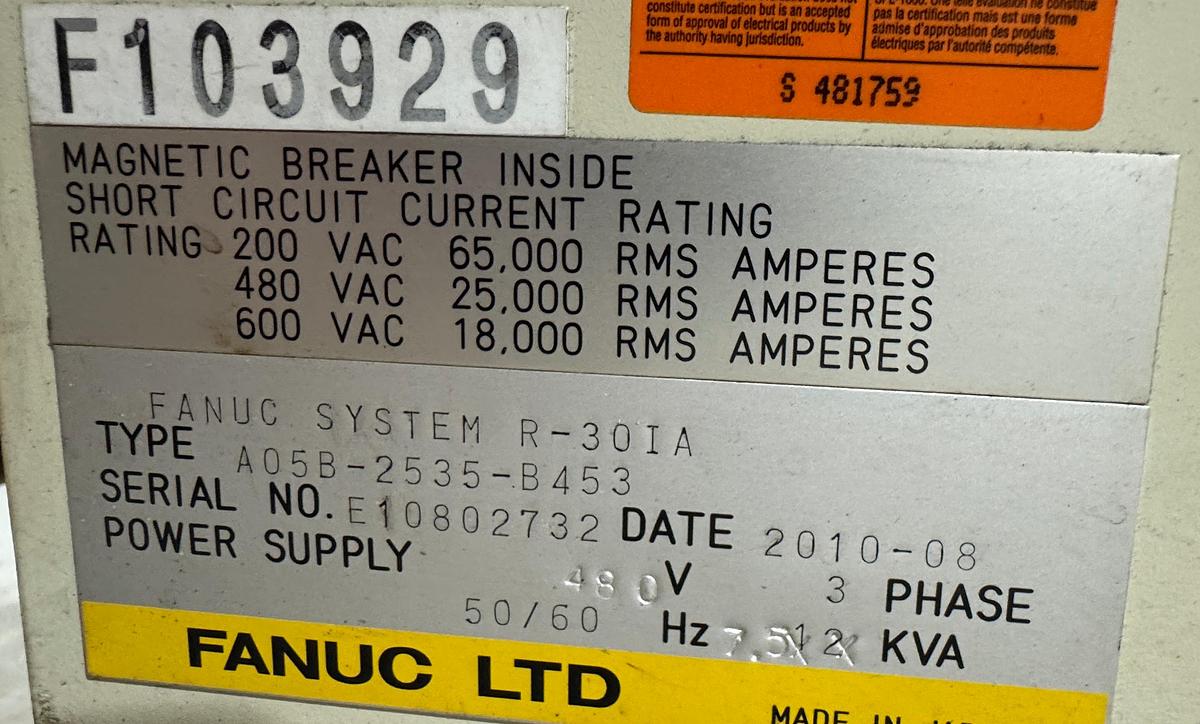

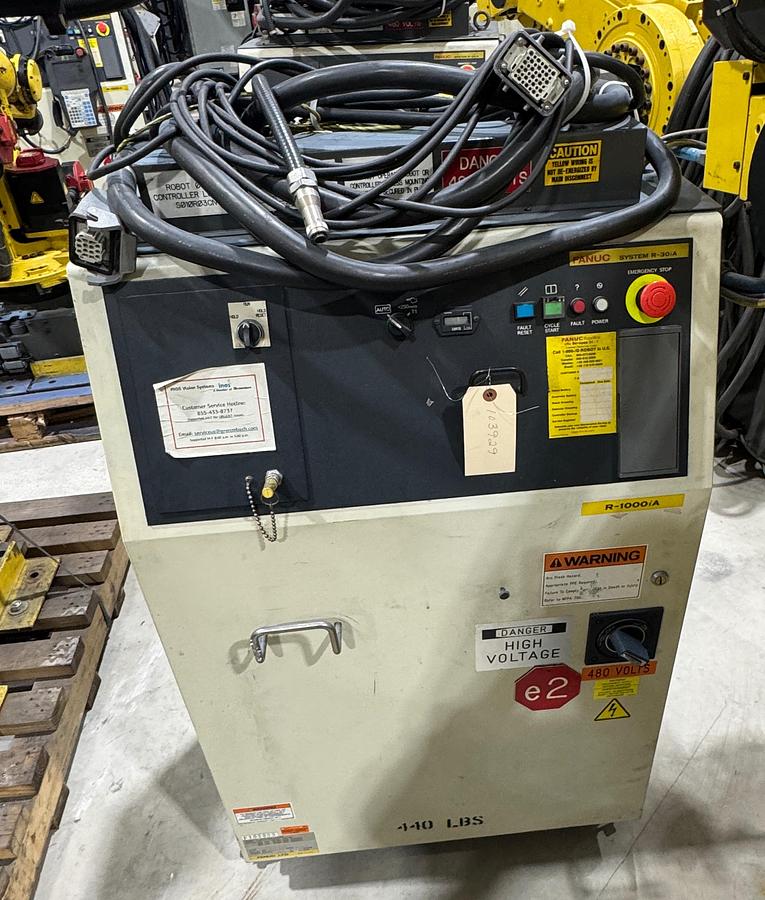

The 2010 FANUC R-1000iA/80F is a six-axis articulated robot designed for applications including material handling, fiberglass cutting, resistance welding, spot welding, and palletizing. This compact material handling arm features an 80 kg payload capacity, a 2230 mm horizontal reach, and a repeatability of ±0.2 mm. The robot has a mass of 620 kg and supports both floor and inverted mounting. It is equipped with a FANUC R-30iA control, connection cables, and a teach pendant. The space-saving design allows for closer positioning in compact cells. Axis motion speeds are 170°/s for J1, 140°/s for J2, 160°/s for J3, 230°/s for J4 and J5, and 350°/s for J6. The motion range for the axes is J1 ±360°, J2 ±245°, J3 ±360°, J4 ±720°, J5 ±250°, and J6 ±720°. The system features EE, ASI, and AP connections and is engineered for maximum speed and reliability within a large working envelope.
