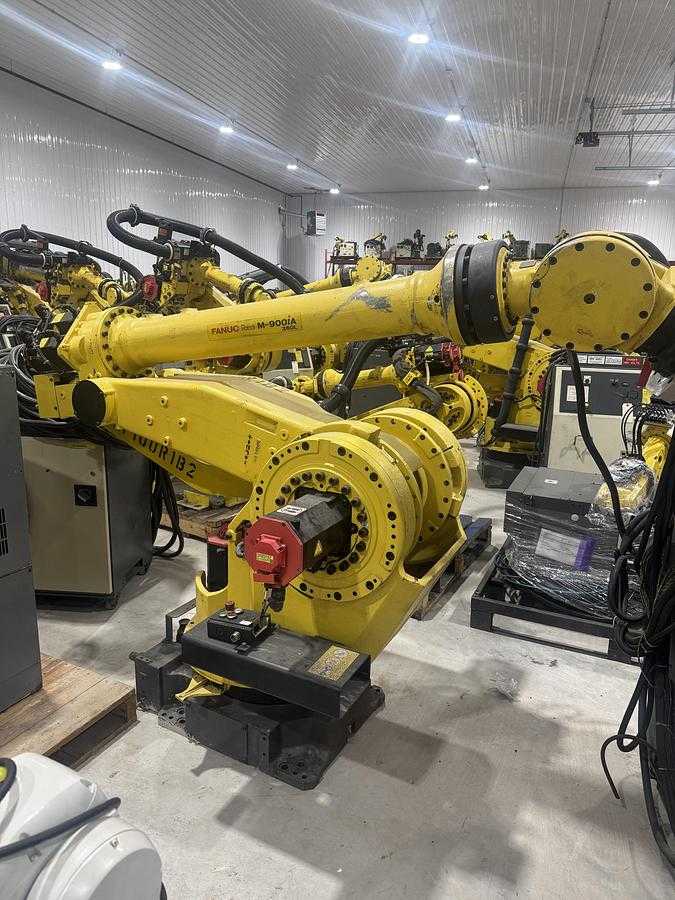

2012 FANUC M-900iA/260L Articulated Robot, 260kg Payload, 3100mm Reach, R30iA Controller

The 2012 FANUC M-900iA/260L is a six-axis articulated heavy-duty long-reach robot designed for applications such as waterjet cutting, material handling, and fiberglass cutting. It features a 260 kg payload capacity, a horizontal reach of 3100 mm, and a repeatability of ±0.3 mm. The robot has a mass of 1800 kg and supports floor, inverted, and angle mounting. Axis motion speeds are 100°/s for J1, 105°/s for J2, 95°/s for J3, 120°/s for J4 and J5, and 200°/s for J6. The motion range for the axes is J1 ±180°, J2 ±75°, J3 +90° to -121°, J4 ±360°, J5 ±125°, and J6 ±360°. The system is equipped with a FANUC R30iA controller, connection cables, and a color teach pendant.
