2012 FANUC M-900IA/260L Robot, 260kg Payload, 3100mm Reach, R30IA Controller

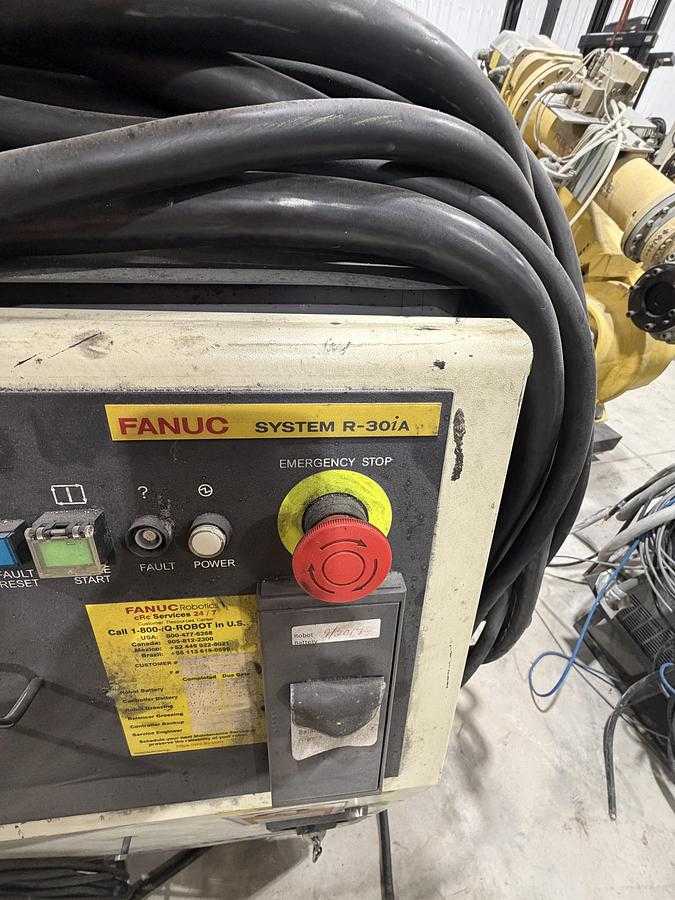

THE 2012 FANUC M-900IA/260L IS A SIX-AXIS ARTICULATED HEAVY-DUTY LONG-REACH ROBOT DESIGNED FOR APPLICATIONS SUCH AS WATERJET CUTTING, MATERIAL HANDLING, AND FIBERGLASS CUTTING. IT FEATURES A 260 KG PAYLOAD CAPACITY, A HORIZONTAL REACH OF 3100 MM, AND A REPEATABILITY OF ±0.3 MM. THE ROBOT HAS A MASS OF 1800 KG AND SUPPORTS FLOOR, INVERTED, AND ANGLE MOUNTING. IT IS EQUIPPED WITH A FANUC R30IA CONTROLLER, CONNECTION CABLES, AND A COLOR TEACH PENDANT. AXIS MOTION SPEEDS ARE 100°/S FOR J1, 105°/S FOR J2, 95°/S FOR J3, 120°/S FOR J4 AND J5, AND 200°/S FOR J6. THE MOTION RANGE FOR THE AXES IS J1 ±180°, J2 ±75°, J3 +90° TO -121°, J4 ±360°, J5 ±125°, AND J6 ±360°.
