2013 FANUC R-2000IB/165F ARTICULATED ROBOT, 165KG PAYLOAD, 2655MM REACH, R-30IB CONTROLLER

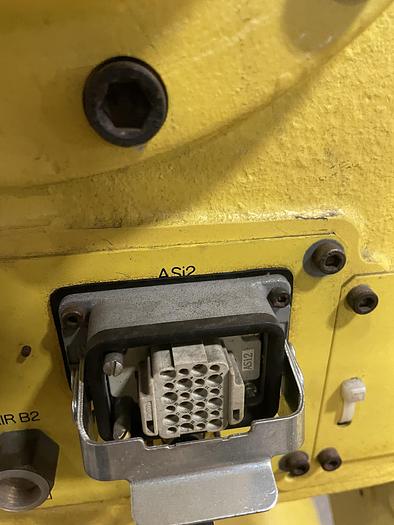

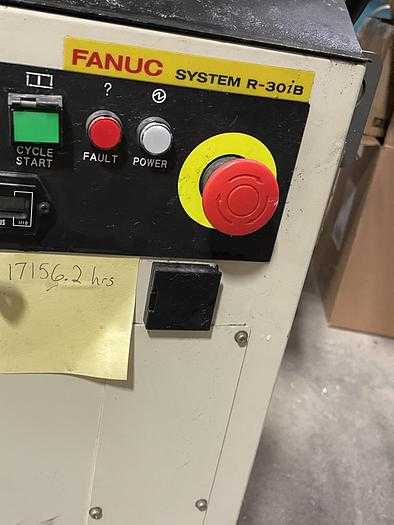

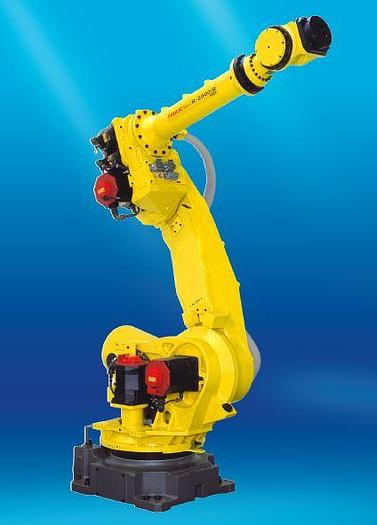

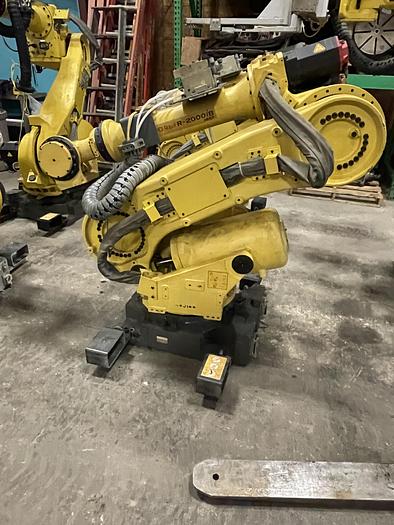

THE 2013 FANUC R-2000IB/165F IS A SIX-AXIS HEAVY PAYLOAD ARTICULATED ROBOT DESIGNED FOR APPLICATIONS INCLUDING ASSEMBLY, CUTTING, FIBERGLASS CUTTING, FOUNDRY, INJECTION MOLDING, MACHINE LOADING, MACHINE TENDING, MATERIAL HANDLING, AND SPOT WELDING. IT FEATURES A 165 KG PAYLOAD CAPACITY, A 2655 MM HORIZONTAL REACH, AND A REPEATABILITY OF ± 0.2 MM. THE ROBOT HAS A MASS OF 1170 KG AND IS DESIGNED FOR FLOOR MOUNTING. THIS MODEL IS EQUIPPED WITH AN R-30IB CONTROLLER, AN I-TEACH COLOR PENDANT, EE CABLE CONNECTIONS, CAMERA CONNECTIONS, ASI2 POWER CONNECTION, AND FANUC ROBOT CONNECTION CABLES. AXIS MOTION SPEEDS ARE 110°/S FOR J1, J2, AND J3; 150°/S FOR J4 AND J5; AND 220°/S FOR J6. THE MOTION RANGE FOR THE AXES IS J1 ±180°, J2 +75° TO -60°, J3 +230° TO -132°, J4 ±360°, J5 ±125°, AND J6 ±360°. ITS DESIGN INCLUDES A SLIM ARM AND WRIST ASSEMBLY SUITABLE FOR OPERATION IN SMALL SPACES, WITH NUMEROUS PROCESS ATTACHMENT POINTS FOR INTEGRATION.
