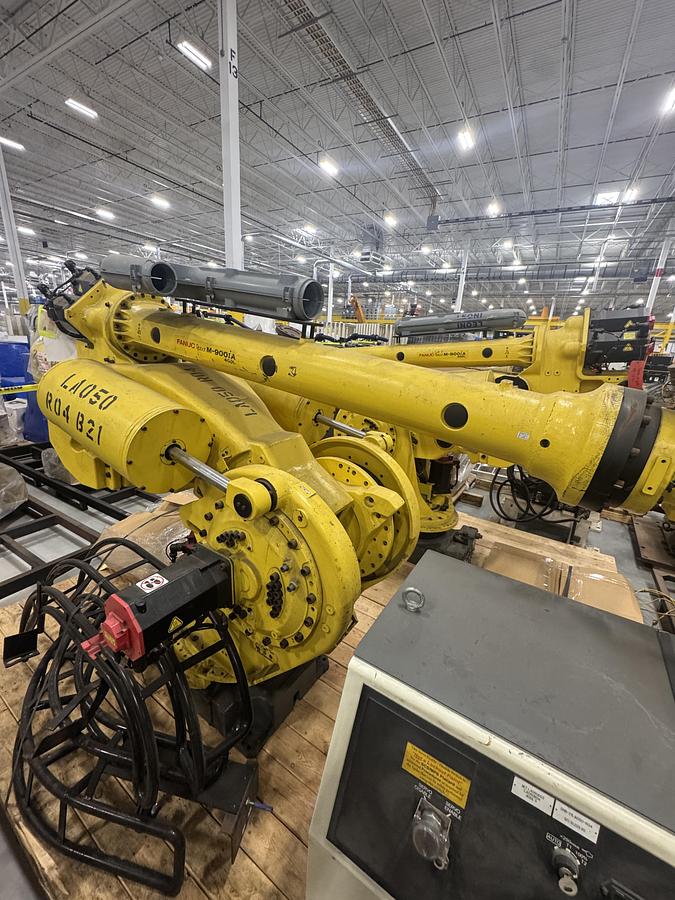

2014 FANUC M-900IA/400L ARTICULATED ROBOT, 400KG PAYLOAD, 3625MM REACH, R-30IA CONTROL

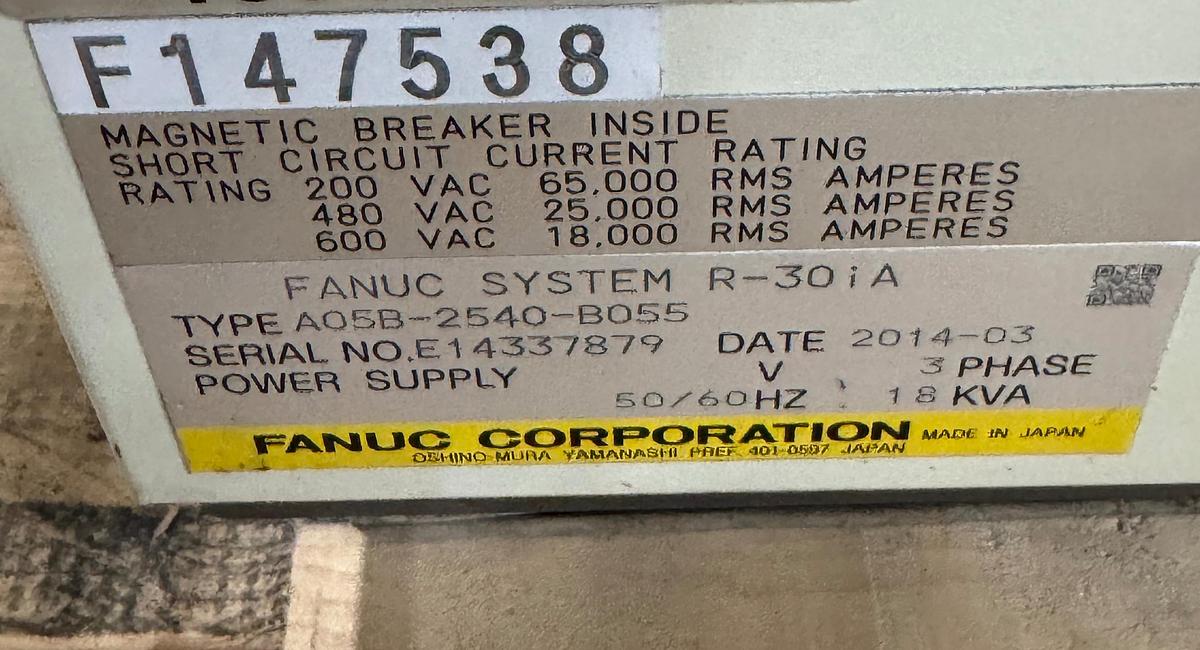

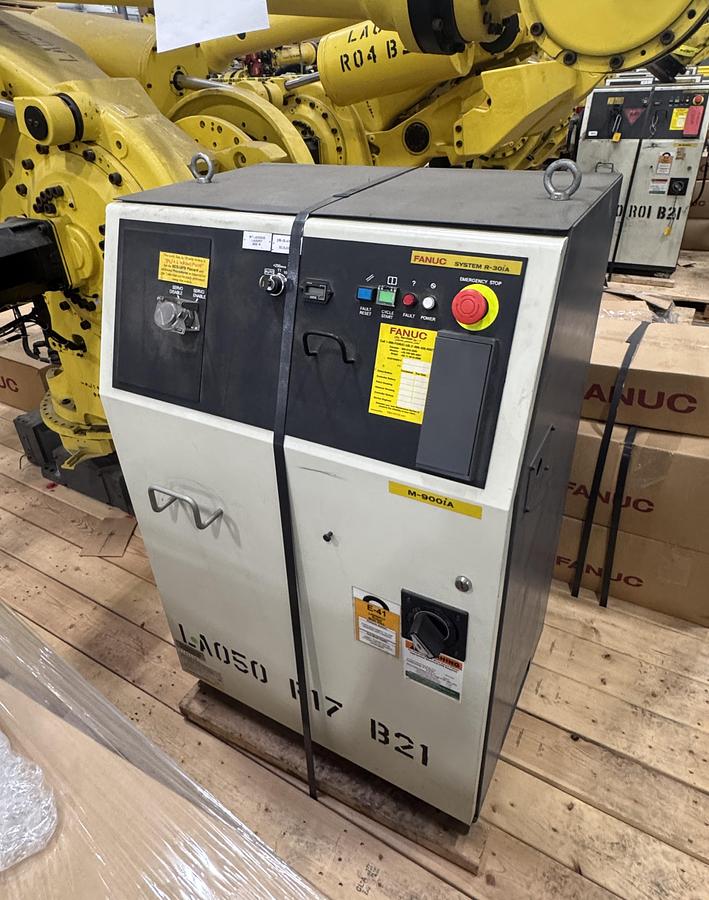

THE 2014 FANUC M-900IA/400L IS A FLOOR-MOUNTED, SIX-AXIS ARTICULATED INDUSTRIAL ROBOT DESIGNED FOR HEAVY MATERIAL HANDLING APPLICATIONS. IT FEATURES A PAYLOAD CAPACITY OF 400 KG AND A HORIZONTAL REACH OF 3625 MM. THE UNIT HAS A ROBOT MASS OF 3150 KG AND PROVIDES A REPEATABILITY OF PLUS OR MINUS 0.5000 MM. ITS IP67-RATED WRIST IS ENGINEERED FOR PERFORMANCE IN HARSH ENVIRONMENTS. AXIS MOTION SPEEDS ARE 80 DEGREES/S FOR J1, J2, AND J3, 100 DEGREES/S FOR J4 AND J5, AND 160 DEGREES/S FOR J6. THE MOTION RANGE FOR THE AXES IS J1 PLUS OR MINUS 360 DEGREES, J2 PLUS OR MINUS 154 DEGREES, J3 PLUS OR MINUS 160 DEGREES, J4 PLUS OR MINUS 720 DEGREES, J5 PLUS OR MINUS 244 DEGREES, AND J6 PLUS OR MINUS 720 DEGREES. THE SYSTEM IS EQUIPPED WITH A FANUC R-30IA CONTROLLER, A TEACH PENDANT, AND CONNECTION CABLES.
