2014 FANUC M-900iA/400L Articulated Robot, 400kg Payload, 3625mm Reach, R-30iA Control

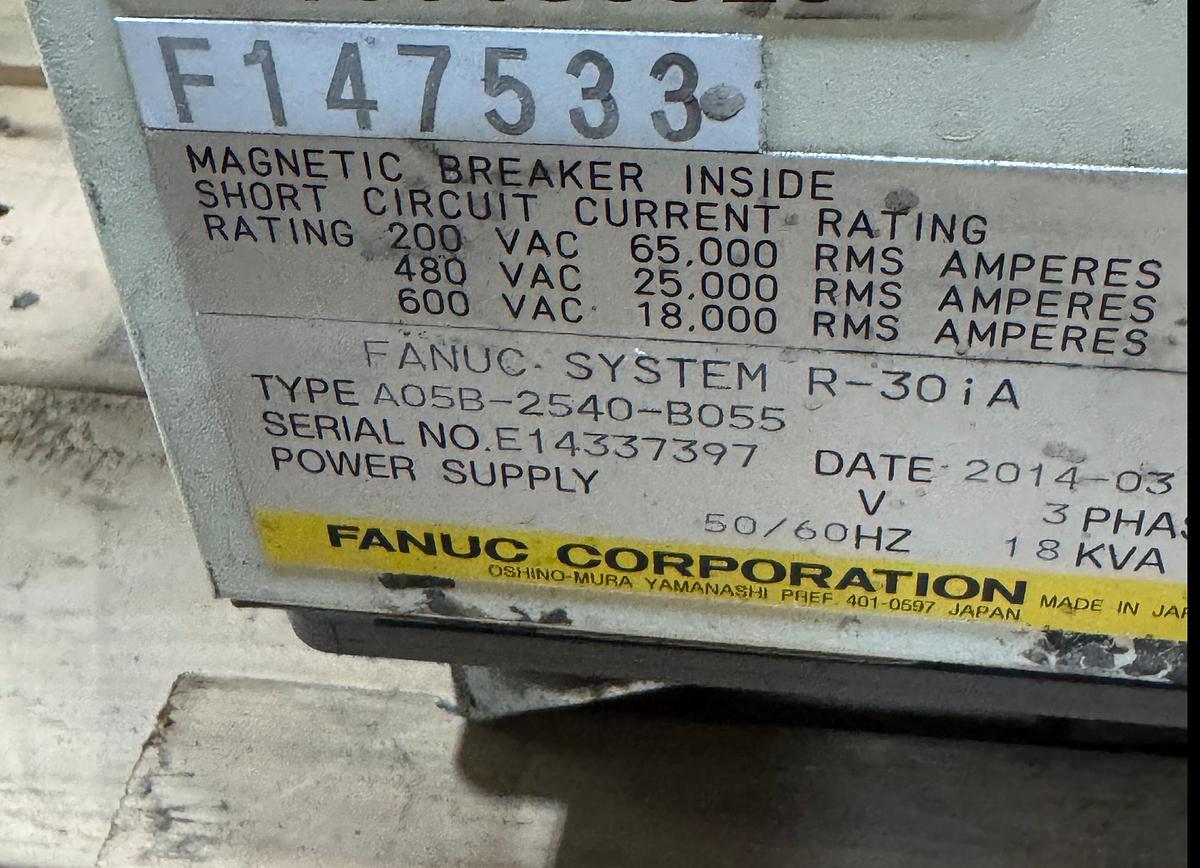

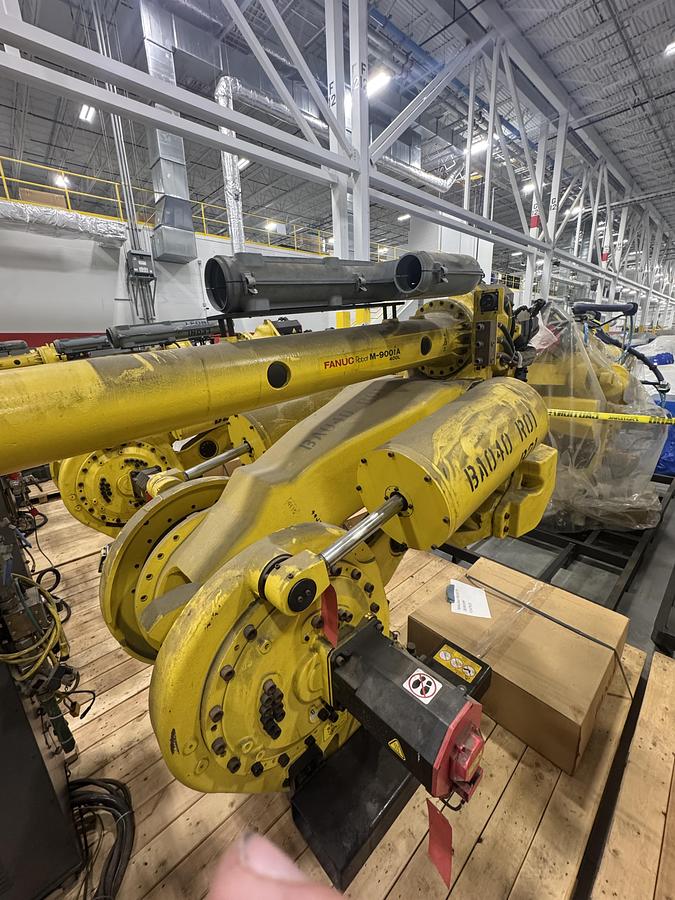

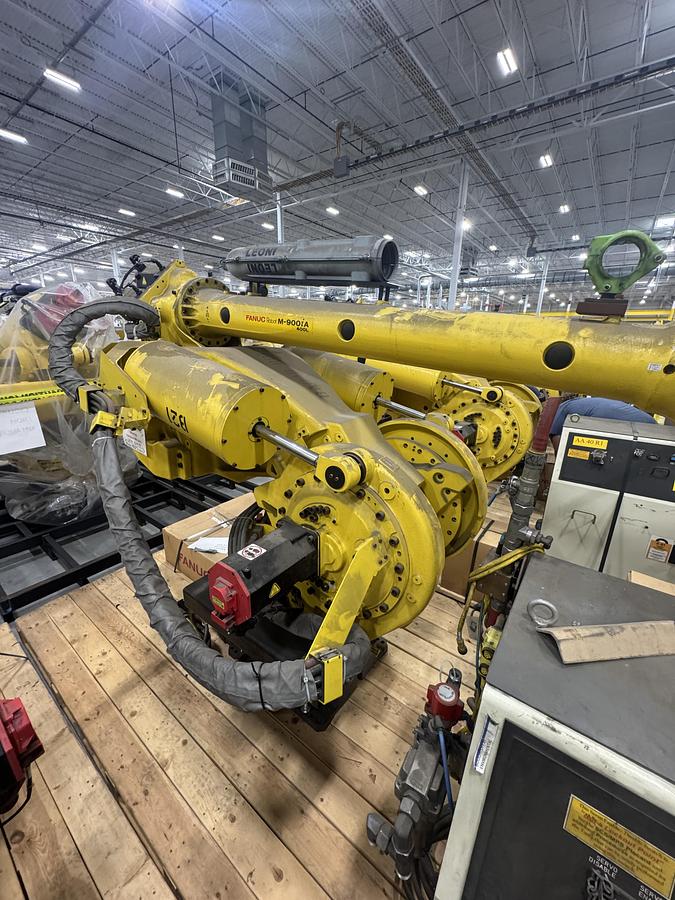

The 2014 FANUC M-900iA/400L is a six-axis articulated industrial robot designed for heavy material handling applications. It features a high payload capacity of 400 kg, a horizontal reach of 3625 mm, and a repeatability of ±0.5 mm. The robot has a mass of 3150 kg and is designed for floor mounting. Its articulated structure includes an IP67-rated wrist suitable for harsh environments. Motion speeds for the axes are 80°/s for J1, J2, and J3, 100°/s for J4 and J5, and 160°/s for J6. The motion range for the axes is J1 ±360°, J2 ±154°, J3 ±160°, J4 ±720°, J5 ±244°, and J6 ±720°. The system is equipped with a FANUC R-30iA controller, teach pendant, and connection cables.
