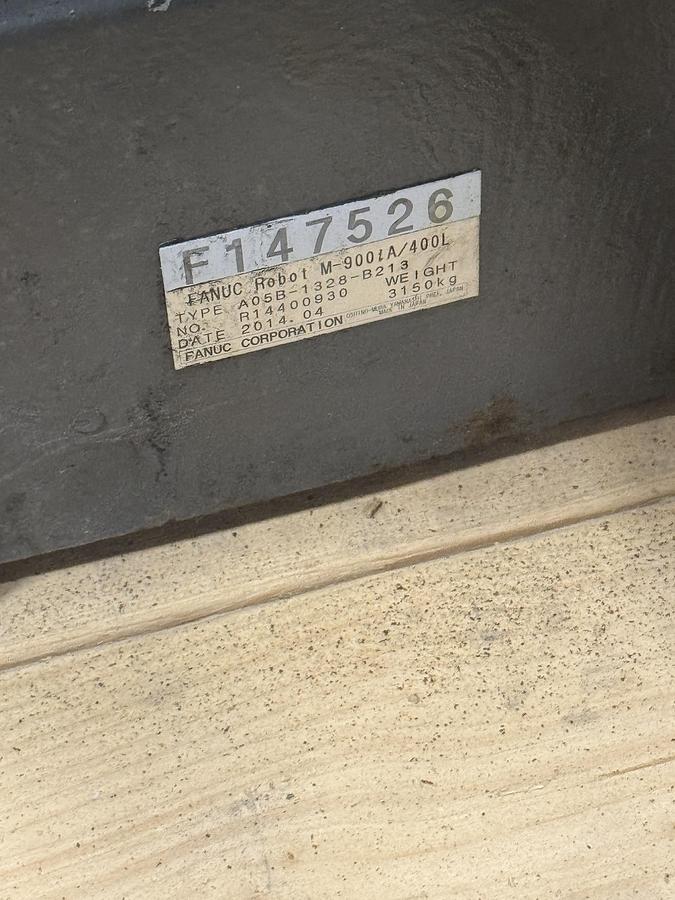

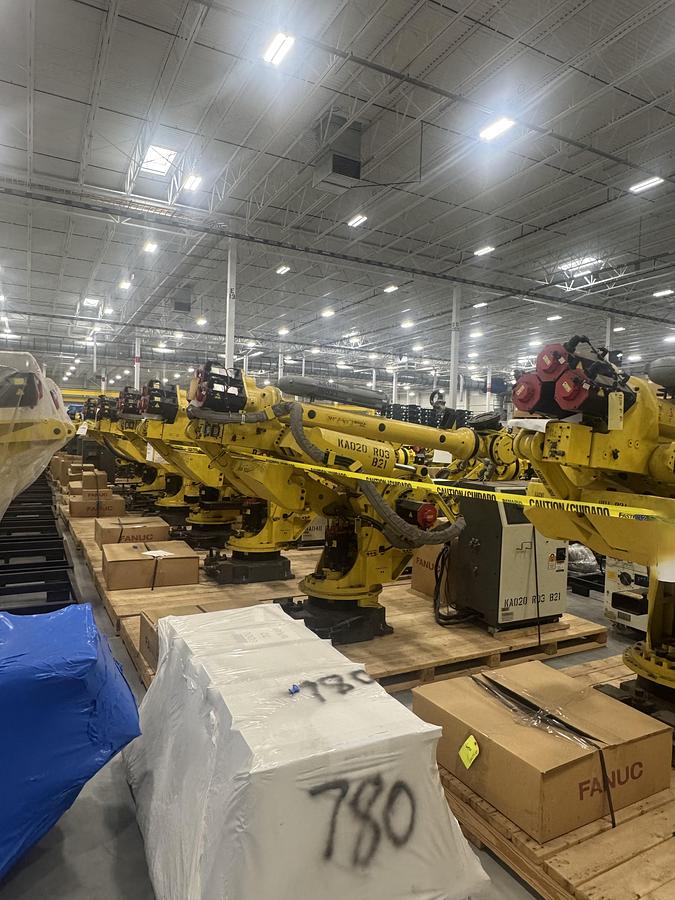

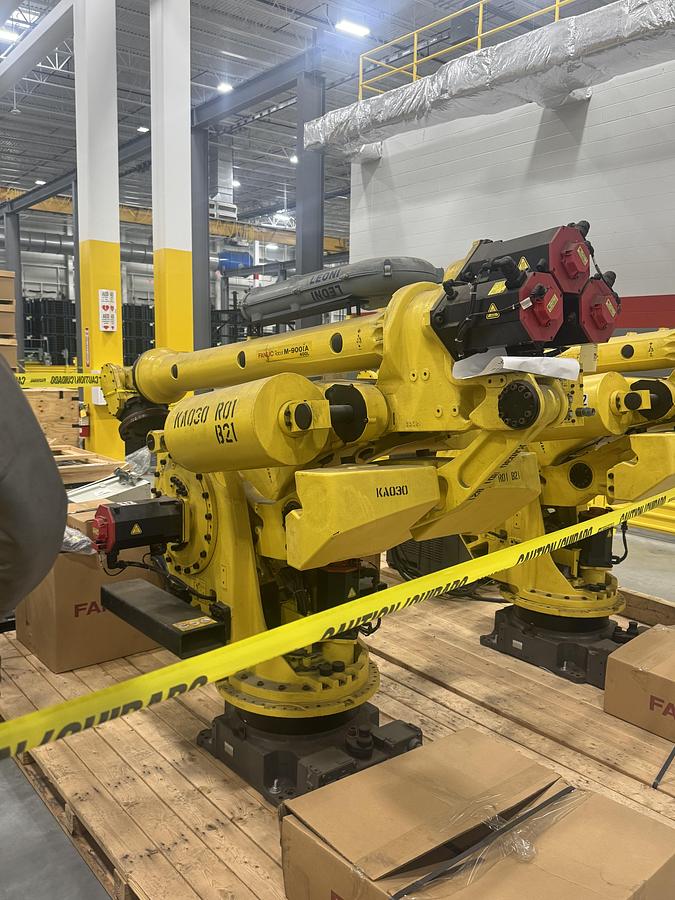

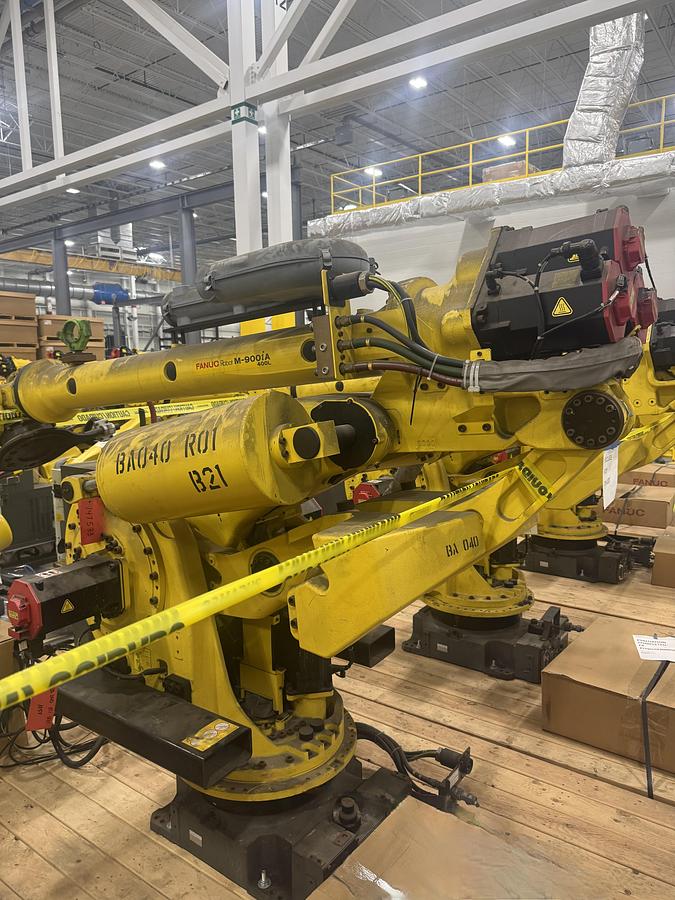

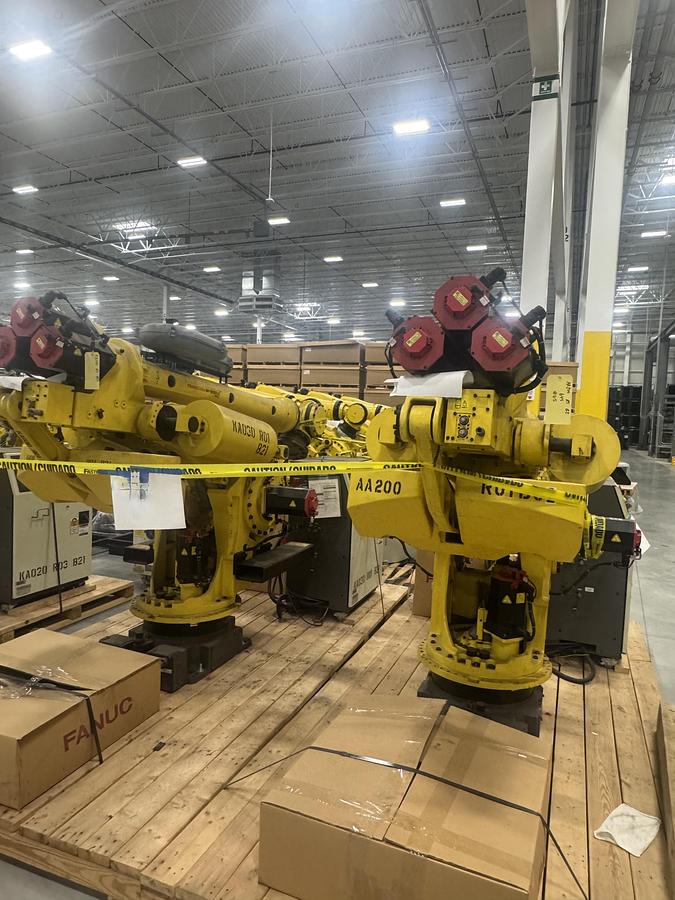

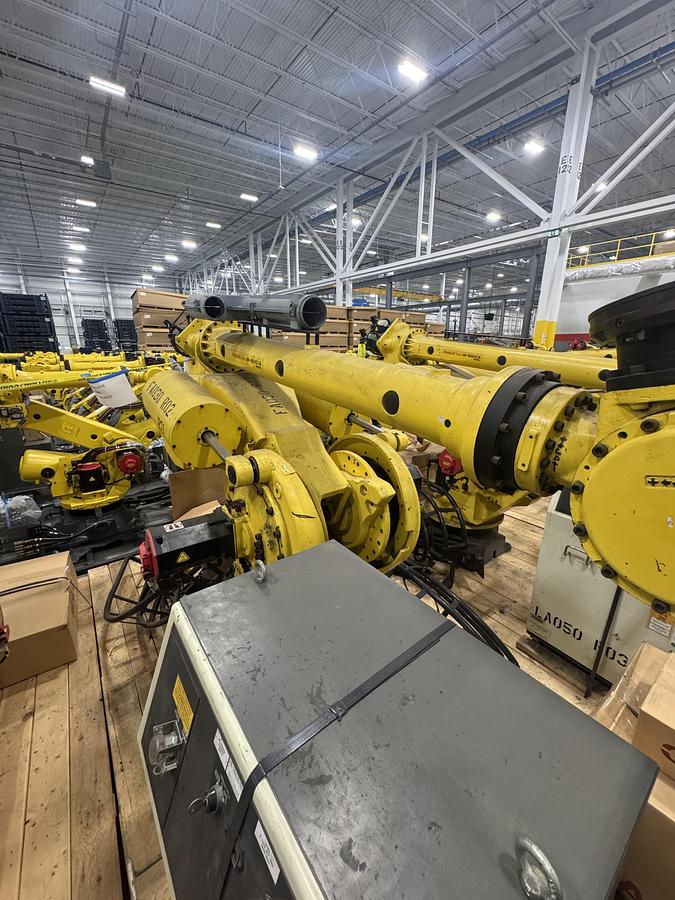

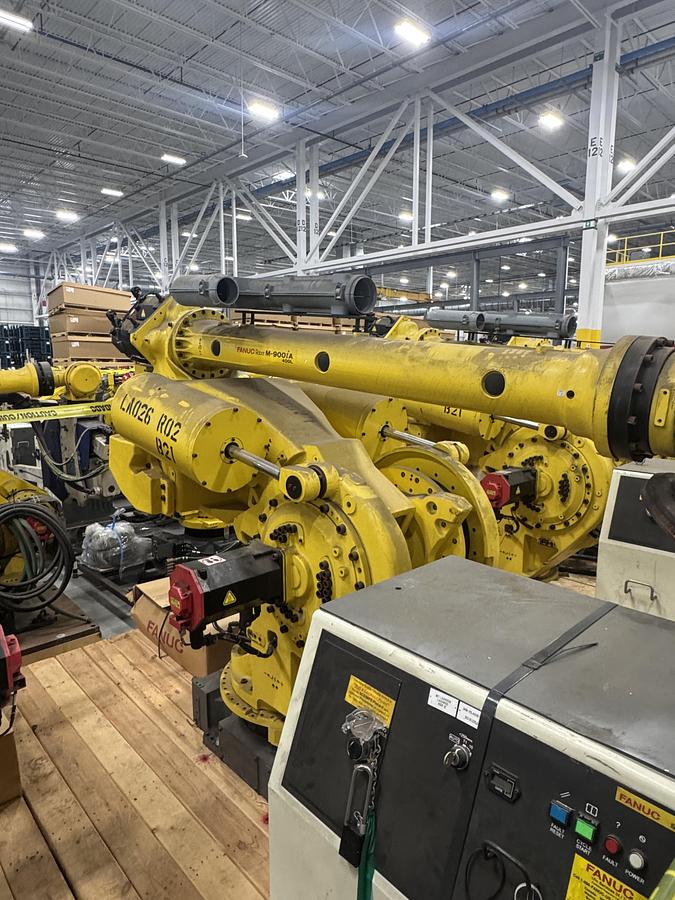

2014 FANUC M-900IA/400L ARTICULATED ROBOT, 400KG PAYLOAD, 3625MM REACH, R-30IA CONTROL

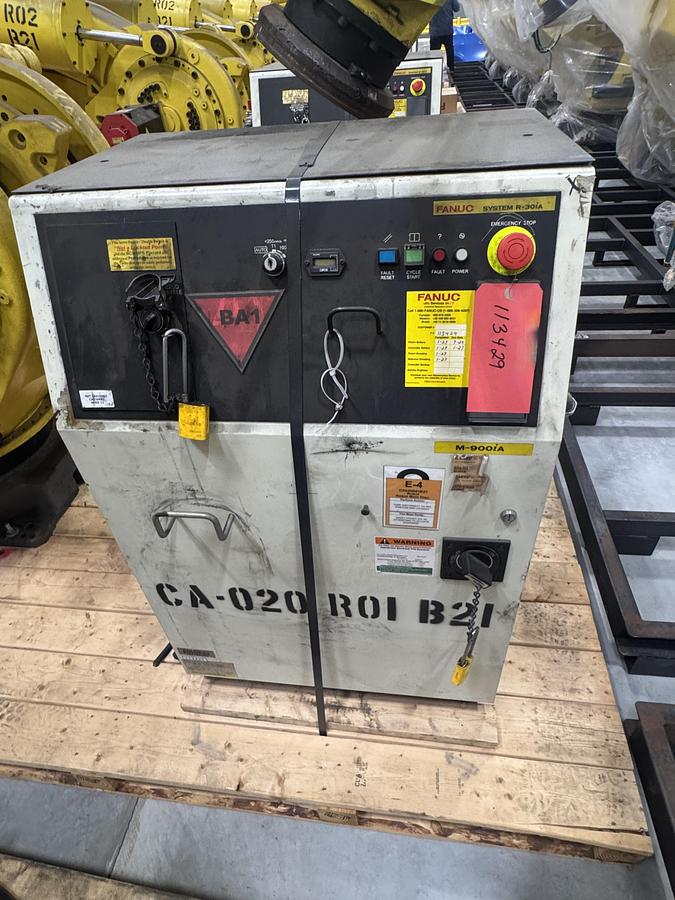

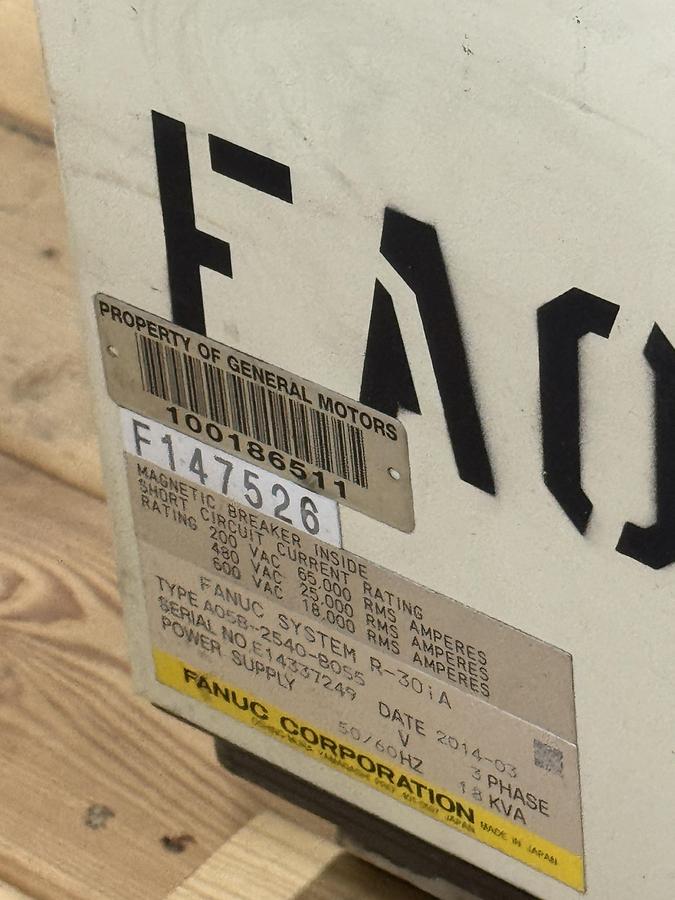

THE 2014 FANUC M-900IA/400L IS A SIX-AXIS ARTICULATED INDUSTRIAL ROBOT DESIGNED FOR HEAVY MATERIAL HANDLING APPLICATIONS. THIS FLOOR-MOUNTED MODEL FEATURES A SIGNIFICANT 400 KG PAYLOAD CAPACITY AND A HORIZONTAL REACH OF 3625 MM, WITH A REPEATABILITY OF ±0.5 MM. THE ROBOT MASS IS 3150 KG AND IT FEATURES AN IP67-RATED WRIST FOR OPERATION IN HARSH ENVIRONMENTS. AXIS MOTION SPEEDS ARE 80°/S FOR J1, J2, AND J3, 100°/S FOR J4 AND J5, AND 160°/S FOR J6. THE MOTION RANGE FOR THE AXES IS J1 ±360°, J2 ±154°, J3 ±160°, J4 ±720°, J5 ±244°, AND J6 ±720°. THE SYSTEM IS EQUIPPED WITH AN R-30IA CONTROLLER, TEACH PENDANT, AND CONNECTION CABLES.
