2014 FANUC M-900iA/400L Articulated Robot, 400kg Payload, 3625mm Reach, R-30iA Control

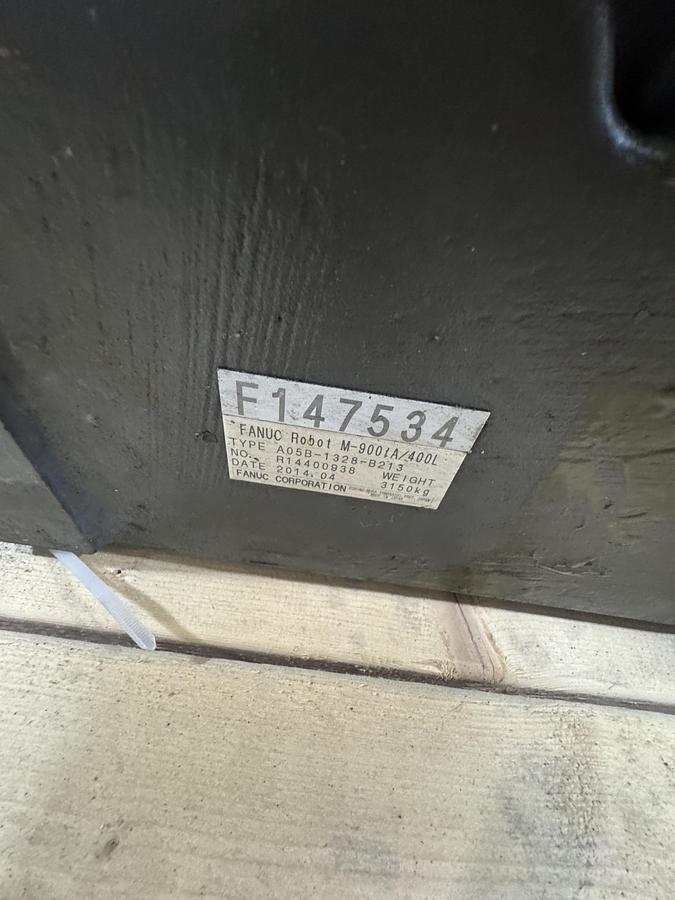

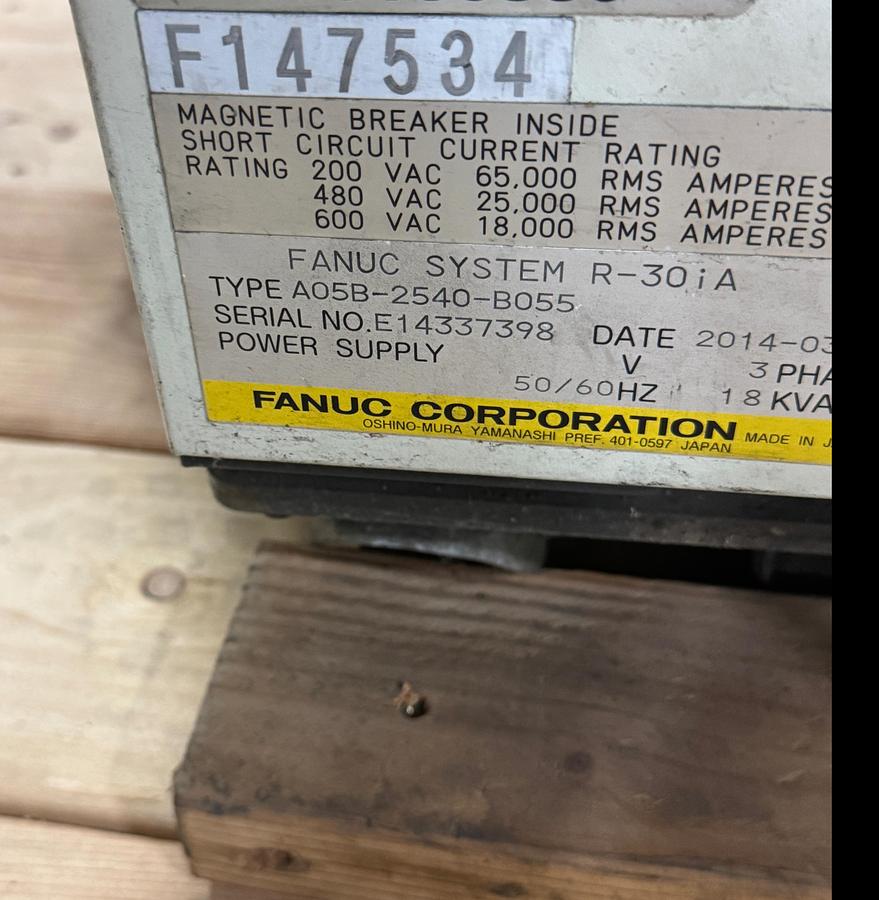

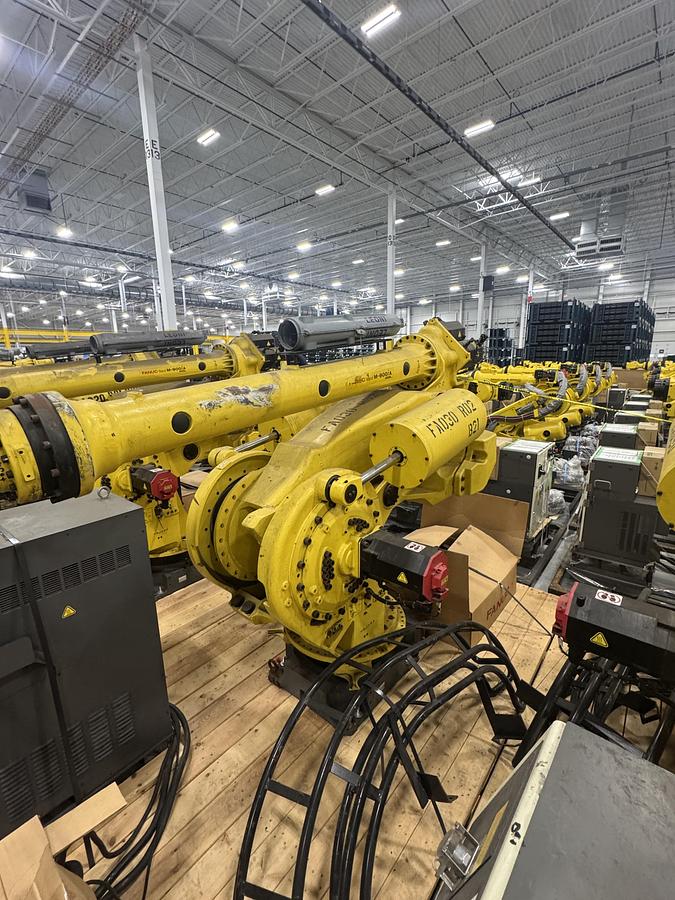

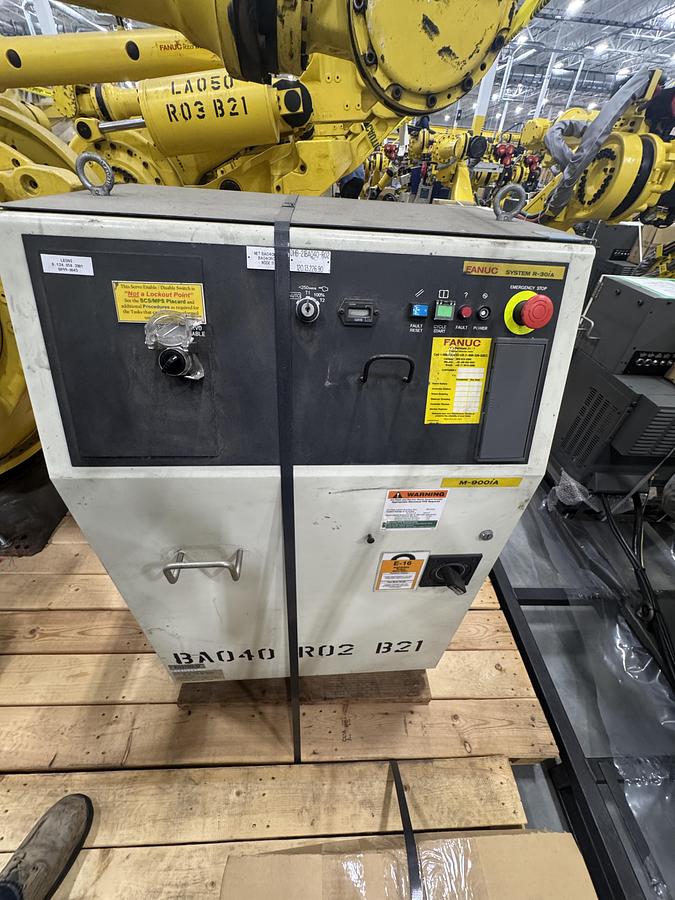

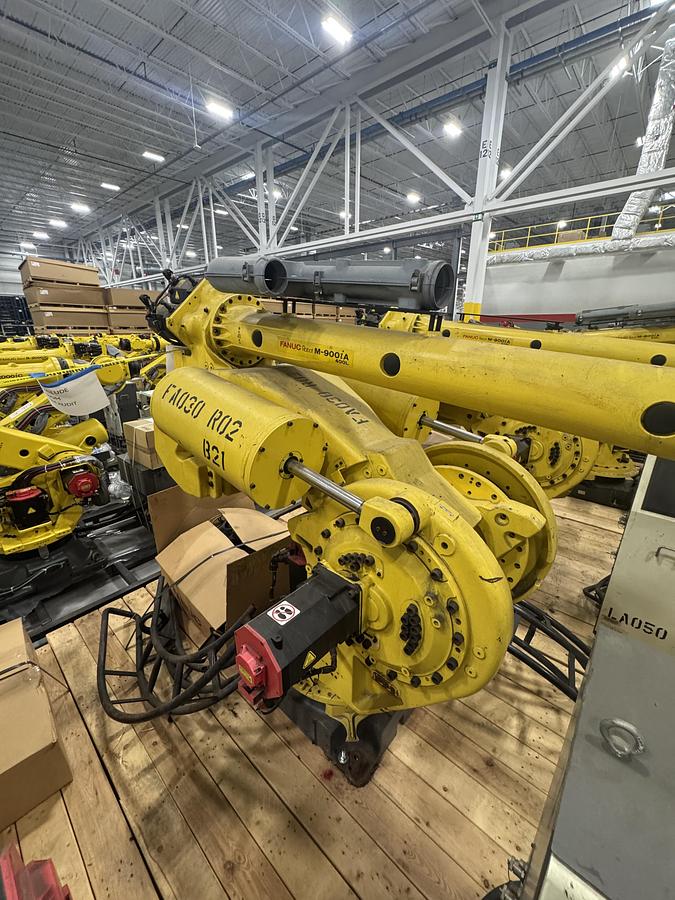

The 2014 FANUC M-900iA/400L is a high-payload, long-reach six-axis articulated industrial robot designed for heavy material handling, part transfer, and assembly applications. It features a 400 kg payload capacity and an extensive horizontal reach of 3625 mm. The robot is engineered with a rigid structural design and a parallel link arm to provide high repeatability of ±0.5 mm and exceptional stability. The unit has a total mass of 3150 kg and is designed exclusively for floor mounting. It is equipped with an IP67-rated wrist, allowing for reliable operation in harsh or dirty manufacturing environments. Motion speeds for the axes are 80°/s for J1, J2, and J3, 100°/s for J4 and J5, and 160°/s for J6. The motion range for the axes is J1 ±360°, J2 ±154°, J3 ±160°, J4 ±720°, J5 ±244°, and J6 ±720°. This model is typically paired with the FANUC R-30iA controller and includes a teach pendant and connection cables. Its design features stationary outer arms to simplify hose and cable dress-out, contributing to increased service life and reduced maintenance. The M-900iA/400L is suitable for demanding tasks such as heavy-duty drilling, palletizing, and processing large workpieces.
