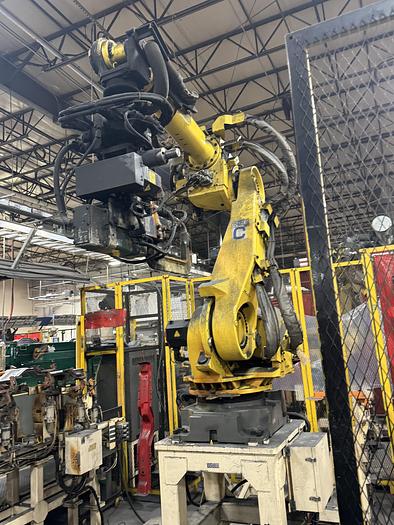

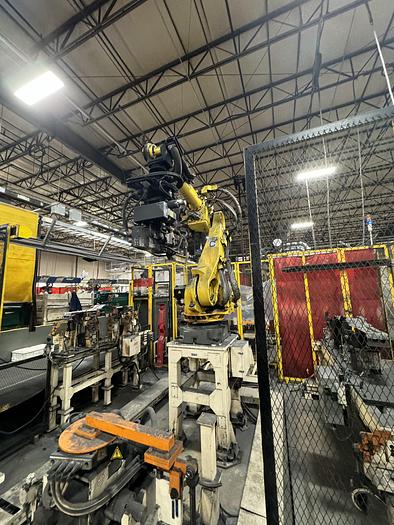

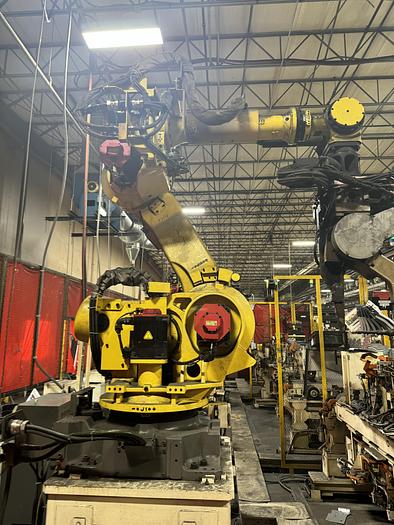

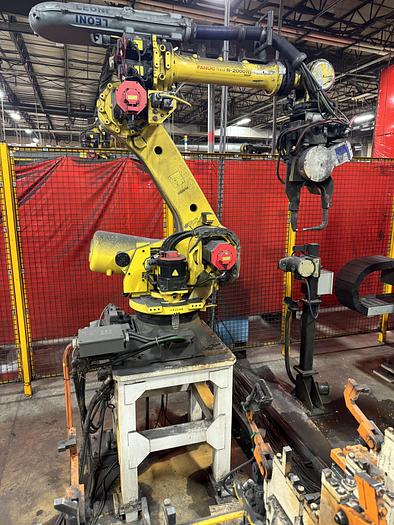

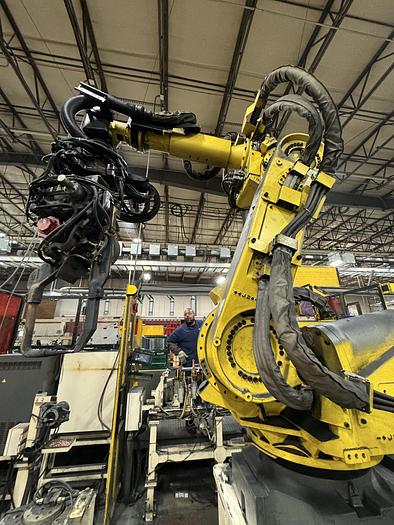

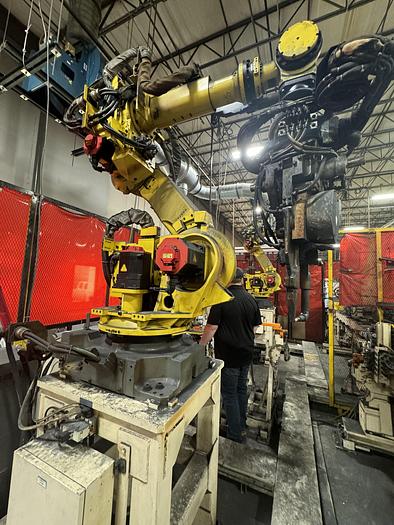

2014 FANUC R-2000iB/165F Articulated Robot, 165kg Payload, 2655mm Reach, R-30iB Control

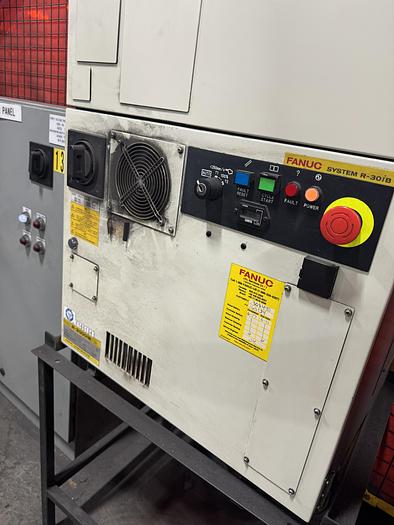

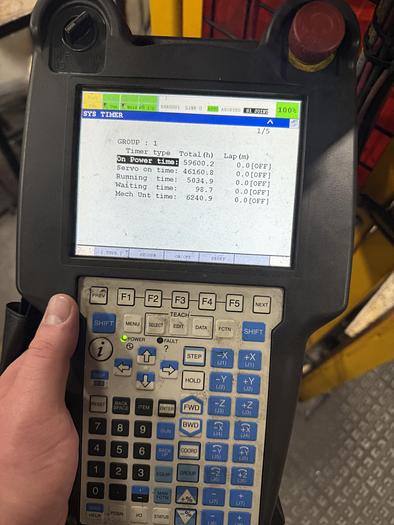

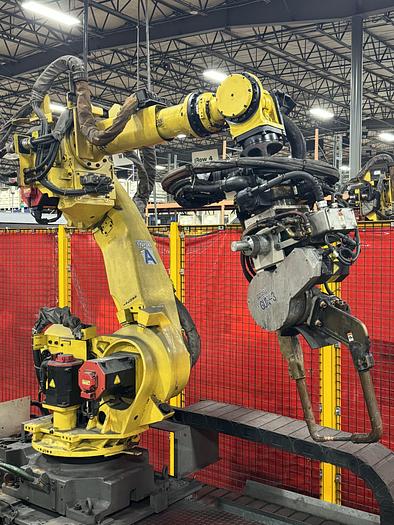

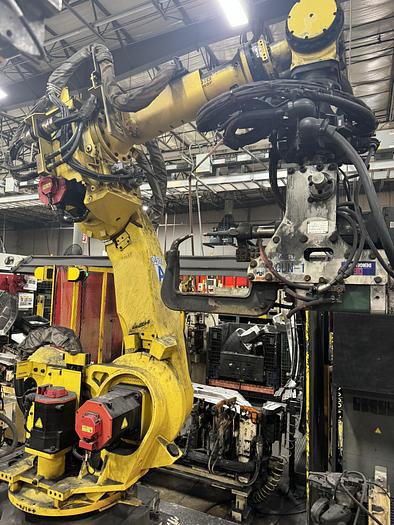

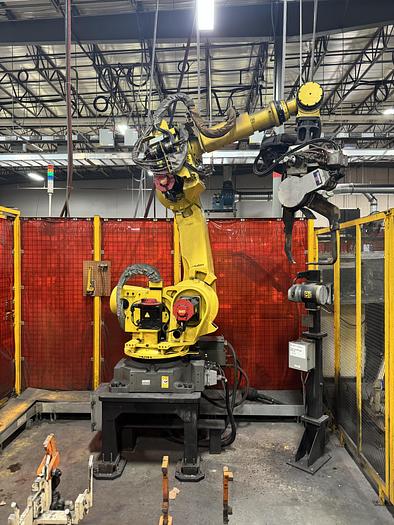

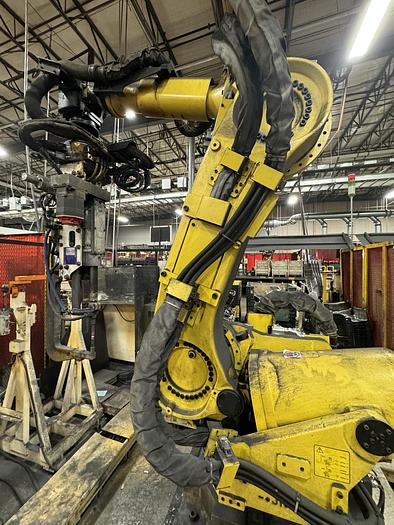

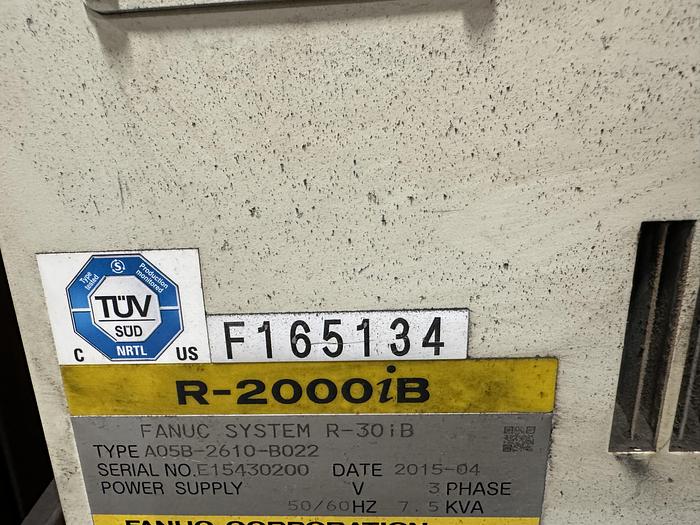

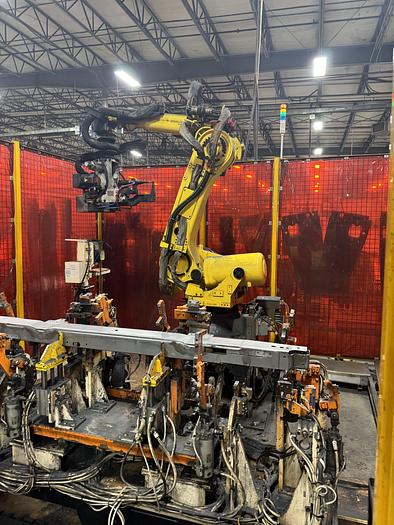

The 2014 FANUC R-2000iB/165F is a six-axis articulated robot designed for high-payload applications such as spot welding, material handling, dispensing, assembly, and machine tending. It features a 165 kg payload capacity, a horizontal reach of 2655 mm, and a repeatability of ±0.2 mm. The robot has a mass of 1170 kg and is designed for floor mounting. It utilizes slim arm and wrist assemblies to operate effectively in confined spaces. Axis motion speeds are 110°/s for J1, J2, and J3, 150°/s for J4 and J5, and 220°/s for J6. The motion range for the axes is J1 ±180°, J2 +75°/-60°, J3 +230°/-132°, J4 ±360°, J5 ±125°, and J6 ±360°. This system is equipped with a FANUC R-30iB controller, a color teach pendant, and connection cables.
